D -S
U B
M I N I AT U R E
C
O N N E C T O R S
ACCESSORIES
S TA N D A R D D E N S I T Y
S U R FA C E M O U N T R E C E P TA C L E S
HIGH DENSITY
GENERAL DESCRIPTION:
Amphenol’s line of D-Subminiature rack and panel connectors is part of an industry standard for applications requiring reliable,
rugged, connectors. These connectors are designed to accommodate rack and panel, cable to panel and cable to cable applications.
D-Subminiature connectors are pin and socket devices that employ contacts encased in a molded dielectric insert surrounded by a
"D" shaped shell for polarization.
MARKETS:
Amphenol D-Subminiature connectors can be used in commercial, industrial or military markets. We offer a broad selection of
dielectric materials and contact styles and configurations to meet all of your design requirements.
APPLICATIONS INCLUDE:
•
•
•
•
•
•
AMPHENOL D-SUB FEATURES:
•
•
•
Industry standard interfacing RS232 and RS449 mating
configurations per EIA standards.
UL Component Recognition File number E64911
(617, 841, 17, 17D, 17HD, ED, 17RR, 17SD, 117DF, 17BH, 17TW
Variations available:
Solder cup
Straight pc mount solder
Right angle pc mount solder
Solderless wire wrap
Crimp
High Density Right Angle
High Density Straight
Stacked Right Angle PC mount
Surface mount
Five shell sizes offer widest choice of contact positions:
9, 15, 25, 37 and 50 in standard density and 15, 26, 44, 62
and 78 positions in high-density.
Inserts are flame-retardant thermoplastic.
Accessories for all applications are available including strain
reliefs, cable clamps, shielded backshells, mating hardware
and connector to pc board mounting hardware.
Automatic and manual tooling is available for both crimp and IDC versions.
Contact Amphenol for lease information.
Business equipment
Electronic office systems
Data communications
Medical equipment
Mobile communications
Consumer electronics
•
•
•
•
•
Dimensions and characteristics are subject to change without notice.
High Density
S
PECIFICATIONS
:
M
ATERIALS
Shells
Contact Material
Contact Plating
Termination End
Nickel Underplate
AND
17E BH/HD S
ERIES
P
LATINGS
Steel, tin plated,
grounding indents on plug.
Copper alloy
Engagement area: gold
(see ordering information).
150µ" (3.81µm) tin/lead
50µ" (1.27µm) entire contact
E
LECTRICAL
D
ATA
Current Rating
Voltage Rating
Dielectric Withstanding Voltage
Dielectric
Insulation Resistance
Contact Resistance
3 Amps maximum per contact
125 VAC
1000 VAC (minimum)
Glass filled thermoplastic,
black, UL 94 VO
5,000 Megaohms (minimum)
15 Milliohms (maximum)
Amphenol’s High Density
D-Subminiature connectors
compleme nt Amphenol’s extensive
D-Subminiature connector line.
This line of connectors offers many
superior features, high performance
level and low installation cost.
The connector configurations
are available in 15, 26, 44, 62
and 78 positions.
The product offering includes PCB
mount connectors in both straight
or right angle termination styles.
Straight PCB mount are available in
both Fixed Screw Machine and
Stamped and Formed contacts,
while Right Angle PCB mount are
only available with Stamped and
Formed contacts.
A cable mount version with solder
terminations is also available, which
can be combined with Amphenol’s
standard line of shielded or
unshielded backshells.
C
LIMATIC
D
ATA
Operating Temperature
-67°F (-55°C) to 221°F (105°C)
I
NCHES
(
MM
)
2
T
ELEPHONE
: (416) 754-5656 F
AX
: (416) 754-8668
E-M
AIL
:
• Industrial
• Telecom
• Any industry standard
I / O connections
SALES
@
AMPHENOLCANADA
.
COM
17E BH/HD S
ERIES

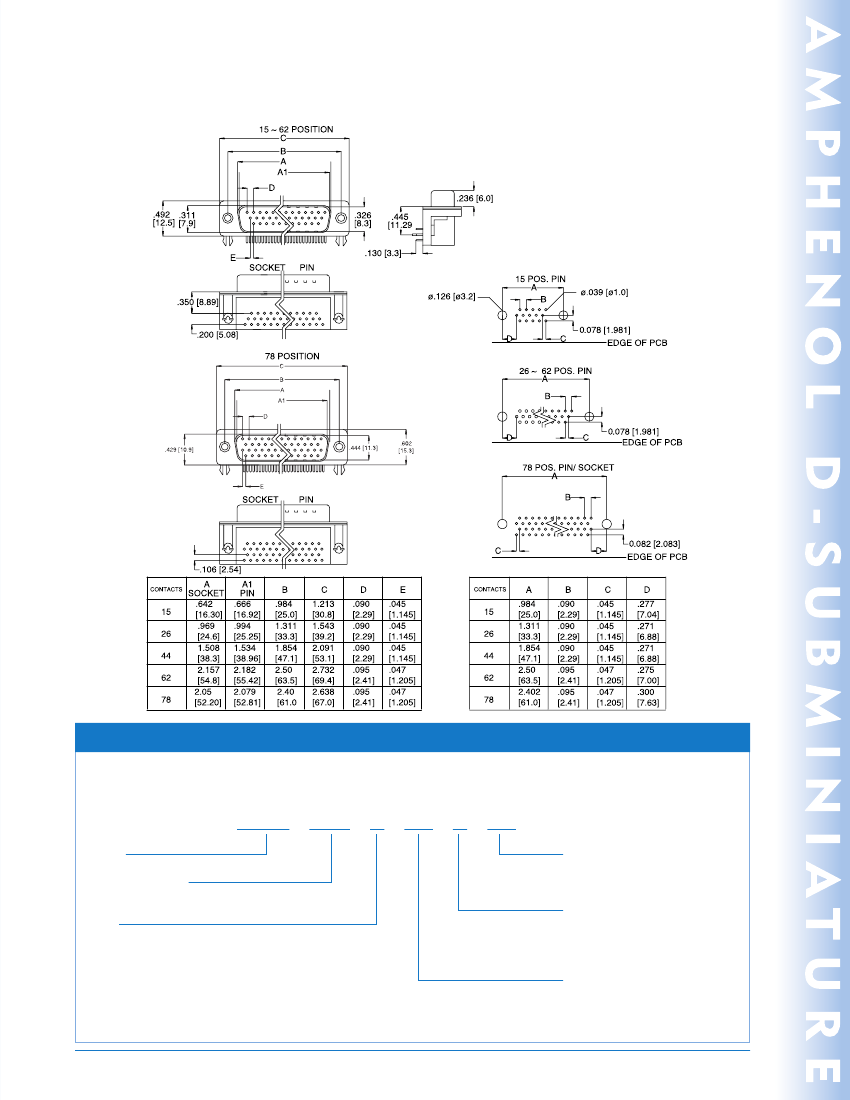

High Density / Right Angle, PC Mount
Front Metal Shell, .350 (8.89) Footprint / Fixed Contact
DIMENSIONS FOR 15 - 62 POSITION (3 ROW)(SHOWN WITH FIXED FEMALE SCREWLOCKS) DIMENSIONS FOR THE 78 POSITION (4 ROW)
O
RDERING
I
NFORMATION
17
E
BH Series High Density D-Sub
Front Metal Shell, Right-Angle PC Mount
17
E
BH 0XX
-
X
-
XX
-
X
-
XX
Series
Number Of Positions
15, 26, 44, 62, 78
Type
P
S
PCB Mount Options
00
Clear hole
10
Arrowhead Board
Panel Mounting Options
0
.120 (3.05) Clear Hole
1
#4-40 Threaded Hole
2
#4-40 Fixed Female Screw
Plating Code
AA
Gold Flash over Nickel
AM
30µ" (.76µm) Gold over Nickel
Pin (male)
Socket (female)
T
ELEPHONE
: (416) 754-5656 F
AX
: (416) 754-8668 E-M
AIL
:
SALES
@
AMPHENOLCANADA
.
COM
3
High Density

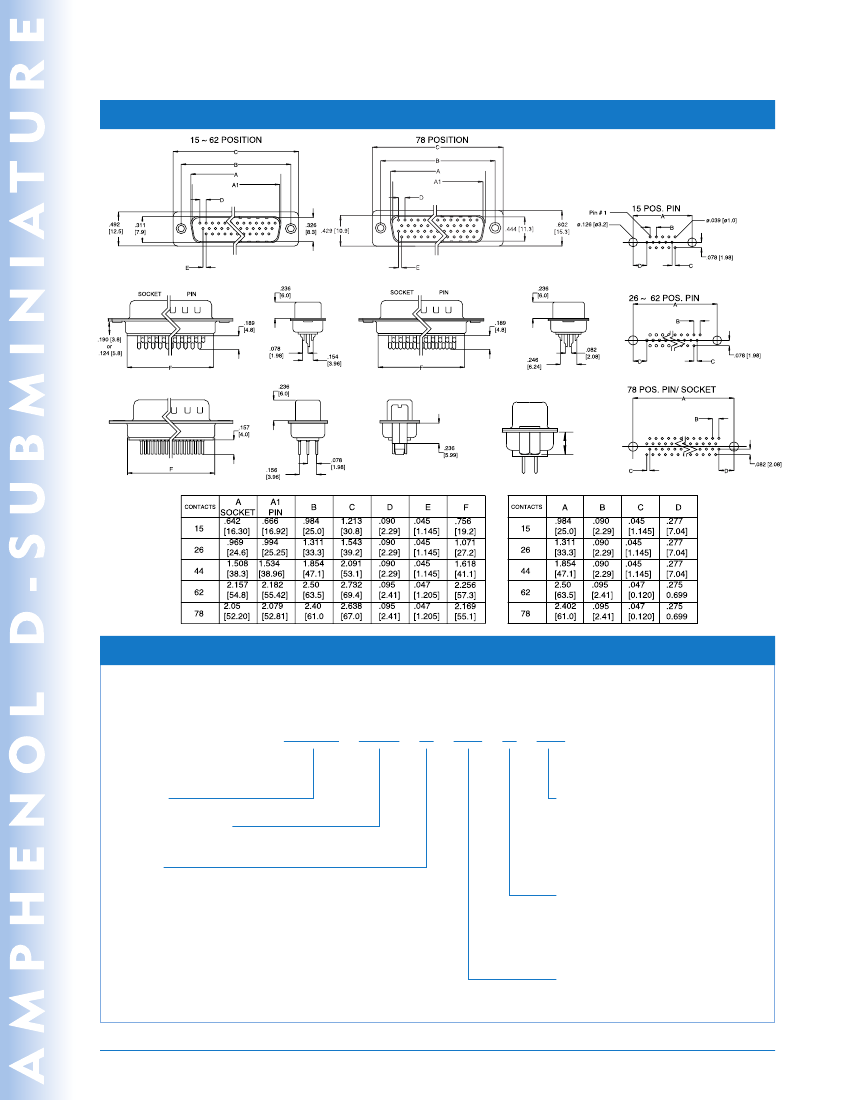

Solder Cup And Straight P Mount / Double Metal Shell Fixed Contact
.C.
17EHD S
ERIES
D
IMENSIONS
Panel Mount Options
(standoff)
1 = .190 (5.8)
3 = .124 (3.8)
O
RDERING
I
NFORMATION
17E HD Series High Density D-Sub
Solder Cup & Straight P.C. Mount, Front Metal Shell Fixed Contact
17
E
HD 0XX
-
X
-
XX
-
X
-
XX
Series
Number Of Positions
15, 26, 44, 62 ,78
Type
P
S
Termination Types:
00
Solder Cup
30
Board-mount, Vertical
32
Board-mount, Vertical with Boardlocks
33
Board-mount, Vertical with standoff,
no boardlock
Panel Mounting Options:
0
.120 (3.05) Clear Hole
1
#4-40 Threaded Hole .190 (5.8)
2
#4-40 Fixed Female Screwlock
3
#4-40 Threaded Hole .124 (3.8)
Plating Code:
AA
Gold Flash over Nickel
AM
30µ" (.76µm) Gold over Nickel
Pin (male)
Socket (female)
I
NCHES
(
MM
)
4
T
ELEPHONE
: (416) 754-5656 F
AX
: (416) 754-8668 E-M
AIL
:
SALES
@
AMPHENOLCANADA
.
COM
