ME03-L48-32S-M4T2-A1 datasheet, PDF

Datasheet> All Categories > The connector> The connector> ME03-L48-32S-M4T2-A1

ME03-L48-32S-M4T2-A1: DescriptionBoard Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, White Insulator, Plug; CategoryThe connector The connector; File Size484KB，5 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric Compare View All

ME03-L48-32S-M4T2-A1 Overview

Board Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, White Insulator, Plug

ME03-L48-32S-M4T2-A1 Parametric

Parameter Name	Attribute value
Maker	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown
Board mount options	HOLE .099-.111
body width	0.413 inch
subject depth	0.453 inch
body length	2.124 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	LIF N
Insulation resistance	1000000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	ME03
Plug contact pitch	0.1 inch
Match contact row spacing	0.2 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.15 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32
Base Number Matches	1

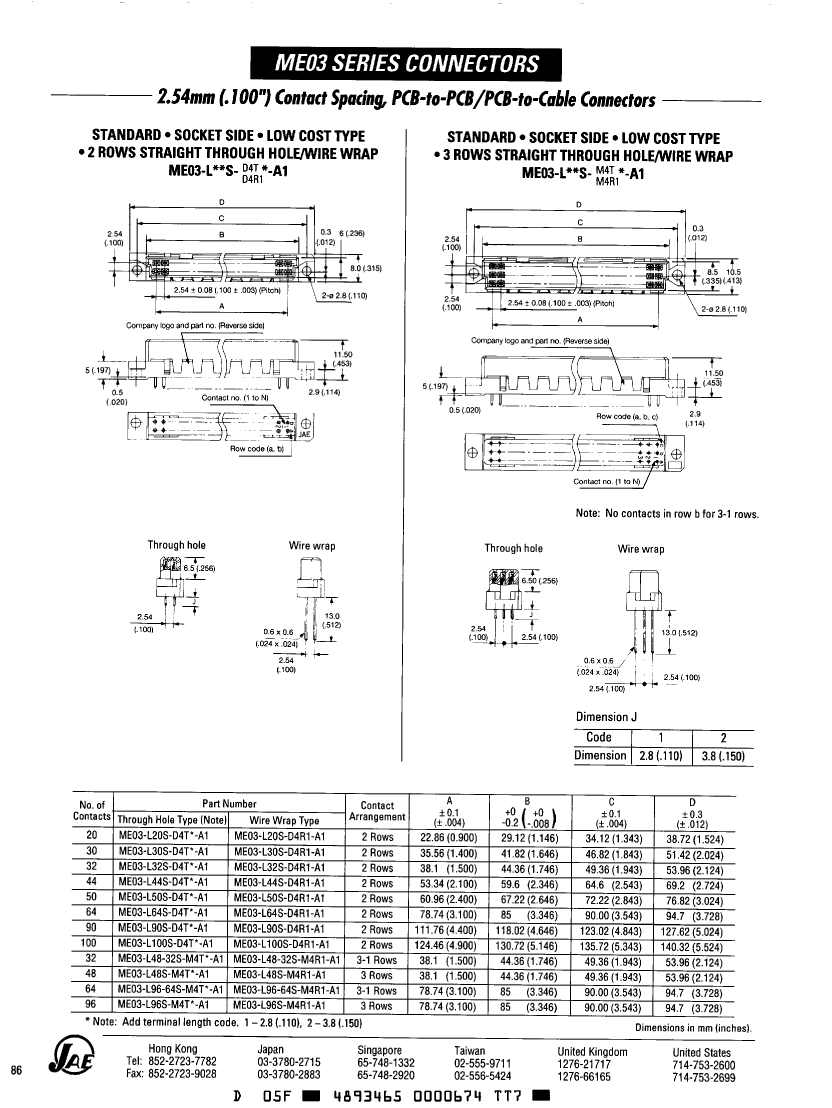

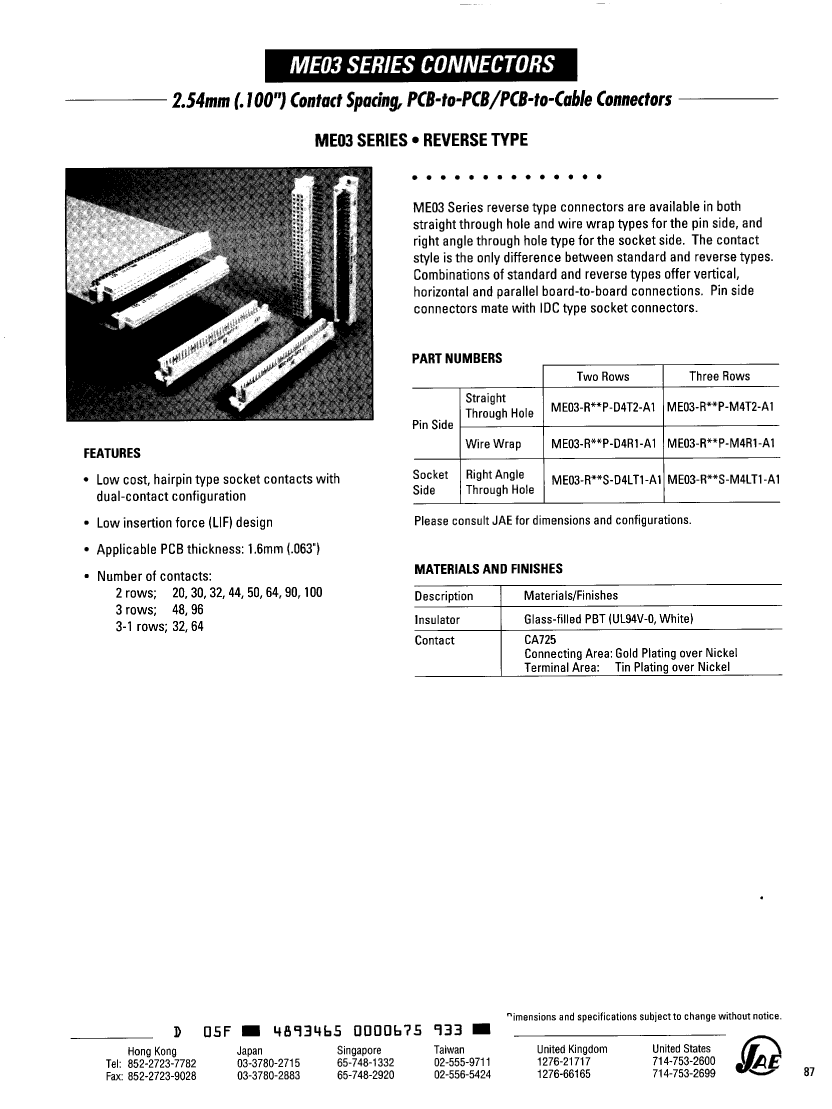

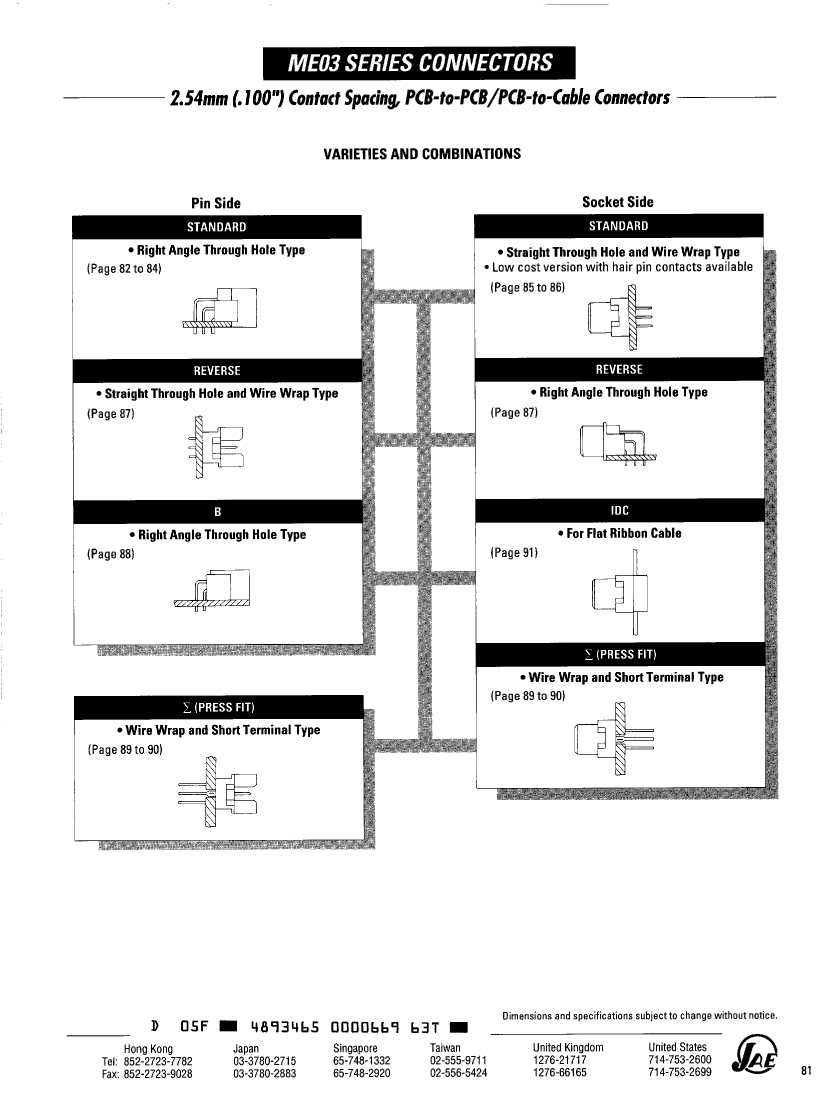

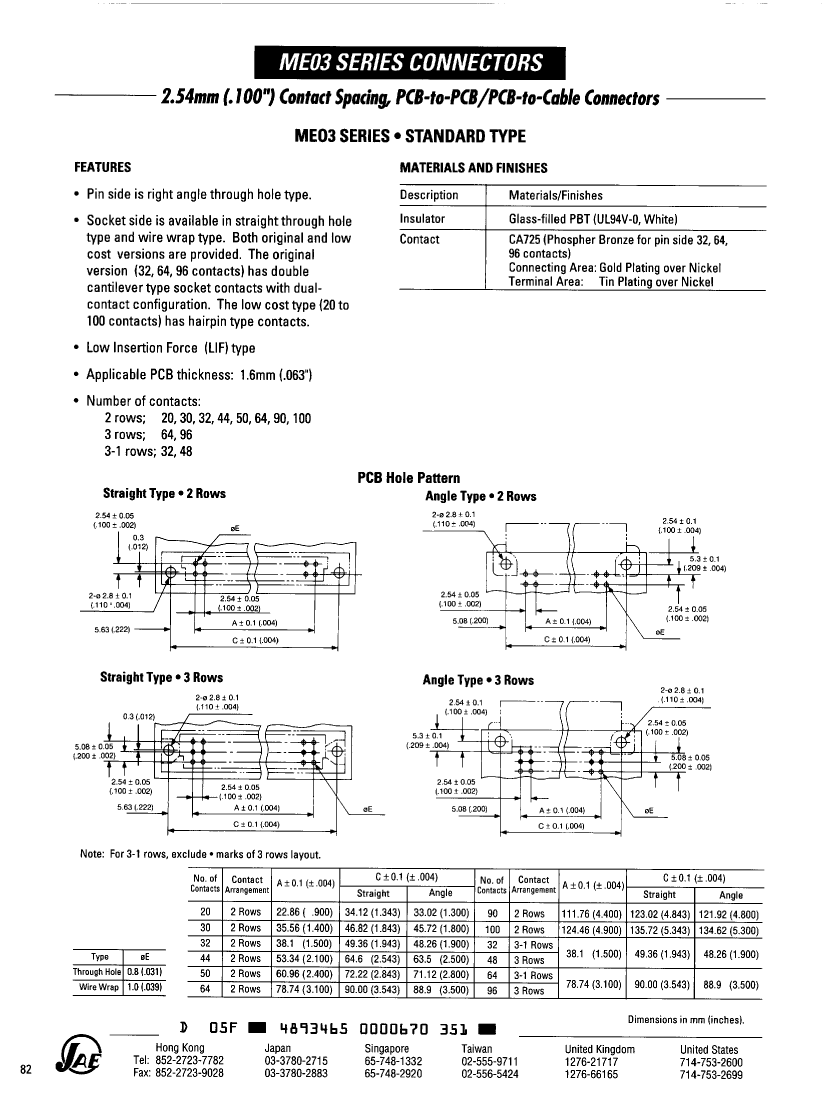

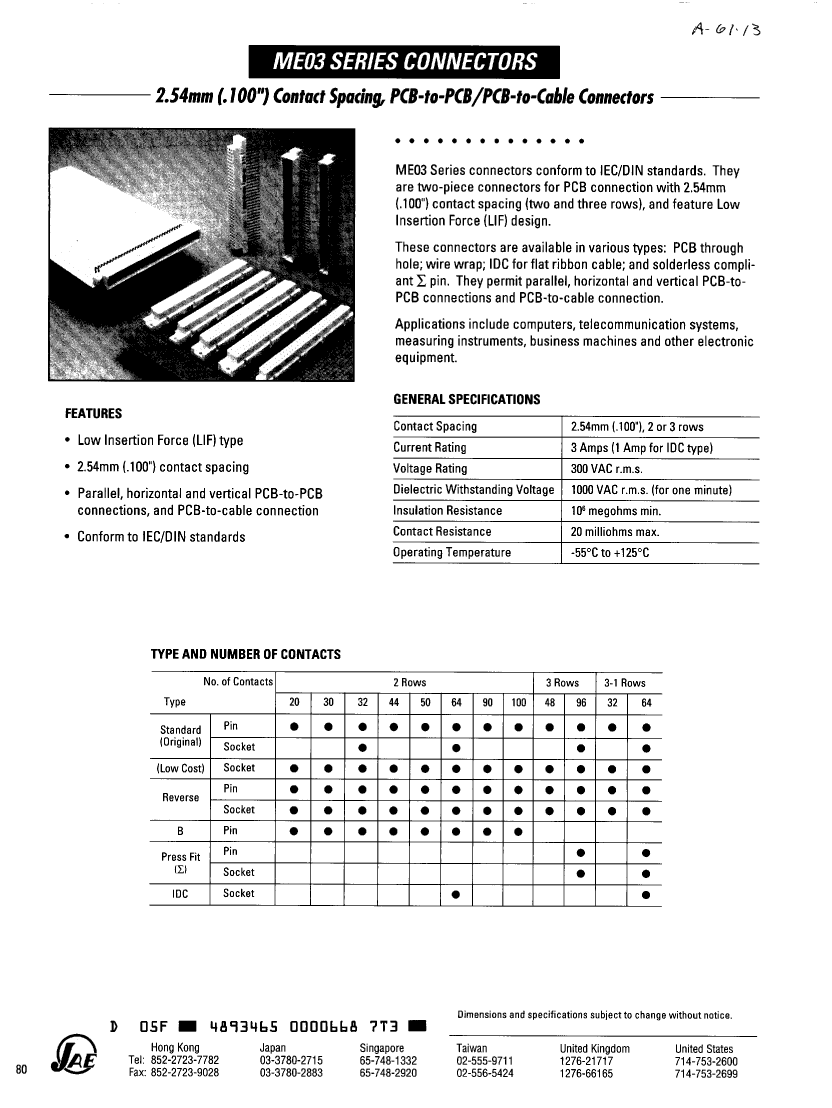

Preview

Download Datasheet

View All

ME03-L48-32S-M4T2-A1 Related Products

	ME03-L48-32S-M4T2-A1	ME03-L100S-D4T2-A1	ME03-L100S-D4T1-A1	ME03-L48S-M4R1-A1	ME03-L48S-M4T2-A1	ME03-L48S-M4T1-A1	ME03-L48-32S-M4T1-A1	ME03-L48-32S-M4R1-A1
Description	Board Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, White Insulator, Plug	Board Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, White Insulator, Plug	Board Connector, 100 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, White Insulator, Plug	Board Connector, 48 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, White Insulator, Plug	Board Connector, 48 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, White Insulator, Plug	Board Connector, 48 Contact(s), 3 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, White Insulator, Plug	Board Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, White Insulator, Plug	Board Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, White Insulator, Plug
Maker	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Board mount options	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111	HOLE .099-.111
body width	0.413 inch	0.315 inch	0.315 inch	0.413 inch	0.413 inch	0.413 inch	0.413 inch	0.413 inch
subject depth	0.453 inch	0.453 inch	0.453 inch	0.453 inch	0.453 inch	0.453 inch	0.453 inch	0.453 inch
body length	2.124 inch	5.524 inch	5.524 inch	2.124 inch	2.124 inch	2.124 inch	2.124 inch	2.124 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
maximum insertion force	LIF N	LIF N	LIF N	LIF N	LIF N	LIF N	LIF N	LIF N
Insulation resistance	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω
Insulator color	WHITE	WHITE	WHITE	WHITE	WHITE	WHITE	WHITE	WHITE
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	ME03	ME03	ME03	ME03	ME03	ME03	ME03	ME03
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.2 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.2 inch	0.2 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	3	3	3	2	3
Number of rows loaded	2	2	2	3	3	3	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.15 inch	0.15 inch	0.11 inch	0.512 inch	0.15 inch	0.11 inch	0.11 inch	0.512 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	WIRE WRAP	SOLDER	SOLDER	SOLDER	WIRE WRAP
Total number of contacts	32	100	100	48	48	48	32	32
Base Number Matches	1	1	1	1	1	1	1	1
Is it Rohs certified?	-	conform to	conform to	conform to	conform to	conform to	-	-
