Instrument panel and cockpit connectors
Car-radio connectors
DuoTwin / DCS-2

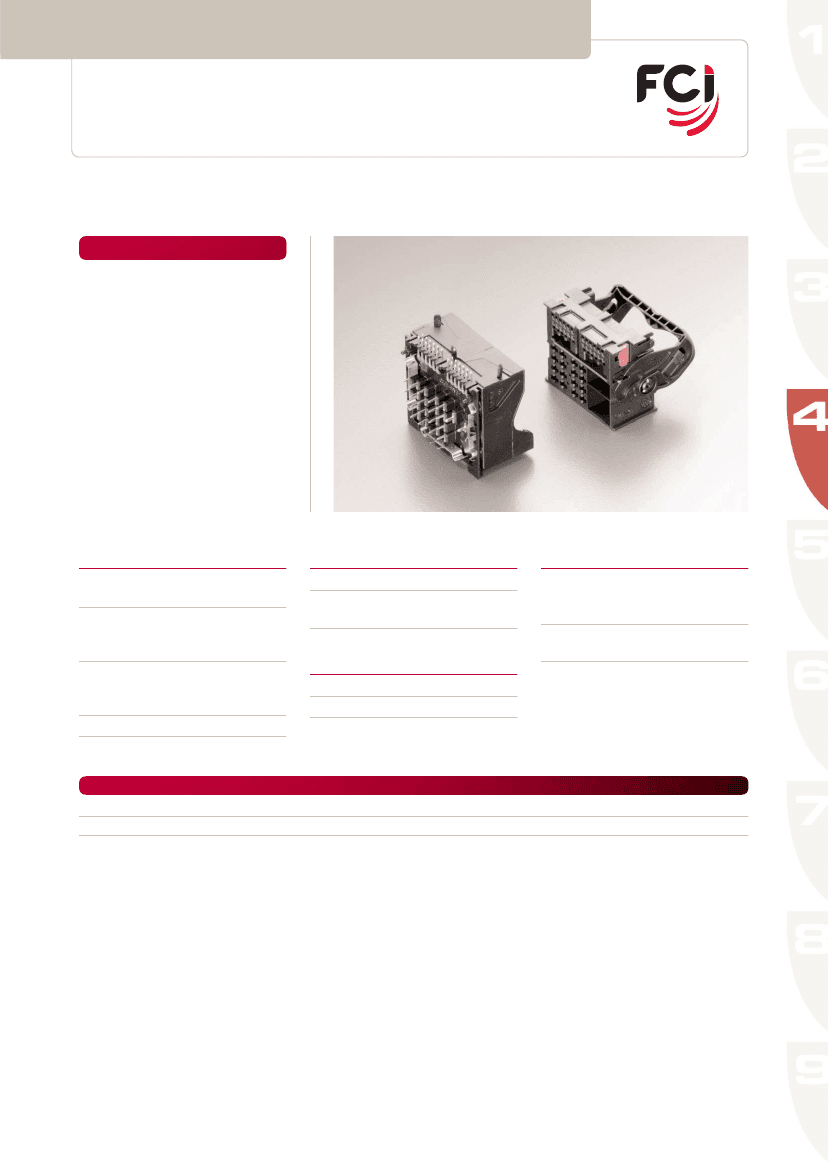

Connector system compatible with MOST Standard for Car-Radio
Features
•
40 position female housing for
0.64 and 2.8 mm terminals with
pre-fixed locking lever
•
Lateral secondary lock for terminal
position assurance (TPA)
•
40 position male interface for
0.64 mm pins and 2.8 x 0.64 mm
tabs
•
Male connector can be equipped
with fibre optic module and Mini
Fuse
Performance characteristics
•
Temperature range:
from -40°C to +85°C
Construction
•
Housing material:
•
Tab material / plating:
CuFe / CuSn / Sn
PBT/PA
Connector compatibility
•
Useable terminals:
- DuoTwin 0.64 mm /
DCS-2 2.8 mm female terminals
•
Contact retention force:
> 50 N for 0.64 mm
> 80 N for 2.8 mm
•
Matable with:
•
Contact insertion force:
< 2 N for 0.64 mm
< 15 N for 2.8 mm
Tooling
•
TPA removal tool:
•
Terminal removal tool:
< 80 N
Consult us
Consult us
Pin 0.64 mm / Tab 2.8 x 0.64 mm
•
Connector mating force:
Part Numbers
3 023 51 01
3 033 19 00
No. of position
40
40
Terminal size
24 x 0.64 + 16 x 2.8mm
24 x 0.64 + 16 x 2.8mm
Type
Female housing
Male Interface
Colour
Black
Black
4.102
Instrument panel and cockpit connectors
Car-radio connectors
DuoTwin / DCS-2
Connector system compatible with MOST Standard for Car-Radio

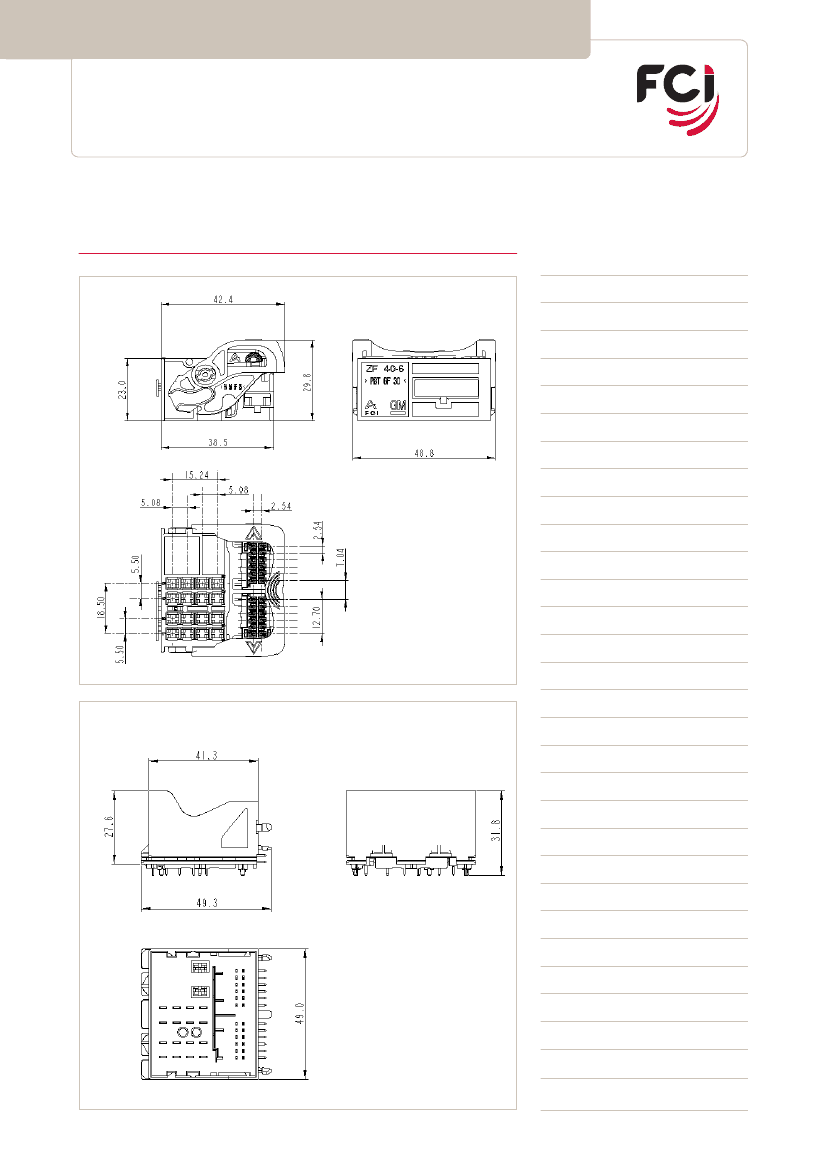

Dimensional characteristics
Notes :
4.103
