SIP2X09-314B datasheet, PDF - EEWORLD Datasheet

SIP2X09-314B: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug,; CategoryThe connector The connector; File Size391KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

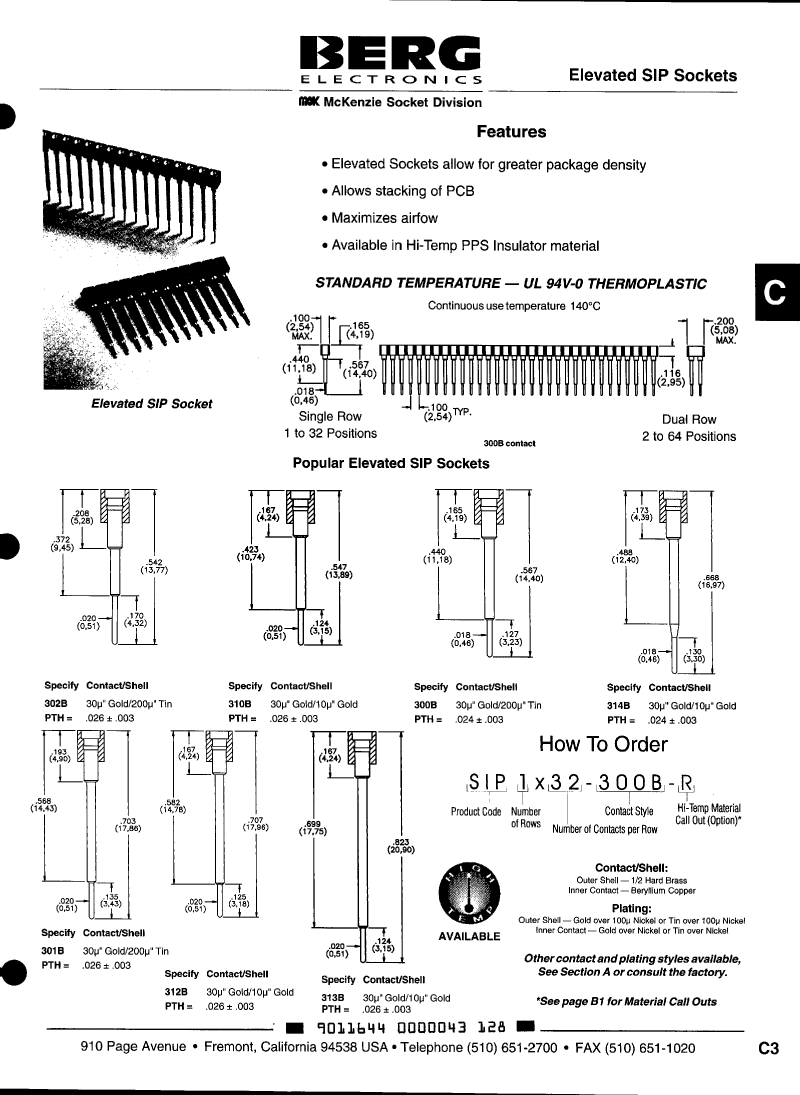

SIP2X09-314B Overview

Board Connector, 18 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug,

Parameter Name	Attribute value
Objectid	301642678
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
body width	0.2 inch
subject depth	0.538 inch
body length	0.9 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE

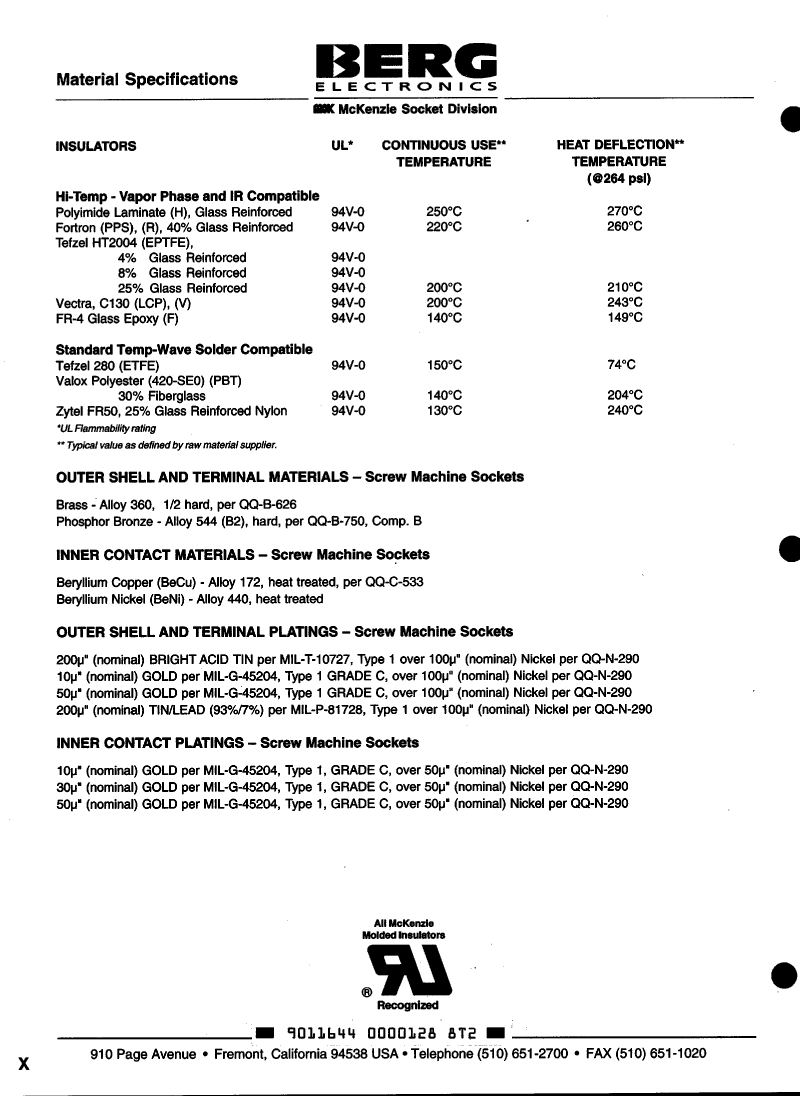

Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR

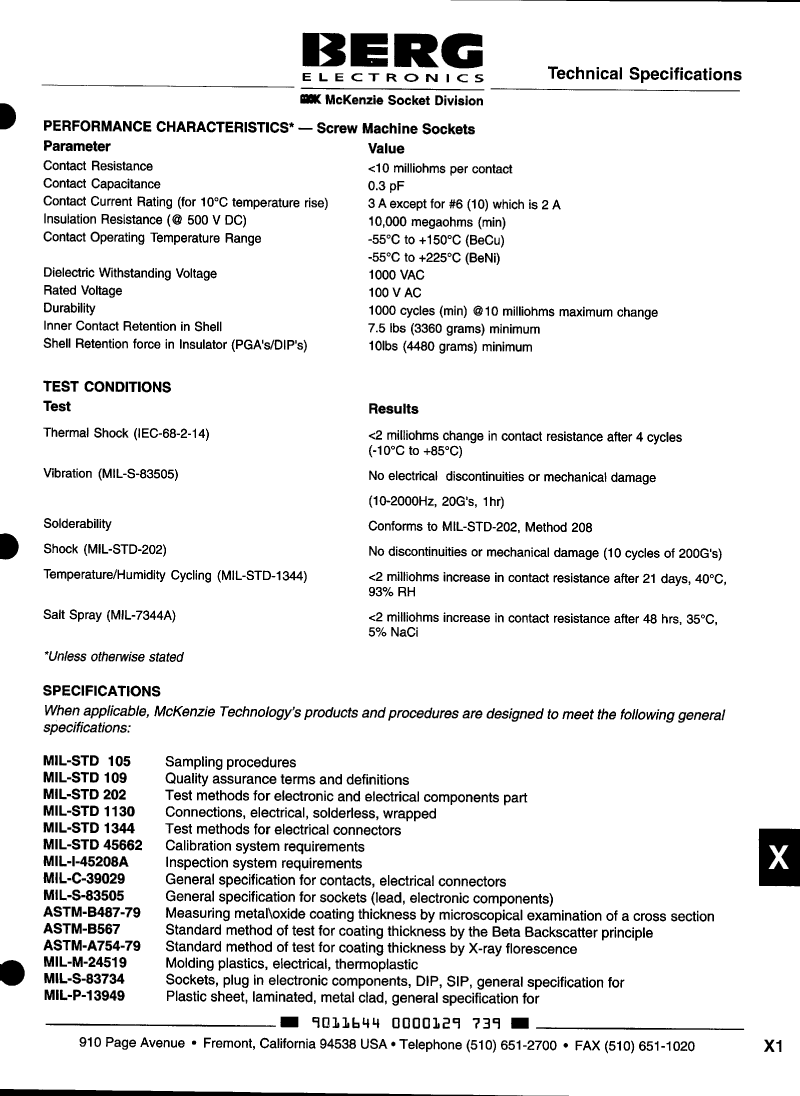

Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	1000 Cycles
Insulation resistance	10000000000 Ω
insulator material	POLYETHYLENE
Manufacturer's serial number	SIP
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	18
