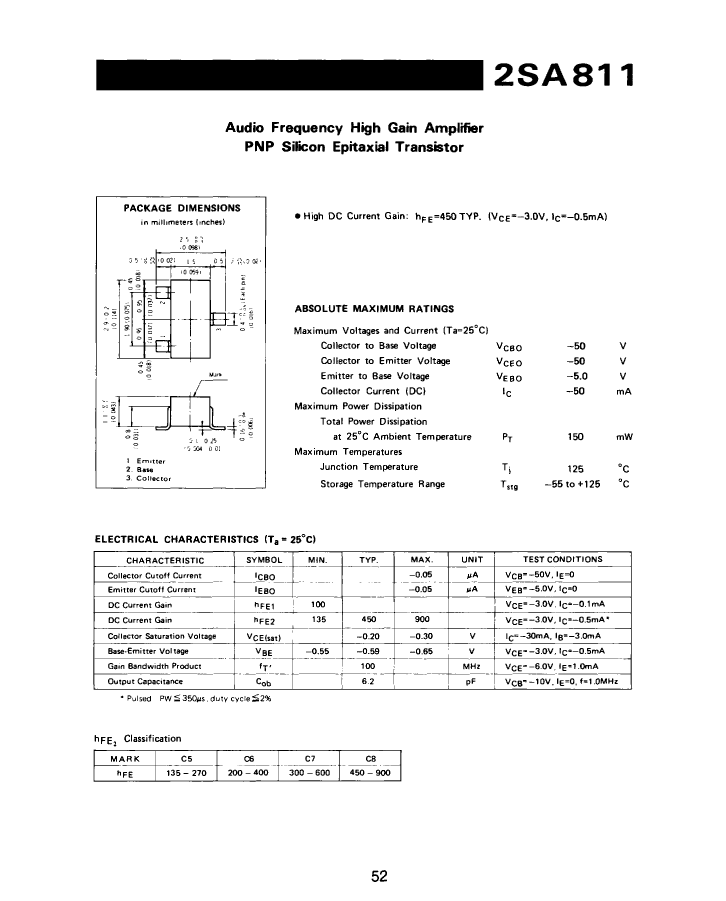

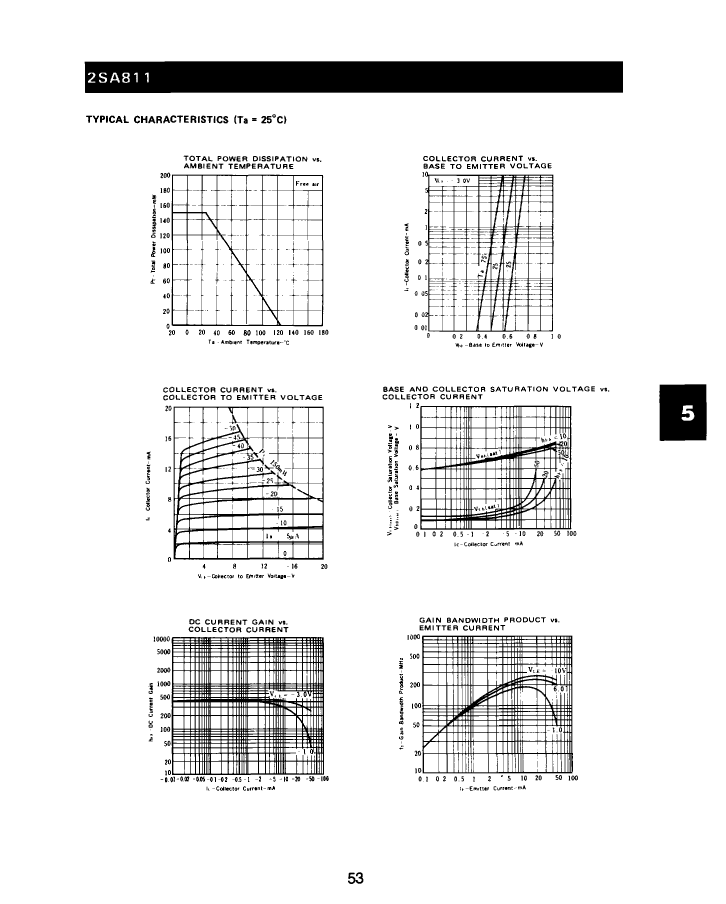

Small Signal Bipolar Transistor, 0.05A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, MINIMOLD PACKAGE-3
| Parameter Name | Attribute value |
| Maker | NEC Electronics |
| package instruction | PLASTIC, MINIMOLD PACKAGE-3 |
| Reach Compliance Code | unknown |
| Maximum collector current (IC) | 0.05 A |
| Collector-emitter maximum voltage | 50 V |
| Configuration | SINGLE |
| Minimum DC current gain (hFE) | 135 |
| JESD-30 code | R-PDSO-G3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 125 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Polarity/channel type | PNP |
| Certification status | Not Qualified |
| surface mount | YES |
| Terminal form | GULL WING |
| Terminal location | DUAL |
| transistor applications | AMPLIFIER |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 100 MHz |
| VCEsat-Max | 0.3 V |
| Base Number Matches | 1 |
| 2SA811 | 2SA811C7-A | S-1000C38-M5T1X | 2SA811C8 | 2SA811C5-A | 2SA811C5 | 2SA811C6-A | 2SA811C7 | 2SA811C6 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Small Signal Bipolar Transistor, 0.05A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, MINIMOLD PACKAGE-3 | Small Signal Bipolar Transistor, 0.05A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, MINIMOLD PACKAGE-3 | ULTRA-SMALL PACKAGE HIGH-PRECISION VOLTAGE DETECTOR | Small Signal Bipolar Transistor, 0.05A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, MINIMOLD PACKAGE-3 | Small Signal Bipolar Transistor, 0.05A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, MINIMOLD PACKAGE-3 | Small Signal Bipolar Transistor, 0.05A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, MINIMOLD PACKAGE-3 | Small Signal Bipolar Transistor, 0.05A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, MINIMOLD PACKAGE-3 | Small Signal Bipolar Transistor, 0.05A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, MINIMOLD PACKAGE-3 | Small Signal Bipolar Transistor, 0.05A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, PLASTIC, MINIMOLD PACKAGE-3 |
| package instruction | PLASTIC, MINIMOLD PACKAGE-3 | SMALL OUTLINE, R-PDSO-G3 | - | PLASTIC, MINIMOLD PACKAGE-3 | SMALL OUTLINE, R-PDSO-G3 | PLASTIC, MINIMOLD PACKAGE-3 | SMALL OUTLINE, R-PDSO-G3 | PLASTIC, MINIMOLD PACKAGE-3 | PLASTIC, MINIMOLD PACKAGE-3 |
| Reach Compliance Code | unknown | compliant | - | compliant | compliant | compliant | compliant | compliant | compliant |
| Maximum collector current (IC) | 0.05 A | 0.05 A | - | 0.05 A | 0.05 A | 0.05 A | 0.05 A | 0.05 A | 0.05 A |
| Collector-emitter maximum voltage | 50 V | 50 V | - | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V |
| Configuration | SINGLE | SINGLE | - | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Minimum DC current gain (hFE) | 135 | 300 | - | 450 | 135 | 135 | 200 | 300 | 200 |
| JESD-30 code | R-PDSO-G3 | R-PDSO-G3 | - | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 | R-PDSO-G3 |
| Number of components | 1 | 1 | - | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | - | 3 | 3 | 3 | 3 | 3 | 3 |
| Maximum operating temperature | 125 °C | - | - | 125 °C | - | 125 °C | - | 125 °C | 125 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | - | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | - | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Polarity/channel type | PNP | PNP | - | PNP | PNP | PNP | PNP | PNP | PNP |
| Certification status | Not Qualified | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | YES | YES | - | YES | YES | YES | YES | YES | YES |
| Terminal form | GULL WING | GULL WING | - | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal location | DUAL | DUAL | - | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| transistor applications | AMPLIFIER | AMPLIFIER | - | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER | AMPLIFIER |
| Transistor component materials | SILICON | SILICON | - | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Nominal transition frequency (fT) | 100 MHz | 100 MHz | - | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz | 100 MHz |
| VCEsat-Max | 0.3 V | - | - | 0.3 V | - | 0.3 V | - | 0.3 V | 0.3 V |
| Base Number Matches | 1 | 1 | - | 1 | 1 | 1 | 1 | 1 | 1 |
| Is it Rohs certified? | - | conform to | - | incompatible | conform to | incompatible | conform to | incompatible | incompatible |
| Peak Reflow Temperature (Celsius) | - | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Maximum time at peak reflow temperature | - | NOT SPECIFIED | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
