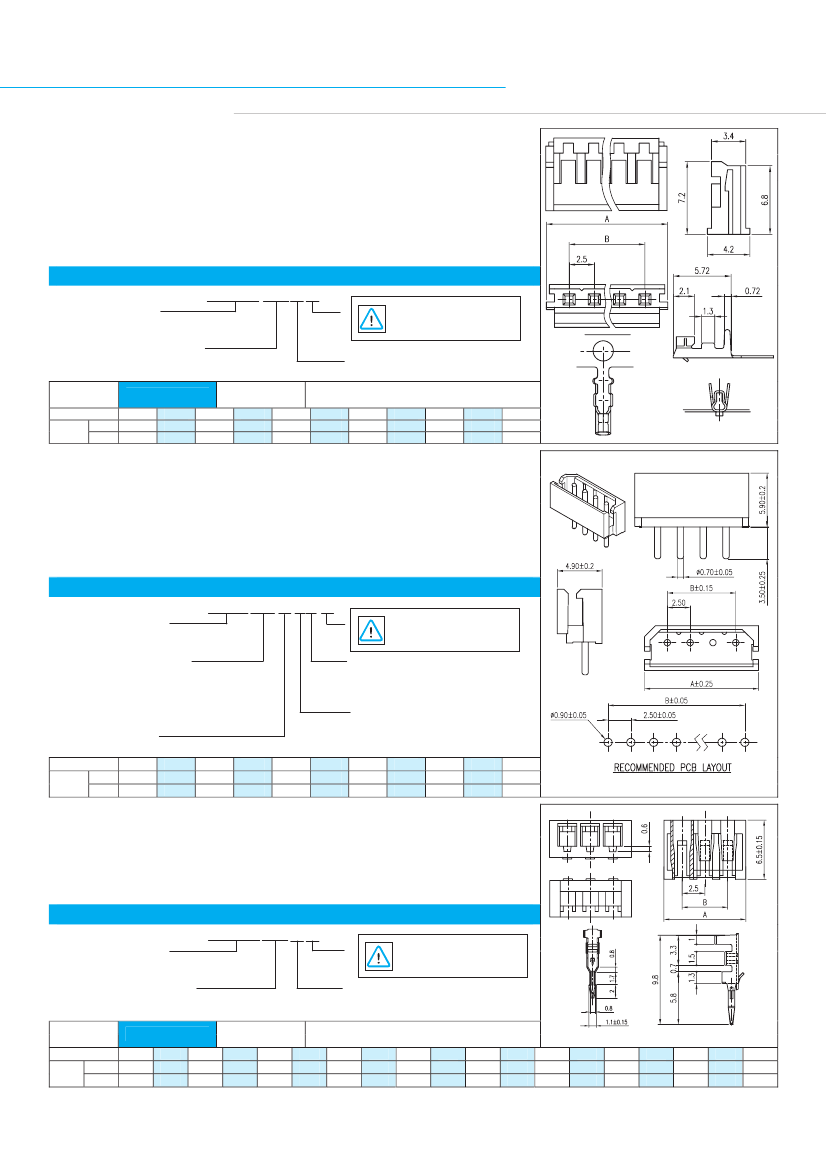

Amphenol
Miniature Box Interconnects
G889H
Materials
Housing
Contacts
Finish
– 94V-0 thermoplastic
– P/B with 50µ” Nickel
– Tin/Lead
40 Cycles
– Page G863 see below
2.5mm Crimp Socket Housing with Lock
Electrical
Current
Voltage
Auto-termination
– 3A
– 250 Vac/rms 60Hz
– Consult representative
Compact economical 2 piece Board to Wire connector system.
Related Information
Mating Half
Headers
Part Number System:
G889H XX X X
2.5mm Housing
Crimp Socket type
NUMBER OF POSITIONS
02 to 12 Positions
Suffix may be added to Part Number.
This Suffix is for Internal use mainly.
Additional Suffix ‘EU’ or ‘LF’ may be
added for RoHS compliant product.
COLOUR OF INSULATOR
1: White
2: Black
G889C024
5
14.5
10.0
6
17.0
12.5
Tin/Lead Finish, Left Hand Feed, 10K Reel
7
19.5
15.0
8
22.0
17.5
9
24.5
20.0
10
27.0
22.5
11
29.5
25.0
12
32.0
27.5
Dimensions in mm
Contacts
22~28AWG
Positions
A
Dim
B
Part Number:
2
7.0
2.5
3
9.5
5.0
4
12.0
7.5
PNS-889HC Rev. A/SKT-G889HCXX-16 Rev. A
G863
2.5mm Box Headers for G889
G863 headers are shrouded and polarized. Part of a 2 piece Board to Wire connector system.
Materials
Contacts
– P/B with 50µ” Ni
– 3A
– 250VAC/RMS 60Hz
Durability
100µ” Tin/lead
Mating Half
– 40 cycles
– G889H See above
Electrical
Current
Voltage
Related Information
Part Number System:
G863 XX X XX X
2.5mm BOX HEADER
Single Row
NUMBER OF POSITIONS
02: 2 Position
03: 3 Position
:
12: 12 Position
CONTACT FINISH
1: 100µ” Tin/lead
Positions
A
Dim
B
2
7.0
2.5
3
9.5
5.0
4
12.0
7.5
5
14.5
10.0
6
17.0
12.5
7
19.5
15.0
Suffix may be added to Part Number.
This Suffix is for Internal use mainly.
Additional Suffix ‘EU’ or ‘LF’ may be
added for RoHS compliant product.
COLOUR OF INSULATOR
1: White
2: Black
MOUNTING STYLE
1: Straight
2: Right Angle
8
22.0
17.5
9
24.5
20.0
10
27.0
22.5
11
29.5
25.0
12
32.0
27.5
Dimensions in mm
PHD-G863XX111Y-15 Rev. A
G882H
Materials
Housing
Contacts
Finish
2.5mm Crimp 1 Pieces Board-in B2W Connector
Electrical
– 94V-0 thermoplastic
– P/B with 50µ” Nickel
– 100µ” Tin/Lead
Current
Voltage
Auto-termination
– 3A
– 250VRMS
– Consult representative
Related Information
Part Number System:
G882H XX X X
2.5mm Housing
Board-in Crimp type
NUMBER OF POSITIONS
02 to 20 Positions
Suffix may be added to Part Number.
This Suffix is for Internal use mainly.
Additional Suffix ‘EU’ or ‘LF’ may be
added for RoHS compliant product.
COLOUR OF INSULATOR
1: White
2: Black
G882C023
5
14.0
10.0
6
16.5
12.5
Tin/Lead Finish, Left Hand Feed, 5K Reel
7
19.0
15.0
8
21.5
17.5
9
24.0
20.0
10
26.5
22.5
11
29.0
25.0
12
31.5
27.5
13
34.0
30.0
Dimensions in mm
Contacts
22~28AWG
Positions
A
Dim
B
AMTA
Part Number:
2
6.5
2.5
3
9.0
5.0
4
11.5
7.5
PNS-8820 Rev. A/SKT-G882HCXX-16 Rev. A
14
36.5
32.5
15
39.0
35.0
16
41.5
37.5
17
44.0
40.0
18
46.5
42.5
19
49.0
45.0
20
51.5
47.5
G-16
