Quadrax Contacts
MIL-DTL-38999, Series III, General Description
AMPHENOL QUADRAX CONTACTS
Offers several advantages for high data transfer rates, low power consumption,
and excellent EMI compatibility. Four strategically spaced inner contacts form
two 100 or 150 Ohm matched impedance differential pairs. The Outer contact
has a rugged wall section for durability. Available in size 8 crimp termination
style. Also available in size 8 with PC tails (see pages 22-23). Requires
modification of MIL-DTL-38999 connector to accommodate keyed contacts.

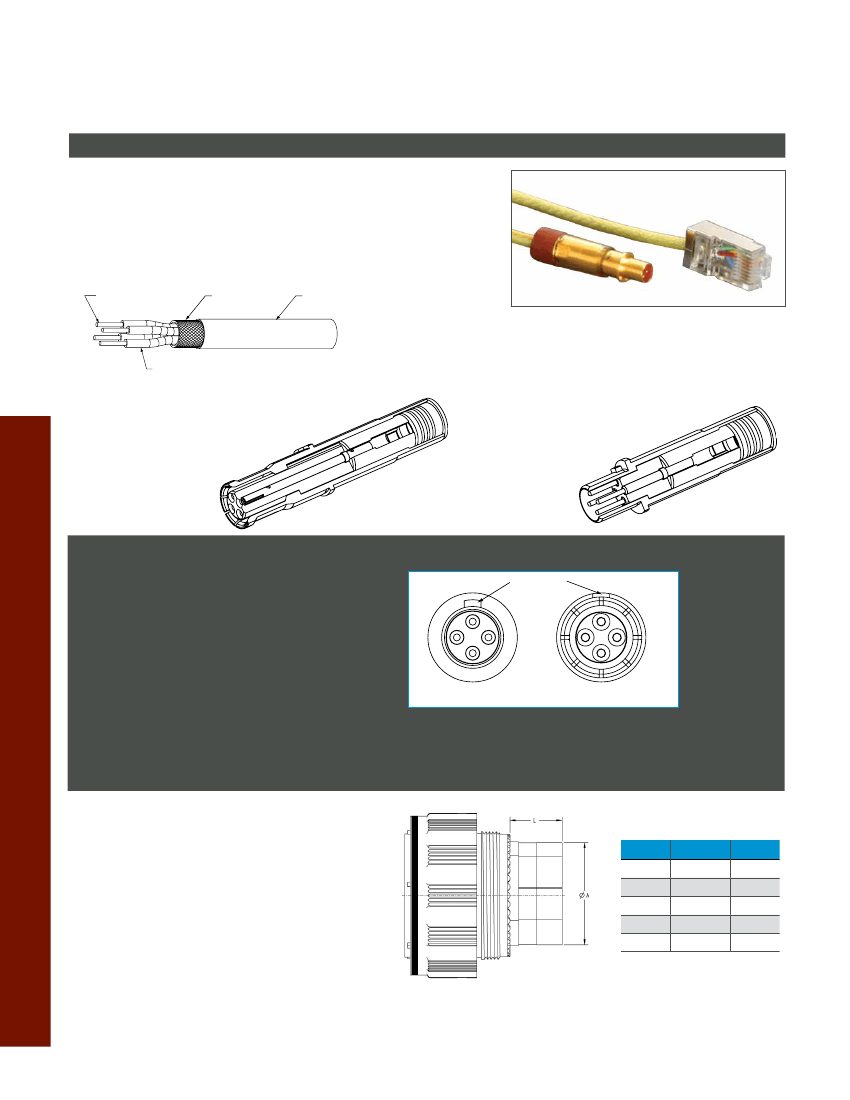

CABLE ILLUSTRATION - QUADRAX CONTACT
Contacts
(4) CENTER
CONDUCTORS
BRAID
JACKET
Quadrax Pin with 8P8C “RJ45” Jack
INSULATION
Quadrax, Differential Twinax
TYPICAL QUADRAX
SOCKET CONTACT
Has socket outer
contact with
a socket
inner contact
TYPICAL QUADRAX
PIN CONTACT
Has pin outer
contact
with a pin
inner contact
QUADRAX CONTACTS ARE GOLD
PLATED, CRIMP TERMINATION
Suggested Numbering for Quadrax Contacts
ORIENTATION
KEY
Finish of mating contact parts: supplied with
0.000050 min. gold over nickel on
mating interface.
4
1
2
1
QUADRAX SIZE 8 CONTACT
PERFORMANCE:
Bandwidth:
Data Rate:
Voltage Rating:
3
2
3
4
Up to 1.25 GHz
Exceeding 2.5 Gbps.
500 Vrms max. @ sea
level
Dielectric Withstanding Voltage:
1000 VAC rms between all inner contacts
@ sea level, 500 VAC rms between inner
and outer contacts @ sea level
PIN CONTACT
MATING FACE
SOCKET CONTACT
MATING FACE
Differential Pairs, contacts 1-3, 2-4.
Quadrax differential pairs are 1 and 3, 2 and 4.
See page 19 for part number ordering of popularly used 38999 Series III
connectors with 100 ohm quadrax contacts.
GUIDE FOR SELECTING A BACKSHELL:
See required backshell dimensions to avoid
interference between piggyback grommets
used on size 8 cavities and the backshell.
Size
17
19
21
23
25
A Dia Min
.734
.869
.869
1.088
1.234
L Min
.540
.540
.540
.540
.540
SUGGESTED STRAIN RELIEF - INSERT ARRANGEMENTS 9-5 OR 19-18 WITH QUADRAX CONTACTS
Due to the piggyback grommet interference with normal strain reliefs on the shell size 9 only, the recommended strain relief for the
connector is: Amphenol part number TGW-R-5309-10 (OD Cad) or TGF-R-5309-10 (Electroless nickel)
18
Find Contacts Fast
- Online High-Speed Contacts Guide at www.amphenol-aerospace.com • 800-678-0141
How to Order D38999, Series III Connectors with
Standard 100 Ohm Quadrax Contacts
21-033385-051 Socket
21-033384-051 Pin Contacts*
1.
Connector Type
For all other quadrax contacts or differential twinax contacts, please consult Amphenol Aerospace for part numbers.
2.
Shell Type
3.
Service Class
4.
Shell Size
–
Insert Arrangement
5.
Contact Type
6.
Alternate Keying
Position
TVP
00
RQW
21–75
P
B
Quadrax, Differential Twinax
1. CONNECTOR TYPE
TV
TVP
CTV
CTVP
Tri-Start series connector with metal shells
Back panel mounted receptacle with metal shells
Tri-Start series connector with composite shells
Back panel mounted receptacle with composite shells
6.
Alternate Keying Position
Locksmith keying–rotation of minor keys. See Series III alternate
positions below “N” not required for normal position.
Tri-Start Alternate
Positions
A plug with a given
rotation letter will mate
with a receptacle with the
same rotation letter. The
angles for a given
connector are the same
whether it contains pins or
sockets. Inserts are not
rotated in conjunction with
the master key/keyway.
AR
BSC
BR
BSC
MAIN
KEYWAY
˚
RECEPTACLE
(front face shown)
2. SHELL STYLE
00
02
06
07
Wall mount receptacle
Box mount receptacle available only with the PCB tails
and epoxy backfilled (non-removable)
Straight plug
Jam nut receptacle
˚
CR
BSC
DR
BSC
˚
Connectors
˚
MAIN
KEYWAY
PLUG
(front face shown)
AP
BSC
BP
BSC
˚
˚
CP
BSC
˚
DP
BSC
˚
3. SERVICE CLASS WITH QUADRAX
RQF
RGQF
RQW
RGQW
RQK
RGQK
QDT
GQDT
QDZ
Electroless nickel plated
Electroless nickel plated ground plane
Olive drab cadmium plate
Olive drab cadmium plated ground plane
Corrosion resistance stainless steel
Stainless steel ground plane
Durmalon plated, Nickel-PTFE alternative to cadmium
Groundplane Durmalon
Zinc nickel black conductive
Shell
Size
Key & Keyway
Arrangement
Identification
Letter
AR°
or
AP°
BSC
105
102
80
35
64
91
95
113
90
53
119
51
80
135
49
66
62
79
80
135
49
66
62
79
80
135
49
66
62
79
BR°
or
BP°
BSC
140
132
118
140
155
131
141
156
145
156
146
141
142
170
169
140
145
153
142
170
169
140
145
153
142
170
169
140
145
153
CR°
or
CP°
BSC
215
248
230
205
234
197
208
182
195
220
176
184
196
200
200
200
180
197
196
200
200
200
180
197
188
188
188
188
188
188
DR°
or
DP°
BSC
265
320
312
275
304
240
236
292
252
255
298
242
293
310
244
257
280
272
293
310
244
257
280
272
293
310
244
257
280
272
9
11, 13,
and 15
4.
Select a Shell Size and Insert Arrangement
See insert arrangements available with Quadrax contacts on
pages 11-12. Shell size and insert arrangements are together in
one chart. First number represents shell size, second number
is the insert arrangement.
17 and 19
5. CONTACT TYPE
P
S
Pin contacts
Socket contacts
21, 23,
and 25
* The incorporation of Quadrax or Differential Twinax contacts requires a modified
connector to accommodate keyed contacts.
25L, 33,
and 37
N
A
B
C
D
E
N
A
B
C
D
E
N
A
B
C
D
E
N
A
B
C
D
E
N
A
B
C
D
E
