Power Transformers<SMD Type: CMD Series>
Type: CMD6D11B
◆
Product Description
・7.8×7.0mm
Max.(L×W),1.2mm Max. Height.
・Inductance
range: 4.7½150μH
・Rated
current range: 180mA½1.3A.
・4
Terminal pins’ type gives a flexible design as transformers(SEPIC,ZETA circuit) and inductors.
・In
addition to the standards versions used as power inductors shown here, custom designs as
transformers(SEPIC,ZETA circuit) and inductors are also available.
◆
Feature
・Magnetically
unshielded construction.
・Ideally
used in portable devices such as Mobilephone,DSC/DVC,MP3,PDA, etc as DC-DC
Converter inductors, specially suitable for White LED drive.
・RoHS
Compliance
◆

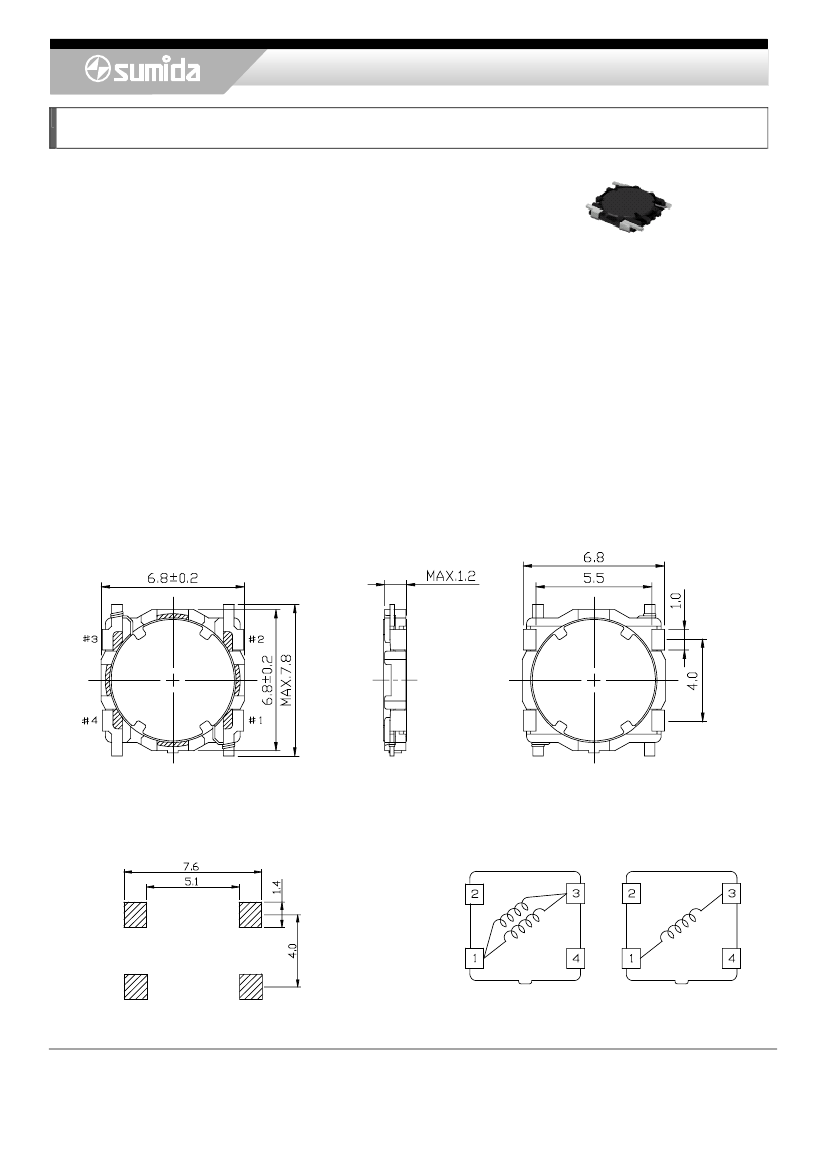

Dimensions (mm)
◆
Land Pattern (mm)
◆
Schematics(Bottom)
（4.7μH ½
15μH）
（22μH ½
150μH）
Please refer to the sales offices on our website for a representative near you
www.sumida.com
1/2
Power Transformers<SMD Type: CMD Series>
Type: CMD6D11B
◆
Specification
Part No.
※
CMD6D11BNP－4R7M□
CMD6D11BNP－6R8M□
CMD6D11BNP－100M□
CMD6D11BNP－150M□
CMD6D11BNP－220M□
CMD6D11BNP－330M□
CMD6D11BNP－470M□
CMD6D11BNP－680M□
CMD6D11BNP－101M□
CMD6D11BNP－151M□
Stamp
4R7
6R8
100
150
220
330
470
680
101
151
Inductance
（μH）
［Within½
100kHz/1V
4.7±20％
6.8±20％
10±20％
15±20％
22±20％
33±20％
47±20％
68±20％
100±20％
150±20％
D.C.R.(mΩ)
Max.(Typ.)
(at 20℃)
100(80)
140(115)
200(160)
310(250)
460(370)
670(540)
980(790)
1500(1190)
2400(1880)
3100(2450)
Saturation
Current（mA）
(at 20℃)※1
1300
1050
850
650
550
450
380
310
250
210
Temperature
Rise current
(mA)
※2
1400
1050
850
650
520
420
350
260
210
180
※
Description of Part Name
CMD6D11BNP－4R7M□
B Box
C
Carrier Tape
※1
.
Saturation current: The DC current at which the inductance decreases to 90% of it’s initial value.
※2
.
Temperature rise current: The DC current at which the temperature rise is
△t＝40℃.(Ta＝20℃)
Please refer to the sales offices on our website for a representative near you
www.sumida.com
2/2
