351135GSV: DescriptionRotary Switch, 16 Positions, SP16T, Binary Coded, 0.1A, 28VDC, 6 PCB Hole Cnt, Solder Terminal, Rotary Actuator, Through Hole-right Angle; CategoryMechanical and electronic products switch; File Size391KB，4 Pages; ManufacturerEECO Switch; Environmental Compliance

Download Datasheet Parametric Compare View All

351135GSV Overview

Rotary Switch, 16 Positions, SP16T, Binary Coded, 0.1A, 28VDC, 6 PCB Hole Cnt, Solder Terminal, Rotary Actuator, Through Hole-right Angle

351135GSV Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	EECO Switch
Reach Compliance Code	compliant
Actuator length	0.21 inch
Actuator material	GLASS FILLED NYLON, UL 94V-O
Actuator type	ROTARY
Other features	ROHS COMPLIANT
body width	9.652 mm
Body length or diameter	9.652 mm
center contact material	COPPER ALLOY
Center contact plating	GOLD OVER NICKEL
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	0.1A@28VDC
Contact function	BINARY CODED
Contact resistance	0.1 mΩ
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	250VAC V
Electrical life	20000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	GOLD OVER NICKEL
Shell material	GLASS FILLED NYLON
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	3500
Installation features	THROUGH HOLE-RIGHT ANGLE
Number of positions	16
Maximum operating temperature	85 °C
Minimum operating temperature	-65 °C
PCB hole count	6
seal	EPOXY
Solderability	MIL-STD
surface mount	NO
switch function	SP16T
Switch type	ROTARY SWITCH
Terminal surface	TIN/NICKEL
Terminal length	0.125 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

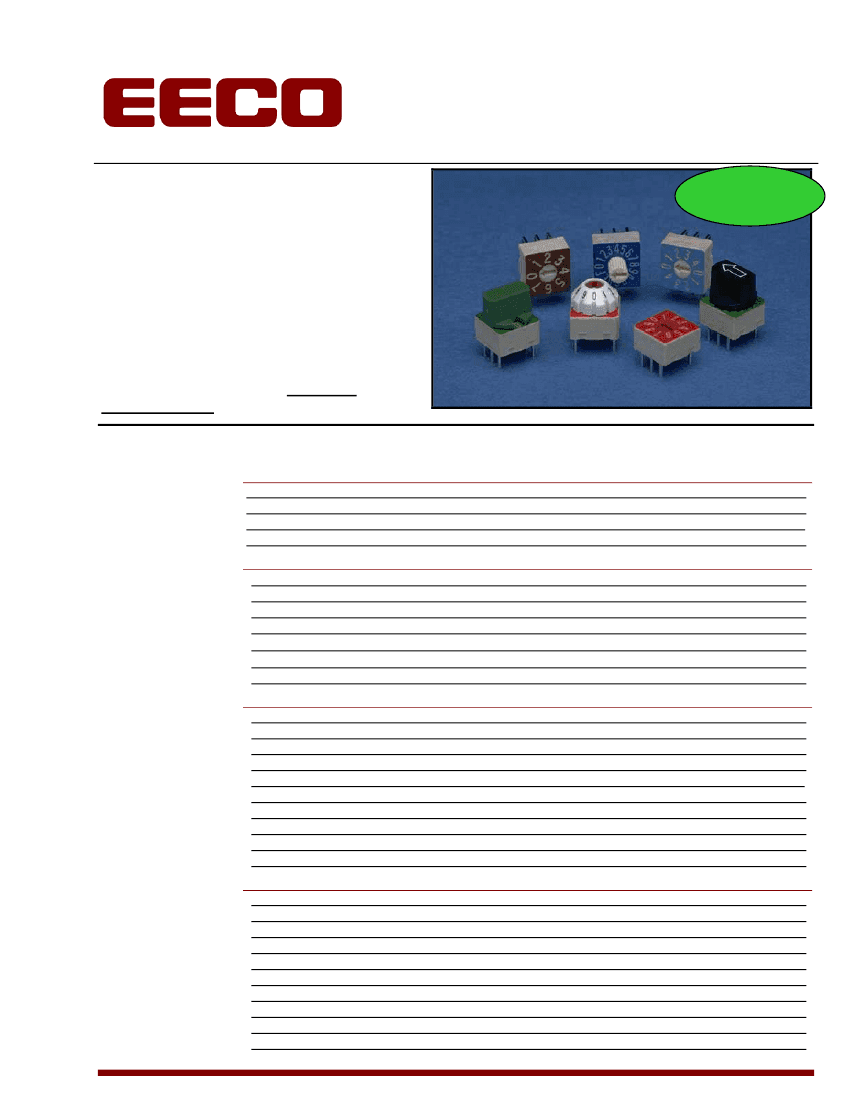

3500 SERIES

MICRO-DIP

PRINTED

CIRCUIT BOARD SWITCHES

LEAD-FREE!

The 3500 Series MICRO-DIP® is a low profile,

fully sealed rotary DIP switch designed for

today’s automated soldering and cleaning

processes!

Featuring direct decimal to binary conversion,

the

3500 Series Micro-DIP

is a user friendly

means of addressing PROM’s or setting micro-

processor controlled devices. The

3500 Series

offered in six binary and decimal codes, with

extended shafts and right angle orientations for

maximum design flexibility. The

3500 Series

covered by EECO’s exclusive

Lifetime Warranty.

All

3500 Series

products are

Lead-Free

and fully

RoHS compliant.

SPECIFICATIONS

MECHANICAL

No. of Switching Positions

Life

Rotational Torque (Initial)

Terminal Strength

8, 10 16

20,000 Detents at +25

1.0-4.5 Inch/Ounces

Pull 3 Pounds, Push 3 Pounds, for 15 Seconds

1µA

30 mVDC

100 mA at 28 VDC Resistive

100 mΩ Maximum

1,000 MΩ Minimum At 100 VDC

250 VAC (RMS)

ELECTRICAL

Minimum Switching Current

Minimum Switching Voltage

Maximum Electrical Current, Non-Switching

Maximum Rated Load, Switching

Contact Resistance (Initial)

Insulation Resistance

Dielectric Withstanding Voltage

ENVIRONMENTAL

Operating Temperature

Storage Temperature

Vibration

Moisture Resistance

Seal

Solderability

Solvent Resistance

Humidity

-65

C To +85

-65

C To +125

15g, 10 to 2,000 Hz, Method 204, Condition B of

Mil-Std 202

Method 106, Mil-Std 202, 50 VDC Polarizing Voltage

Top: O-Ring Bottom: Epoxy

Method 208 of Mil-Std 202, 95% Coverage

Method 215 of Mil-Std 202

Method 103B of Mil-Std 202, Test Condition A

50 VDC Polarizing Voltage

Glass Reinforced High Temperature 4/6 Nylon, UL 94 V0

Glass Reinforced 6/6 Nylon UL 94 V0

Silicon Rubber

Copper Alloy Base, Gold Over Nickel Plate

Matte Tin With Whisker Inhibitors Over Nickel Plate

0.03 Oz (.86G)

ABS, UL 94 V0

Glass Reinforced Polyester, 94 V0

Glass Reinforced 6/6 Nylon, 94 V0

MATERIALS

Housing and Base

Rotor

O-Ring

Contact

Terminal

Weight

Knobs

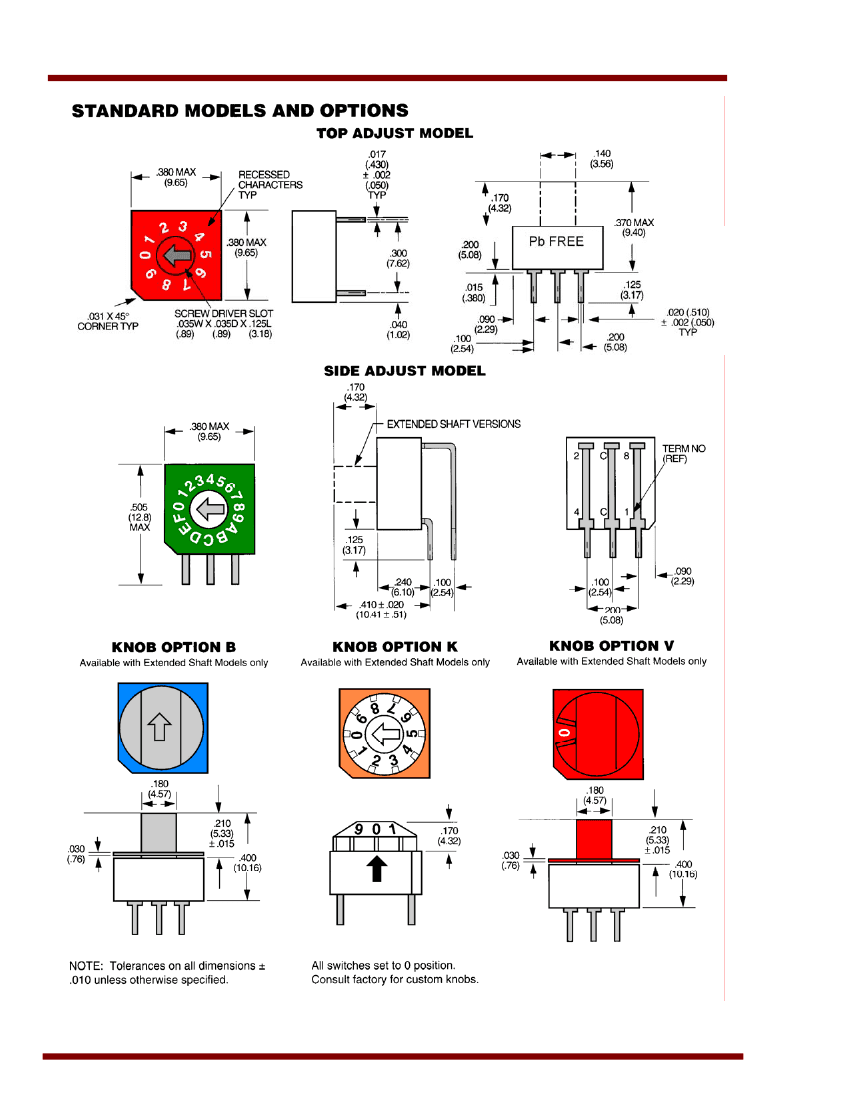

Type B

Type K

Type V
