BJ3154-8: DescriptionCONNECTOR, PANEL MOUNT, CABLE TERMINATED, FEMALE, BNC, TRIAXIAL CONNECTOR, CRIMP, JACK; CategoryThe connector The connector; File Size65KB，1 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric View All

BJ3154-8 Overview

CONNECTOR, PANEL MOUNT, CABLE TERMINATED, FEMALE, BNC, TRIAXIAL CONNECTOR, CRIMP, JACK

BJ3154-8 Parametric

Parameter Name	Attribute value
Maker	Artysen Embedded Technologies
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: MIL-C-49142
Body/casing type	JACK
Connector type	RF TRIAXIAL-BNC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	3150
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	0.5 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP
Base Number Matches	1

Preview

Download Datasheet

View All

16

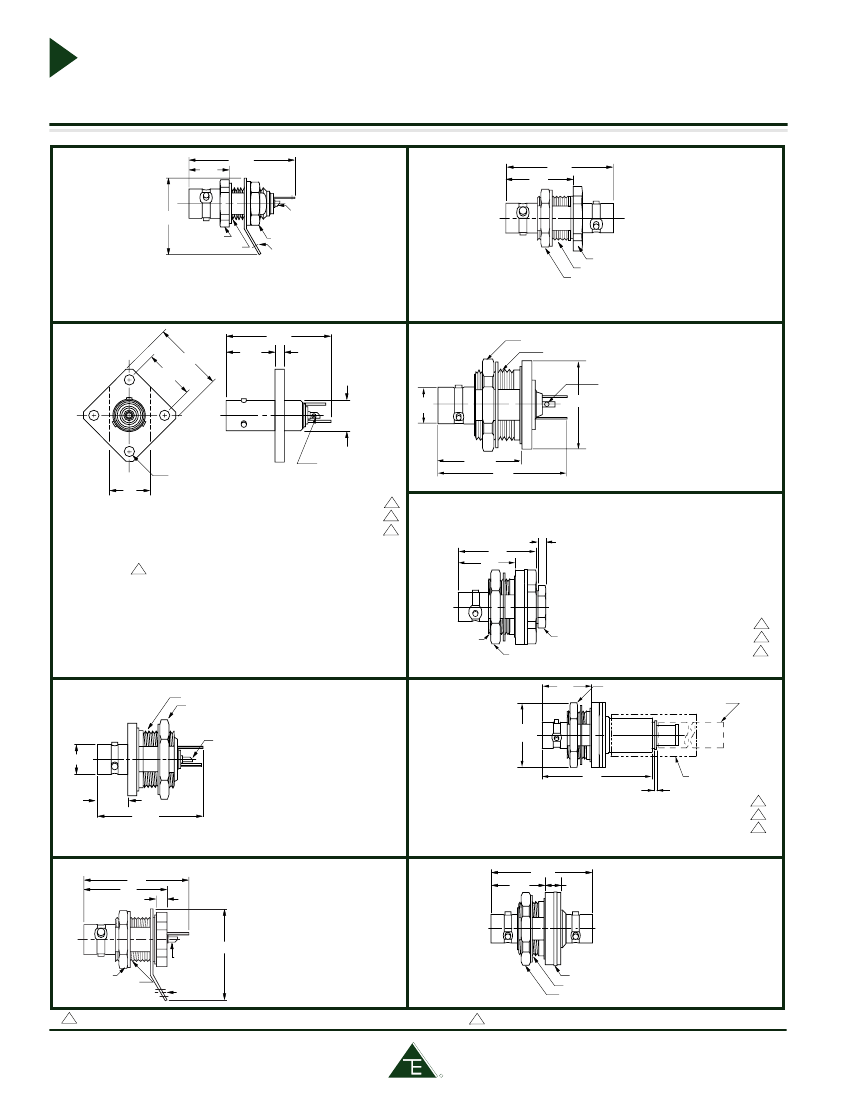

Subminiature bulkhead jacks 150/3150 Series trs/ttm

BJ157 Shown

.402

1.050

BJ158 Shown

1.070

.620

.750

.437 HEX

.3125-32UNEF-2A

ACCEPTS

.034 MAX DIA

CONDUCTOR

.375 HEX NUT

.093 DIA HOLE

3-lug

BJ157

Front mount, Solder pot

4-lug

BJ157FL

Threaded

BJ3157

(Hermetically sealed version available, pg.13)

Mounting Hole:

D6.187

Bulkhead Jack

Feed-Through

BJ155 Shown

3-lug

BJ158

4-lug

BJ158FL

Jack

Threaded

BJ3158

Mounting Hole:

D5.190/D4.190 (Threaded)

.500 HEX

.375-32UNEF-2A

.437 HEX NUT

1.050

B

TYP

.500

TYP

.485

.090

11/16 HEX NUT

.5625-28UN-2A

SOLDER POT ACCEPTS

.026 MAX DIA COND.

.300

DIA

MAX

TYP

.295

DIA

.715

Insulated

Bulkhead Jack

Rear Mount, Solder Pot

MTG HOLES SEE BELOW

A

SOLDER POT

ACCEPTS .026 DIA

CONDUCTOR

.700 MAX

1.055

BJ155

3-lug

4-lug

BJ155FL

Threaded

BJ3155

Mounting Hole:

D9.148

Bulkhead Jacks

Flange mount, Solder pot

Threaded

3-lug

4-lug

BJ157F-

BJ157FFL-

BJ3157F-

2

BJ154-29 Shown

.080

Hole Configuration:

2

# of holes/ Type-Dimension

A Dim = .425

2/Clear-

.103" diameter

2/Threaded-.099-56UNF-2B

B Dim = .687

4/Clear-

.103" diameter

4/Threaded-.099-56UNF-2B

(S)

=

Comes with Stainless Steel Phillips #3-56 Pan Head Screws

Maximum Panel Thickness .187

.790

.580

- 2C(S)

- 2T(S)

- 4C(S)

- 4T(S)

Insulated

Bulkhead Jack

.5625-28UNEF-2A

Rear Mount, Wrench Crimp

BJ154-

1

3-lug

.375 HEX NUT

4-lug

BJ154FL-

1

Threaded

BJ3154-

1

.687 HEX NUT

Mounting Hole:

D9.116

.580

.688 HEX NUT

SHRINKABLE

SEALING SLEEVE (LONG)

BJ152 Shown

.5625-28UN-2A

.687 HEX NUT

BJ154AC-207 Shown

SOLDER POT ACCEPTS

.034 MAX DIA CONDUCTOR

.295 DIA

.750

DIA

Insulated

Bulkhead Jack

.308

1.055

1.289

.030

Front Mount, Solder Pot

BJ152

3-lug

4-lug

BJ152FL

Threaded

BJ3152

Mounting Hole:

D9.208

SHRINKABLE

STRAIN RELIEF

Insulated Bulkhead Jack

Rear mount, Tool Crimp

3-lug

4-lug

Threaded

BJ154AC-

BJ154ACFL-

BJ3154AC-

Mounting Hole:

D9.116

1

BJ150 Shown

1.049

.818

.101

BJ153 Shown

.580

1.070

.155

Bulkhead Jack

.892

SOLDER POT

ACCEPTS

.034 DIA

CONDUCTOR

.140 DIA THRU

.500 HEX NUT

.4375-28UNEF-2A

Rear Mount, Solder Pot

BJ150

3-lug

4-lug

BJ150FL

Threaded

BJ3150

Mounting Hole:

D4.250

2

.760

.5625-28UNEF-2A

.688 HEX

Insulated

Feed-Through Jack

3-lug

BJ153

4-lug

BJ153FL

Threaded

BJ3153

Mounting Hole:

D9.116

1

- Refers to the cable group table see pages 68-88. "D" Mounting holes see page 45.

- Replace with item from related table (same page).

Trompeter Products Catalog
