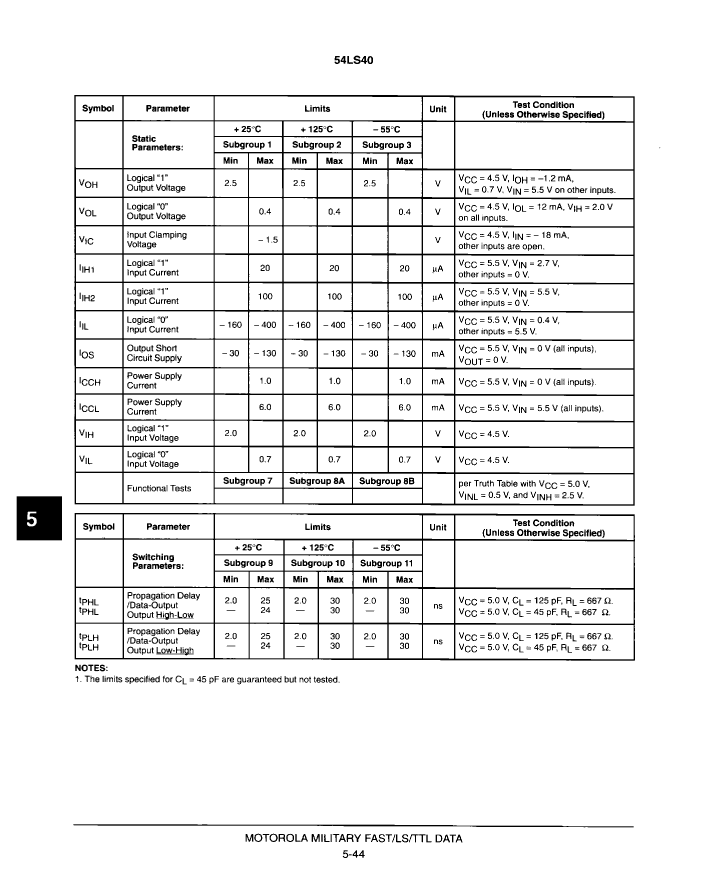

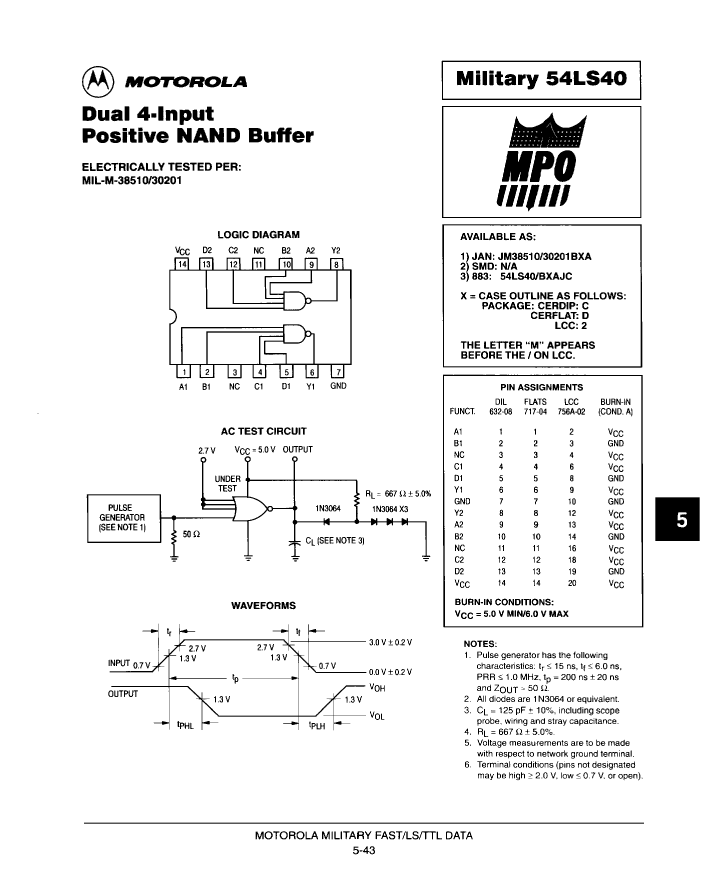

54LS40/BCAJC: DescriptionNAND Gate, LS Series, 2-Func, 4-Input, TTL, CDIP14, CERDIP-14; Categorylogic logic; File Size52KB，2 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54LS40/BCAJC Overview

NAND Gate, LS Series, 2-Func, 4-Input, TTL, CDIP14, CERDIP-14

54LS40/BCAJC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	CERDIP-14
Reach Compliance Code	unknown
Other features	IOH = 1.2MA @ VOH = 2.5V; IOL = 12MA @ VOL = 0.4V
series	LS
JESD-30 code	R-GDIP-T14
JESD-609 code	e0
length	19.495 mm
Load capacitance (CL)	45 pF
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.012 A
Number of functions	2
Number of entries	4
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	6 mA
Prop。Delay @ Nom-Sup	30 ns
propagation delay (tpd)	30 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

54LS40/BCAJC Related Products

	54LS40/BCAJC	54LS40/BDAJC	54LS40M/B2AJC
Description	NAND Gate, LS Series, 2-Func, 4-Input, TTL, CDIP14, CERDIP-14	LS SERIES, DUAL 4-INPUT NAND GATE, CDFP14, CERAMIC, FP-14	LS SERIES, DUAL 4-INPUT NAND GATE, CQCC20, CERAMIC, LCC-20
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	CERDIP-14	CERAMIC, FP-14	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown	unknown	unknown
Other features	IOH = 1.2MA @ VOH = 2.5V; IOL = 12MA @ VOL = 0.4V	IOH = 1.2MA @ VOH = 2.5V; IOL = 12MA @ VOL = 0.4V	IOH = 1.2MA @ VOH = 2.5V; IOL = 12MA @ VOL = 0.4V
series	LS	LS	LS
JESD-30 code	R-GDIP-T14	R-GDFP-F14	S-CQCC-N20
JESD-609 code	e0	e0	e0
length	19.495 mm	9.65 mm	8.885 mm
Load capacitance (CL)	45 pF	45 pF	45 pF
Logic integrated circuit type	NAND GATE	NAND GATE	NAND GATE
MaximumI(ol)	0.012 A	0.012 A	0.012 A
Number of functions	2	2	2
Number of entries	4	4	4
Number of terminals	14	14	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP	QCCN
Encapsulate equivalent code	DIP14,.3	FL14,.3	LCC20,.35SQ
Package shape	RECTANGULAR	RECTANGULAR	SQUARE
Package form	IN-LINE	FLATPACK	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V
Maximum supply current (ICC)	6 mA	6 mA	6 mA
Prop。Delay @ Nom-Sup	30 ns	30 ns	30 ns
propagation delay (tpd)	30 ns	30 ns	30 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Maximum seat height	5.08 mm	2.15 mm	1.9 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	YES
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	NO LEAD
Terminal pitch	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	6.415 mm	8.885 mm
Base Number Matches	1	1	1
Maker	Motorola ( NXP )	Motorola ( NXP )	-
