50015-5068ALF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 50015-5068ALF

50015-5068ALF: DescriptionBoard Connector, 272 Contact(s), 4 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size206KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

50015-5068ALF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	50015-5068ALF	-	-	View	Buy Now

50015-5068ALF Overview

Board Connector, 272 Contact(s), 4 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE

50015-5068ALF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	HOLE .112-.124
body width	0.585 inch
subject depth	0.462 inch
body length	7.55 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH (30) OVER PALLADIUM NICKEL
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.177 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	272
UL Flammability Code	94V-0
Base Number Matches	1

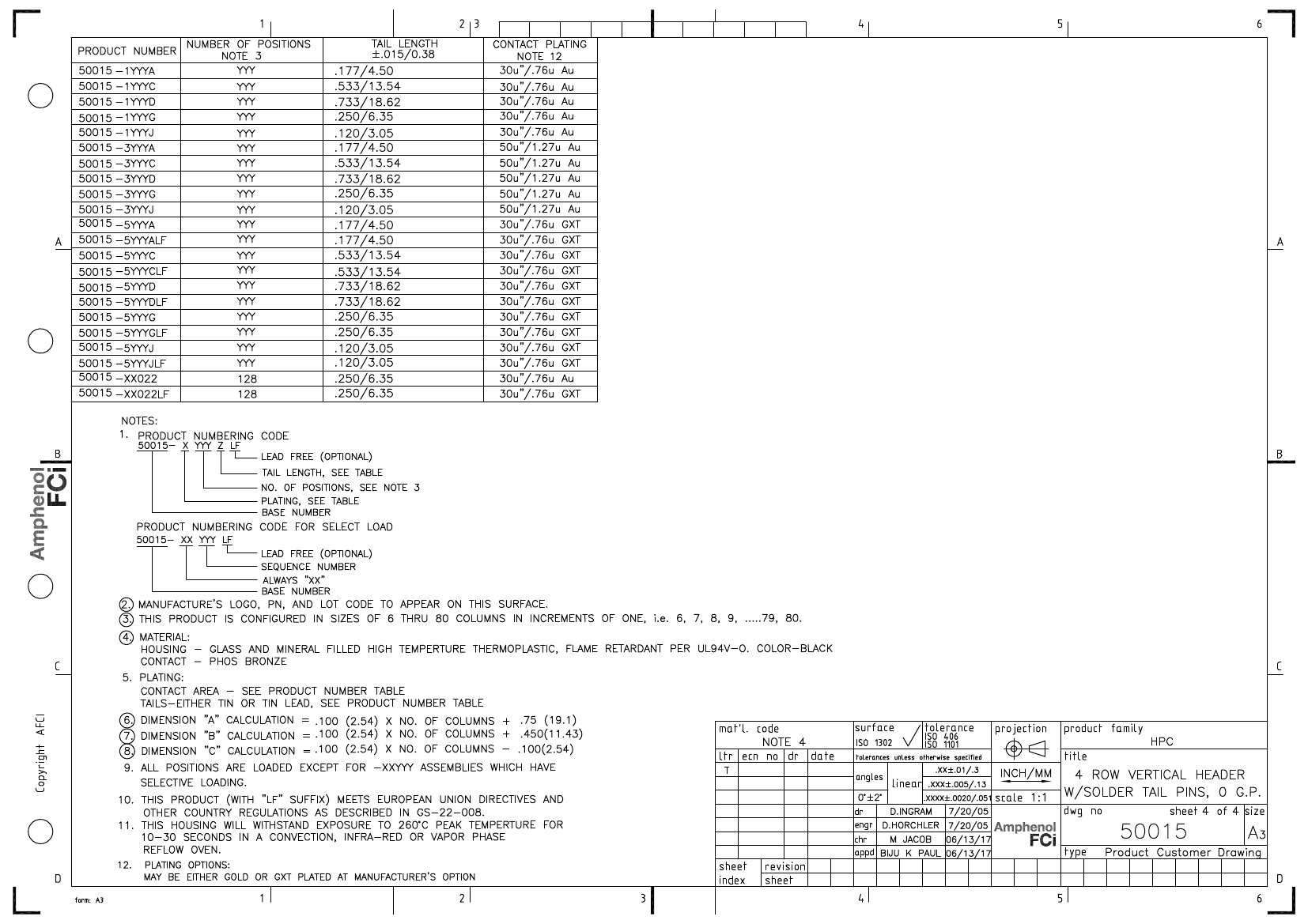

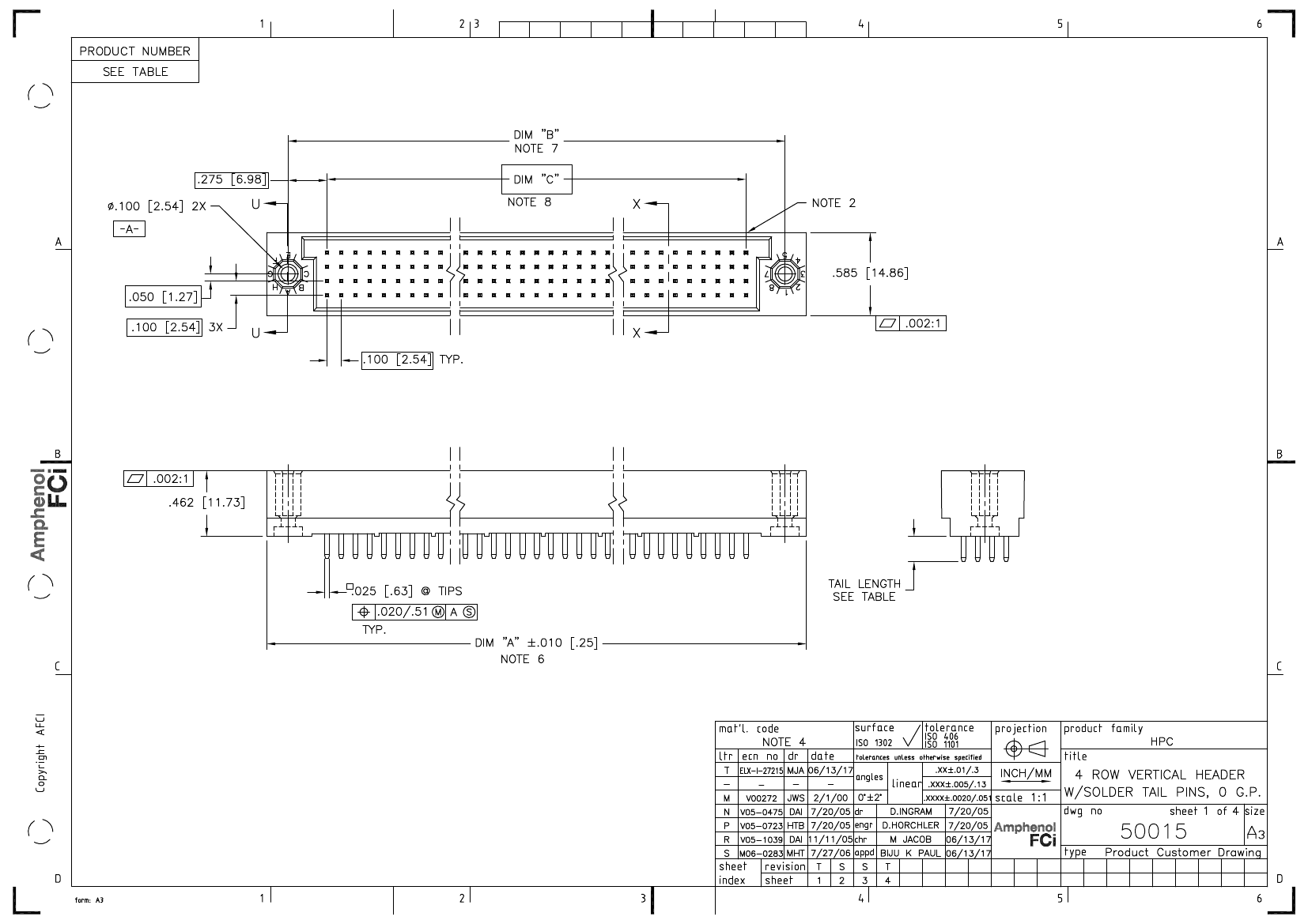

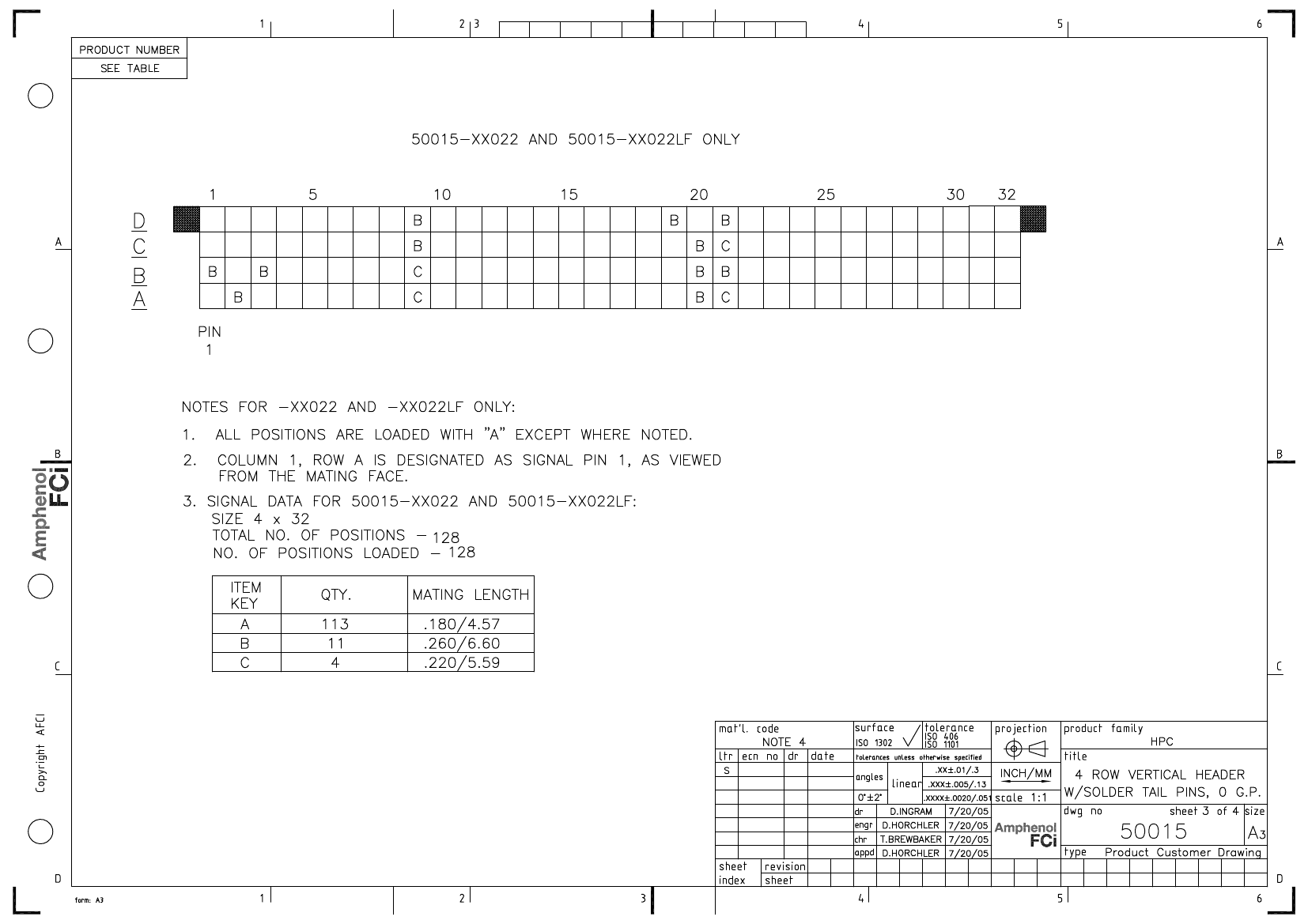

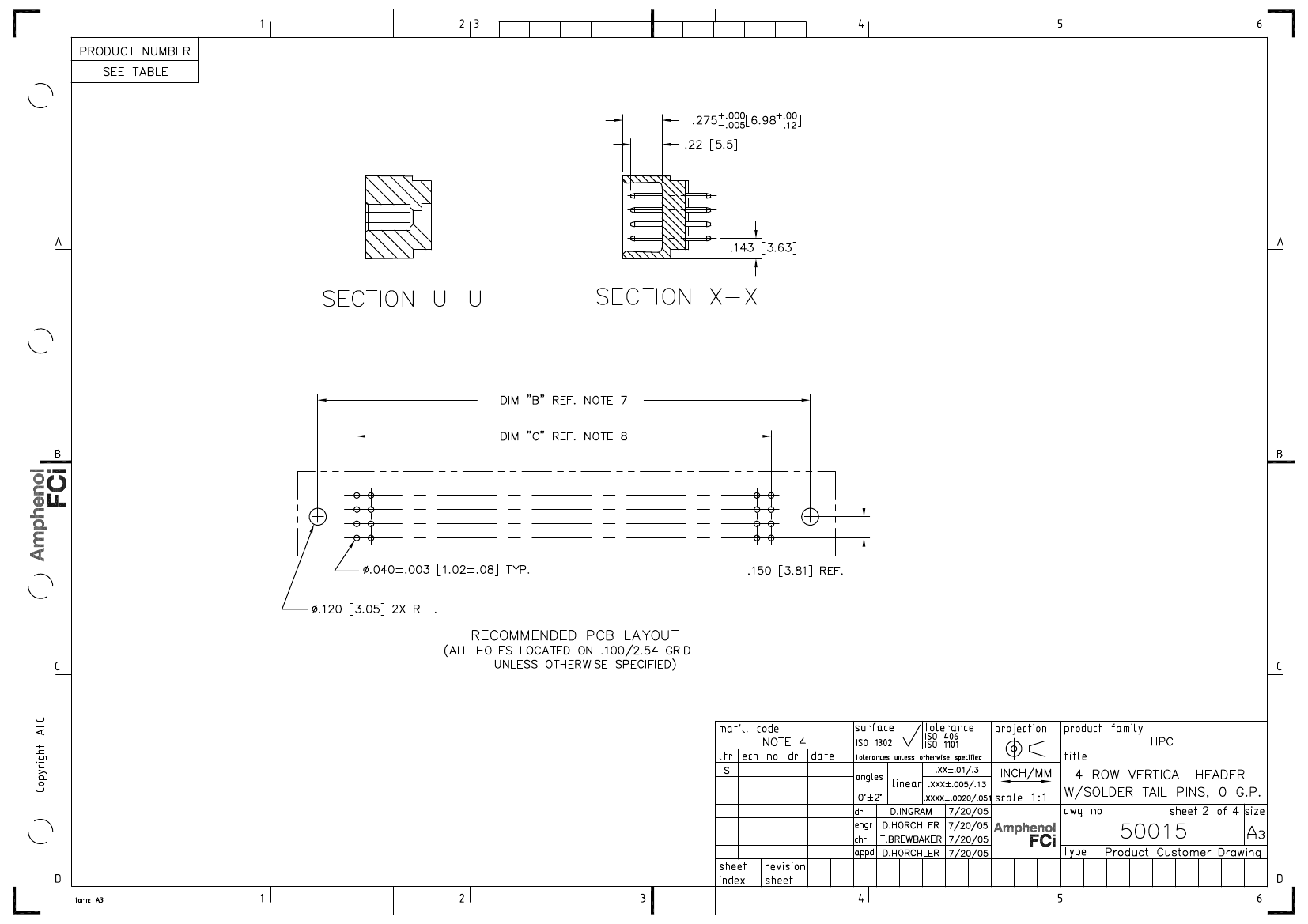

Preview

Download Datasheet

View All

PDS: Rev :T

STATUS:Released

Printed: Jun 19, 2017

50015-5068ALF Related Products

	50015-5068ALF	GRM033B31C683ME84	50015-5060ALF	50015-5068A	50015-1076J
Description	Board Connector, 272 Contact(s), 4 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE	Chip Multilayer Ceramic Capacitors for General Purpose	High Pin Count, Backplane Connectors, Header, Vertical, Through Hole, 4 Row, 60 Positions, 0 Guide Pin, 2.54mm (0.100in) Pitch	Board Connector, 272 Contact(s), 4 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle	Board Connector, 304 Contact(s), 4 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle
Is it lead-free?	Lead free	-	-	Contains lead	Contains lead
Is it Rohs certified?	conform to	-	conform to	incompatible	incompatible
Maker	Amphenol	-	-	Amphenol	Amphenol
Reach Compliance Code	compliant	-	compliant	compliant	compliant
ECCN code	EAR99	-	EAR99	EAR99	EAR99
Board mount options	HOLE .112-.124	-	HOLE .112-.124	HOLE .112-.124	HOLE .112-.124
body width	0.585 inch	-	0.585 inch	0.585 inch	0.585 inch
subject depth	0.462 inch	-	0.462 inch	0.462 inch	0.462 inch
body length	7.55 inch	-	6.75 inch	7.55 inch	8.35 inch
Body/casing type	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH (30) OVER PALLADIUM NICKEL	-	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD FLASH (30) OVER PALLADIUM NICKEL	GOLD (30)
Contact completed and terminated	TIN	-	TIN	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Contact point gender	MALE	-	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	-	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	-	NO	NO	NO
Filter function	NO	-	NO	NO	NO
IEC compliance	NO	-	NO	NO	NO
Insulator color	BLACK	-	BLACK	BLACK	BLACK
insulator material	GLASS FILLED THERMOPLASTIC	-	GLASS FILLED THERMOPLASTIC	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e3	-	e3	e0	e0
MIL compliance	NO	-	NO	NO	NO
Plug contact pitch	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch
Mixed contacts	NO	-	NO	NO	NO
Installation option 1	LOCKING	-	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	-	BOARD	BOARD	BOARD
Number of connectors	ONE	-	ONE	ONE	ONE
PCB row number	4	-	4	4	4
Number of rows loaded	4	-	4	4	4
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm
polarization key	POLARIZED HOUSING	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	-	UL	UL	UL
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.177 inch	-	0.177 inch	0.177 inch	0.12 inch
Terminal pitch	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	-	SOLDER	SOLDER	SOLDER
Total number of contacts	272	-	240	272	304
UL Flammability Code	94V-0	-	94V-0	94V-0	94V-0
Base Number Matches	1	-	-	1	1
