FOC 91
!"!"!"!"!"!"!"!
FOC Series
Weatherproof Patchcord Assemblies

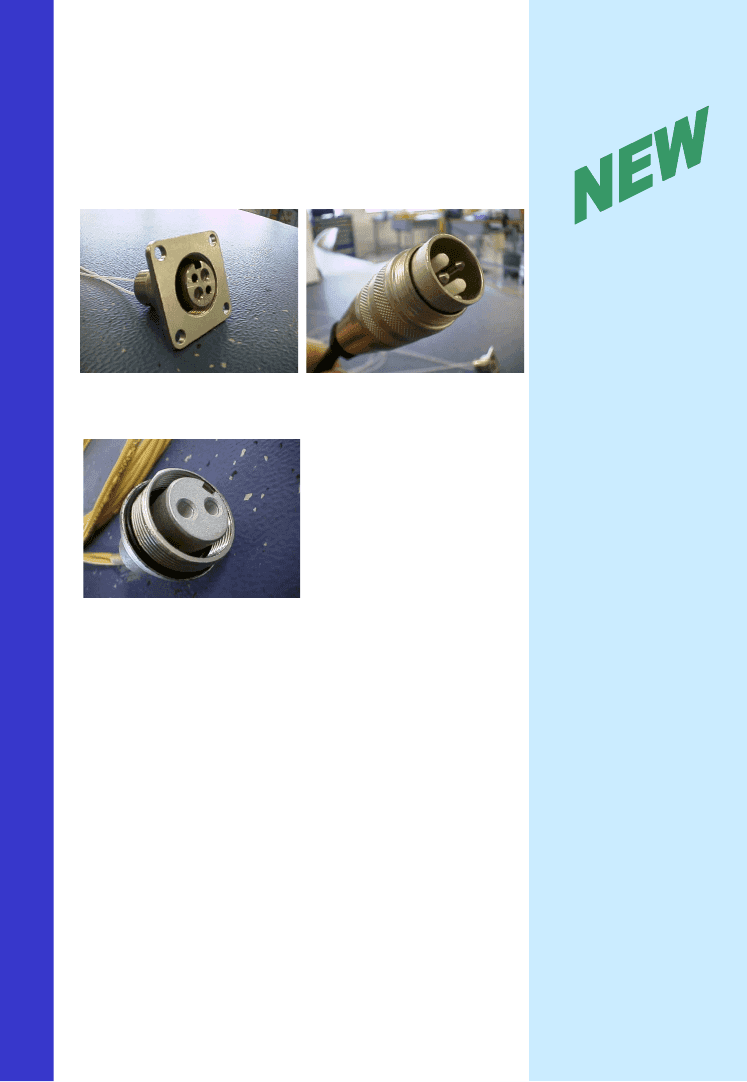

FOC 91 FEMALE RECEPTACLE
(square flange mounting)
FOC 91 MALE PLUG
MAIN CHARACTERISTICS
Features
The Amphenol FOC 91 is
a weatherproof (IP 67)
2 singlemode or
multimode channels
optical connector. This
optical connector uses the
proven mechanism of
C91D. The locking
system is the standard
IEC 103-9 (metal screw
coupling).
FOC 91 FEMALE RECEPTACLE
(rear mounting)
This product uses the
standard termini (Ø 2.5
mm) which is designed
to provide a high
reliability performance
and economical cost
for outside telecom
application.
Technical description
• Typical insertion loss :
- Singlemode fiber : 0,5 dB
- Multimode fiber
• Typical return loss :
- Singlemode fiber : - 45 dB
- Multimode fiber
: - 20 dB
• Durability : 200 mating/ unmating cycles (change for <0.2dB)
• Operating temperature : -40°C, +85°C
• Locking system : metal screw coupling (IEC 103-9)
• Termini : zirconium PC ferrule (Ø 2.5 mm)
• Weatherproof IP 67
: 0,5 dB
Applications
• Outside telecommunication
network, Links Base Station
• Video
• CATV
• Multimedia
• Industrial
Amphenol Socapex
Promenade de l’Arve -B.P.29 - 74311 THYEZ - FRANCE - Tel. :33 (0) 4 50 89 28 53 - Fax : 33 (0) 4 50 89 28 23
Specifications are subject to change without notice. All statements, information and data system given herein are believed to be accurate and
reliable but are presented without garanty. No reproduction without agreement. E522/A . Printed in France by Amphenol Socapex.
Amphenol
!"!"!"!"!"!"!"!
Plug
FOC 91
FOC Series
Line Drawings
( dimensions in mm )
Square flange receptacle
Panel Mounting Receptacle
For Square flange receptacle
Rear Mounting receptacle
Panel Mounting Receptacle
For Rear Mounting Receptacle
How to order :
FOC - XXX- XXXX – XX.X – XXX- XXX- XXX
2 channel plug
: 0P2
2 channel square flange
receptacle
: SR2
2 channel rear mounting
receptacle
: RR2
Multimode PC 50/125
Multimode PC 62.5/125
Singlemode PC 9/125
Singlemode APC 9/125
: 50PC
: 62PC
: 09PC
: 09AP
PPC : Plug protective
cap
RPC : Receptacle
protective
cap
953 : ST connector
954 : SC connector
944 : FC connector
0P2 : 2 channel plug
Cable :
600 : 6 mm only for plug
300 : 3 mm only for receptacle
009 : 0.9 mm only for receptacle
Length in meter (example 5m : 05,0)
