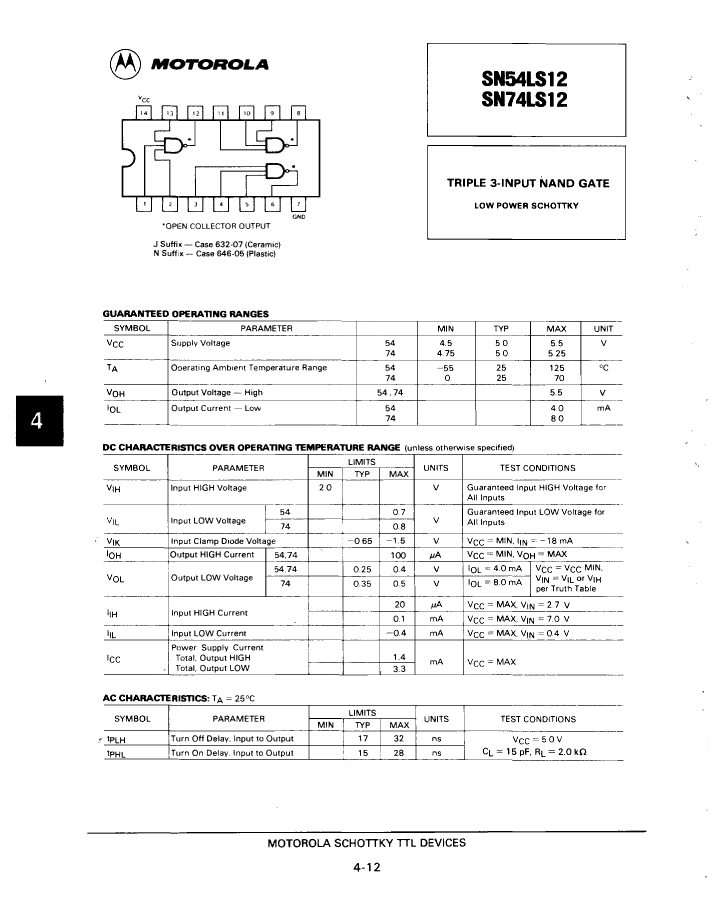

SN74LS12JS

Description
LS SERIES, TRIPLE 3-INPUT NAND GATE, CDIP14, CERAMIC, DIP-14
Categorylogic    logic
File Size29KB,1 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric View All

SN74LS12JS Overview

LS SERIES, TRIPLE 3-INPUT NAND GATE, CDIP14, CERAMIC, DIP-14

SN74LS12JS Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMotorola ( NXP )
Parts packaging codeDIP
package instructionDIP, DIP14,.3
Contacts14
Reach Compliance Codeunknown
seriesLS
JESD-30 codeR-GDIP-T14
JESD-609 codee0
length19.495 mm
Logic integrated circuit typeNAND GATE
Number of functions3
Number of entries3
Number of terminals14
Maximum operating temperature70 °C
Minimum operating temperature
Output characteristicsOPEN-COLLECTOR
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Encapsulate equivalent codeDIP14,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
propagation delay (tpd)28 ns
Certification statusNot Qualified
Schmitt triggerNO
Maximum seat height5.08 mm
Maximum supply voltage (Vsup)5.25 V
Minimum supply voltage (Vsup)4.75 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width7.62 mm
Base Number Matches1
