88-569763-35S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 88-569763-35S

88-569763-35S: DescriptionMIL Series Connector, 22 Contact(s), Female, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size26KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

88-569763-35S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	88-569763-35S	-	-	View	Buy Now

88-569763-35S Overview

MIL Series Connector, 22 Contact(s), Female, Solder Terminal, Receptacle

88-569763-35S Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	20 weeks
Other features	STANDARD: MIL-DTL-38999, EMI SHIELDED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	GOLD (500) OVER NICKEL
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	88-5697
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	OLIVE DRAB CADMIUM PLATED
Housing size	13
Termination type	SOLDER
Total number of contacts	22
Base Number Matches	1

Preview

Download Datasheet

View All

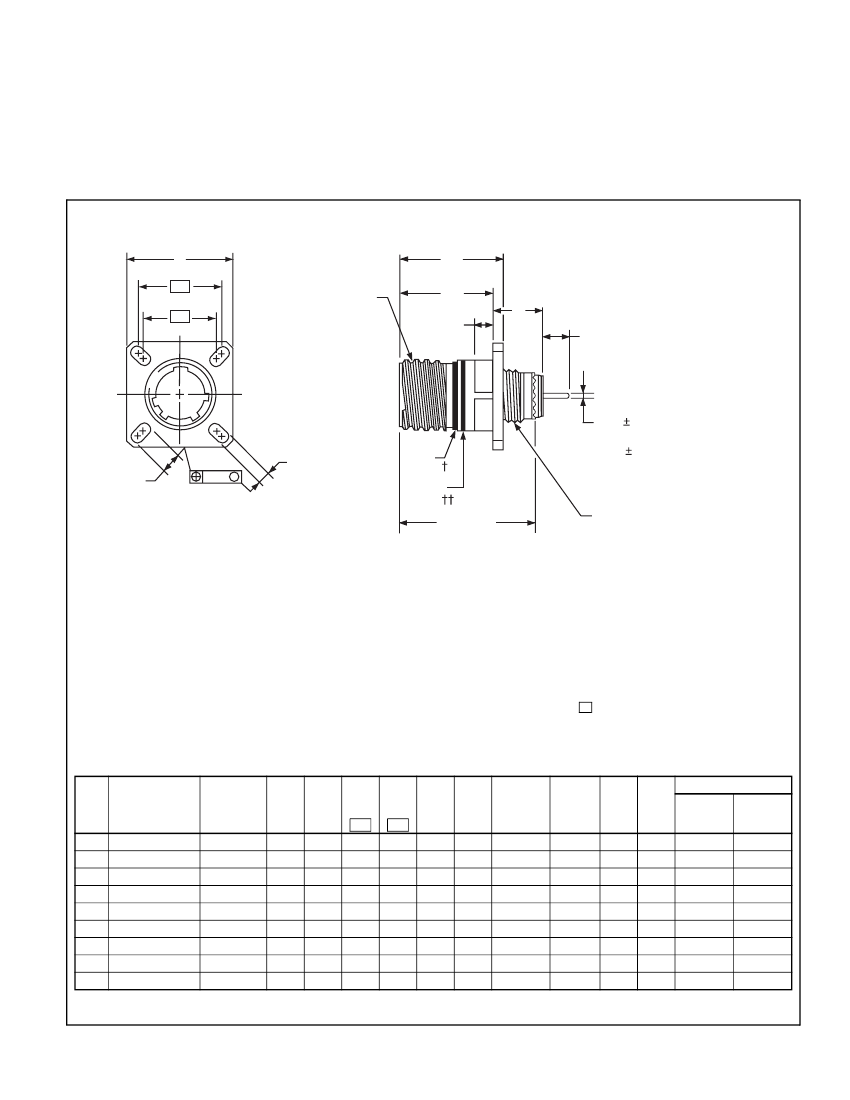

MIL-DTL-38999 Series III Type Connectors

with PCB contacts

TVP00R wall mounting receptacle

(back panel mounting)

2 PLACES

THREAD

PCB TAIL STICKOUT

2 PLACES

.062 .001 DIA.

FOR SIZE 16 CONTACTS

4 PLACES

RED

BAND

BLUE

BAND

1.240 MAX.

V THREAD

.019 .001 DIA.

FOR SIZE 20 & 22D CONTACTS

4 PLACES

.005

HOW TO ORDER

• Order by applicable 88/91 part number in table below.

88 prefix designates olive drab cadmium plated connector shell.

91 prefix designates electroless nickel plated connector shell.

• Add insert arrangement to end of number. Refer to insert availability chart on page 4 and

pin-out illustrations on pages 5-24. Last letter of part number designates rotation; P for

pins in normal position, S for sockets in normal position. See page 25 for alternate rota-

tion letter to use.

Example part number: 88-569761-35P designates shell size 9 with a 9-35 insert and pin

contacts in normal position.

• Z dimension is determined by contact type in the insert arrangement.

• Most common options are shown; other options are available.

B Thread

Class 2A

(Plated)

0.1P-0.3L-TS

.6250

.7500

.8750

1.0000

1.1875

1.2500

1.3750

1.5000

1.6250

Composite Series III connectors are available;

consult Amphenol, Sidney, NY.

†

††

Designates true position dimensioning

Red band indicates fully mated

Blue band indicates rear release contact

retention system

Shell

Size

Part Number

88/91-569761-XXX

762-XXX

763-XXX

764-XXX

765-XXX

766-XXX

767-XXX

768-XXX

769-XXX

Max.

.469

.500

+.000

–.005

.820

.790

.719

.812

.906

.969

1.062

1.156

1.250

1.375

1.500

.594

.719

.812

.906

.969

1.062

1.156

1.250

1.375

Max.

.948

1.043

1.137

1.232

1.323

1.449

1.575

1.701

1.823

+.008

–.006

.128

.154

Thread

Metric

M12X1-6g

M15X1-6g

M18X1-6g

M22X1-6g

M25X1-6g

M28X1-6g

M31X1-6g

M34X1-6g

M37X1-6g

Max.

Panel

+.006

Thickness –.000

.234

.204

.905

+.008

–.006

.216

.194

.173

.194

.242

Size

16 & 20

Contacts

.228–.178

Size 22D

Contacts

.242–.181

All dimensions for reference only.
