71240-220CALF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 71240-220CALF

71240-220CALF: DescriptionPCMCIA Connector, 100 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, LEAD FREE; CategoryThe connector The connector; File Size875KB，12 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

71240-220CALF Overview

PCMCIA Connector, 100 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, LEAD FREE

71240-220CALF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	PCMCIA CONNECTOR
Contact to complete cooperation	GOLD (4) OVER PALLADIUM NICKEL
Contact completed and terminated	TIN (98) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	71240
Plug information	73277-101000
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	100
UL Flammability Code	94V-0
Base Number Matches	1

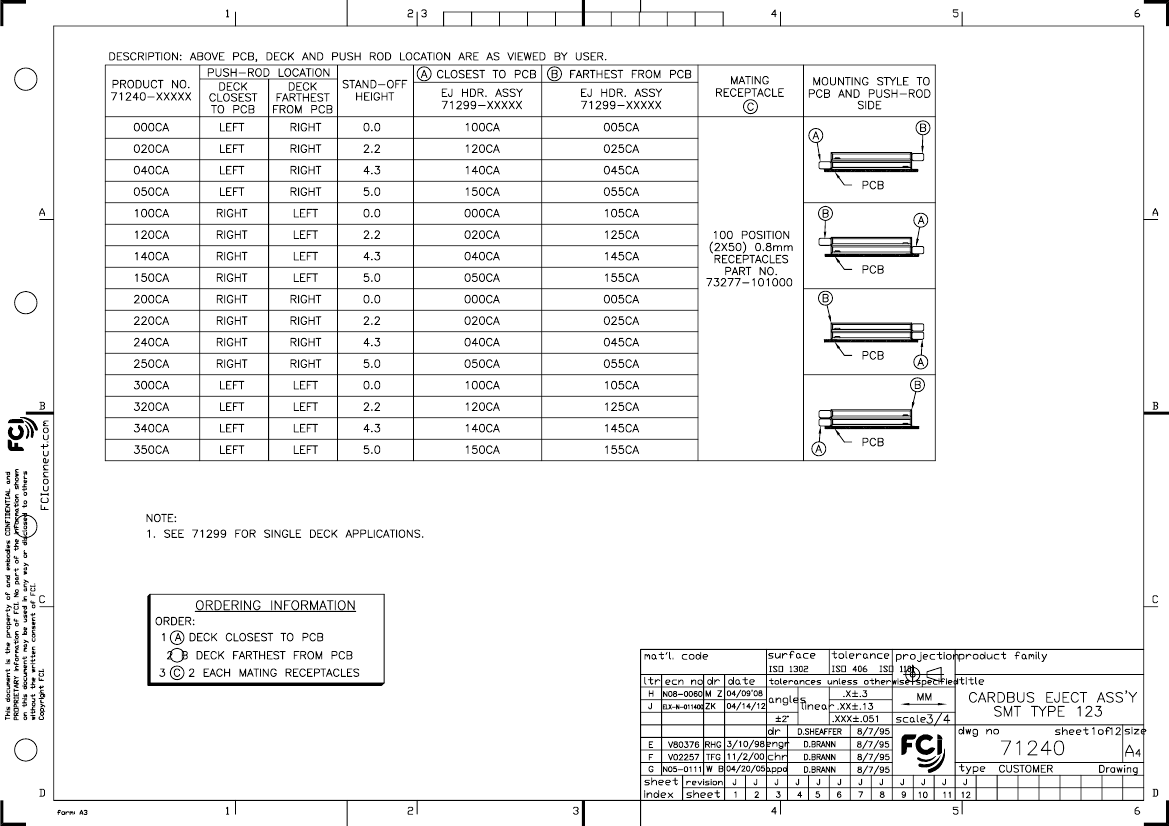

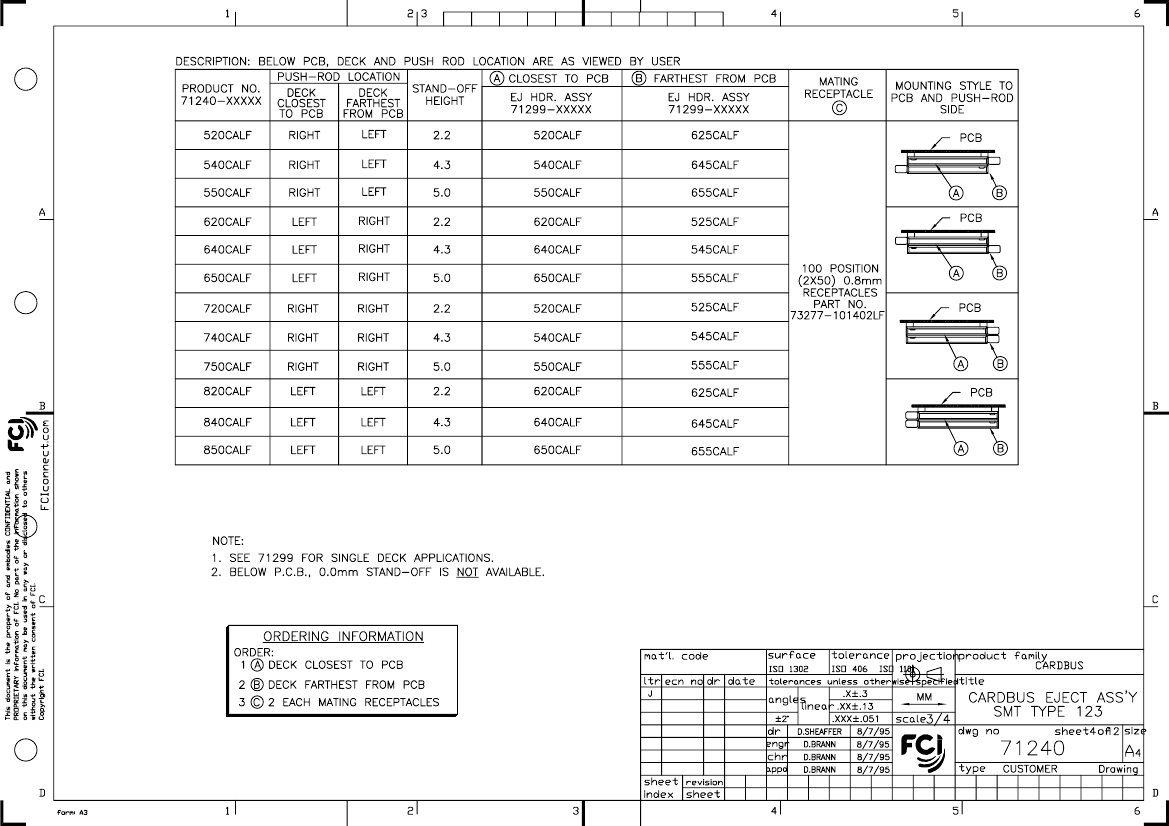

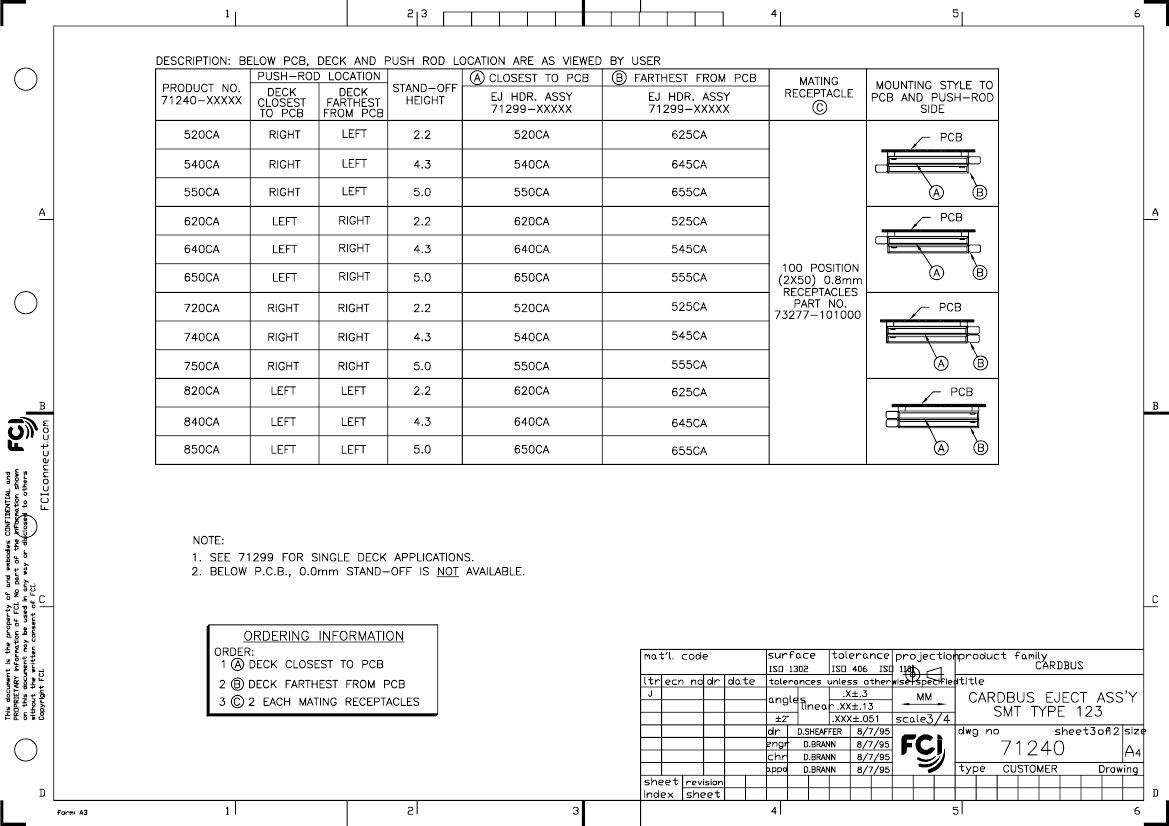

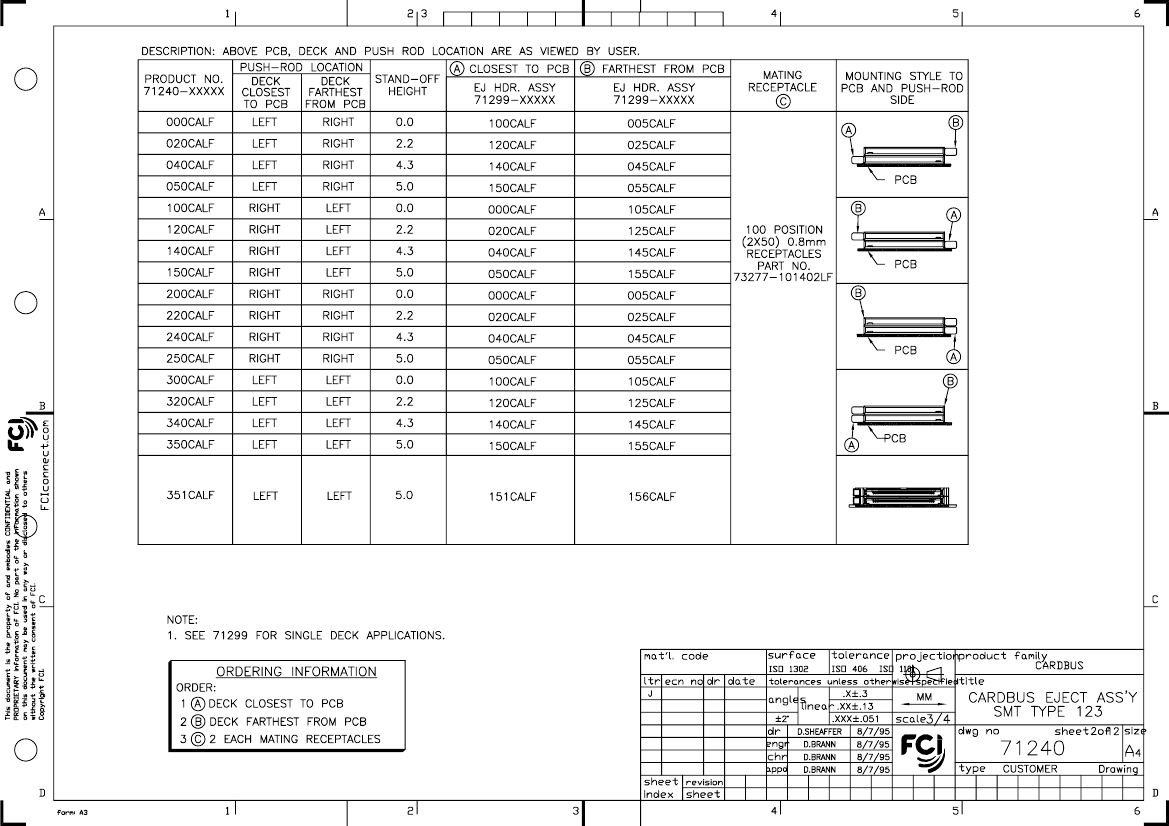

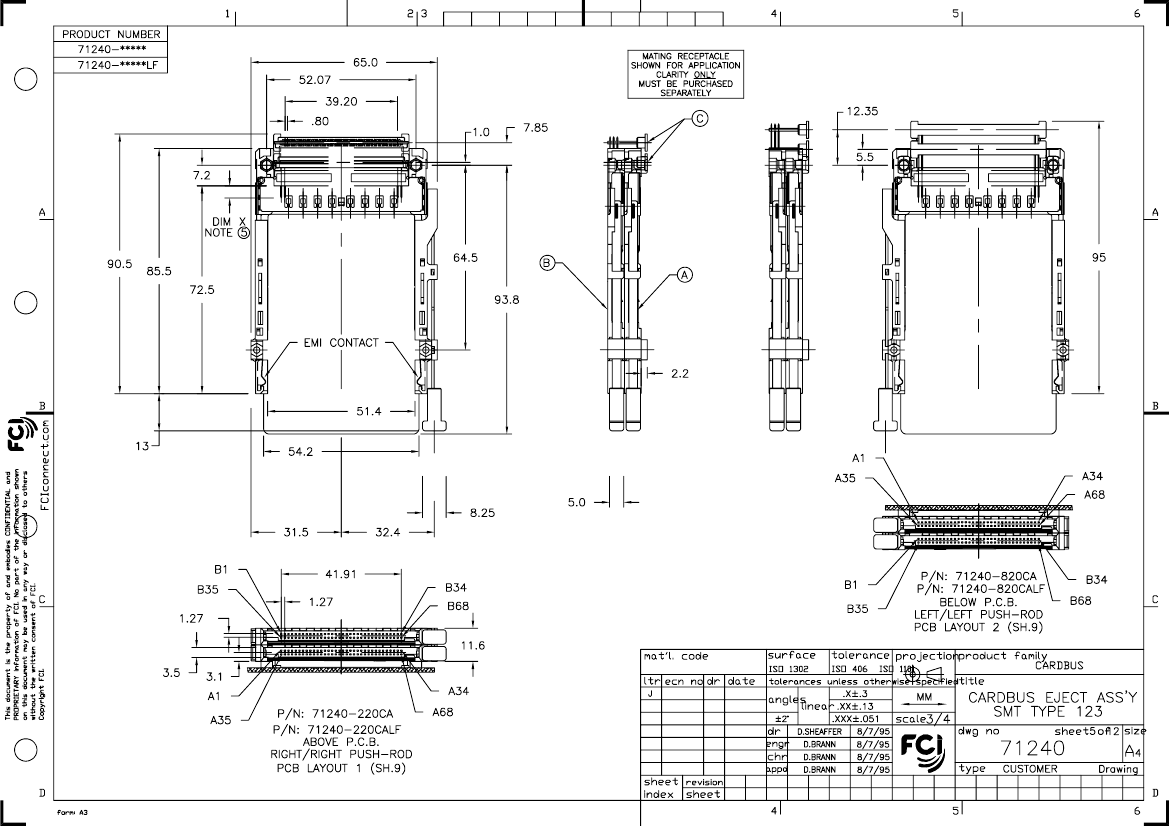

Preview

Download Datasheet

View All

FCI CONFIDENTIAL

PDS: Rev :J

STATUS:Released

Printed: Apr 28, 2012

71240-220CALF Related Products

	71240-220CALF	71240-340CALF	71240-040CALF	71240-050CALF	71240-140CALF	71240-200CALF	71299-145CALF	71240-350CALF	71240-850CALF
Description	PCMCIA Connector, 100 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, LEAD FREE	PCMCIA Connector, 100 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, LEAD FREE	PCMCIA Connector, 100 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, LEAD FREE	PCMCIA Connector, 100 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, LEAD FREE	PCMCIA Connector, 100 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, LEAD FREE	PCMCIA Connector, 100 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, LEAD FREE	PCMCIA Connector, 100 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal, LEAD FREE	PCMCIA Connector, 100 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, LEAD FREE	PCMCIA Connector, 100 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR
Contact to complete cooperation	GOLD (4) OVER PALLADIUM NICKEL	GOLD (4) OVER PALLADIUM NICKEL	GOLD (4) OVER PALLADIUM NICKEL	GOLD (4) OVER PALLADIUM NICKEL	GOLD (4) OVER PALLADIUM NICKEL (20)	NOT SPECIFIED	GOLD (4) OVER PALLADIUM NICKEL	NOT SPECIFIED	GOLD (4) OVER PALLADIUM NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	71240	71240	71240	71240	71240	71240	71299	71240	71240
Plug information	73277-101000	73277-101000	73277-101000	73277-101000	73277-101000	73277-101000	73277-101402LF	73277-101000	73277-101000
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	100	100	100	100	100	100	100	100	100
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1	1
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	-	-	EAR99	EAR99
Contact completed and terminated	TIN (98) OVER NICKEL	TIN (98) OVER NICKEL	TIN (98) OVER NICKEL	TIN (98) OVER NICKEL	PURE TIN (98) OVER NICKEL (20)	-	TIN LEAD (98) OVER NICKEL	-	TIN (98) OVER NICKEL
JESD-609 code	e3	e3	e3	e3	e3	-	e0	-	e3
