555-8068-221-M-36 datasheet, PDF

Datasheet> All Categories > Passive components> inductor> 555-8068-221-M-36

555-8068-221-M-36: DescriptionGeneral Purpose Inductor, 220uH, 20%, 1 Element, SMD, 3935,; CategoryPassive components inductor; File Size45KB，2 Pages; ManufacturerCambion Electronics Ltd.; Websitehttp://www.cambion.com/

Download Datasheet Parametric View All

555-8068-221-M-36 Overview

General Purpose Inductor, 220uH, 20%, 1 Element, SMD, 3935,

555-8068-221-M-36 Parametric

Parameter Name	Attribute value
Maker	Cambion Electronics Ltd.
package instruction	3935
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	3935
structure	Chip
DC Resistance	0.73 Ω
Nominal inductance(L)	220 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	555-8068
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-30 °C
Package height	5.4 mm
Package length	10 mm
Package form	SMT
Package width	9 mm
method of packing	TR
Maximum rated current	0.66 A
series	555-8068
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.001 MHz
Tolerance	20%
Base Number Matches	1

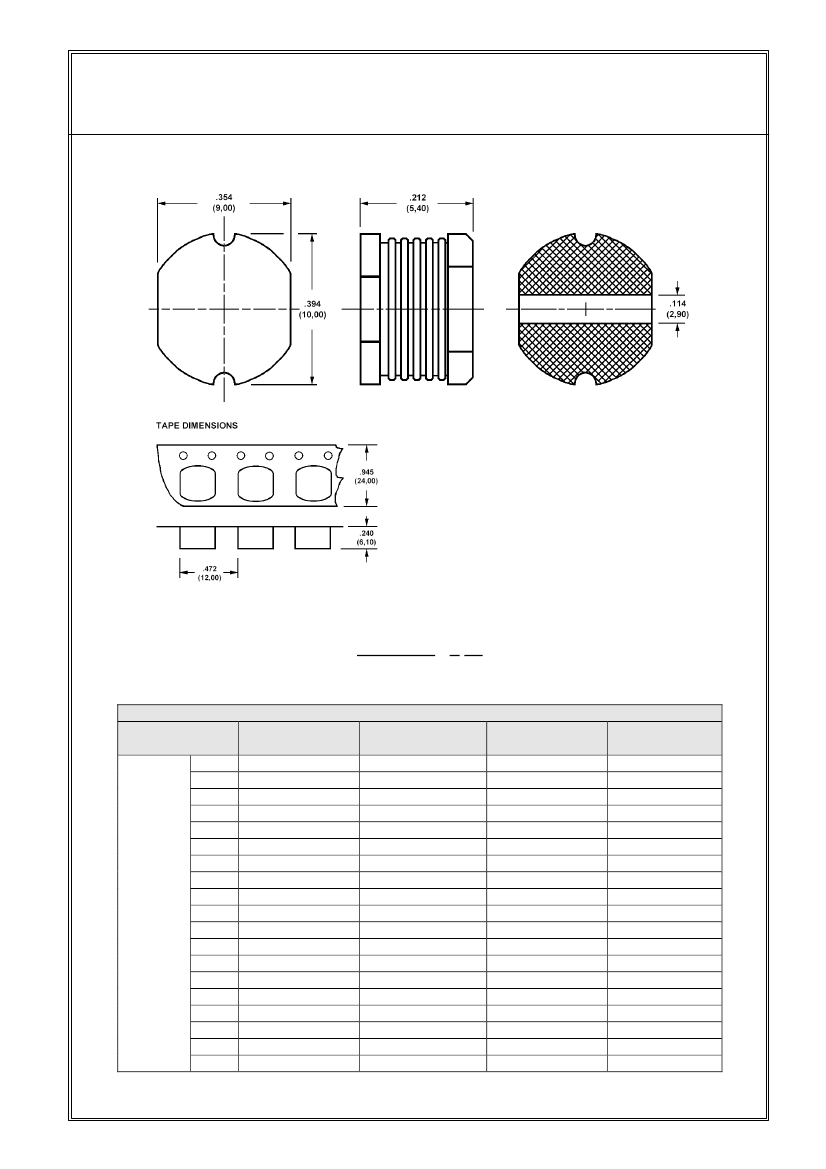

Preview

Download Datasheet

View All

AMBION

Technical Data Sheet

Wearnes Cambion

LTD

Castleton, Hope Valley, Derbyshire, S33 8WR, England

Telephone: +44(0)1433 621555 Fax: +44(0)1433 621290

Web: www.cambion.com Email: enquiries@cambion.com

555-8068 Surface mount power inductors, 9mm,

10µΗ thru 1000µH

How to order code

555-8068-XXX-Y-ZZ

Basic Part No XXX = Inductance identifier, Y = tolerance, ZZ = packaging

Basic Part Number

(XXX)-

-100

-120

-150

-180

-220

-270

-330

-390

-470

555-8068

-560

-680

-820

-101

-121

-151

-181

-221

-271

-331

ELECTRICAL SPECIFICATIONS

Inductance

DCR (max)

Frequency

(MHz)

(µΗ)

(Ω)

2.52

0.06

2.52

0.07

2.52

0.08

2.52

0.09

2.52

0.10

2.52

0.11

2.52

0.12

2.52

0.14

2.52

0.17

2.52

0.19

2.52

0.22

2.52

0.25

100

1KHz

0.35

120

1KHz

0.40

150

1KHz

0.47

180

1KHz

0.63

220

1KHz

0.73

270

1KHz

0.97

330

1KHz

1.15

IDC (max)

(A)

2.60

2.45

2.27

2.15

1.95

1.76

1.56

1.37

1.28

1.17

1.11

1.00

0.97

0.89

0.78

0.72

0.66

0.57

0.52

Page 1 of 2
