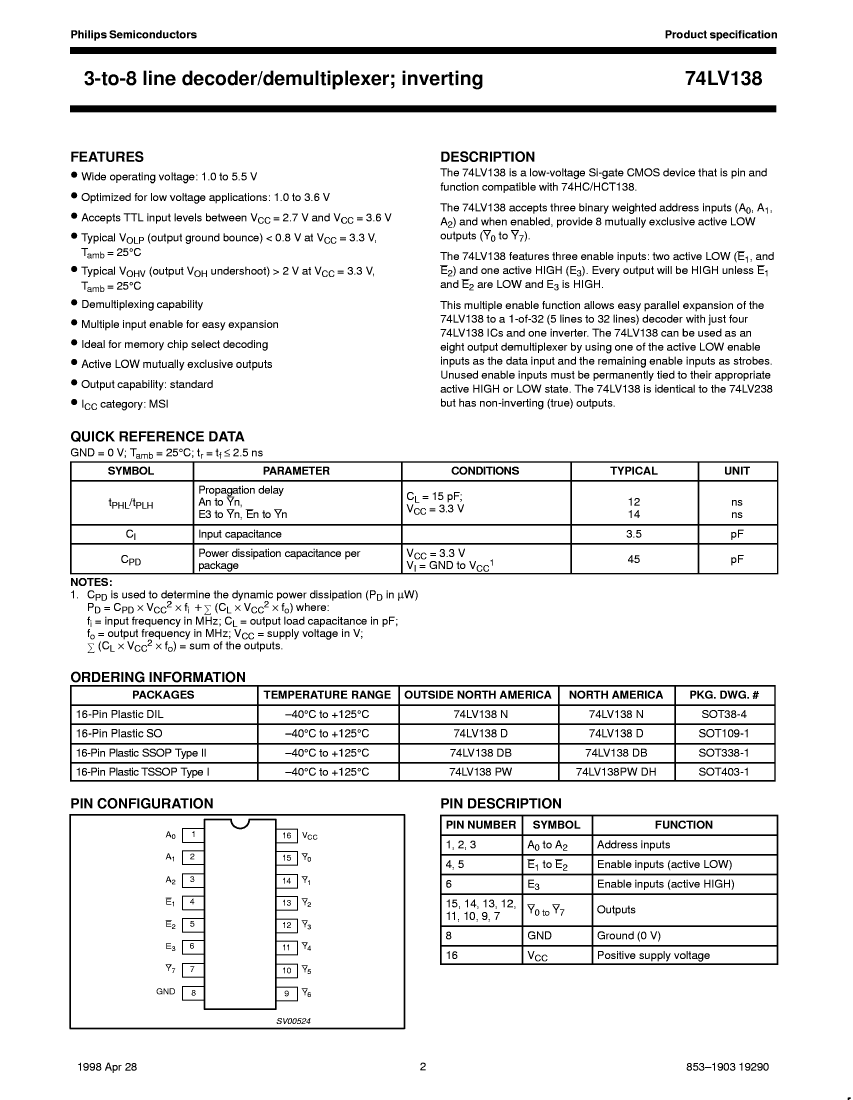

Preview

74LV138D-T: DescriptionDecoder/Driver, CMOS, PDSO16,; Categorylogic logic; File Size421KB，10 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

74LV138D-T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74LV138D-T	-	-	View	Buy Now

74LV138D-T Overview

Decoder/Driver, CMOS, PDSO16,

74LV138D-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SOP, SOP16,.25
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G16
Load capacitance (CL)	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER
MaximumI(ol)	0.006 A
Humidity sensitivity level	1
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TAPE AND REEL
power supply	3.3 V
Prop。Delay @ Nom-Sup	32 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

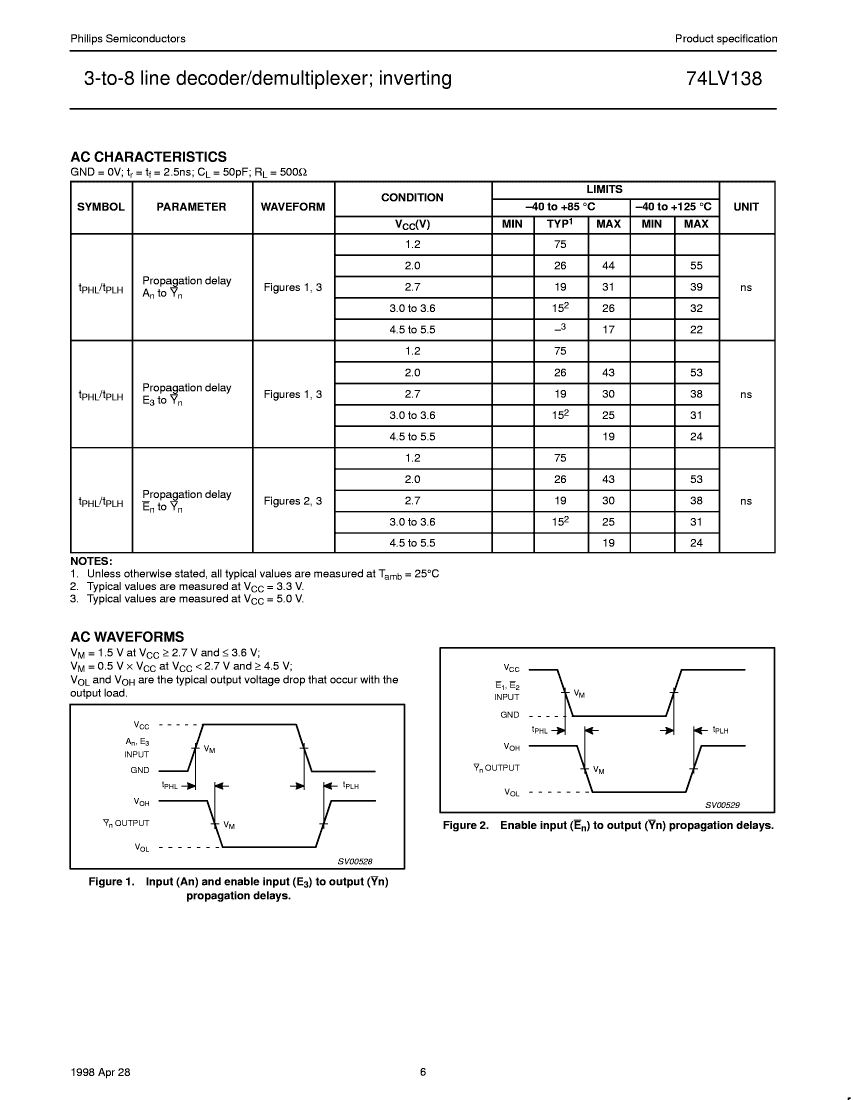

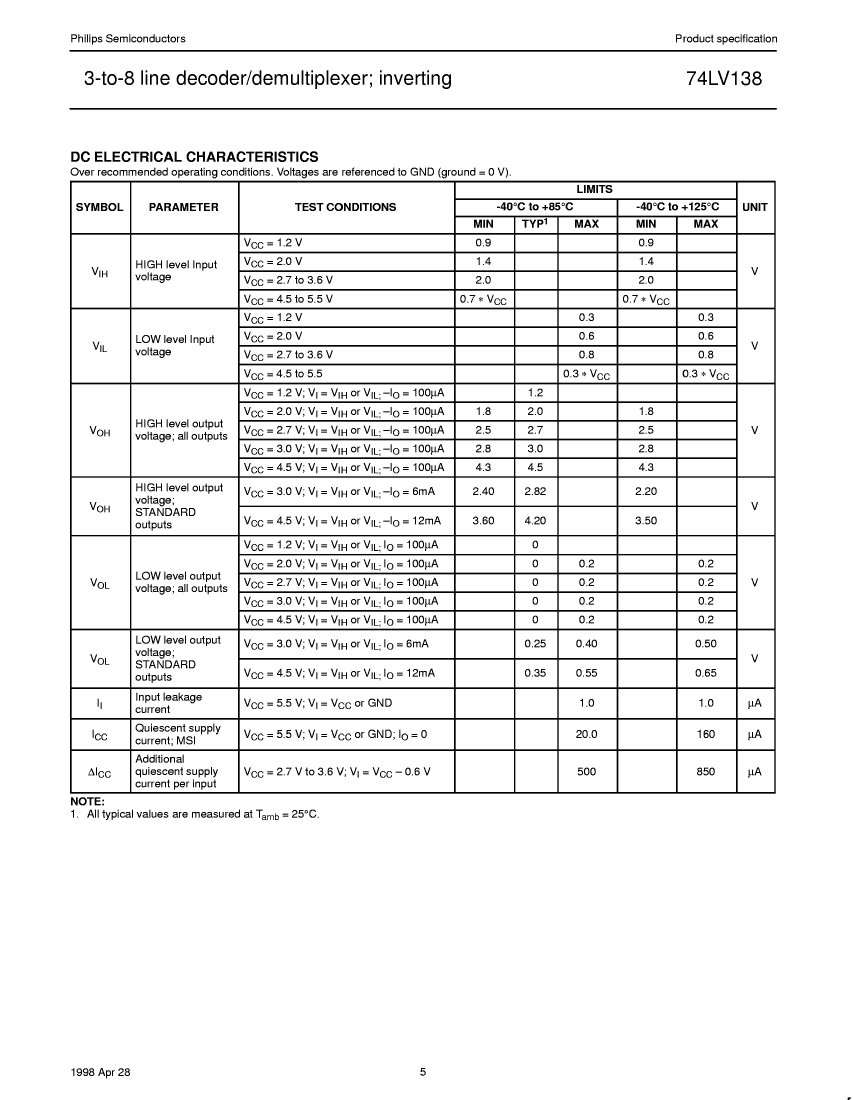

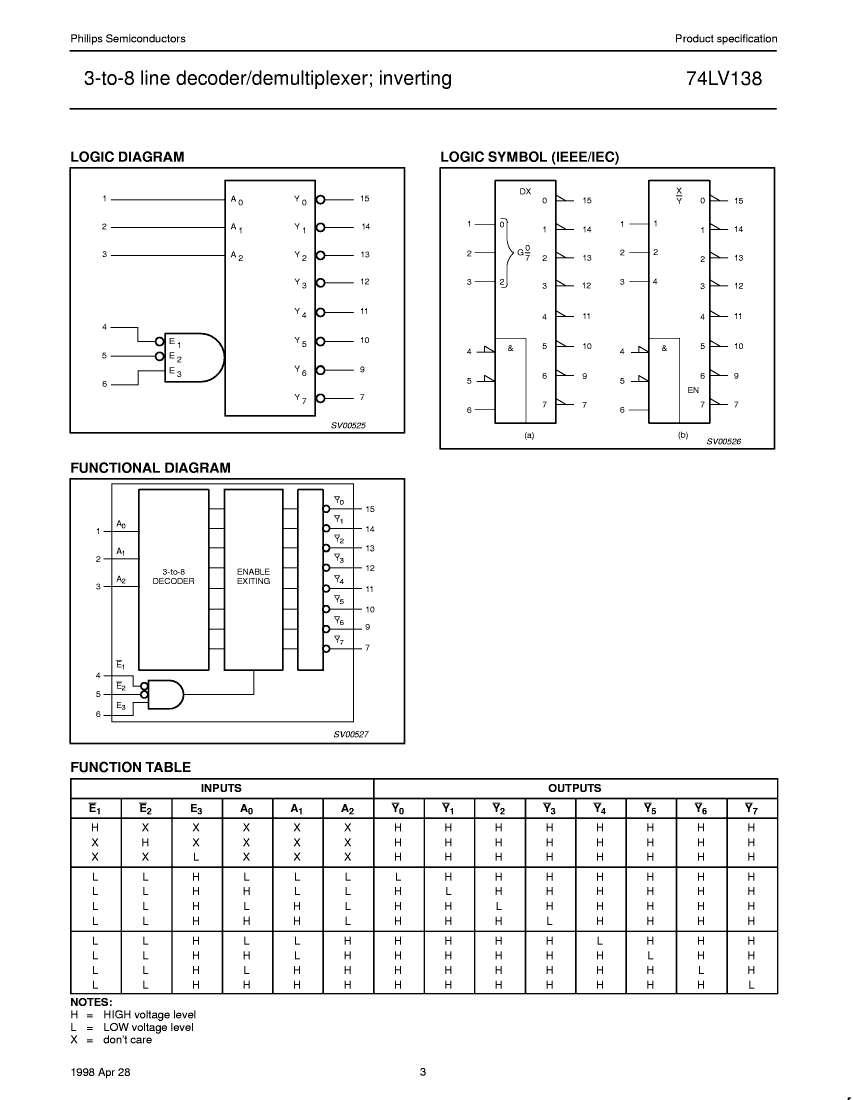

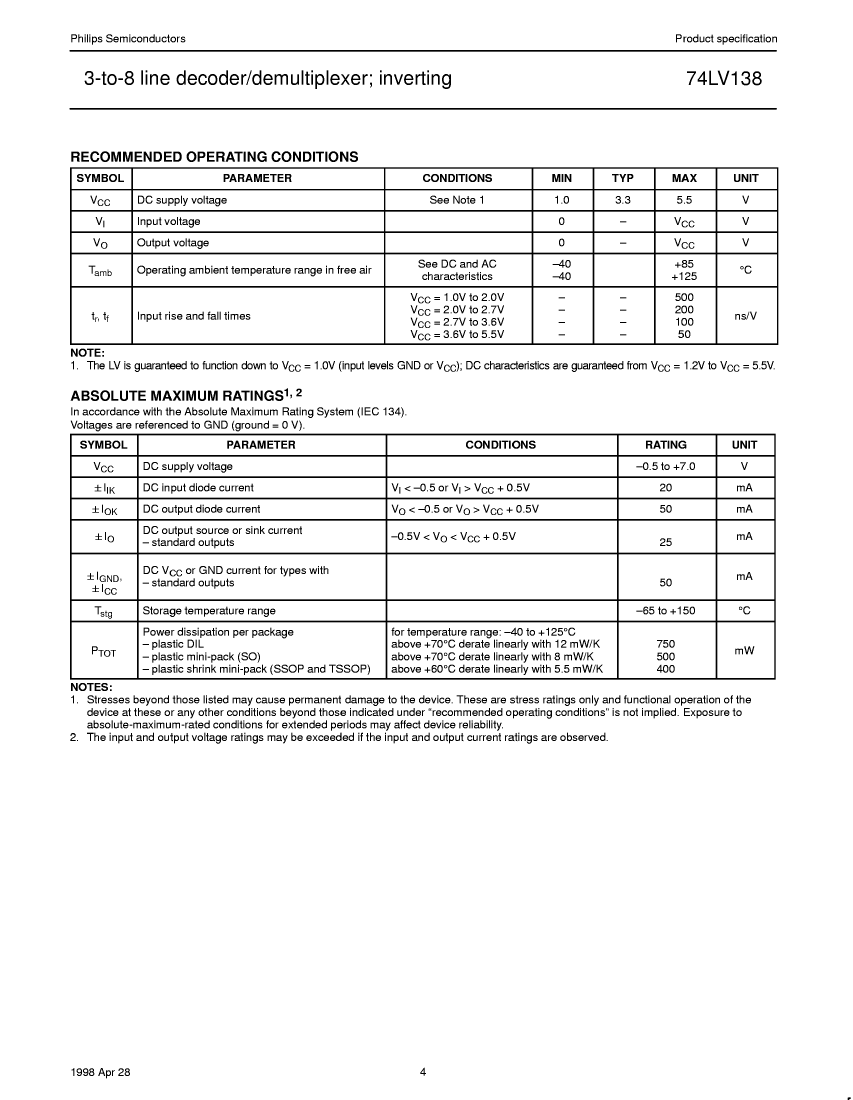

Preview

Download Datasheet

View All

74LV138D-T Related Products

	74LV138D-T	74LV138DB-T	74LV138PW-T
Description	Decoder/Driver, CMOS, PDSO16,	Decoder/Driver, CMOS, PDSO16,	Decoder/Driver, CMOS, PDSO16,
Is it Rohs certified?	conform to	conform to	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SOP, SOP16,.25	SSOP, SSOP16,.3	TSSOP, TSSOP16,.25
Reach Compliance Code	unknown	unknown	unknown
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER	OTHER DECODER/DRIVER
MaximumI(ol)	0.006 A	0.006 A	0.006 A
Number of functions	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SSOP	TSSOP
Encapsulate equivalent code	SOP16,.25	SSOP16,.3	TSSOP16,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
power supply	3.3 V	3.3 V	3.3 V
Prop。Delay @ Nom-Sup	32 ns	32 ns	32 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	1	1	1
Humidity sensitivity level	1	1	-
