LC Filter
Features
EMI Suppression Filter
www.samwha.com
94
The noise-rejection band can be requested by selecting the capacitors capacitance as required.
These filters serve as an excellent countermeasure against noise since they provide high attenuation over
a wide band of frequency from 10 to 1,000MHz.
Epoxy powder exteriors provide solid strength and stable lead pitches to assure optimum suitability for
automatic inserting operation.
Compact size allows high density PCB mounting for 2.5mm steps.
Applications
Computers and peripheral equipment, word processors, facsimiles.
Digital controlled equipment and electronic type writer, program controllers.
Automotive engine control units, car electronics.
TVs, VCRs, electronic music instruments, video games etc.
How to Order(Product
Identification)
CFI 06 B 1H 101 M F
Type
Type of EMI suppression filter
Physical Dimensions
06 : Component
Temperature Characteristics
B(Y5P) :
C :-15~15%(-55℃~125℃)
Rated Valtage
1H : 50V DC
2H : 100V DC
Norminal Capacitance(㎊)
The first two digits indicate significants digits, the
third digits indicate the number of zero following
ex) 470 47㎊, 271 270㎊, 222 2200㎊
Capacitance Tolerance
Code
K
M
Z
Tolerance
±10%
±20%
-20,
80%
Packing Style
Code
Packing
B
Bulk Packing
F
Taping type of flat pack(Ammo-Pack)
SAMWHA CAPACITOR Co., Ltd.

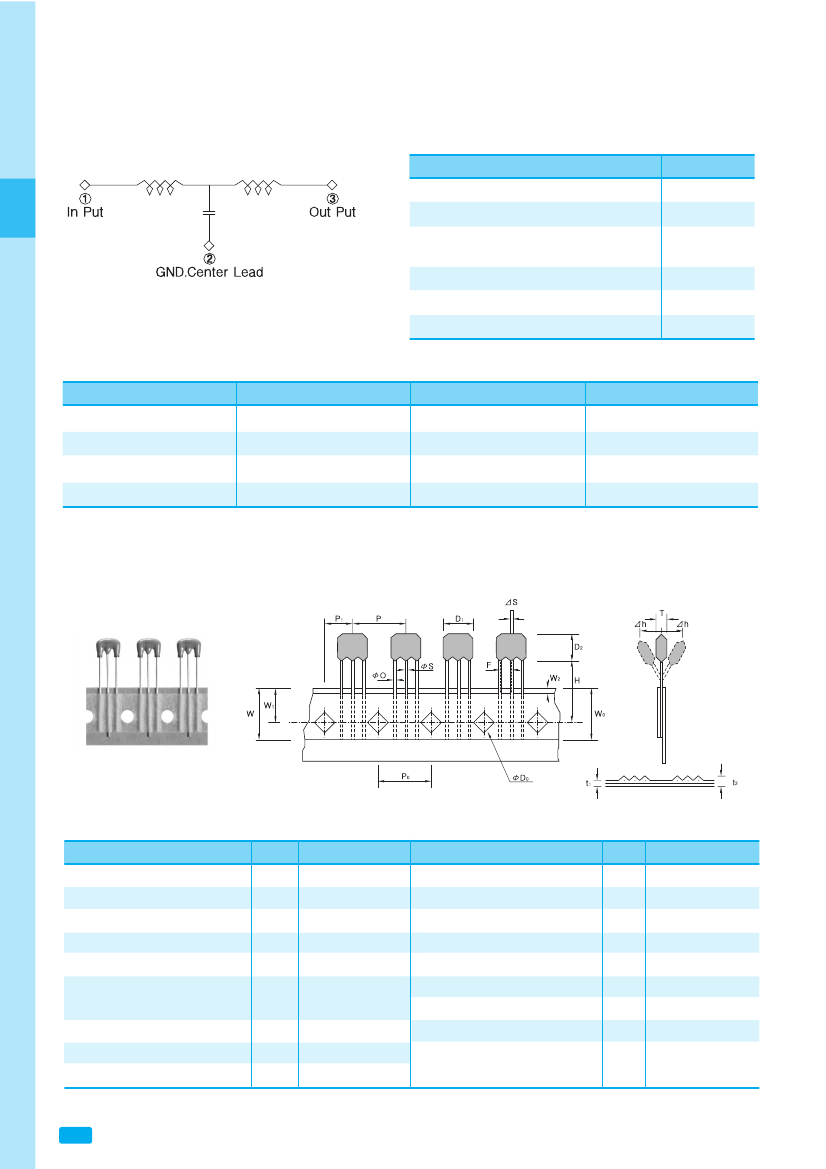

Schematic and Characteristics
Item
Rated Voltage
Rated current Between terminals
①
and
③
Withstanding test voltage between
terminals
①
and
②
or
②
and
③
Insulation resistance at 50V DC for 1 minute
DC resistance between terminals
①
and
③
Operating temperature range
Specification
50VDC
1A
125V DC
10,000
MΩ
Min.
50mΩ Max.
-25℃
~ 85℃
EMI Suppression Filter
www.samwha.com
Electrical Characteristics
Item
Operating Temperature
Rated voltage
Insulation resistance
Rated current
Specification
B :
-55℃~+125℃
50V/100V DC
10,000
MΩ
Min.
1A Max.
Item
Temperature characteristic
Testing voltage
Tanδ
DC Resistance
Specification
B :
±15%
125V/250V DC
B : 3.0% Max.
50mΩMax.
Shape & Dimensions
2226
J10
Item
Component Width
Component Height
Component Thickness
Pitch of Component
Pitch of Sprocket Hole
Length from Hole Center to
Component Center
Lead Spacing
Deviation along Tape, Left of Right
Deviation across Type
Code
D
1
D
2
T
P
P
0
P
1
F
ΔS
Δh
Dimensions(㎜)
8.0 Max.
6.2 Max.
2.8 Max.
12.7±1.0
12.7±0.3
6.35
±1.3
2.5
-0.1, +0.4
1.0 Max.
2.0 Max.
Item
Carrier Type Width
Hole Down Type Width
Position of Sprocket Hole
Hole Down Type Position
Height of Component from Hole Center
Diameter of Sprocket Hole
Total Tape Thickness
Total Thickness, Tape and Lead wire
Lead Diameter
Code
W
W
0
W
1
W
2
H
ØD
0
t
1
t
2
ØO
ØS
Dimensions(㎜)
18.0±0.5
5.0 Min.
9.0±0.5
1.5±1.5
19.0±1.0
4.0±0.2
0.5±0.2
1.5 Max.
0.6±0.05
0.5±0.05
96
SAMWHA CAPACITOR Co., Ltd.
Leaded Type
A : Axial Leaded
R : Radial Leaded
Leaded Pitch
0 : Straight
2 : 5mm Pitch
Packing Style
Code
B
Bulk Packing
Taping Type Flat Pack(Axial 26mm)
Packing
Code
F
L
Packing
Taping Type Flat Pack(Radial)
Taping Type Flat Pack(Axial 52mm)
EMI Suppression Filter
www.samwha.com
S
Specifications
Testing frequency : at 100M㎐.an exception SPEC : BFS 3557 A0. BFS 3560 A0 at 10M㎐
Spec
BFD 2070 R2
BFS 2550 A0
BFS 2550 R2
BFD 2550 R2
BFS 3550 A0
BFS 3550 R2
BFD 3550 R2
BFS 3557 A0
BFS 3560 A0
BFS 3565 A0
BFS 3565 R2
BFD 3565 R2
BFS 3580 A0
BFS 3580 R2
BFD 3580 R2
BFS 3510 A0
BFS 3510 R2
BFD 3510 R2
BFS 3512 A0
BFS 3512 R2
BFD 3512 R2
BFS 3514 A0
BFS 3514 R2
BFD 3514 R2
BFW 7555 R2
BFR601009C8ND
BFR601009C8NE
BFR601009C8NF
BFR601009C8NG
|z|(Ω)
Min.
120
50
50
100
65
65
130
31.5
31.5
80
80
160
103
103
206
120
120
240
148
148
296
170
170
340
90
280
360
440
520
Typical
150
65
65
130
70
70
140
45
45
100
100
200
120
120
240
150
150
300
180
180
360
210
210
420
120
350
450
550
650
DC Resistance
(mΩ)
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
50
50
50
50
Insulation
(At DC 100V,
MΩ)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Allowable DC Current
(A Max.)
3
3
3
3
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
98
SAMWHA CAPACITOR Co., Ltd.

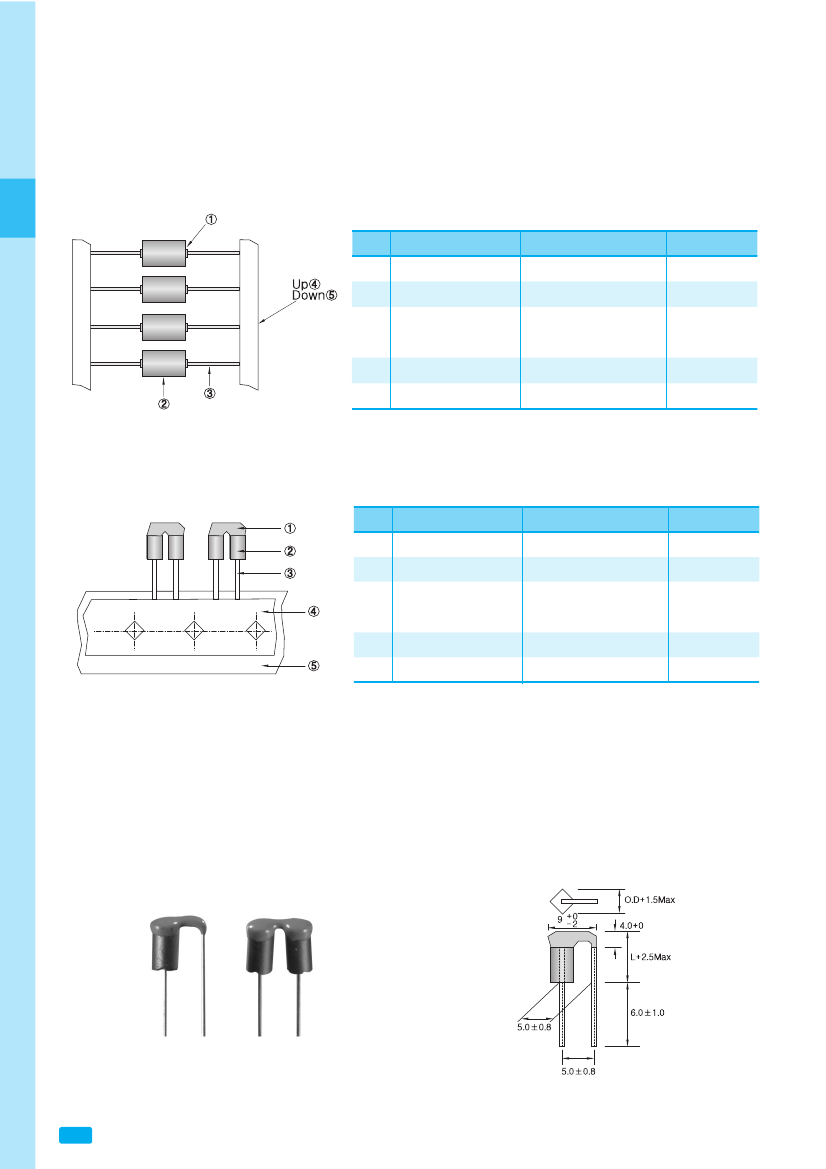

Material Certificate
※
We guarantee that the same material above used
Axial
No.
①
②
③
④
⑤
Component Parts
Epoxy Bond
Ferrite Core
Lead-Wire
Marking Tape
Paper Tape
Material
Uni Bond Orange
Ni-Zn Material
Sn 100% Plat on
Copper Wire(0.6Ø)
Width 5.8mm
Width 6.0mm
Remark
Lead free
Lead free
Lead free
Lead free
Lead free
EMI Suppression Filter
Radial
No.
①
②
③
④
⑤
Component Parts
Epoxy Bond
Ferrite Core
Lead-Wire
Marking Tape
Hard Paper
Material
ECP-200 Orange
Ni-Zn Material
Sn 100% Plat on
Copper Wire(0.6Ø)
Heating Tape
18mm×0.38mm
Remark
Lead free
Lead free
Lead free
Lead free
Lead free
Shape & Dimensions
Radial Type
BFS R2B Type
www.samwha.com
100
