CEP124NP-4R0MC: Description1 ELEMENT, 4 uH, MANGANESE-ZINC-CORE, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size144KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CEP124NP-4R0MC Overview

1 ELEMENT, 4 uH, MANGANESE-ZINC-CORE, GENERAL PURPOSE INDUCTOR, SMD

CEP124NP-4R0MC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	5151
Reach Compliance Code	unknow
ECCN code	EAR99
uppercase and lowercase codes	5151
structure	Magnetically Shielded
core material	FERRITE
DC Resistance	0.0076 Ω
Nominal inductance(L)	4 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CEP124
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	5 mm
Package length	12.5 mm
Package form	SMT
Package width	12.5 mm
method of packing	TR, 13 Inch
Maximum rated current	12.6 A
series	CEP124
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

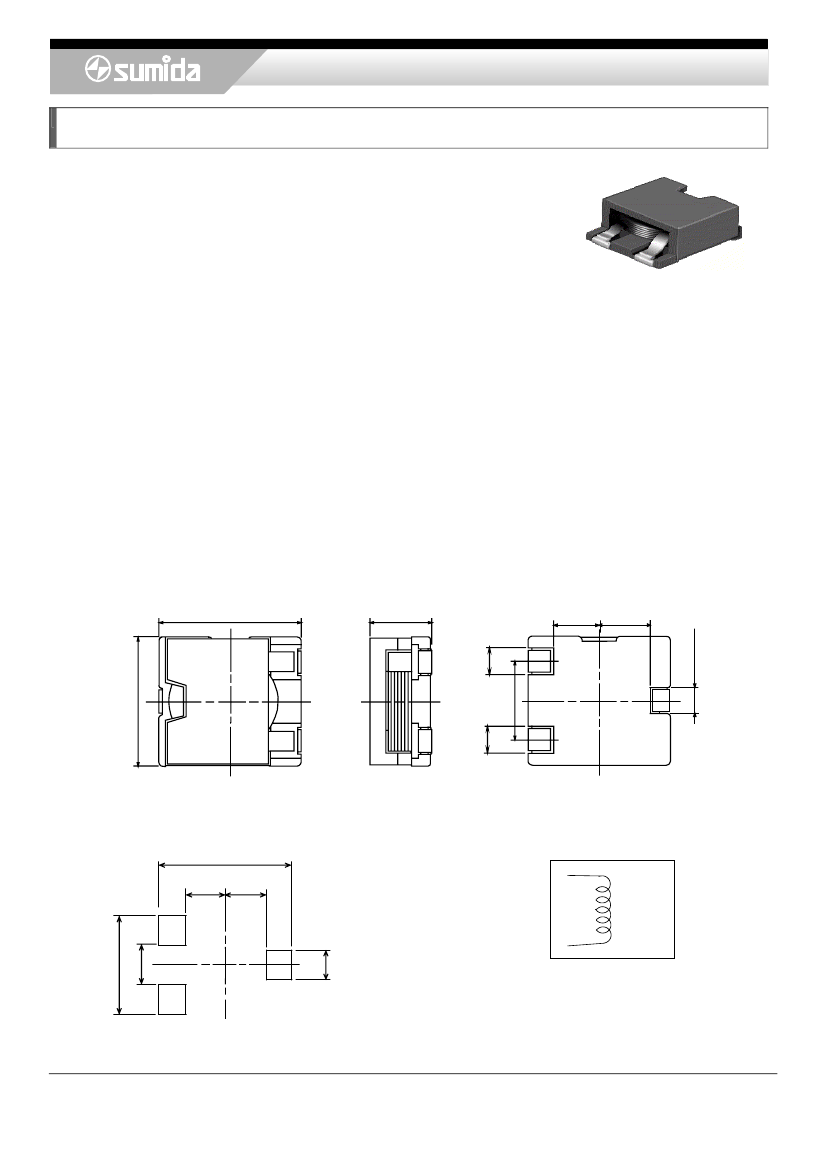

Power Inductors<SMD Type: CEP Series>

Type: CEP124

Product Description

・12.9×12.9

mm Max.(L×W), 5.0mm Max. Height.

・Standard

type and High Power Type are available.

・Inductance

Range:

0.68½4.0μH (standard type );

0.35½2.2μH (High Power type).

・Saturation

Current range:

8.8½20.8 A (Standard type ) ;

16.2½38.4A (High Power type).

・Temperature

rise current 12.6½18.4A

・Custom

design is available.

◆

Feature

・Magnetically

shielded construction.

・Super

high current, Mn-Zn core used, Flat wire used.

・Ideally

used in computer CPU power supply.

・RoHS

Compliance

◆

Dimensions (mm)

12.5±0.4

5.0 Max.

2.6±0.2

4.0±0.2 4.2±0.2

②

7.0±0.2

12.5±0.4

2.6±0.2

①

◆

Land Pattern (mm)

13.5

4.0

4.2

◆Schematics

(Bottom)

②

③

①

10.0

4.0

Please refer to the sales offices on our website for a representative near you

3.0

www.sumida.com

2.5±0.2

③

1/2

CEP124NP-4R0MC Related Products

	CEP124NP-4R0MC	CEP124	CEP124NP-0R8MC-H	CEP124NP-1R4MC-H	CEP124NP-R35MC-H	CEP124NP-2R7MC	CEP124NP-R68MC	CEP124NP-1R5MC	CEP124NP-2R2MC-H
Description	1 ELEMENT, 4 uH, MANGANESE-ZINC-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 2.7 uH, MANGANESE-ZINC-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 2.7 uH, MANGANESE-ZINC-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 2.7 uH, MANGANESE-ZINC-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 2.7 uH, MANGANESE-ZINC-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 2.7 uH, MANGANESE-ZINC-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.68 uH, MANGANESE-ZINC-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 1.5 uH, MANGANESE-ZINC-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 2.2 uH, MANGANESE-ZINC-CORE, GENERAL PURPOSE INDUCTOR, SMD
Is it lead-free?	Lead free	-	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	SUMIDA	-	SUMIDA	SUMIDA	SUMIDA	SUMIDA	SUMIDA	SUMIDA	-
package instruction	5151	-	5151	4949	4949	4949	4949	4949	4949
Reach Compliance Code	unknow	-	unknow	unknow	unknow	unknown	unknow	unknow	unknow
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
uppercase and lowercase codes	5151	-	5151	4949	4949	4949	4949	4949	4949
structure	Magnetically Shielded	-	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded	Magnetically Shielded
core material	FERRITE	-	FERRITE	MANGANESE-ZINC	MANGANESE-ZINC	MANGANESE-ZINC	MANGANESE-ZINC	MANGANESE-ZINC	MANGANESE-ZINC
DC Resistance	0.0076 Ω	-	0.0024 Ω	0.0042 Ω	0.0016 Ω	0.0042 Ω	0.0016 Ω	0.0024 Ω	0.0076 Ω
Nominal inductance(L)	4 µH	-	0.8 µH	1.4 µH	0.35 µH	2.7 µH	0.68 µH	1.5 µH	2.2 µH
Inductor Applications	POWER INDUCTOR	-	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CEP124	-	CEP124	CEP124	CEP124	CEP124	CEP124	CEP124	CEP124
Number of functions	1	-	1	1	1	1	1	1	1
Number of terminals	2	-	2	3	3	3	3	3	3
Maximum operating temperature	125 °C	-	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package height	5 mm	-	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
Package length	12.5 mm	-	12.5 mm	12.5 mm	12.5 mm	12.5 mm	12.5 mm	12.5 mm	12.5 mm
Package form	SMT	-	SMT	SMT	SMT	SMT	SMT	SMT	SMT
Package width	12.5 mm	-	12.5 mm	12.5 mm	12.5 mm	12.5 mm	12.5 mm	12.5 mm	12.5 mm
method of packing	TR, 13 Inch	-	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch
Maximum rated current	12.6 A	-	17.8 A	13.8 A	18.4 A	13.8 A	18.4 A	17.8 A	12.6 A
series	CEP124	-	CEP124	CEP124	CEP124	CEP124	CEP124	CEP124	CEP124
Shape/Size Description	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	-	YES	YES	YES	YES	YES	YES	YES
surface mount	YES	-	YES	YES	YES	YES	YES	YES	YES
Terminal shape	WRAPAROUND	-	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	-	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	20%	-	20%	20%	20%	20%	20%	20%	20%
