CDRH6D18HPNP-330PC: Description1 ELEMENT, 33 uH, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size199KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance; Related ProductsFound1parts with similar functions to CDRH6D18HPNP-330PC

Download Datasheet Parametric View All

CDRH6D18HPNP-330PC Overview

1 ELEMENT, 33 uH, GENERAL PURPOSE INDUCTOR, SMD

CDRH6D18HPNP-330PC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	2828
Reach Compliance Code	unknow
ECCN code	EAR99
uppercase and lowercase codes	2828
structure	Magnetically Shielded
core material	Ferrite
DC Resistance	0.374 Ω
Nominal inductance(L)	33 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package height	1.8 mm
Package length	6.7 mm
Package form	SMT
Package width	6.7 mm
method of packing	Tape
Maximum rated current	0.7 A
series	CDRH6D18/HP
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Tolerance	25%
Base Number Matches	1

Preview

Download Datasheet

View All

SMD Power Inductor

CDRH6D18/HP

■

Features

◎

7.0×7.0mm Max.(L×W),2.0mm Max. Height.

◎

Operating temperature range: -40℃~+105℃.

◎

RoHS and Halogen-Free Compliance.

■

Applications

Surface mount inductor for PDA,HDD,DSC/DVC, etc.

■

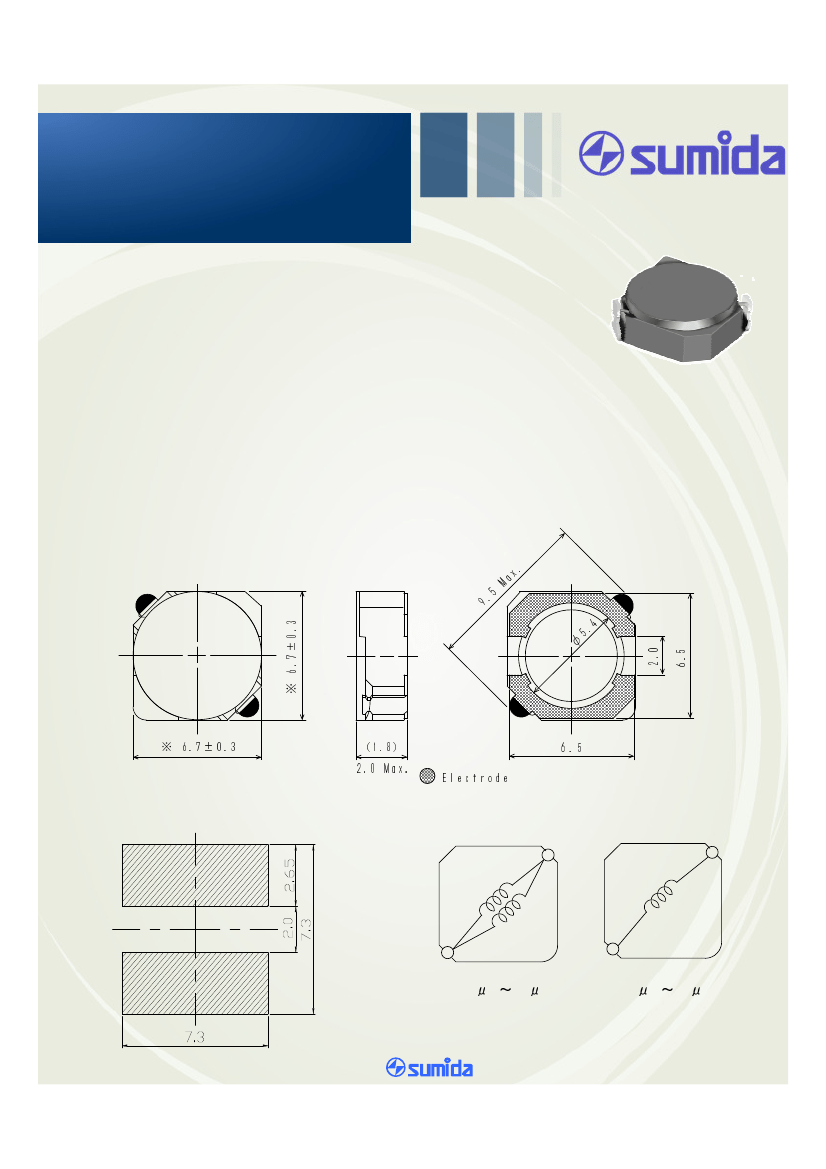

Shapes and Dimensions/Recommended Land Patterns(mm)

◆

Dimensions

◆

Land pattern (mm)

◆

Schematics (Bottom)

μ ½μ

(1.0 H

22 H)

(33 H

6 2

. .

5 0

68 H)

φ

4.5

5.6

.9

M5

.xa

e d o rt c e l E

.xaM 0.2

)8.1(

※

6

.

7

±

0

.

3

3.0±7.6 ※
