POWER INDUCTORS <SMD Type: CDRH Series>
Type: CDRH6D12, CDRH6D12/LD
◆
Product
Description
・6.7×6.7mm
Max.(L×W), 1.5mm Max. Height.
・Both
standard type
CDRH6D12 and Low DCR type CDRH6D12/LD are available.
・Inductance
range:
1.0½68μH(CDRH6D12),1.5½47μH(CDRH6D12/LD).
・Rated
current range:
0.4½2.8A(CDRH6D12) ; 0.48½2.6A(CDRH6D12/LD).
・In
addition to the standards versions shown here, custom inductors are also available
to meet your exact requirements.
◆
Feature
・Magnetically
shielded construction.
・Ideally
used in Mobile phone, MP3, PDA ,HDD,DSC/DVC, etc as DC-DC Converter inductors.
・RoHS
Compliance.
◆

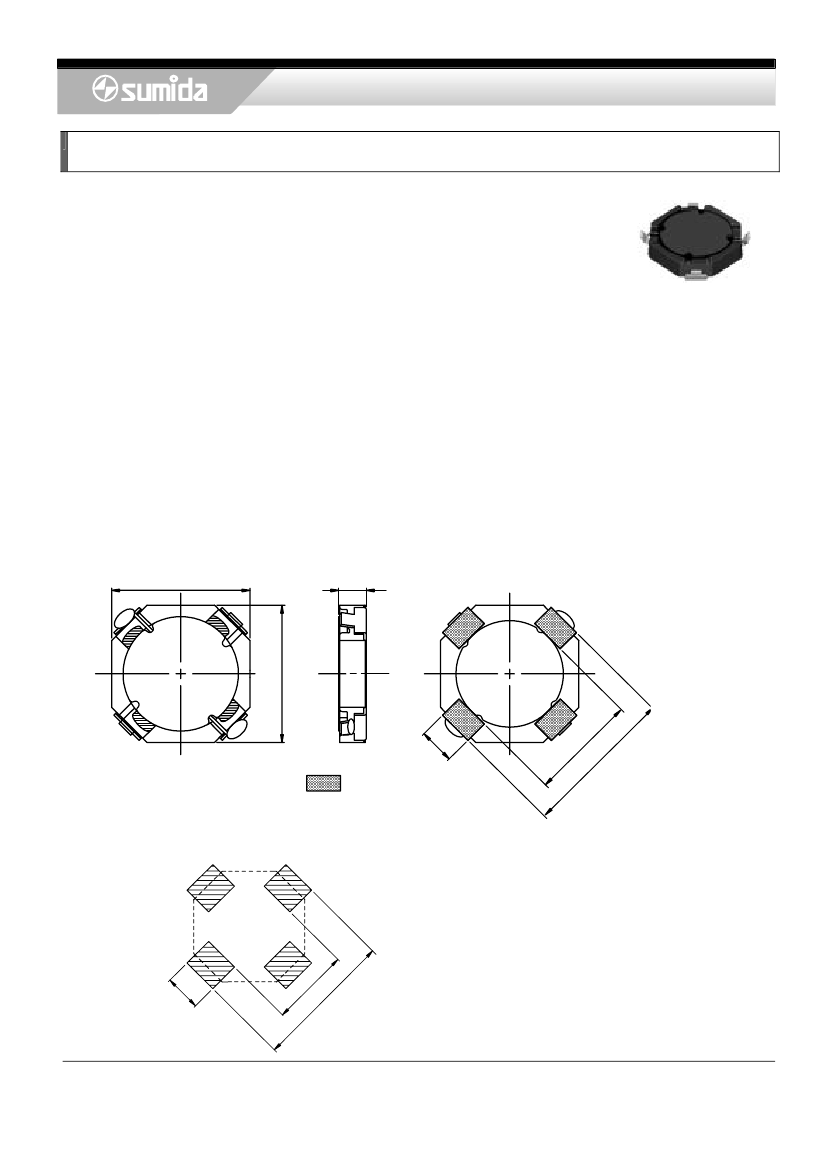

Dimensions (mm)
6.5±0.2
1.5 Max.
3
2
6.5±0.2
4
5.
0
1
0
2.
8
6.
Electrode terminal
◆
Land Pattern (mm)
Please refer to the sales offices on our website for a representative near you
4.
7.
8
3
4
2.
www.sumida.com
1/2
POWER INDUCTORS <SMD Type: CDRH Series>
Type: CDRH6D12, CDRH6D12/LD
◆
Specification (CDRH6D12)
Part Name
※
CDRH6D12-1RØN□
CDRH6D12-1R5N□
CDRH6D12-2R2N□
CDRH6D12-2R6N□
CDRH6D12-3R3N□
CDRH6D12-4R2N□
CDRH6D12-6R4N□
CDRH6D12-1ØØN□
CDRH6D12-15ØN□
CDRH6D12-22ØN□
CDRH6D12-33ØN□
CDRH6D12-47ØN□
CDRH6D12-68ØN□
Stamp
1R0
1R5
2R2
2R6
3R3
4R2
6R4
100
150
220
330
470
680
Inductance
（μH）
［Within½
100kHz/1V
1.0±30％
1.5±30％
2.2±30％
2.6±30％
3.3±30％
4.2±30％
6.4±30％
10.0±30％
15.0±30％
22.0±30％
33.0±30％
47.0±30％
68.0±30％
Inductance
（μH）
［Within½
100kHz/1V
1.5±30％
2.2±30％
2.7±30％
3.3±30％
4.7±30％
5.6±30％
6.8±30％
10.0±25％
15.0±25％
22.0±25％
33.0±25％
47.0±25％
D.C.R.(mΩ)
Max.(Typ.)
(at 20℃)
37.5(30.0)
41.3(33.0)
50.0(40.0)
56.3(45.0)
62.5(50.0)
75.0(60.0)
119.0(95.0)
165.0(132.0)
243.8(195.0)
325.0(260.0)
500.0(400.0)
675.0(540.0)
918.8(735.0)
Saturation
Current
（mA）※1
3500
2800
2500
2300
2200
1900
1500
1200
950
800
650
550
450
Temperature
Rise current
(mA)※2
2800
2500
2300
2100
1900
1800
1400
1100
900
750
600
500
400
◆
Specification (CDRH6D12/LD)
Part Name
※
CDRH6D12LDNP-1R5N□
CDRH6D12LDNP-2R2N□
CDRH6D12LDNP-2R7N□
CDRH6D12LDNP-3R3N□
CDRH6D12LDNP-4R7N□
CDRH6D12LDNP-5R6N□
CDRH6D12LDNP-6R8N□
CDRH6D12LDNP-1ØØN□
CDRH6D12LDNP-15ØN□
CDRH6D12LDNP-22ØN□
CDRH6D12LDNP-33ØN□
Stamp
1R5
2R2
2R7
3R3
4R7
5R6
6R8
100
150
220
330
D.C.R.(mΩ)
Max.(Typ.)
(at 20℃)
37.4(30.0)
43.5(34.8)
51.2(40.9)
58.8(46.9)
74.8(59.8)
83.1(66.4)
95.3(76.3)
132(105)
180(144)
265(212)
436(349)
603(482)
Saturation
Current（A）※1
(at20℃)
2.60
2.20
1.95
1.80
1.50
1.35
1.25
1.00
0.85
0.68
0.60
0.48
(at105℃)
2.10
1.80
1.55
1.45
1.20
1.10
1.00
0.82
0.70
0.55
0.48
0.38
Temperature
Rise current
(A)※2
2.70
2.50
2.20
2.10
1.90
1.65
1.60
1.30
1.10
0.90
0.65
0.55
CDRH6D12LDNP-47ØN□
470
※
Description of Part Name
CDRH6D12LDNP-1R5N
□
B
C
Box
Carrier Tape
※1.
Saturation current:The DC current at which the inductance decreases to 65% of it’s nominal value.
※2.
Temperature rise current: The DC current at which the temperature rise is
△t＝40℃.(Ta＝20℃).
Please refer to the sales offices on our website for a representative near you
www.sumida.com
2/2
