75839-002 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 75839-002

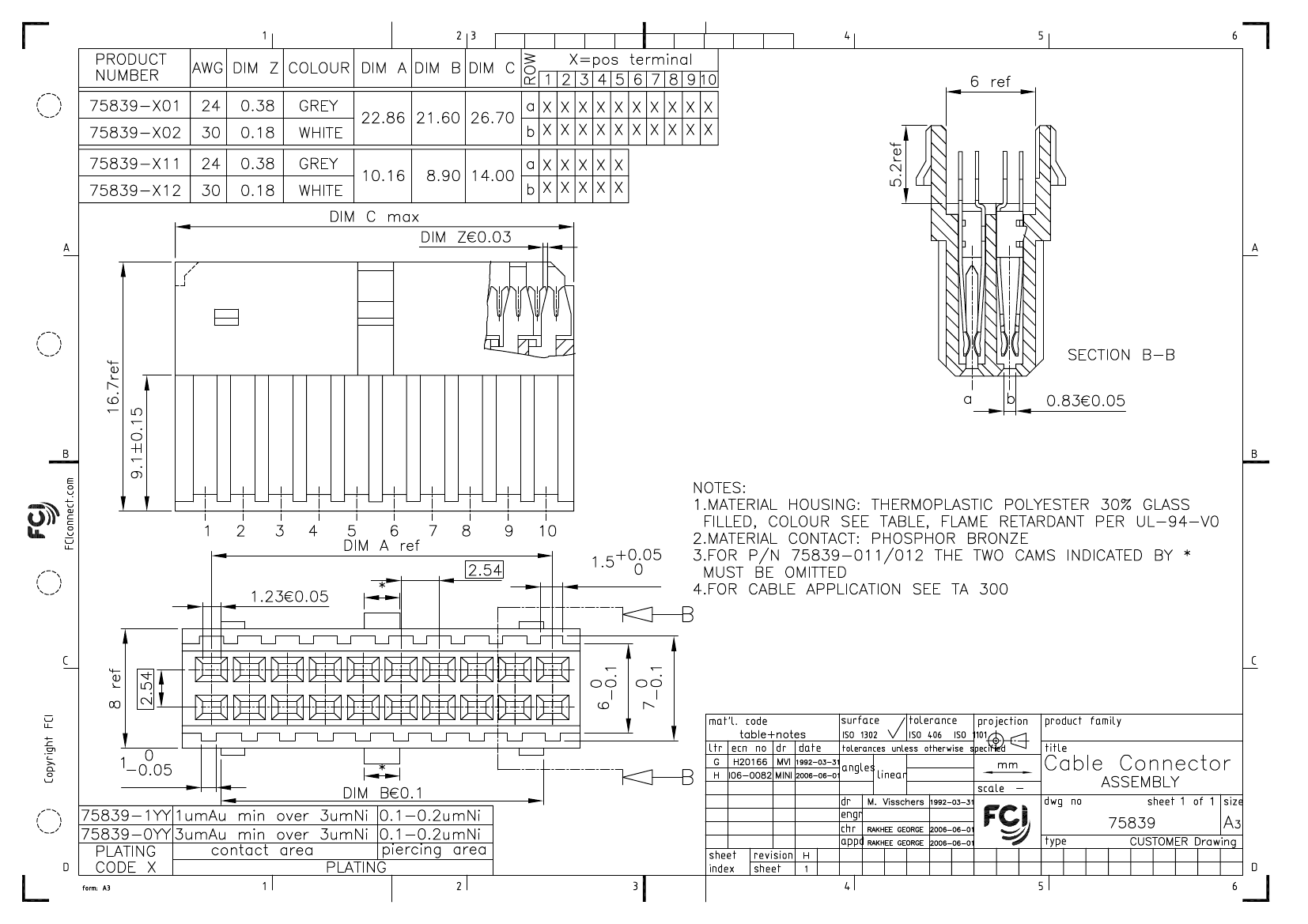

Preview

75839-002: DescriptionBoard Connector, 20 Contact(s), 2 Row(s), Female, IDC Terminal; CategoryThe connector The connector; File Size77KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

75839-002 Overview

Board Connector, 20 Contact(s), 2 Row(s), Female, IDC Terminal

75839-002 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (118) OVER NICKEL
Contact completed and terminated	NICKEL (8)
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	75839
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Termination type	IDC
Total number of contacts	20
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

PDM: Rev:H

STATUS:

Released

Printed: Sep 15, 2009

.

75839-002 Related Products

	75839-002	75839-001	75839-011	75839-012	75839-101	75839-102	75839-111	75839-112
Description	Board Connector, 20 Contact(s), 2 Row(s), Female, IDC Terminal	Board Connector, 20 Contact(s), 2 Row(s), Female, IDC Terminal	Board Connector, 20 Contact(s), 2 Row(s), Female, IDC Terminal	Board Connector, 20 Contact(s), 2 Row(s), Female, IDC Terminal	Board Connector, 20 Contact(s), 2 Row(s), Female, IDC Terminal	Board Connector, 20 Contact(s), 2 Row(s), Female, IDC Terminal	Board Connector, 20 Contact(s), 2 Row(s), Female, IDC Terminal	Board Connector, 20 Contact(s), 2 Row(s), Female, IDC Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (118) OVER NICKEL	GOLD (118) OVER NICKEL	GOLD (118) OVER NICKEL	GOLD (118) OVER NICKEL	GOLD (39) OVER NICKEL	GOLD (39) OVER NICKEL	GOLD (39) OVER NICKEL	GOLD (39) OVER NICKEL
Contact completed and terminated	NICKEL (8)	NICKEL (8)	NICKEL (8)	NICKEL (8)	NICKEL (8)	NICKEL (8)	NICKEL (8)	NICKEL (8)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	75839	75839	75839	75839	75839	75839	75839	75839
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	20	20	20	20	20	20	20	20
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
