72454-014VLF datasheet, PDF - EEWORLD Datasheet

72454-014VLF: DescriptionQuickie Slimline Header, Wire to Board connector, Surface Mount, Vertical, Double Row, 14 Positions, 2.54mm (0.100in) Pitch; CategoryThe connector The connector; File Size402KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

72454-014VLF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	72454-014VLF	-	-	View	Buy Now

Quickie Slimline Header, Wire to Board connector, Surface Mount, Vertical, Double Row, 14 Positions, 2.54mm (0.100in) Pitch

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1785868102
package instruction	LEAD FREE
Contacts	14
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
body width	0.345 inch
subject depth	0.503 inch
body length	0.99 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1414VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	20000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYAMIDE46/MINERAL FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.46 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	CSA, UL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	7
UL Flammability Code	94V-0
Evacuation force-minimum value	0.245 N

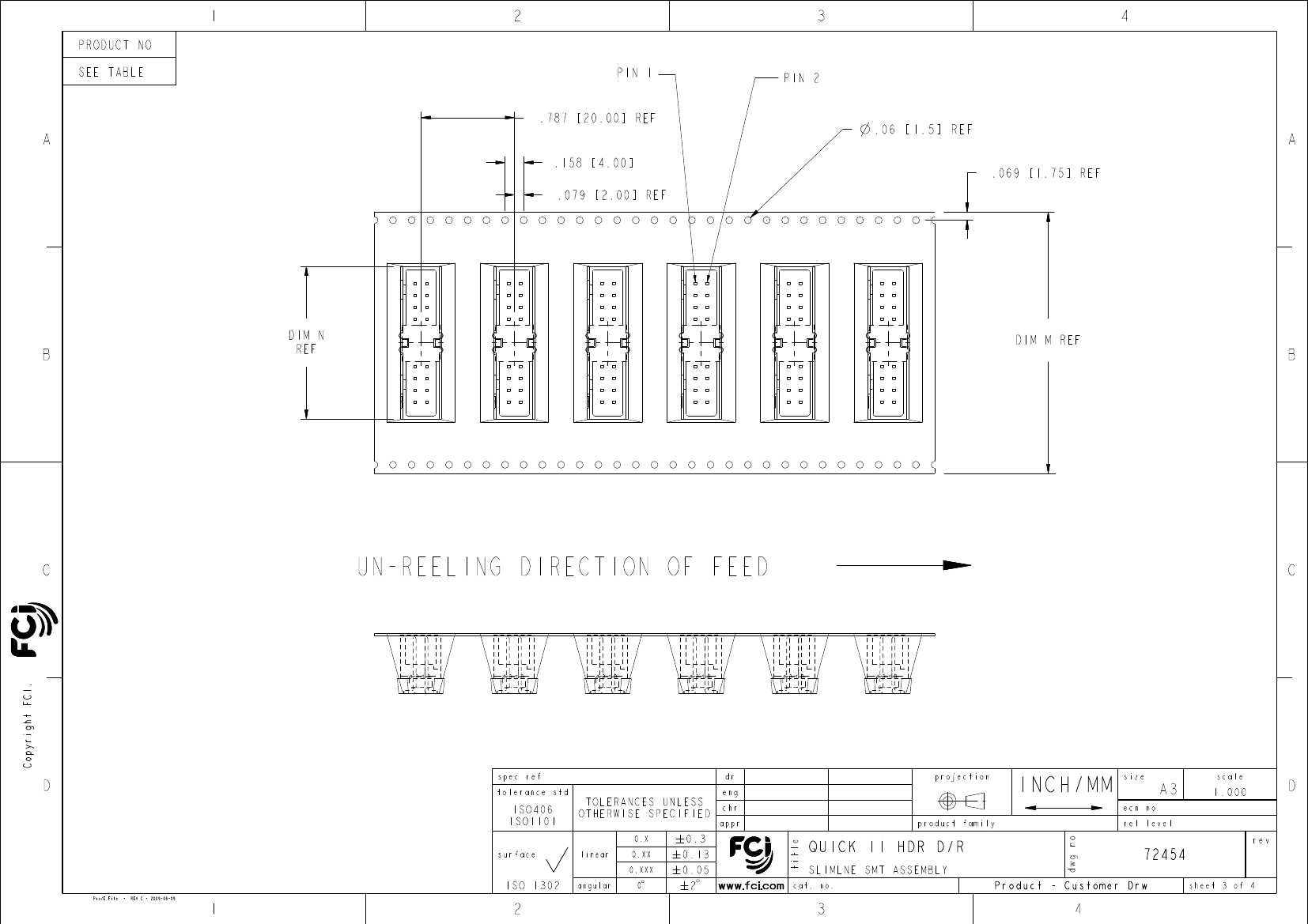

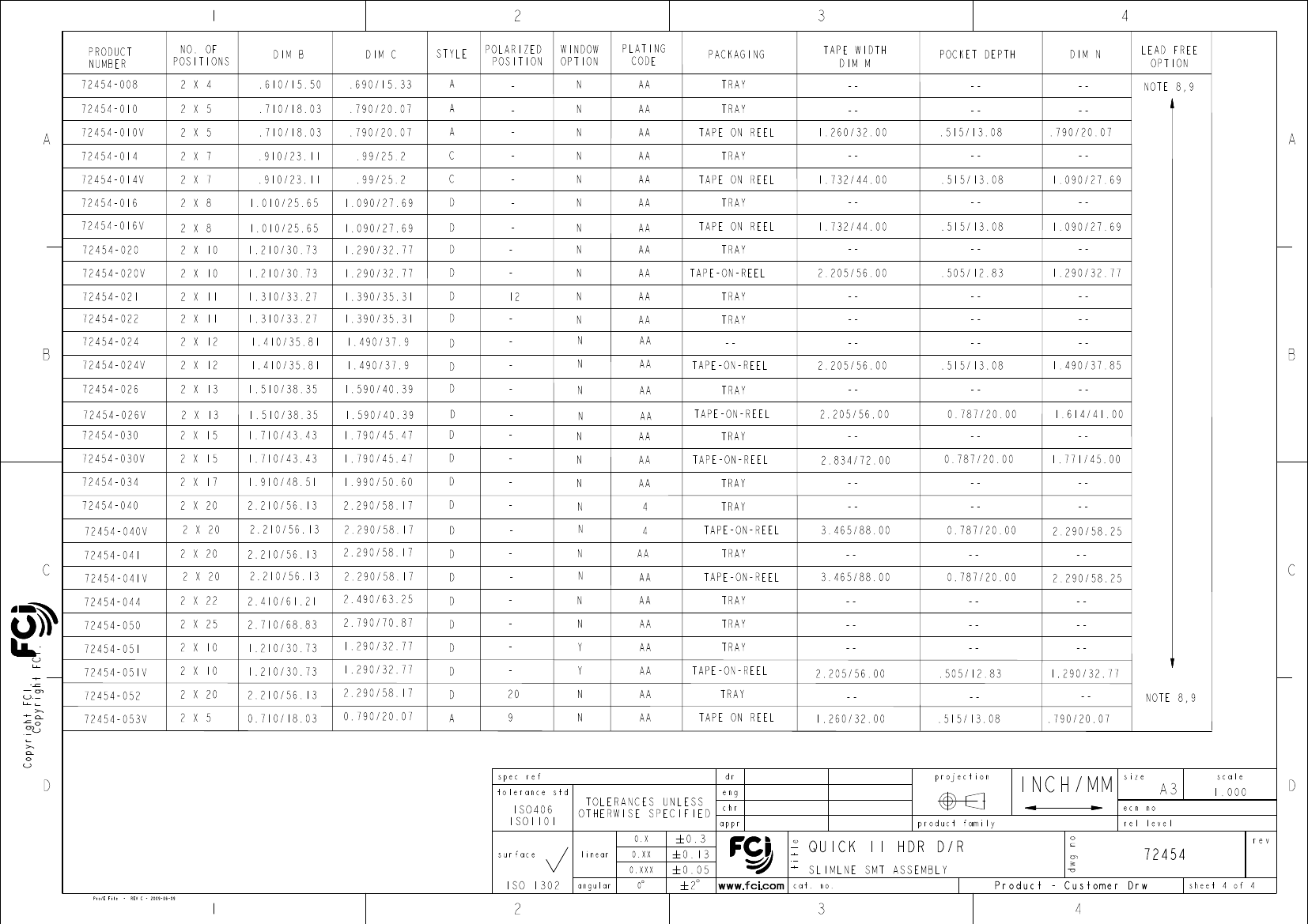

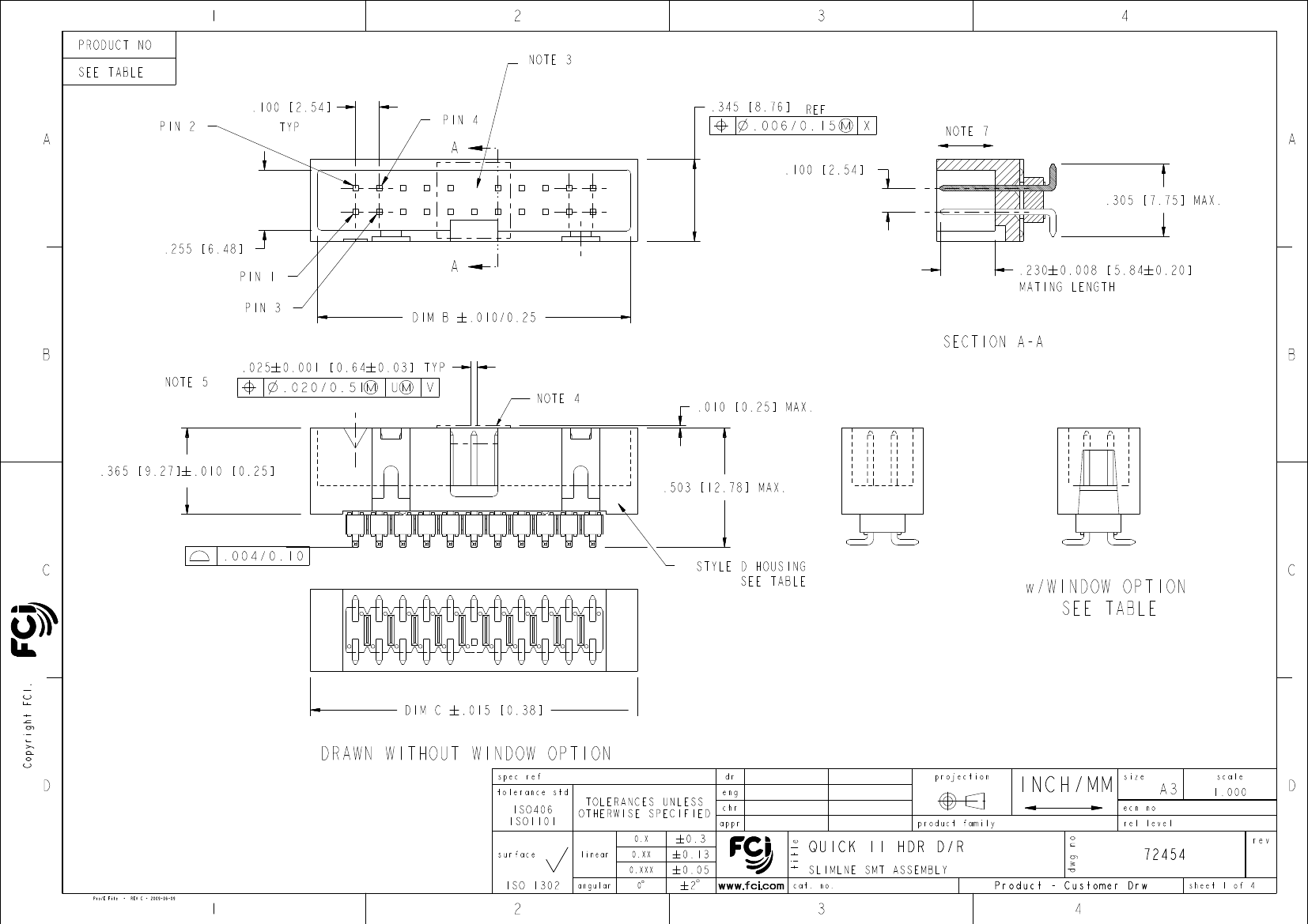

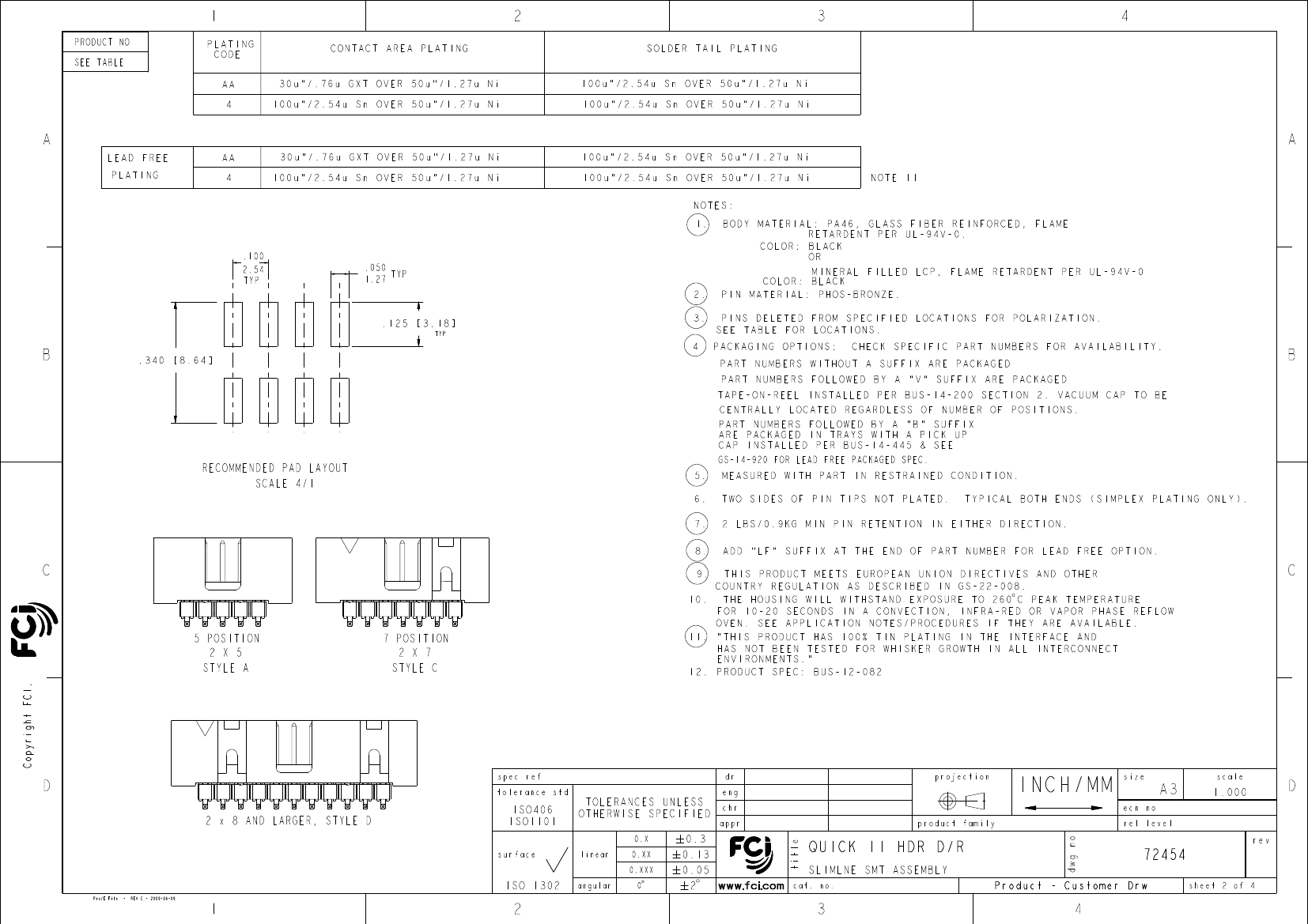

Yong Huang

Zheng-Kun Hu

Rick Bian

2010/10/25

2013/08/27

ELX-N-13688-1

Released

PDS: Rev :AK

STATUS:Released

Printed: Sep 13, 2013
