Power Inductors <SMD Type: CDR***MN Series>
Type: CDR6D28MN
◆
Product Description
・6.8×6.8mm
Max.(L×W), 3.0mm Max. Height.
・Inductance
range:1.5½120μH
・Rated
current range:0.46½3.0A
・In
addition to the standard versions of inductors shown here, custom inductors are
available to meet your exact requirements.
◆
Feature
・Magnetically
shielded construction.
・Hybrid
power inductors use Mn-Zn D.core & Ni-Zn R.core, used as general power inductors.
・Higher
saturation current characteristics than that of Ni-Zn inductors.
・Usually
used in LCD driver,DSC/DVC,Notebook PC or the other portable equipment.
・RoHS
Compliance.
◆

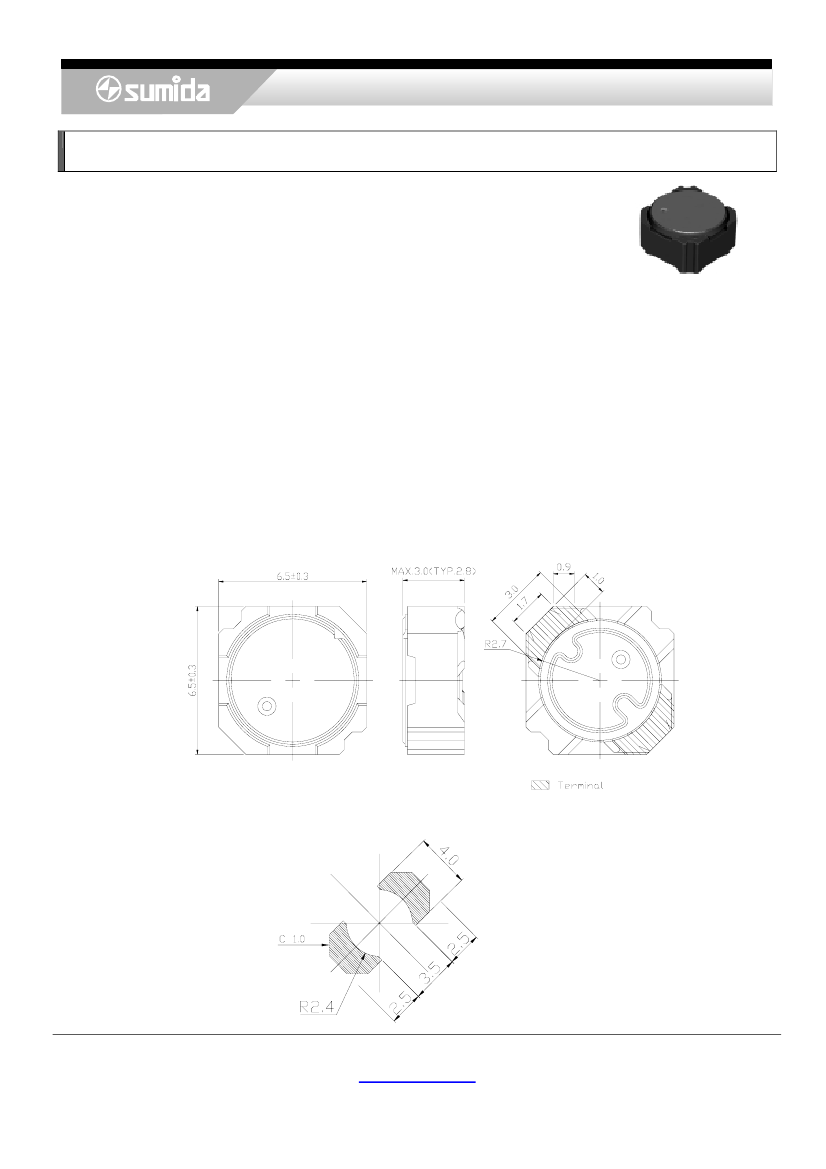

Dimensions (mm)
：
◆
Land Pattern (mm)
Please refer to the sales offices on our website for a representative near you
www.sumida.com
1/2
Power Inductors <SMD Type: CDR***MN Series>
Type: CDR6D28MN
◆
Specification
Part Name
※
CDR6D28MNNP－1R5N□
CDR6D28MNNP－2R0N□
CDR6D28MNNP－2R7N□
CDR6D28MNNP－3R6N□
CDR6D28MNNP－4R5N□
CDR6D28MNNP－5R5N□
CDR6D28MNNP－6R5N□
CDR6D28MNNP－7R7N□
CDR6D28MNNP－9R0N□
CDR6D28MNNP－100N□
CDR6D28MNNP－120N□
CDR6D28MNNP－150N□
CDR6D28MNNP－180N□
CDR6D28MNNP－220N□
CDR6D28MNNP－270N□
CDR6D28MNNP－330N□
CDR6D28MNNP－390N□
CDR6D28MNNP－470N□
CDR6D28MNNP－560N□
CDR6D28MNNP－680N□
CDR6D28MNNP－820N□
CDR6D28MNNP－101N□
CDR6D28MNNP－121N□
Stamp
1R5
2R0
2R7
3R6
4R5
5R5
6R5
7R7
9R0
100
120
150
180
220
270
330
390
470
560
680
820
101
121
Inductance
(100kHz/1V)
1.5μH±25％
2.0μH±25％
2.7μH±25％
3.6μH±25％
4.5μH±25％
5.5μH±25％
6.5μH±25％
7.7μH±25％
9.0μH±25％
10μH±25％
12μH±25％
15μH±25％
18μH±25％
22μH±25％
27μH±25％
33μH±25％
39μH±25％
47μH±25％
56μH±25％
68μH±25％
82μH±25％
100μH±25％
120μH±25％
D.C.R.(mΩ)
Max.(Typ.)
( 20℃)
31.5(25)
37.5(30)
43.8(35)
50.0(40)
57.5(46)
63.8(51)
70.0(56)
76.3(61)
82.5(66)
88.8(71)
120.0(96)
135.0(108)
150.0(121)
198.8(159)
231.2(185)
308.8(247)
335.0(268)
458.8(367)
501.3(401)
561.3(449)
837.5(670)
936.3(749)
1028.8(823)
Saturation Current
(A)※1
( 20℃)
(105℃)
5.90
4.75
4.30
3.90
3.55
3.15
3.05
2.85
2.60
2.50
2.30
2.10
1.75
1.65
1.45
1.25
1.15
1.05
1.00
0.90
0.80
0.75
0.70
4.55
3.90
3.45
3.05
2.75
2.50
2.40
2.30
2.10
2.00
1.75
1.55
1.45
1.25
1.15
1.05
0.95
0.90
0.80
0.75
0.65
0.60
0.55
Temperature
Rise Current
(A)※2
3.0
2.9
2.7
2.5
2.4
2.2
2.1
2.0
1.9
1.8
1.5
1.4
1.3
1.1
0.98
0.94
0.90
0.72
0.68
0.65
0.53
0.50
0.46
※
Description of part name
CDR6D28MNNP－1R5N□
B Box
C
Carrier Tape
※1.
Saturation current: The DC current at which the inductance decreases to 65% of it’s nominal value.
※2.
Temperature rise current: The DC current at which the temperature rise is
△t＝40℃.(Ta＝20℃).
Please refer to the sales offices on our website for a representative near you
www.sumida.com
2/2
