POWER INDUCTORS <SMD Type: CDR ***MN Series>
Type: CDR6D23MN
◆
Product Description
・6.8×6.8mm
Max.(L×W), 2.5mm Max. Height.
・Inductance
range: 0.6½100μH
・Rated
current range: 0.41½4.6A
・In
addition to the standard versions of inductors shown here, custom inductors are
available to meet your exact requirements.
◆
Feature
・Magnetically
shielded construction.
・Hybrid
power inductors use Mn-Zn D.core & Ni-Zn R.core, used as general power inductors.
・Higher
saturation current characteristics than that of Ni-Zn inductors.
・Usually
used in LCD driver,DSC/DVC,Notebook PC or the other portable equipment,.
・RoHS
Compliance.
◆

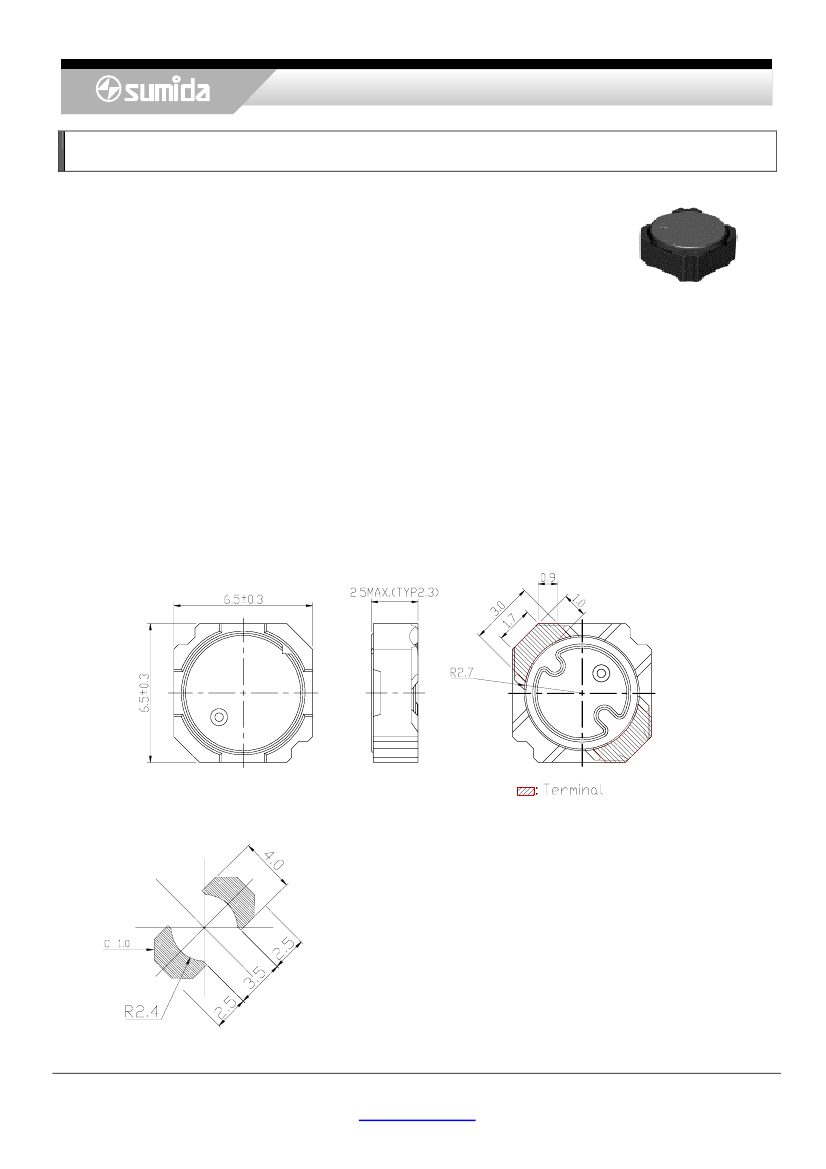

Dimensions (mm)
◆
Land Pattern (mm)
Please refer to the sales offices on our website for a representative near you
www.sumida.com
1/2
POWER INDUCTORS <SMD Type: CDR ***MN Series>
Type: CDR6D23MN
◆
Specification
Part Name
※
CDR6D23MNNP－ØR6N□
CDR6D23MNNP－1RØN□
CDR6D23MNNP－1R5N□
CDR6D23MNNP－2RØN□
CDR6D23MNNP－2R7N□
CDR6D23MNNP－3R3N□
CDR6D23MNNP－4R2N□
CDR6D23MNNP－5R1N□
CDR6D23MNNP－6R1N□
CDR6D23MNNP－7R2N□
CDR6D23MNNP－8R3N□
CDR6D23MNNP－1ØØN□
CDR6D23MNNP－12ØN□
CDR6D23MNNP－15ØN□
CDR6D23MNNP－18ØN□
CDR6D23MNNP－22ØN□
CDR6D23MNNP－27ØN□
CDR6D23MNNP－33ØN□
CDR6D23MNNP－39ØN□
CDR6D23MNNP－47ØN□
CDR6D23MNNP－56ØN□
CDR6D23MNNP－68ØN□
CDR6D23MNNP－82ØN□
CDR6D23MNNP－1Ø1N□
Stamp
0R6
1R0
1R5
2R0
2R7
3R3
4R2
5R1
6R1
7R2
8R3
100
120
150
180
220
270
330
390
470
560
680
820
101
Inductance
［Within½
(100kHz/1V)
0.6μH±25%
1.0μH±25%
1.5μH±25%
2.0μH±25%
2.7μH±25%
3.3μH±25%
4.2μH±25%
5.1μH±25%
6.1μH±25%
7.2μH±25%
8.3μH±25%
10μH±25%
12μH±25%
15μH±25%
18μH±25%
22μH±25%
27μH±25%
33μH±25%
39μH±25%
47μH±25%
56μH±25%
68μH±25%
82μH±25%
100μH±25%
D.C.R.(mΩ)
Max.(Typ.)
(at 20℃)
20.0(16)
25.0(20)
28.0(22)
36.3(29)
40.0(32)
46.3(37)
52.5(42)
60.0(48)
66.3(53)
72.5(58)
80.0(64)
103.8(83)
117.5(94)
133.8(107)
158.8(127)
187.5(150)
255.0(204)
275.0(220)
393.8(315)
456.3(365)
481.2(385)
751.3(601)
803.8(643)
903.8(723)
Temperature
Rise Current
(A)※2
(at 20℃) (at 105℃)
6.55
5.15
4.40
3.85
3.30
2.95
2.60
2.45
2.30
2.10
1.95
1.75
1.55
1.40
1.30
1.20
1.05
0.95
0.90
0.80
0.75
0.65
0.60
0.55
4.95
4.00
3.55
3.05
2.60
2.30
2.10
1.95
1.75
1.60
1.50
1.40
1.25
1.15
1.05
0.95
0.85
0.75
0.70
0.60
0.58
0.53
0.47
0.44
4.60
3.90
3.30
2.60
2.38
2.25
2.05
1.90
1.80
1.70
1.50
1.30
1.25
1.10
1.00
0.80
0.75
0.70
0.58
0.54
0.51
0.45
0.43
0.41
Saturation Current
(A)※1
※
Description of part name
CDR6D23MNNP－ØR6N□
B
C
Box
Carrier Tape
※1.Saturation
current: The DC current at which the inductance decreases to 65% of it’s initial value.
※2.
Temperature rise current: The DC current at which the temperature rise is
△t＝40℃.(Ta＝20℃).
Please refer to the sales offices on our website for a representative near you
www.sumida.com
2/2
