Audio Connectors
Double and Triple Stacked
Audio Connectors
Features and Benefits
• Meet PC 99 Device Design
Guideline requirements for
audio components
• PC 99 color codes for
connectors--audio line in,
light blue; audio line out, lime;
microphone, pink--ensure that
the end user makes the correct
connections
• Modular stacked housing design
with double stacked and triple
stacked configurations
• Through hole, solder-to-board
• ‘Snap in’ board retention devices
hold down connector through
wave solder processing
• Full shield provides maximum EMI
protection from signal distortion
• High temperature thermoplastic
• Durability of 1000 cycles minimum
• Mating force and electrical
performance meet industry
standard requirements
Description

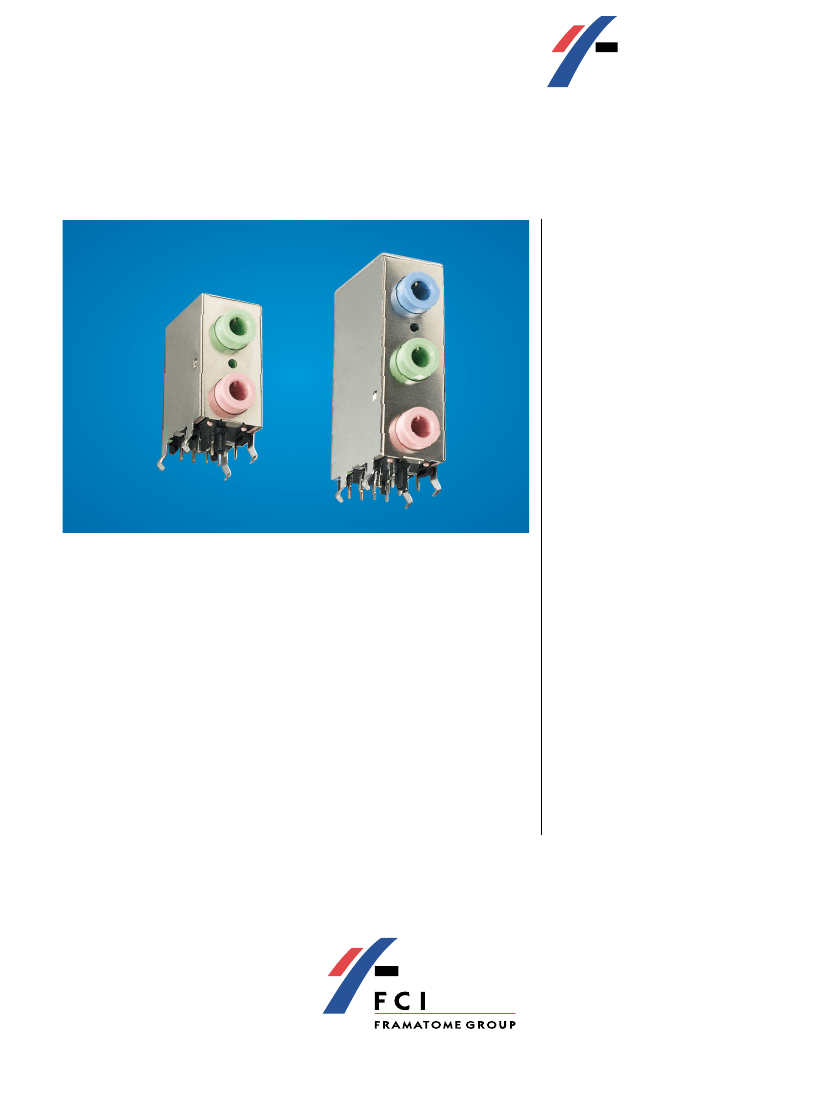

Double and Triple Stacked Audio Connectors from FCI are system-board
interconnects for PCs that include audio. FCI’s audio connectors are
fully compliant with the PC 99 Device Design Requirements for audio
components. “PC 99” refers to the requirements and recommendations
for 1999-2000 PC system and peripheral design as specified in the
PC 99 System Design Guide.
1
The double stacked connector consists of audio line out and microphone
jacks. The triple stacked consists of audio line in, audio line out, and
microphone jacks. The connectors provide high electrical performance
and high durability. They are fully shielded to enable maximum audio
signal integrity.
1
Target Markets and
Applications
Computing
• Consumer and office PC systems:
desktop, mobile, and workstation
• Entertainment PCs
• Servers
PC 99 System Design Guide
is an addendum to
PC 98 System Design
Guide,
copyright 1997-1999, Intel Corporation and Microsoft Corporation.
http://www.fciconnect.com
A m e r i c a s Te l . : 8 0 0 2 3 7 2 3 7 4 ; 7 1 7 9 3 8 7 2 0 0 • E u r o p e Te l . : 3 3 1 3 9 4 9 2 1 8 3 • A s i a / Pa c i f i c Te l . : 6 5 5 4 9 6 6 6 6
Audio Connectors
Technical Features
Materials
• Housing: High temperature
thermoplastic, UL 94 V-0
• Contacts: Phosphor-bronze
and brass
• Hold down: Brass
• Shield: Brass
Mechanical Performance
• Durability: 1000 cycles minimum
• Mating and unmating force: 0.4 kg
initial; 3 kg after environmental tests
Specifications
• Fully compliant with PC 99
Device Design Guidelines
• FCI product specification:
GES-12-160
Environmental Properties
• Operating temperature range:
-25°C to +85°C

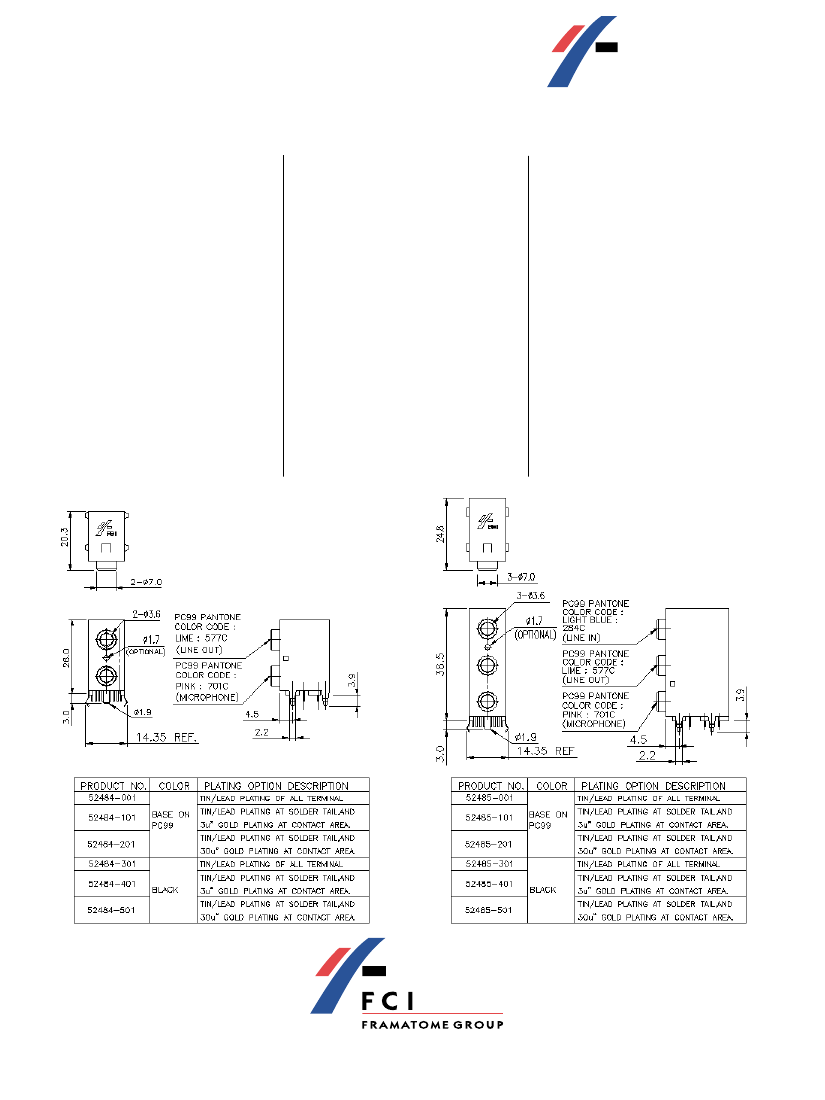

Base Part Numbers
• 52484: Doubled stacked
audio connector
• 52485: Triple stacked
audio connector
Electrical Performance
• Insulation resistance:
100 MΩ min, 500 V DC
• Contact resistance:
50 mΩ max. initial
• Dielectric withstanding voltage:
500 V DC rms, 60 Hz, 60 seconds
• Current rating: 1 A max. per contact
Packaging
• Doubled stacked audio connector:
100 pieces per tray; 14 trays with
1400 pieces per carton
http://www.fciconnect.com
A m e r i c a s Te l . : 8 0 0 2 3 7 2 3 7 4 ; 7 1 7 9 3 8 7 2 0 0 • E u r o p e Te l . : 3 3 1 3 9 4 9 2 1 8 3 • A s i a / Pa c i f i c Te l . : 6 5 5 4 9 6 6 6 6
950536-004 12/00
© 2000 Copyright Framatome Connectors International, S.A. All rights reserved
Repco Graphics +1-314-426-1800
• Triple stacked audio connector:
48 pieces per tray; 14 trays with
672 pieces per carton
