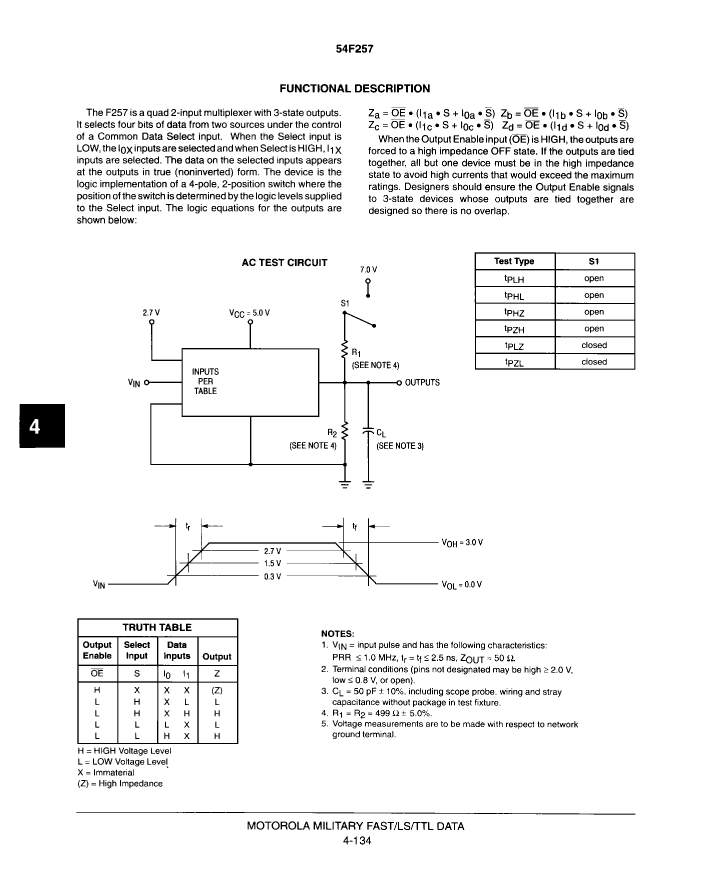

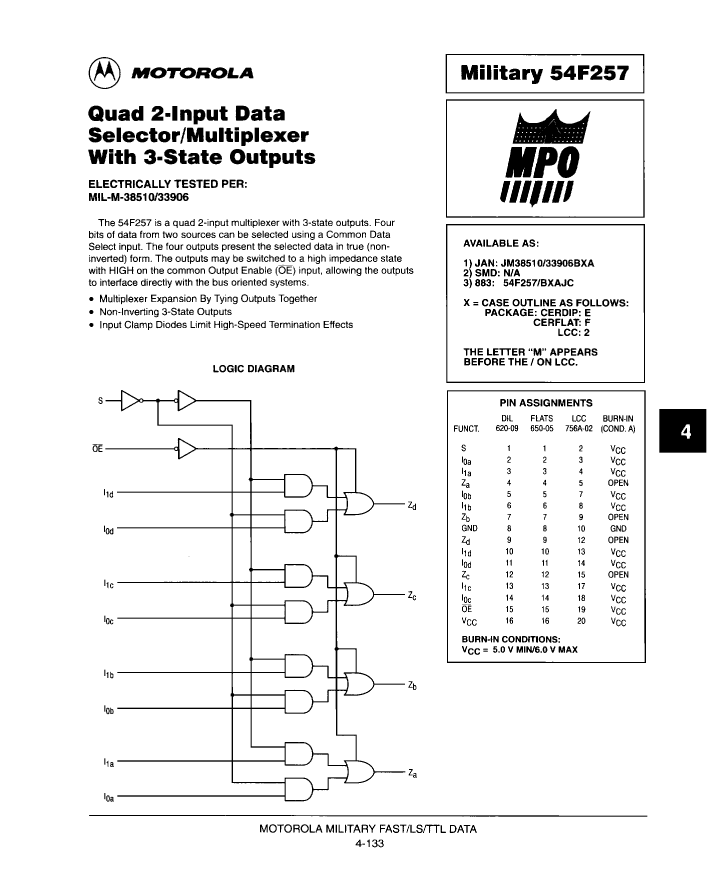

Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CDIP16, CERDIP-16
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Motorola ( NXP ) |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| series | F/FAST |
| JESD-30 code | R-GDIP-T16 |
| JESD-609 code | e0 |
| length | 19.3 mm |
| Logic integrated circuit type | MULTIPLEXER |
| Number of functions | 4 |
| Number of entries | 2 |
| Output times | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |

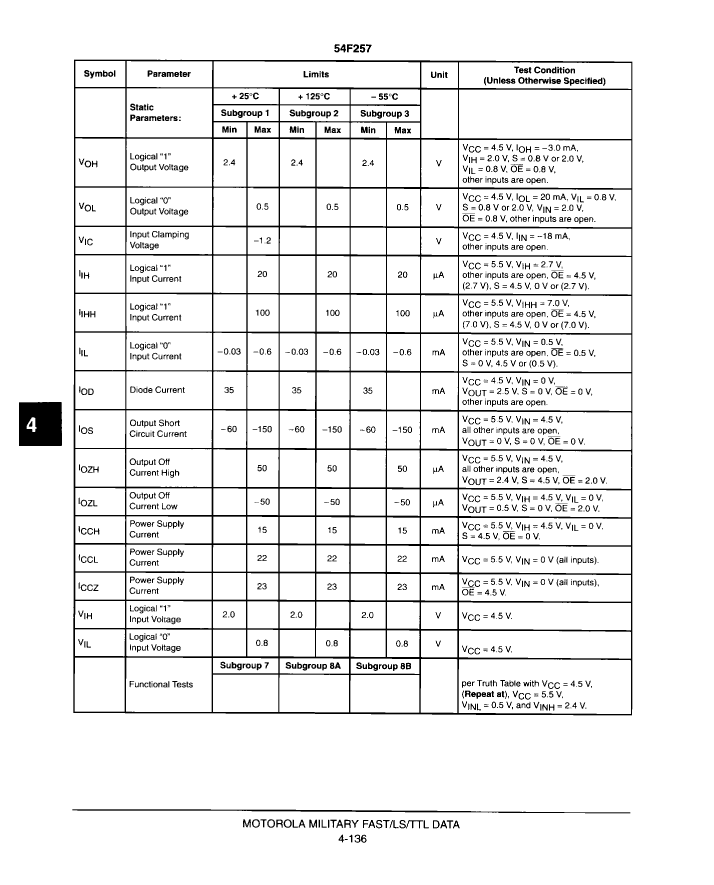

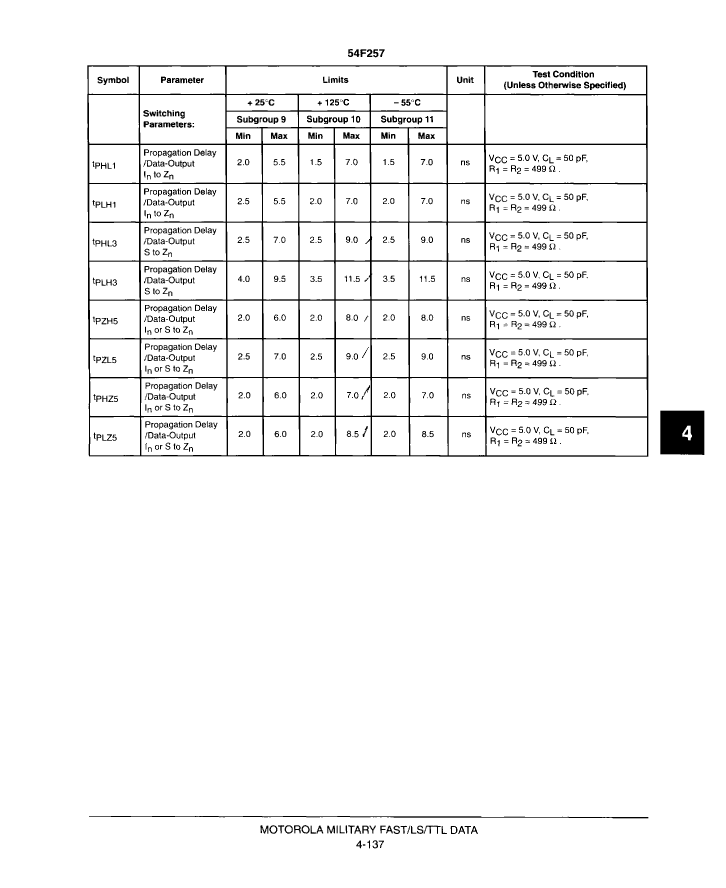

| propagation delay (tpd) | 9 ns |
| Certification status | Not Qualified |
| Maximum seat height | 4.19 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 7.62 mm |
| Base Number Matches | 1 |
| 54F257/BEAJC | 54F257/BFAJC | JM38510/33906BFA | 54F257M/B2AJC | JM38510/33906BEA | |
|---|---|---|---|---|---|
| Description | Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CDIP16, CERDIP-16 | F/FAST SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CDFP16, CERFLAT-16 | Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CDFP16, CERFLAT-16 | F/FAST SERIES, QUAD 2 LINE TO 1 LINE MULTIPLEXER, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20 | Multiplexer, F/FAST Series, 4-Func, 2 Line Input, 1 Line Output, True Output, TTL, CDIP16, CERDIP-16 |
| package instruction | DIP, | CERFLAT-16 | CERFLAT-16 | QCCN, LCC20,.35SQ | DIP, |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| series | F/FAST | F/FAST | F/FAST | F/FAST | F/FAST |
| JESD-30 code | R-GDIP-T16 | R-GDFP-F16 | R-GDFP-F16 | S-CQCC-N20 | R-GDIP-T16 |
| length | 19.3 mm | 9.65 mm | 9.65 mm | 8.89 mm | 19.3 mm |
| Logic integrated circuit type | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER | MULTIPLEXER |
| Number of functions | 4 | 4 | 4 | 4 | 4 |
| Number of entries | 2 | 2 | 2 | 2 | 2 |
| Output times | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 16 | 16 | 16 | 20 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE | TRUE | TRUE |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP | DFP | DFP | QCCN | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | SQUARE | RECTANGULAR |
| Package form | IN-LINE | FLATPACK | FLATPACK | CHIP CARRIER | IN-LINE |
| propagation delay (tpd) | 9 ns | 9 ns | 9 ns | 9 ns | 9 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 4.19 mm | 2.15 mm | 2.15 mm | 1.9 mm | 4.19 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES | YES | NO |
| technology | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | THROUGH-HOLE | FLAT | FLAT | NO LEAD | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 1.27 mm | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | QUAD | DUAL |
| width | 7.62 mm | 6.415 mm | 6.415 mm | 8.89 mm | 7.62 mm |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| Is it Rohs certified? | incompatible | incompatible | - | incompatible | - |
| Maker | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | - |
| JESD-609 code | e0 | e0 | - | e0 | - |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | - |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - | Tin/Lead (Sn/Pb) | - |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | - | NOT SPECIFIED | - |
