Power Inductors <SMD Type: CDEP**ME Series>
Type: CDEP6D48ME
◆
Product Description
・7.3×6.8mm
Max. (L×W), 5.0mm Max. height
・Inductance
range: 0.18μH∼3.3μH
・Rated
Current Range: 5.2A∼16.0A
◆
Feature
・Super
high current inductors.
・Iron
powder core used, Flat wire used.
・Ideally
used in Server, Desktop and Notebook CPU power supply.
・RoHS
Compliance
◆

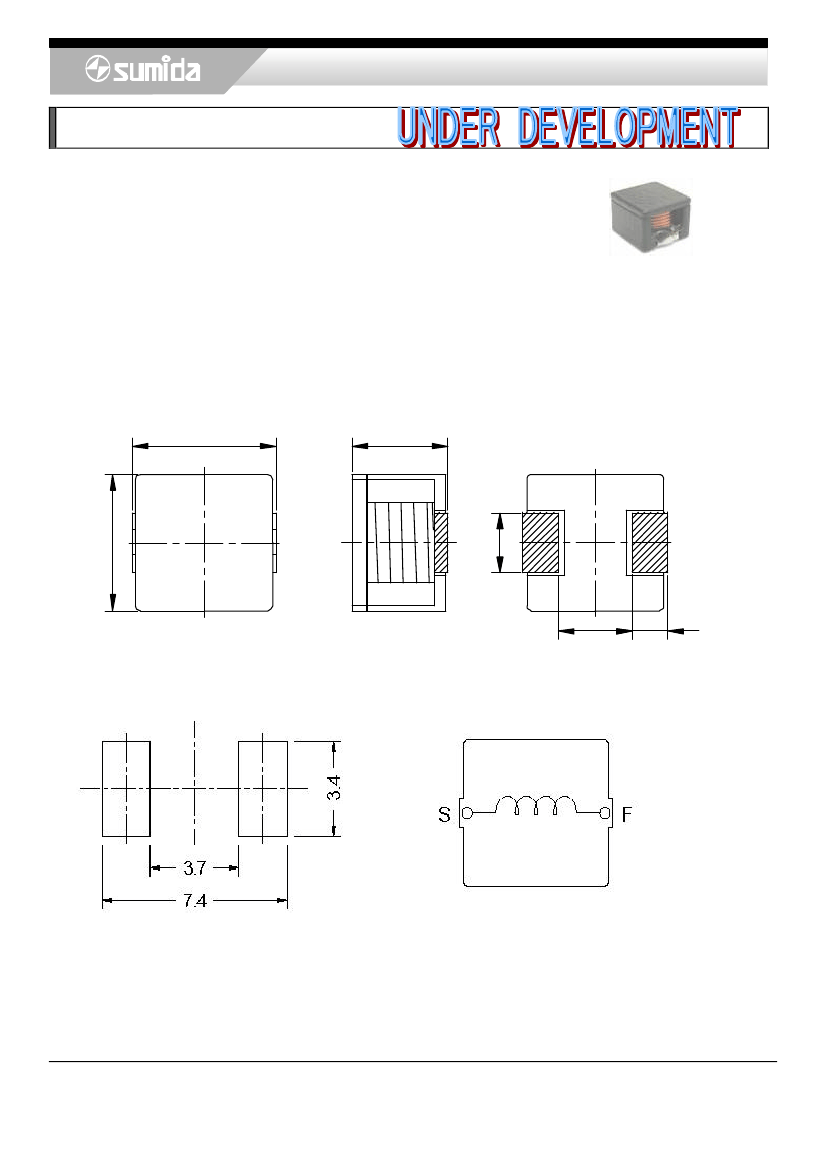

Dimensions (mm)
7.3 Max.
5.0 Max.
6.8 Max.
2.8
4.0
1.3
◆
Land Pattern (mm)
◆
Schematics (Bottom)
Please refer to the sales offices on our website for a representative near you
www.sumida.com
1/2
Power Inductors <SMD Type: CDEP**ME Series>
Type: CDEP6D48ME
◆
Specification
Part Name
※
CDEP6D48MENP-R18M
□
CDEP6D48MENP-R33M
□
CDEP6D48MENP-R47M
□
CDEP6D48MENP-R68M
□
CDEP6D48MENP-1R0M
□
CDEP6D48MENP-1R2M
□
CDEP6D48MENP-1R5M
□
CDEP6D48MENP-2R0M
□
CDEP6D48MENP-2R2M
□
CDEP6D48MENP-2R7M
□
CDEP6D48MENP-3R3M
□
Stamp
R18
R33
R47
R68
1R0
1R2
1R5
2R0
2R2
2R7
3R3
Inductance
［Within½
100kHz/1V
0.18µH±20%
0.33µH±20%
0.47µH±20%
0.68µH±20%
1.0µH±20%
1.2µH±20%
1.5µH±20%
2.0µH±20%
2.2µH±20%
2.7µH±20%
3.3µH±20%
D.C.R.(mΩ)
Max.(Typ.)
(at 20℃)
2.2 (1.7)
3.0 (2.4)
3.8 (3.0)
4.3 (3.4)
5.9 (4.7)
8.3 (6.6)
10.9 (8.7)
12.0 (9.6)
15.6 (12.5)
17.9 (14.3)
21.0 (16.8)
Saturation
Current
（A）※1
37.2 (46.5)
25.2 (31.5)
24.0 (30.0)
21.7 (27.2)
16.6 (22.0)
16.1 (20.2)
14.0 (17.5)
12.0 (15.0)
11.4 (14.2)
10.4 (13.0)
9.8 (12.3)
Temperature
Rise current
(A)
※2
16.0 (18.5)
14.5 (16.5)
13.2 (15.2)
12.5 (14.2)
11.0 (12.5)
9.2 (10.4)
8.0 (9.2)
7.8 (8.8)
7.0 (7.9)
6.4 (7.4)
5.2 (5.8)
※
Description of part name
CDEP6D48MENP -1R0M
□
B Box
C Carrier Tape
※1.
Saturation current: The DC current at which the inductance decreases to 80% of it’s initial value. (Ta
＝20℃)
※2
Temperature rise current:The DC current at which the temperature rise is
△t＝40℃.(Ta＝20℃)
Please refer to the sales offices on our website for a representative near you
www.sumida.com
2/2
