ACH16245DL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> ACH16245DL

ACH16245DL: DescriptionIC ALVC/VCX/A SERIES, DUAL 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO48, Bus Driver/Transceiver; Categorylogic logic; File Size190KB，6 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

ACH16245DL Overview

IC ALVC/VCX/A SERIES, DUAL 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO48, Bus Driver/Transceiver

ACH16245DL Parametric

Parameter Name	Attribute value
package instruction	SSOP,
Reach Compliance Code	unknown
Other features	WITH DIRECTION CONTROL
series	ALVC/VCX/A
JESD-30 code	R-PDSO-G48
length	15.875 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	8
Number of functions	2
Number of ports	2
Number of terminals	48
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
propagation delay (tpd)	3.7 ns
Certification status	Not Qualified
Maximum seat height	2.8 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	1.2 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
width	7.5 mm
Base Number Matches	1

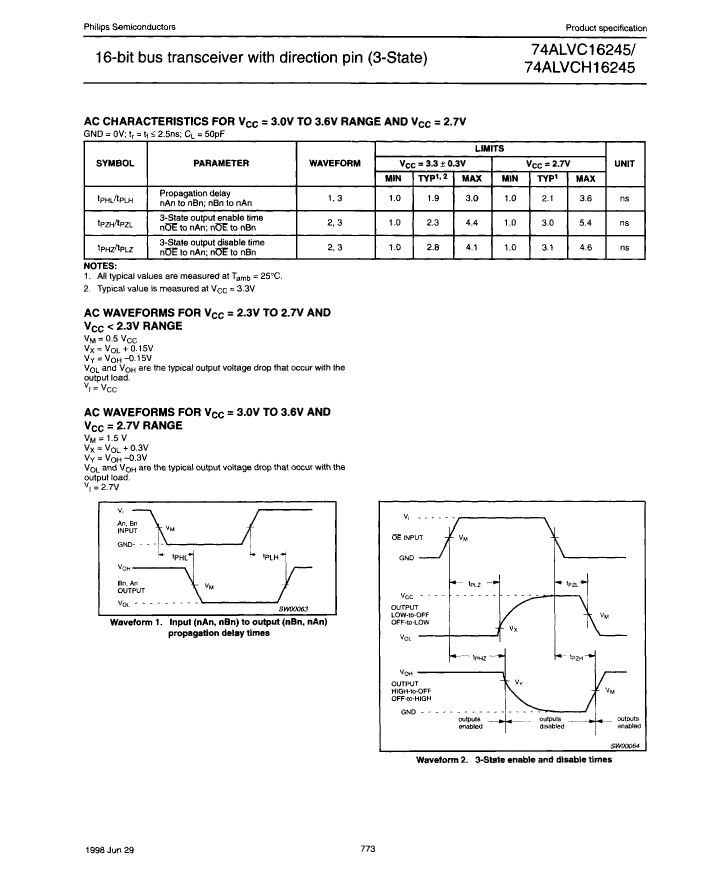

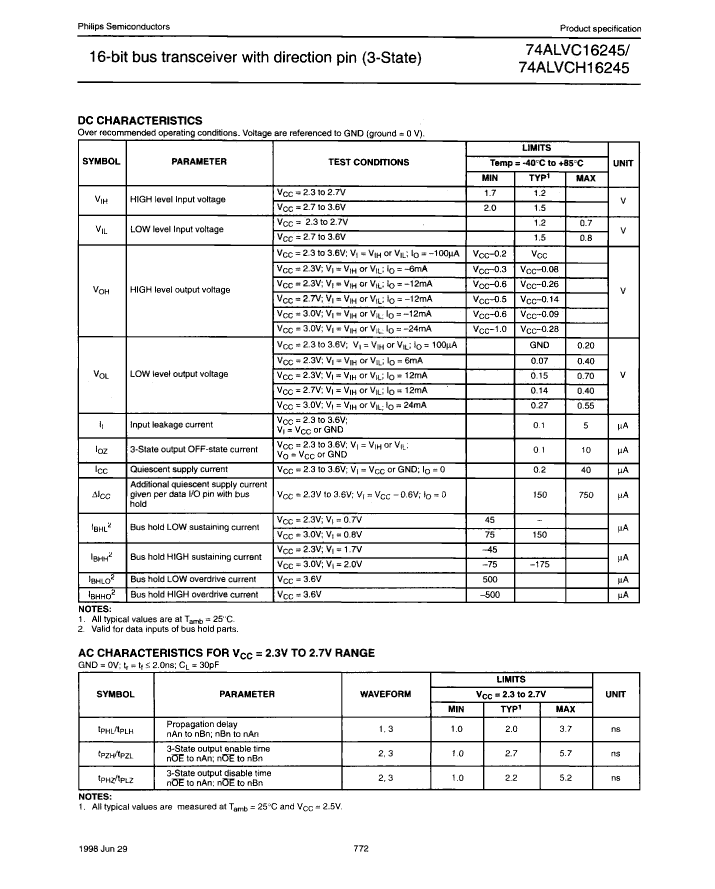

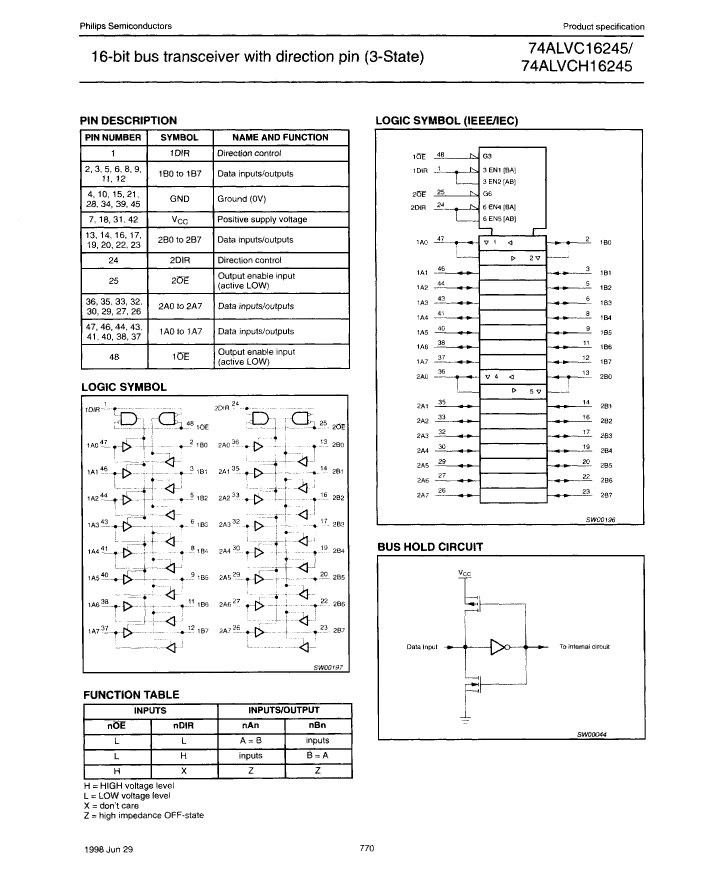

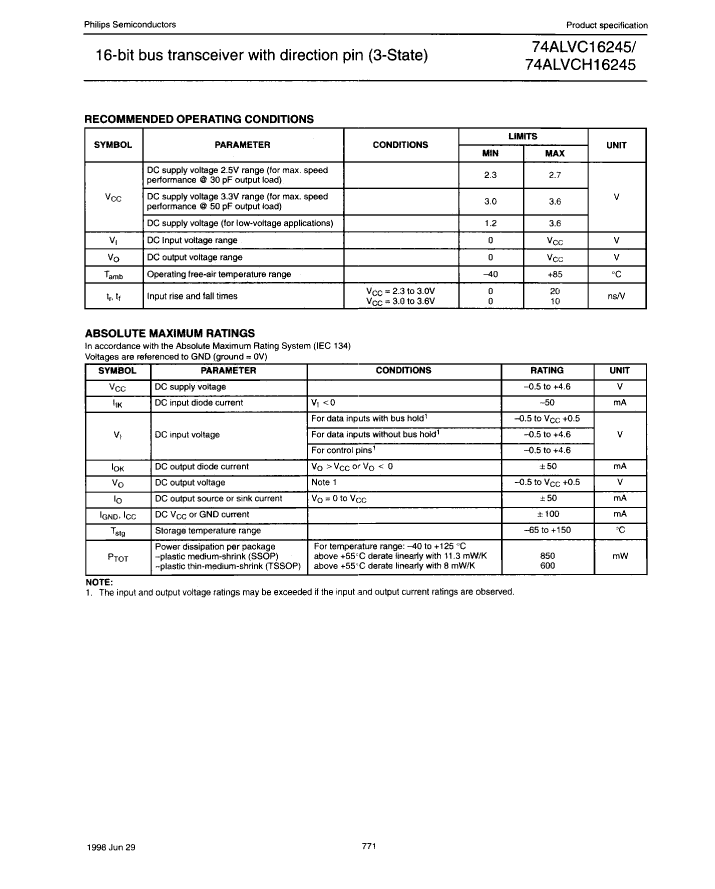

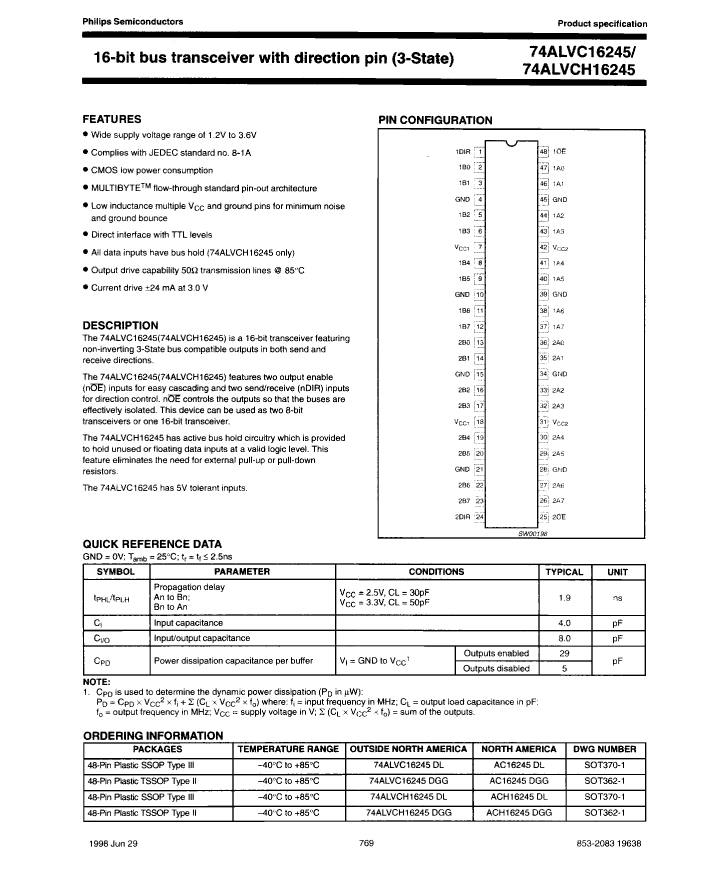

Preview

Download Datasheet

View All

ACH16245DL Related Products

	ACH16245DL	ACH16245DGG-T	AC16245DGG	AC16245DL	AC16245DL-T	AC16245DGG-T	ACH16245DL-T	ACH16245DGG
Description	IC ALVC/VCX/A SERIES, DUAL 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO48, Bus Driver/Transceiver	IC ALVC/VCX/A SERIES, DUAL 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO48, Bus Driver/Transceiver	IC ALVC/VCX/A SERIES, DUAL 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO48, Bus Driver/Transceiver	IC ALVC/VCX/A SERIES, DUAL 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO48, Bus Driver/Transceiver	IC ALVC/VCX/A SERIES, DUAL 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO48, Bus Driver/Transceiver	IC ALVC/VCX/A SERIES, DUAL 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO48, Bus Driver/Transceiver	IC ALVC/VCX/A SERIES, DUAL 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO48, Bus Driver/Transceiver	IC ALVC/VCX/A SERIES, DUAL 8-BIT TRANSCEIVER, TRUE OUTPUT, PDSO48, Bus Driver/Transceiver
package instruction	SSOP,	TSSOP,	TSSOP,	SSOP,	SSOP,	TSSOP,	SSOP,	TSSOP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	WITH DIRECTION CONTROL	WITH DIRECTION CONTROL	WITH DIRECTION CONTROL	WITH DIRECTION CONTROL	WITH DIRECTION CONTROL	WITH DIRECTION CONTROL	WITH DIRECTION CONTROL	WITH DIRECTION CONTROL
series	ALVC/VCX/A	ALVC/VCX/A	ALVC/VCX/A	ALVC/VCX/A	ALVC/VCX/A	ALVC/VCX/A	ALVC/VCX/A	ALVC/VCX/A
JESD-30 code	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48
length	15.875 mm	12.5 mm	12.5 mm	15.875 mm	15.875 mm	12.5 mm	15.875 mm	12.5 mm
Logic integrated circuit type	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER
Number of digits	8	8	8	8	8	8	8	8
Number of functions	2	2	2	2	2	2	2	2
Number of ports	2	2	2	2	2	2	2	2
Number of terminals	48	48	48	48	48	48	48	48
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	TSSOP	TSSOP	SSOP	SSOP	TSSOP	SSOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	3.7 ns	3.7 ns	3.7 ns	3.7 ns	3.7 ns	3.7 ns	3.7 ns	3.7 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.8 mm	1.2 mm	1.2 mm	2.8 mm	2.8 mm	1.2 mm	2.8 mm	1.2 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V	1.2 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.5 mm	0.5 mm	0.635 mm	0.635 mm	0.5 mm	0.635 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.5 mm	6.1 mm	6.1 mm	7.5 mm	7.5 mm	6.1 mm	7.5 mm	6.1 mm
Base Number Matches	1	1	1	1	1	1	1	-
