74LVCH2574APW: DescriptionD Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDSO20; Categorylogic logic; File Size166KB，4 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

74LVCH2574APW Overview

D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDSO20

74LVCH2574APW Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	TSSOP, TSSOP20,.25
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	D FLIP-FLOP
Maximum Frequency@Nom-Sup	75000000 Hz
MaximumI(ol)	0.024 A
Number of functions	8
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP20,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	3.3 V
Prop。Delay @ Nom-Sup	9.5 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
Base Number Matches	1

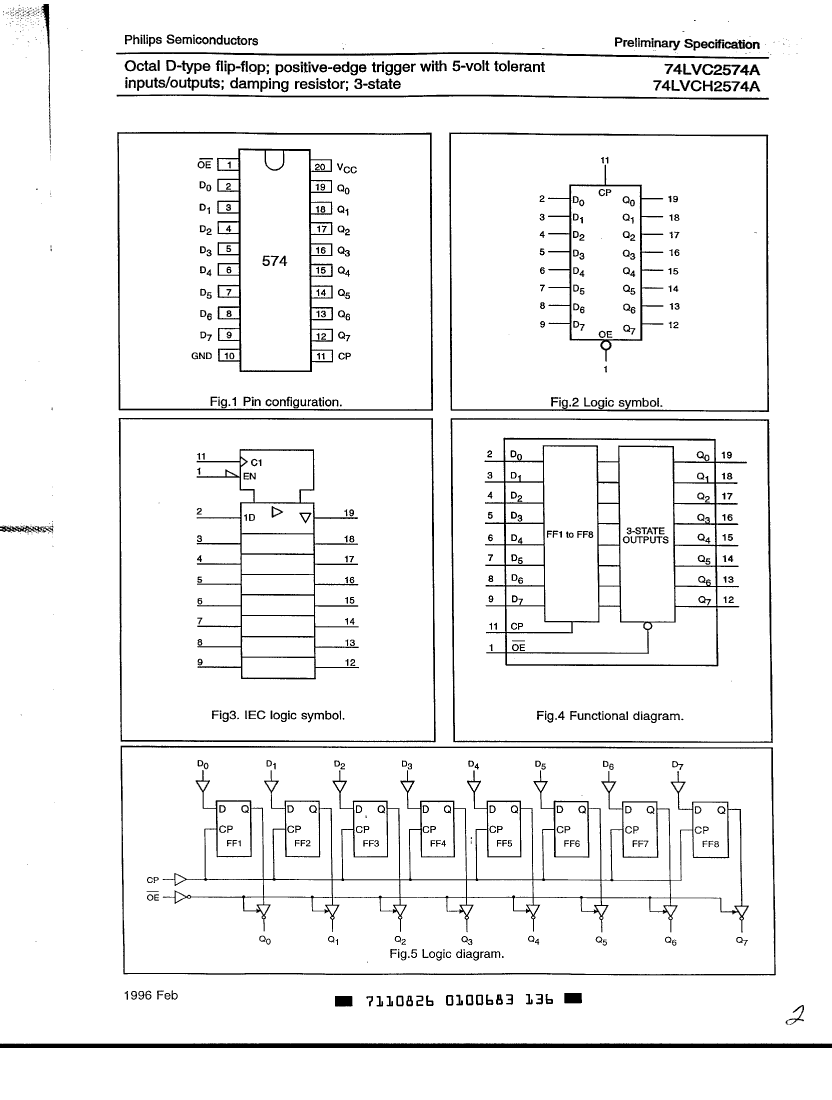

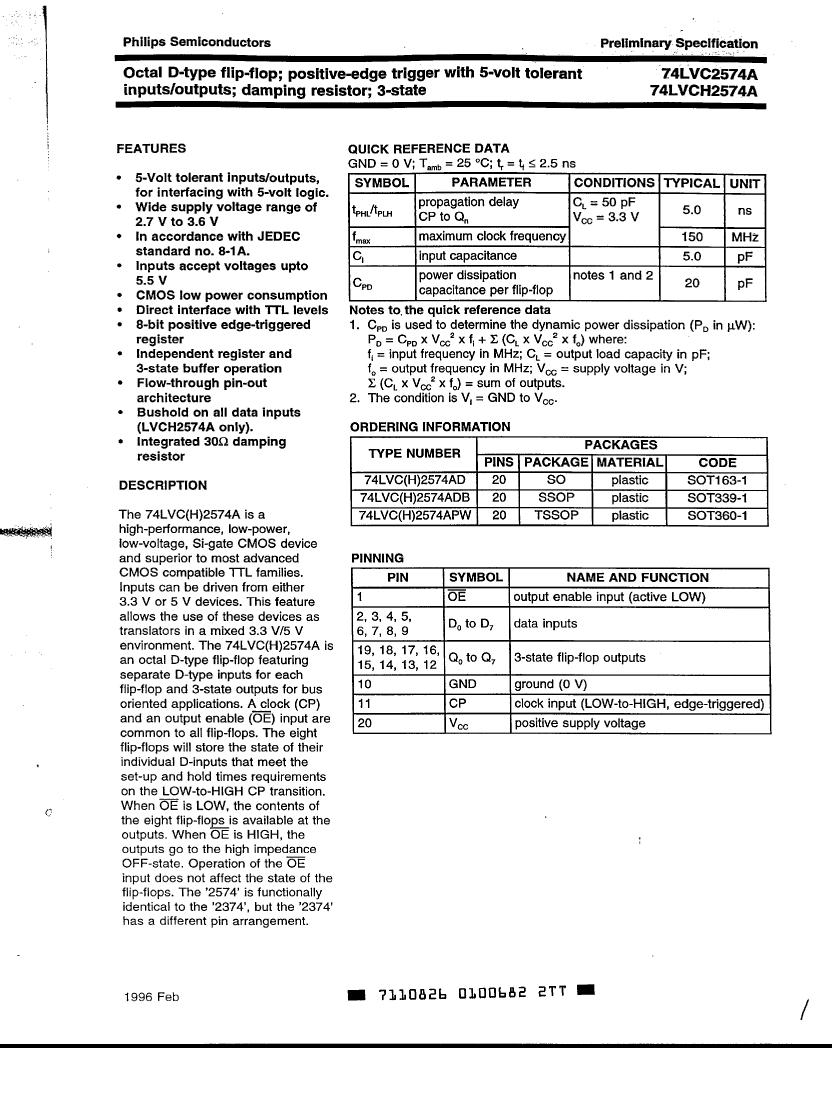

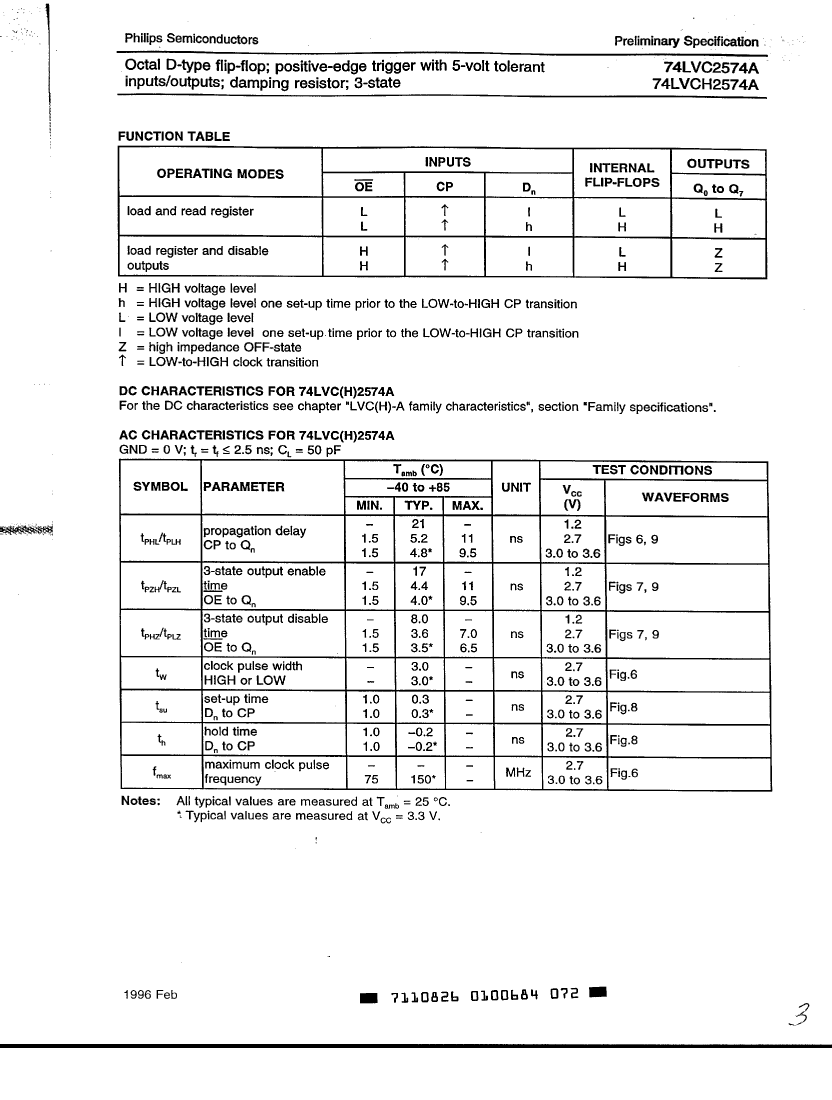

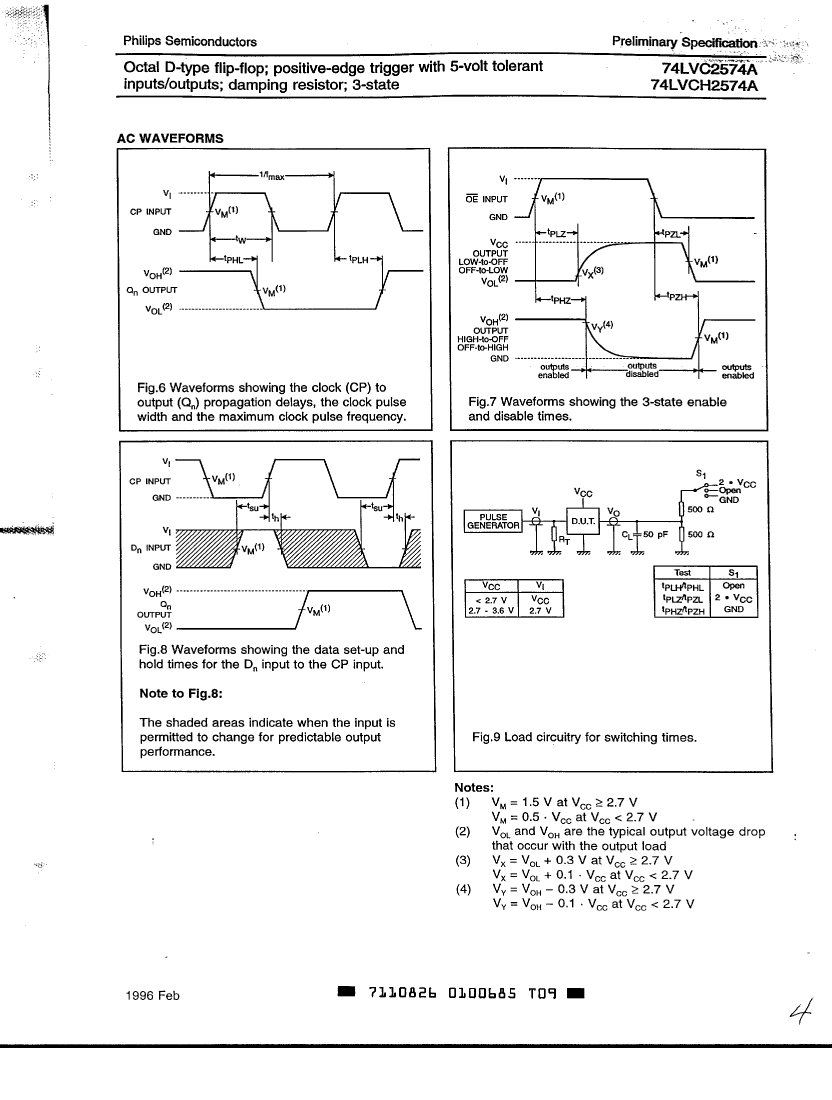

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

74LVCH2574APW Related Products

	74LVCH2574APW	74LVCH2574ADB	74LVC2574AD	74LVC2574ADB	74LVC2574APW	74LVCH2574AD
Description	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDSO20	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDSO20	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDSO20	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDSO20	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDSO20	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDSO20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	TSSOP, TSSOP20,.25	SSOP, SSOP20,.3	SOP, SOP20,.4	SSOP, SSOP20,.3	TSSOP, TSSOP20,.25	SOP, SOP20,.4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
JESD-609 code	e0	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
Maximum Frequency@Nom-Sup	75000000 Hz	75000000 Hz	75000000 Hz	75000000 Hz	75000000 Hz	75000000 Hz
MaximumI(ol)	0.024 A	0.024 A	0.024 A	0.024 A	0.024 A	0.024 A
Number of functions	8	8	8	8	8	8
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	SSOP	SOP	SSOP	TSSOP	SOP
Encapsulate equivalent code	TSSOP20,.25	SSOP20,.3	SOP20,.4	SSOP20,.3	TSSOP20,.25	SOP20,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE
power supply	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Prop。Delay @ Nom-Sup	9.5 ns	9.5 ns	9.5 ns	9.5 ns	9.5 ns	9.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm	1.27 mm	0.635 mm	0.635 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Base Number Matches	1	1	1	1	-	-
