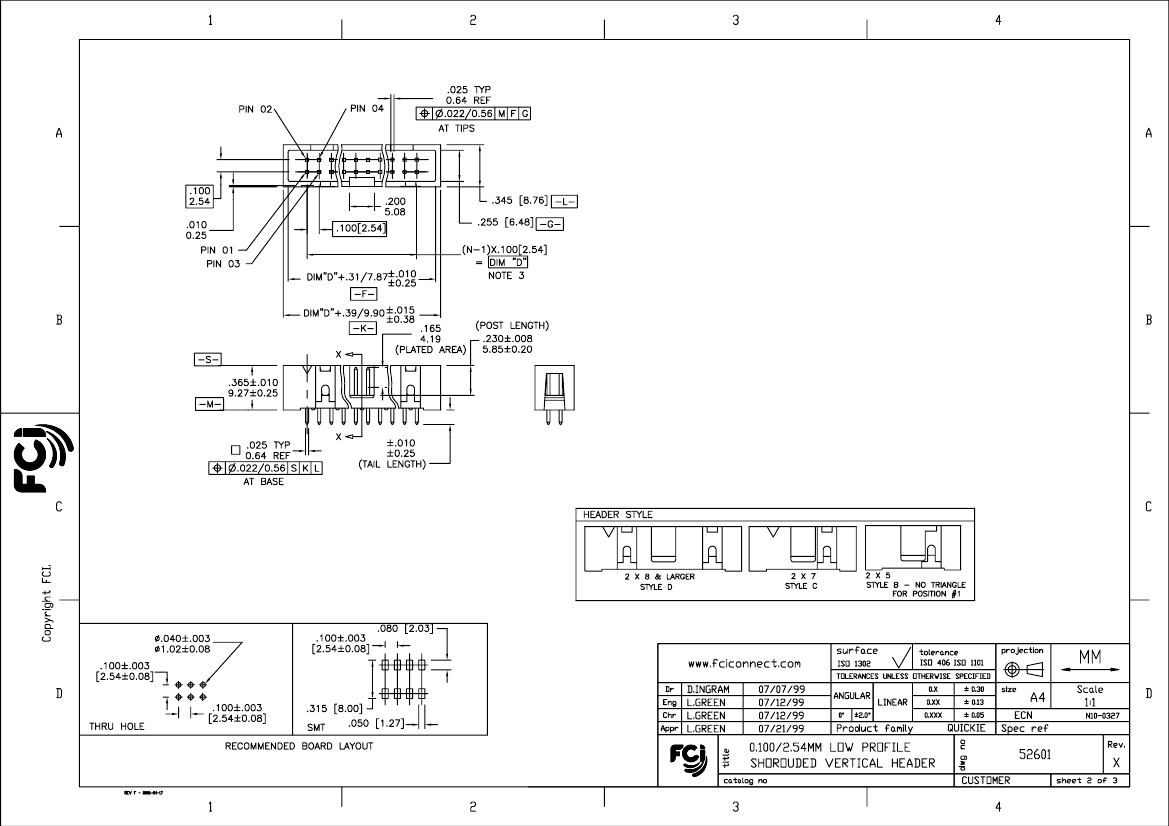

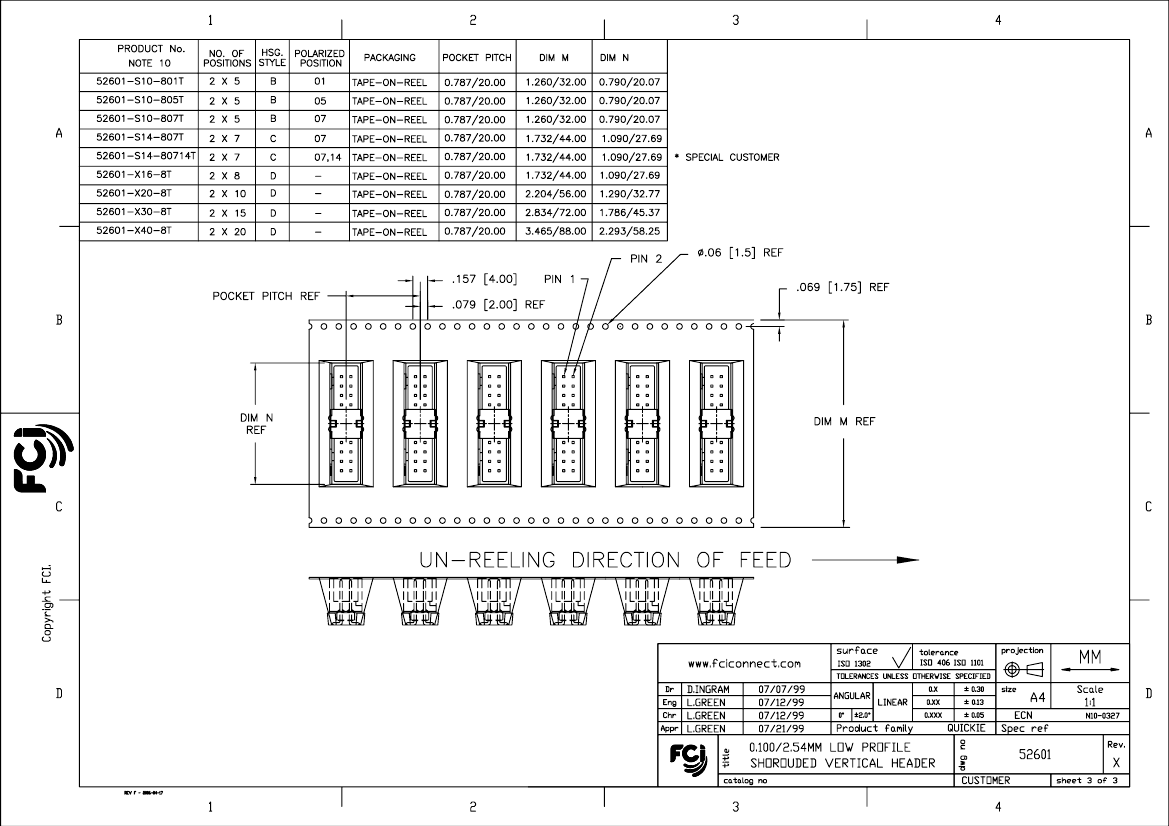

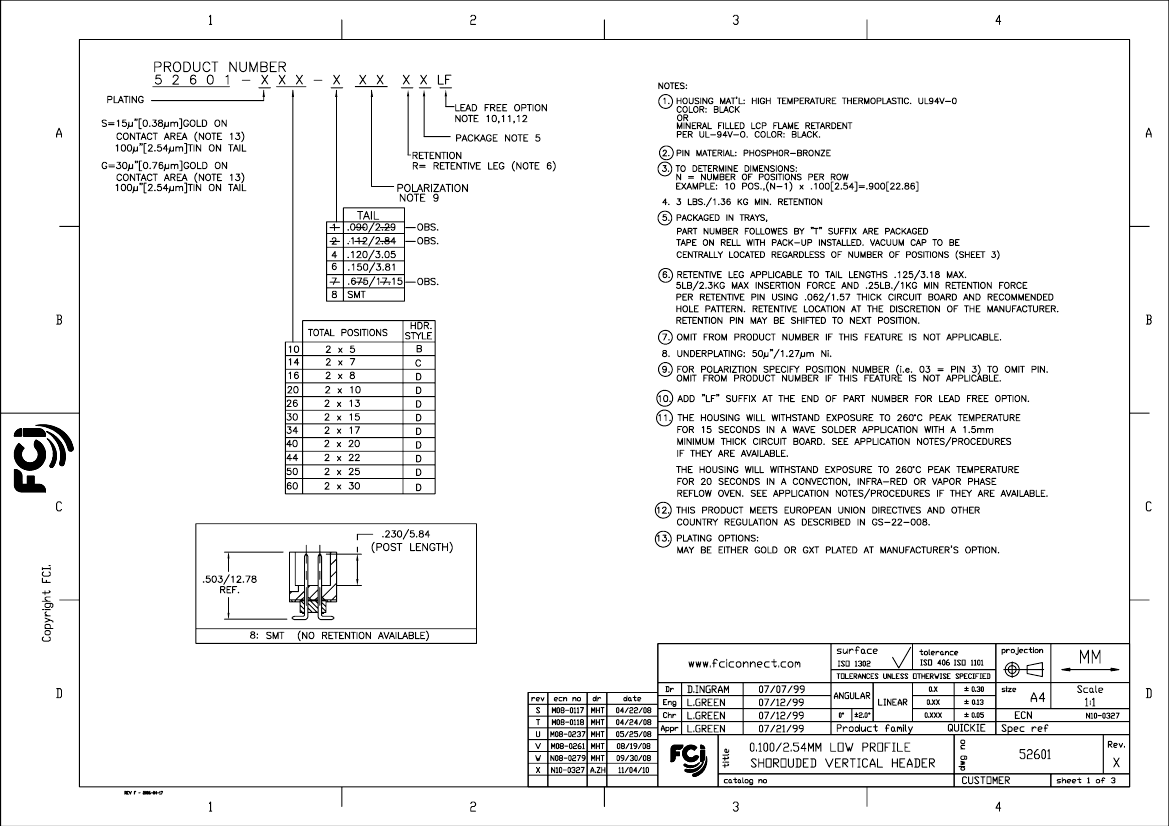

Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Amphenol |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | POLARIZED |
| body width | 0.345 inch |
| subject depth | 0.365 inch |
| body length | 1.59 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD (15) OVER NICKEL (50) |
| Contact completed and terminated | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact resistance | 10 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 500VAC V |
| Durability | 100 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 2.224 N |
| Insulation resistance | 10000000000 Ω |
| Insulator color | BLACK |
| insulator material | THERMOPLASTIC |
| JESD-609 code | e0 |
| MIL compliance | NO |
| Manufacturer's serial number | 52601 |
| Plug contact pitch | 0.1 inch |
| Match contact row spacing | 0.1 inch |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -65 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 5.969 mm |
| Plating thickness | 15u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 3 A |
| Guideline | UL, CSA |
| reliability | COMMERCIAL |
| Terminal pitch | 2.54 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 26 |
| UL Flammability Code | 94V-0 |
| Evacuation force-minimum value | .2502 N |
| Base Number Matches | 1 |
| 52601-S26-8 | 52601-S20-8 | 52601-G10-6 | |
|---|---|---|---|
| Description | Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle | Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle | Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle |
| Is it lead-free? | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| Maker | Amphenol | Amphenol | Amphenol |
| Reach Compliance Code | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Other features | POLARIZED | POLARIZED | POLARIZED |
| body width | 0.345 inch | 0.345 inch | 0.345 inch |
| subject depth | 0.365 inch | 0.365 inch | 0.365 inch |
| body length | 1.59 inch | 1.29 inch | 0.79 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | GOLD (15) OVER NICKEL (50) | GOLD (15) OVER NICKEL (50) | GOLD (30) OVER NICKEL (50) |
| Contact completed and terminated | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier | Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier |
| Contact point gender | MALE | MALE | MALE |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact resistance | 10 mΩ | 10 mΩ | 10 mΩ |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | NO |
| Dielectric withstand voltage | 500VAC V | 500VAC V | 500VAC V |
| Durability | 100 Cycles | 100 Cycles | 100 Cycles |
| Filter function | NO | NO | NO |
| IEC compliance | NO | NO | NO |
| maximum insertion force | 2.224 N | 2.224 N | 2.224 N |
| Insulation resistance | 10000000000 Ω | 10000000000 Ω | 10000000000 Ω |
| Insulator color | BLACK | BLACK | BLACK |
| insulator material | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC |
| JESD-609 code | e0 | e0 | e0 |
| MIL compliance | NO | NO | NO |
| Manufacturer's serial number | 52601 | 52601 | 52601 |
| Plug contact pitch | 0.1 inch | 0.1 inch | 0.1 inch |
| Match contact row spacing | 0.1 inch | 0.1 inch | 0.1 inch |
| Mixed contacts | NO | NO | NO |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE |
| PCB row number | 2 | 2 | 2 |
| Number of rows loaded | 2 | 2 | 2 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -65 °C | -65 °C | -65 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 5.969 mm | 5.969 mm | 2.54 mm |
| Plating thickness | 15u inch | 15u inch | 30u inch |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Rated current (signal) | 3 A | 3 A | 3 A |
| Guideline | UL, CSA | UL, CSA | UL, CSA |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SOLDER |
| Total number of contacts | 26 | 20 | 10 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 |
| Evacuation force-minimum value | .2502 N | .2502 N | .2502 N |
| Base Number Matches | 1 | 1 | 1 |
