62GB-11F22-55PY

Description
MIL Series Connector, 55 Contact(s), Aluminum Alloy, Male, Solder Terminal, Receptacle,
CategoryThe connector    The connector
File Size86KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

62GB-11F22-55PY Overview

MIL Series Connector, 55 Contact(s), Aluminum Alloy, Male, Solder Terminal, Receptacle,

62GB-11F22-55PY Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codeunknown
Other featuresSTANDARD: MIL-C-26482, POLARIZED
Back shell typeSOLID
Body/casing typeRECEPTACLE
Connector typeMIL SERIES CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderMALE
Coupling typeBAYONET
DIN complianceNO
empty shellNO
Environmental characteristicsCORROSION/ENVIRONMENT/FLUID/IMMERSION/VIBRATION RESISTANT
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceYES
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeCABLE AND PANEL
OptionsGENERAL PURPOSE
Shell surfaceZINC PLATED
Shell materialALUMINUM ALLOY
Housing size22
Termination typeSOLDER
Total number of contacts55
Base Number Matches1

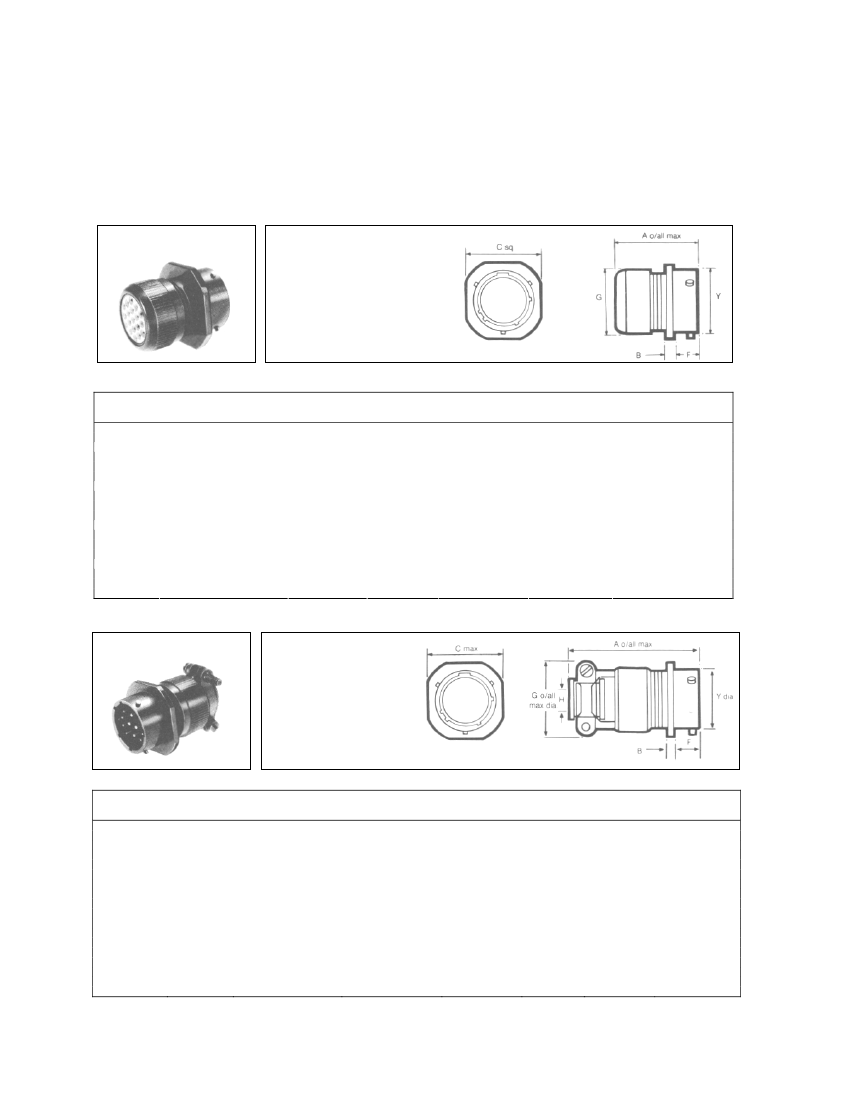

Cable Mounting
Receptacles
11E
62GB-11E
MIL-C-26482 MS3111E
Cable mounting receptacle with grommet
and grommet nut
Shell
Size
08
10
12
14
16
18
20
22
24
A
max
1.281
32.54
1.281
32.54
1.281
32.54
1.281
32.54
1.281
32.54
1.281
32.54
1.383
35.13
1.383
35.13
1.383
35.13
B
± 0.005
(± 0.13)
0.094
2.39
0.094
2.39
0.094
2.39
0.094
2.39
0.094
2.39
0.094
2.39
0.102
2.59
0.102
2.59
0.102
2.59
C
max
sq
0.817
20.75
0.942
23.93
1.036
26.32
1.130
28.70
1.223
31.07
1.317
33.45
1.442
36.63
1.567
39.80
1.692
42.98
F
± 0.005
(± 0.13)
0.415
10.54
0.415
10.54
0.415
10.54
0.415
10.54
0.415
10.54
0.415
10.54
0.535
13.59
0.535
13.59
0.569 / 0.574
14.45 / 14.58
G
dia
max
0.561
14.25
0.686
17.43
0.811
20.60
0.936
23.78
1.061
26.95
1.186
3013
1.311
33.30
1.436
36.75
1.561
39.65
Y
dia
max
0.473
12.03
0.590
14.99
0.750
19.05
0.875
22.23
1.000
25.40
1.125
28.58
1.250
31.75
1.375
34.93
1.500
38.10
11F
62GB-11F
MIL-C-26482 MS3111F
Cable mounting receptacle with
grommet and grommet nut fitted with
integral strain relief clamp
Shell
Size
08
10
12
14
16
18
20
22
24
A
max
1.762
44.75
1.762
44.75
1.762
44.75
1.736
44.10
1.876
47.65
1.876
47.65
2.118
53.80
2.118
53.80
2.250
57.15
B
± 0.005
(± 0.13)
0.094
2.39
0.094
2.39
0.094
2.39
0.094
2.39
0.094
2.39
0.094
2.39
0.104 / 0.100
2.64 / 2.55
0.104 / 0.100
2.64 / 2.55
0.104 / 0.100
2.64 / 2.55
C
max
sq
0.817
20.75
0.942
23.93
1.036
26.32
1.130
28.70
1.223
31.07
1.317
33.45
1.442
36.63
1.567
39.80
1.692
42.98
F
± 0.005
(± 013)
0.415
10.54
0 415
10.54
0.415
10.54
0.415
10.54
0.415
10.54
0.415
10.54
0.535
13.59
0.535
13.59
0.569 / 0.574
14.45 / 14.58
G
dia
max
0.828
21.03
0.891
22.63
1.016
25.81
1.141
28.97
1.203
30.56
1.426
36.22
1 .426
36.22
1.567
39.80
1.735
44.07
H
± 0.005
(± 0.13)
0.156
3.96
0.188
4.78
0.312
7.93
0.375
9.53
0.500
12.7
0.625
15.88
0.625
15.88
0.750
19.05
0.800
20.32
Y
dia
max
0.473
12.03
0.590
14.99
0.750
19.05
0.875
22.23
1.000
25.40
1.125
28.58
1.250
31.75
1.375
34.93
1.500
38.10
33
