3206-SMBP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 3206-SMBP

3206-SMBP: DescriptionRF/Microwave Termination, 0MHz Min, 6000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size37KB，1 Pages; ManufacturerCobham Semiconductor Solutions; Environmental Compliance

Download Datasheet Parametric Compare View All

3206-SMBP Overview

RF/Microwave Termination, 0MHz Min, 6000MHz Max, 50ohm, ROHS COMPLIANT PACKAGE

3206-SMBP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cobham Semiconductor Solutions
Reach Compliance Code	unknown
Other features	I/P POWER-MAX(PEAK)=500W
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	30 dBm
JESD-609 code	e4
Maximum operating frequency	6000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	RF/MICROWAVE TERMINATION
Terminal surface	Gold (Au)
Maximum voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

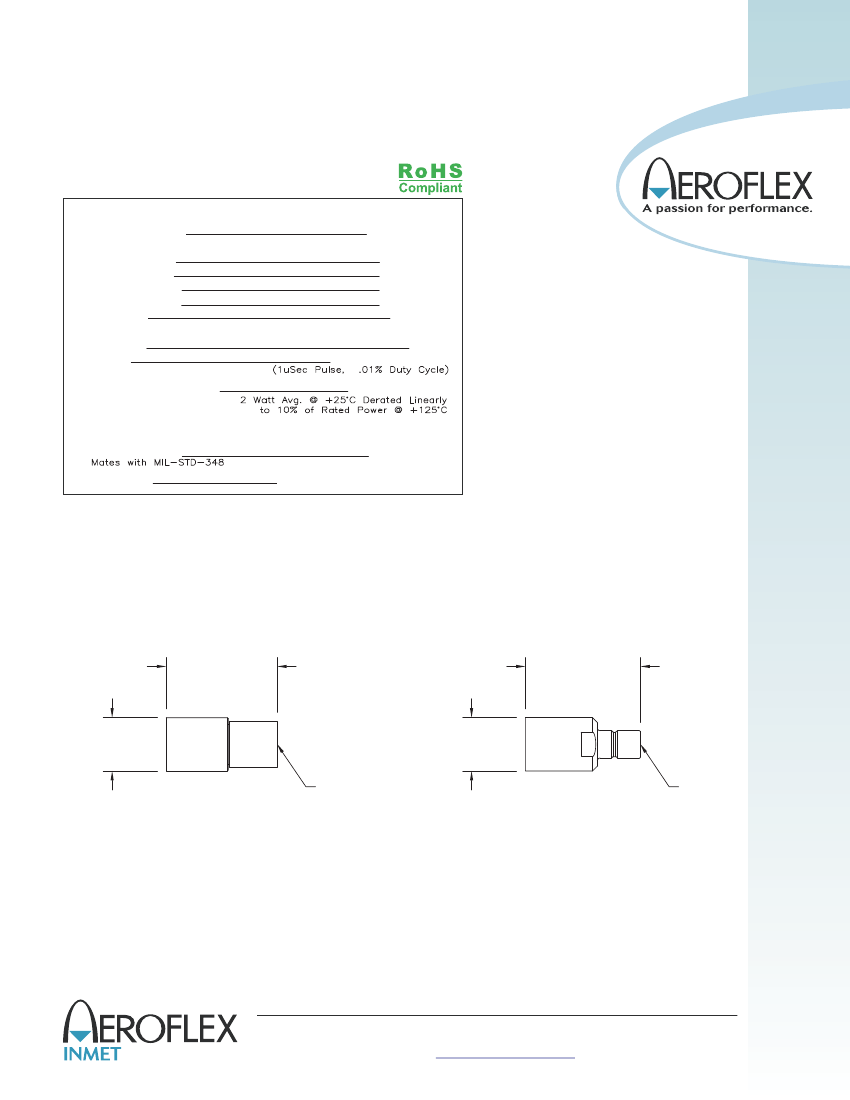

TERMINATIONS

SMB, up to 6 GHz, 1 Watt

SPECIFICATIONS:

Models: 3206-SMBP, 3206-SMBS

Electrical:

Frequency Range

VSWR

DC - 1.0 GHz

1.0 - 2.5 GHz

2.5 - 4.0 GHz

4.0 - 6.0 GHz

Impedance

Power

Average

Peak

Operating Temp Range

DC - 6.0 GHz

1.10:1 Max.

1.15:1 Max.

1.20:1 Max.

1.25:1 Max.

50 Ohms

1 Watt

500 Watts Maximum

-55°C to +125°C

Mechanical:

SMB Connectors

Conductors

Nickel Plated

Beryllium Copper or Brass

Gold Plated Beryllium Copper

Model Number:

3206-SMBS

SMB Socket Termination

Model Number:

3206-SMBP

SMB Pin Termination

.583±.020

[14.81±0.51]

.604±.020

[15.34±0.51]

Ø.28±.02

[7.11±0.51]

SMB Socket

Ø.28±.02

[7.11±0.51]

SMB Pin

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design specifications are subject to change without notice.

Contact factory for technical specifications before purchasing or use.

320X-SMBS: REV E

Aeroflex / Inmet, Inc.

300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex.com/inmet

• inmetsales@aeroflex.com
