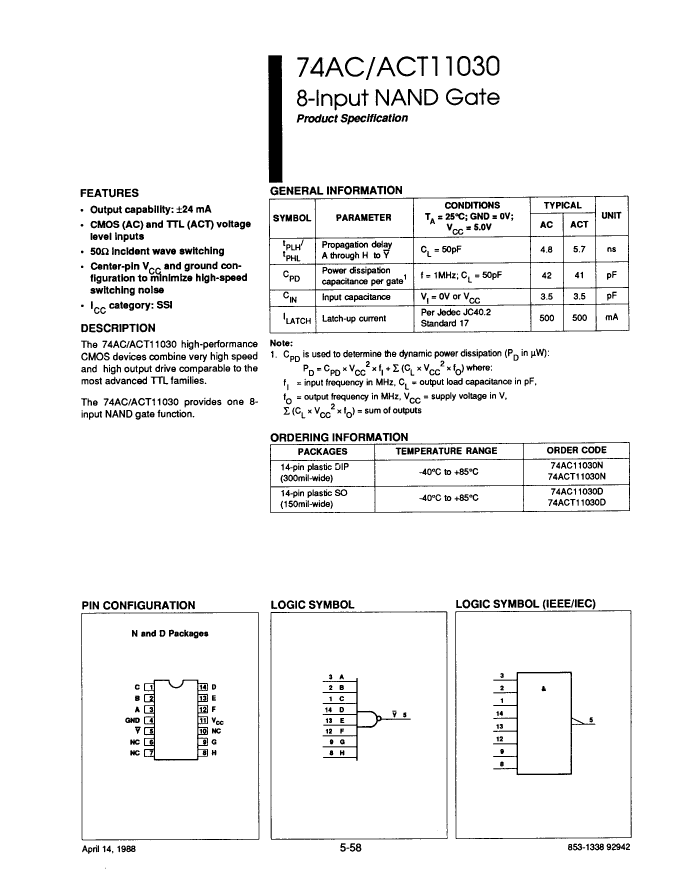

NAND Gate, CMOS, PDSO14

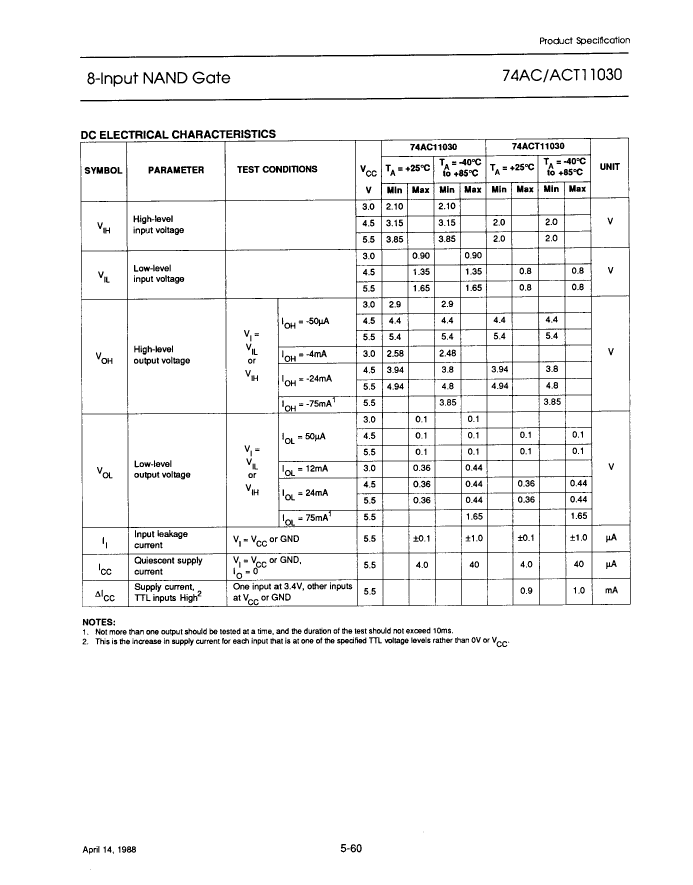

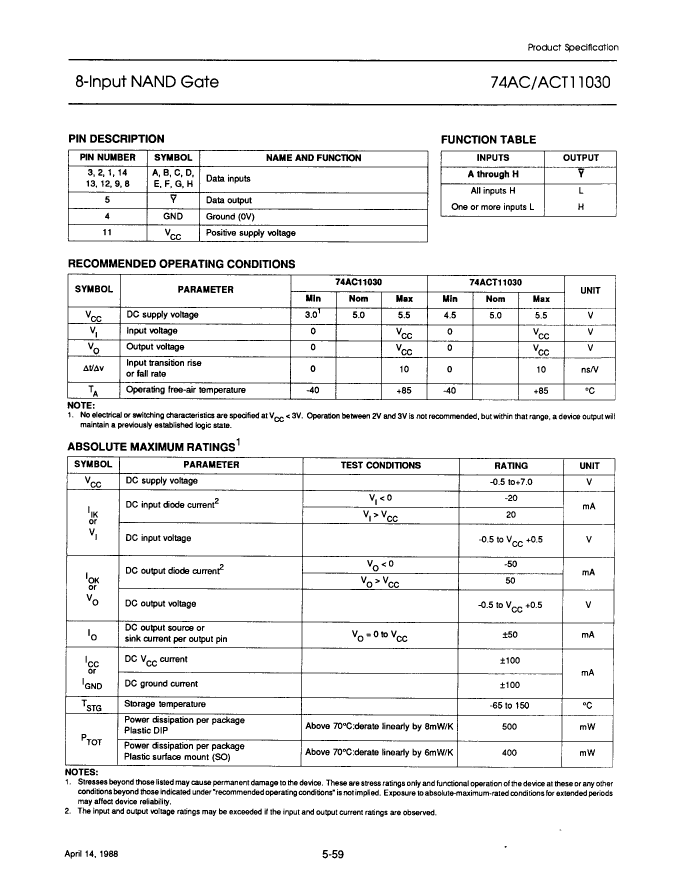

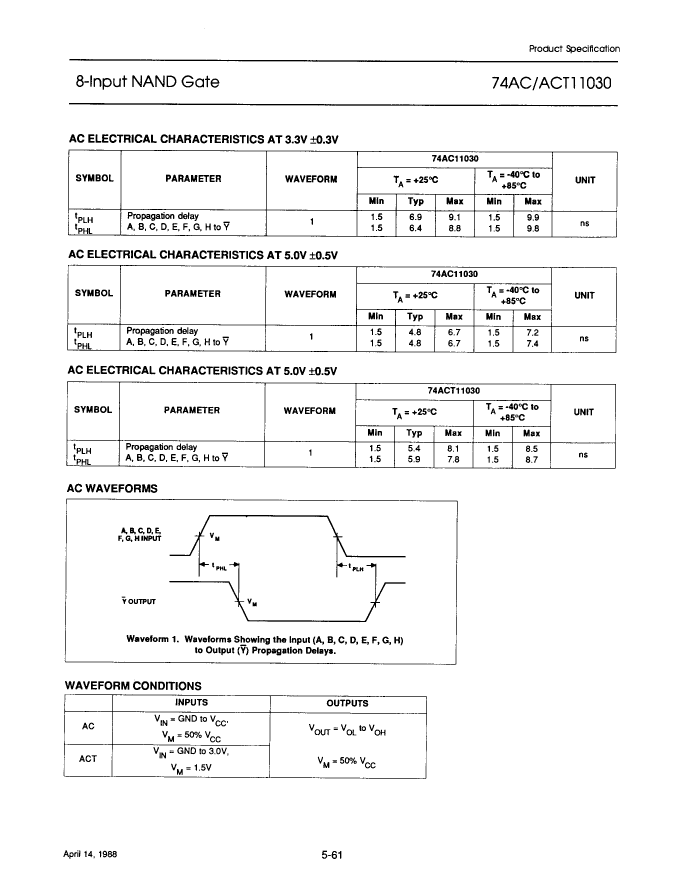

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Philips Semiconductors (NXP Semiconductors N.V.) |
| package instruction | SOP, SOP14,.25 |
| Reach Compliance Code | unknown |
| JESD-30 code | R-PDSO-G14 |
| JESD-609 code | e0 |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | NAND GATE |
| MaximumI(ol) | 0.024 A |
| Number of terminals | 14 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Encapsulate equivalent code | SOP14,.25 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| method of packing | TAPE AND REEL |
| power supply | 3.3/5 V |
| Prop。Delay @ Nom-Sup | 9.9 ns |
| Certification status | Not Qualified |
| Schmitt trigger | NO |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Base Number Matches | 1 |
| 74AC11030D-T | 74ACT11030D-T | 74ACT11030D | 74AC11030D | 74AC11030N | |
|---|---|---|---|---|---|
| Description | NAND Gate, CMOS, PDSO14 | NAND Gate, CMOS, PDSO14 | NAND Gate, CMOS, PDSO14 | NAND Gate, CMOS, PDSO14 | NAND Gate, CMOS, PDIP14, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| JESD-30 code | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 | R-PDIP-T14 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | NAND GATE | NAND GATE | NAND GATE | NAND GATE | NAND GATE |
| MaximumI(ol) | 0.024 A | 0.024 A | 0.024 A | 0.024 A | 0.024 A |
| Number of terminals | 14 | 14 | 14 | 14 | 14 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SOP | SOP | SOP | DIP |
| Encapsulate equivalent code | SOP14,.25 | SOP14,.25 | SOP14,.25 | SOP14,.25 | DIP14,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | IN-LINE |
| Prop。Delay @ Nom-Sup | 9.9 ns | 8.7 ns | 8.7 ns | 9.9 ns | 9.9 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Schmitt trigger | NO | NO | NO | NO | NO |
| surface mount | YES | YES | YES | YES | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| package instruction | SOP, SOP14,.25 | - | - | SOP, SOP14,.25 | DIP, DIP14,.3 |
| power supply | 3.3/5 V | - | - | 3.3/5 V | 3.3/5 V |
