Part Number

Search

5962-8779301EA

Description
10K SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDIP16, CERDIP-16
Categorylogic    logic
File Size132KB,6 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

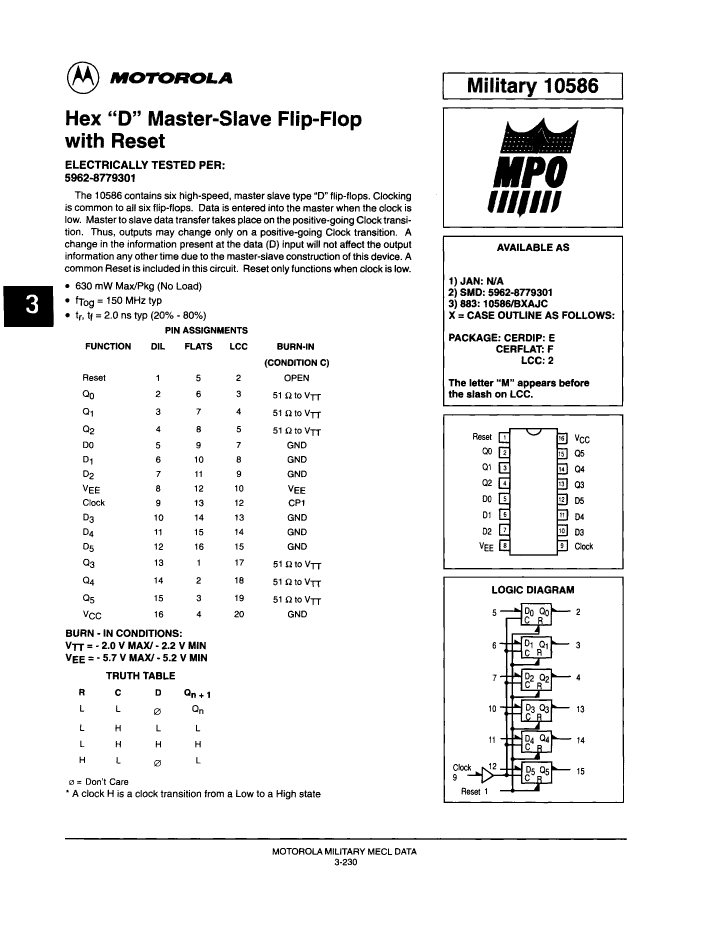

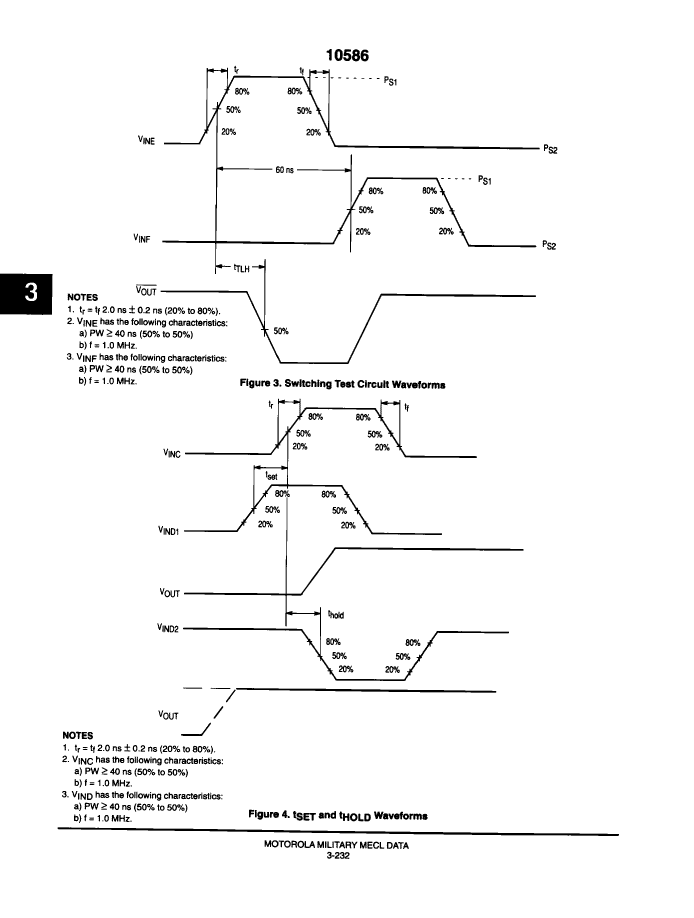

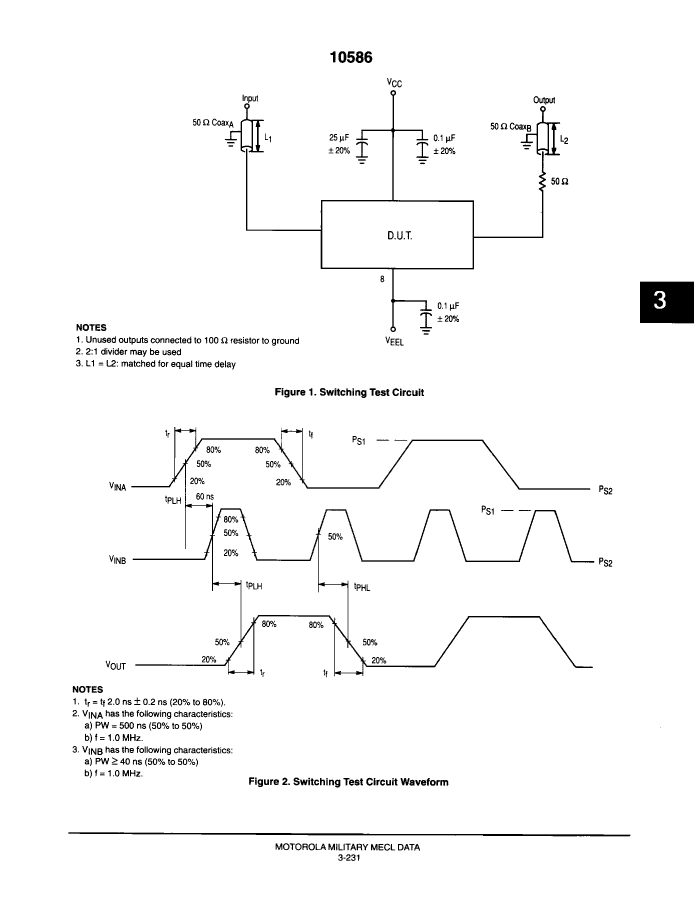

5962-8779301EA Overview

10K SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDIP16, CERDIP-16

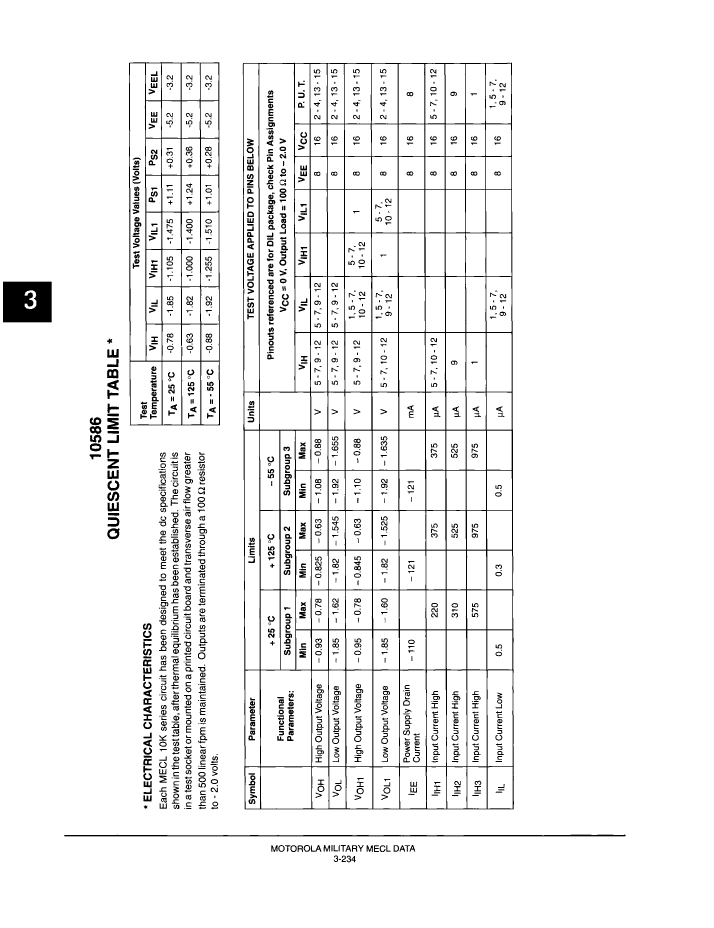

5962-8779301EA Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMotorola ( NXP )
Parts packaging codeDIP
package instructionDIP, DIP16,.3
Contacts16
Reach Compliance Codeunknown
series10K
JESD-30 codeR-GDIP-T16
JESD-609 codee0
length19.49 mm
Logic integrated circuit typeD FLIP-FLOP
Maximum Frequency@Nom-Sup125000000 Hz
Number of digits6
Number of functions1
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristicsOPEN-EMITTER
Output polarityTRUE
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum supply current (ICC)121 mA
propagation delay (tpd)5.3 ns
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Maximum seat height5.08 mm
surface mountNO
technologyECL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger typePOSITIVE EDGE
width7.62 mm
minfmax125 MHz
Base Number Matches1

5962-8779301EA Related Products

5962-8779301EA 10586/BEAJC 5962-8779301FA 5962-87793012A
Description 10K SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDIP16, CERDIP-16 10K SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDIP16, CERDIP-16 10K SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CDFP16, CERAMIC, FP-16 10K SERIES, POSITIVE EDGE TRIGGERED D FLIP-FLOP, TRUE OUTPUT, CQCC20, CERAMIC, LCC-20
Is it Rohs certified? incompatible incompatible incompatible incompatible
package instruction DIP, DIP16,.3 DIP, DIP16,.3 DFP, FL16,.3 QCCN, LCC20,.35SQ
Reach Compliance Code unknown unknown unknown unknown
series 10K 10K 10K 10K
JESD-30 code R-GDIP-T16 R-GDIP-T16 R-GDFP-F16 S-CQCC-N20
JESD-609 code e0 e0 e0 e0
length 19.49 mm 19.495 mm 9.65 mm 8.885 mm
Logic integrated circuit type D FLIP-FLOP D FLIP-FLOP D FLIP-FLOP D FLIP-FLOP
Maximum Frequency@Nom-Sup 125000000 Hz 125000000 Hz 125000000 Hz 125000000 Hz
Number of digits 6 6 6 6
Number of functions 1 1 1 1
Number of terminals 16 16 16 20
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C
Output characteristics OPEN-EMITTER OPEN-EMITTER OPEN-EMITTER OPEN-EMITTER
Output polarity TRUE TRUE TRUE TRUE
Package body material CERAMIC, GLASS-SEALED CERAMIC, GLASS-SEALED CERAMIC, GLASS-SEALED CERAMIC, METAL-SEALED COFIRED
encapsulated code DIP DIP DFP QCCN
Encapsulate equivalent code DIP16,.3 DIP16,.3 FL16,.3 LCC20,.35SQ
Package shape RECTANGULAR RECTANGULAR RECTANGULAR SQUARE
Package form IN-LINE IN-LINE FLATPACK CHIP CARRIER
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Maximum supply current (ICC) 121 mA 121 mA 121 mA 121 mA
propagation delay (tpd) 5.3 ns 5.3 ns 5.3 ns 5.3 ns
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
Filter level 38535Q/M;38534H;883B 38535Q/M;38534H;883B 38535Q/M;38534H;883B 38535Q/M;38534H;883B
Maximum seat height 5.08 mm 5.08 mm 2.15 mm 1.9 mm
surface mount NO NO YES YES
technology ECL ECL ECL ECL
Temperature level MILITARY MILITARY MILITARY MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE FLAT NO LEAD
Terminal pitch 2.54 mm 2.54 mm 1.27 mm 1.27 mm
Terminal location DUAL DUAL DUAL QUAD
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Trigger type POSITIVE EDGE POSITIVE EDGE POSITIVE EDGE POSITIVE EDGE
width 7.62 mm 7.62 mm 6.415 mm 8.885 mm
minfmax 125 MHz 125 MHz 125 MHz 125 MHz
Base Number Matches 1 1 1 1
Parts packaging code DIP DIP DFP -
Contacts 16 16 16 -
