54LS197/BCAJC datasheet, PDF - EEWORLD Datasheet

54LS197/BCAJC: DescriptionBinary Counter, Asynchronous, Up Direction, TTL, CDIP14; Categorylogic logic; File Size283KB，6 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

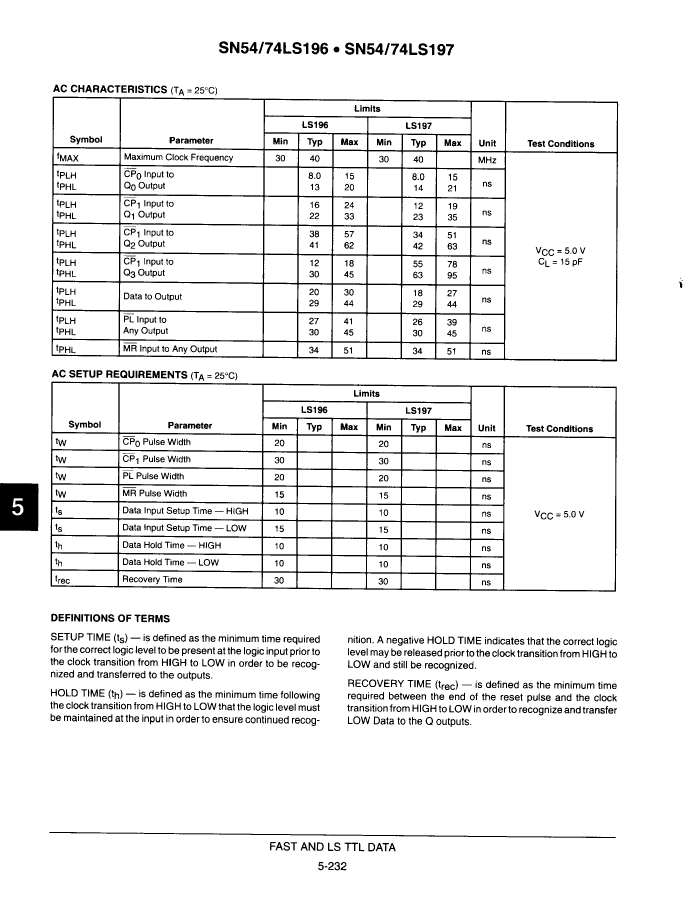

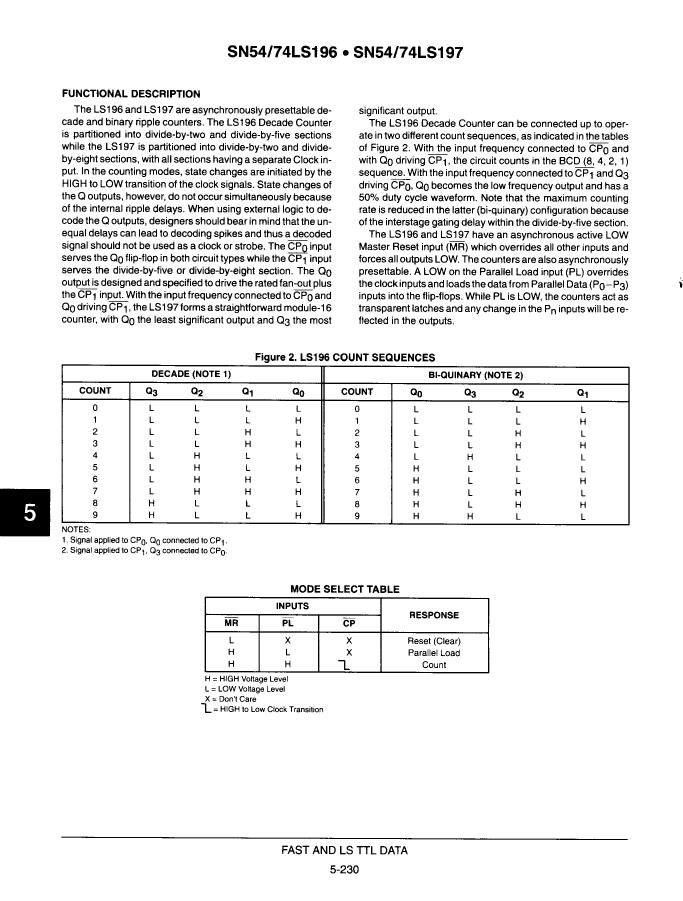

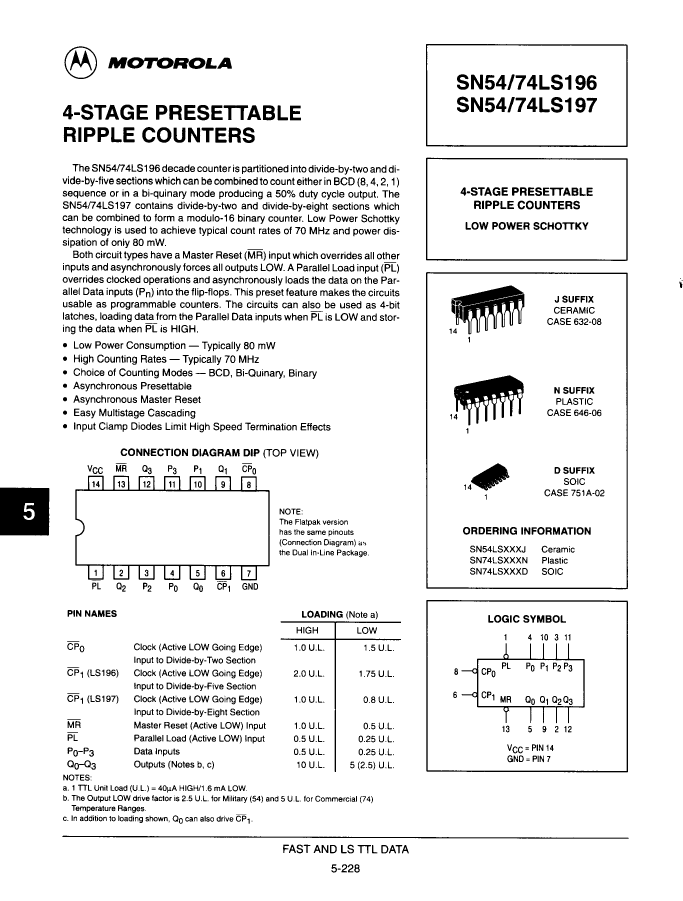

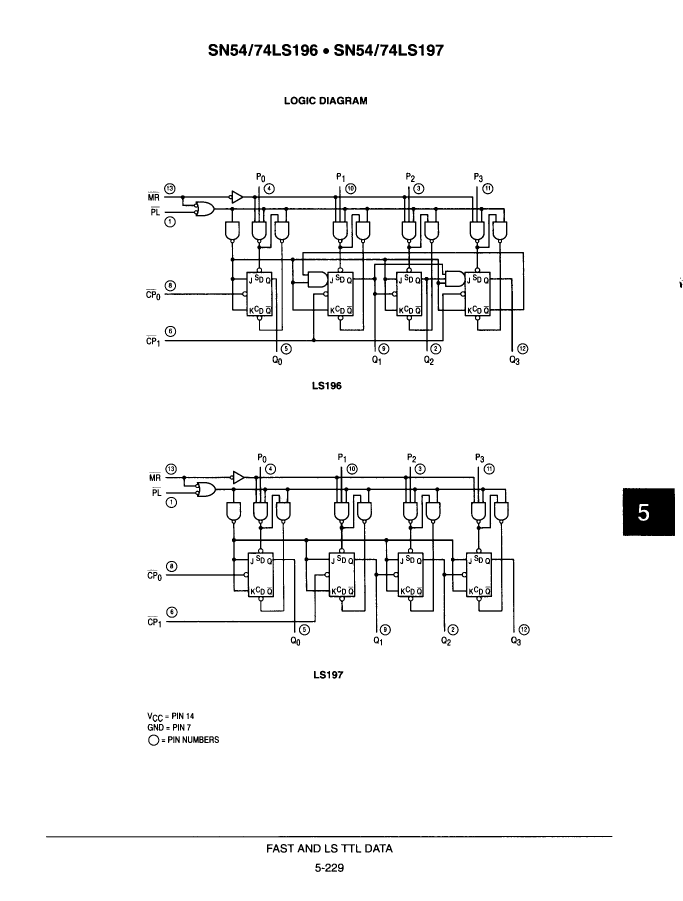

54LS197/BCAJC Overview

Binary Counter, Asynchronous, Up Direction, TTL, CDIP14

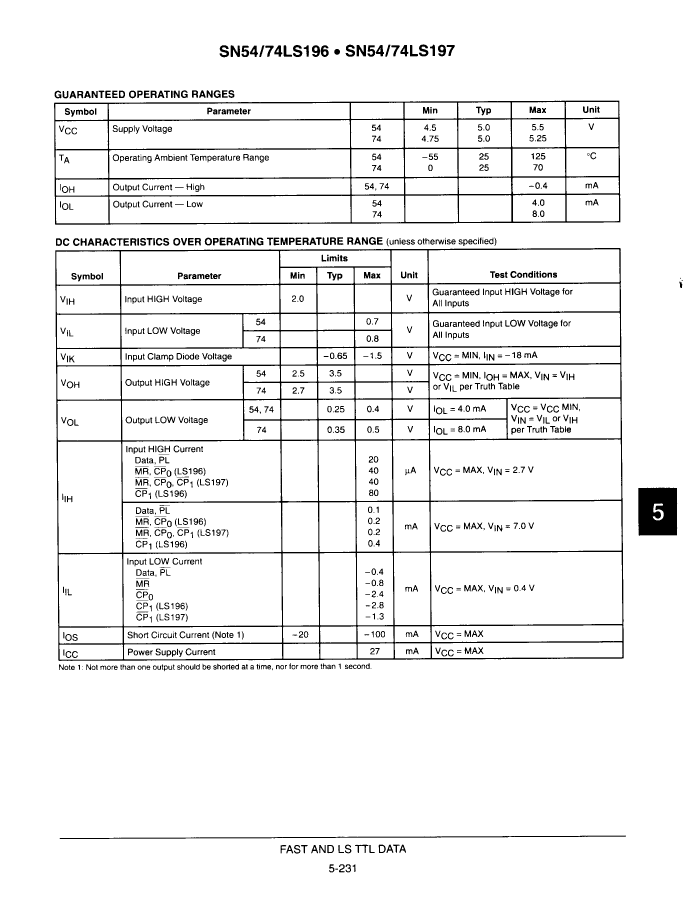

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
Counting direction	UP
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Load/preset input	YES
Logic integrated circuit type	BINARY COUNTER
Maximum Frequency@Nom-Sup	30000000 Hz
MaximumI(ol)	0.004 A
Operating mode	ASYNCHRONOUS
Number of functions	1
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	27 mA
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1
