54F257A/BFA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F257A/BFA

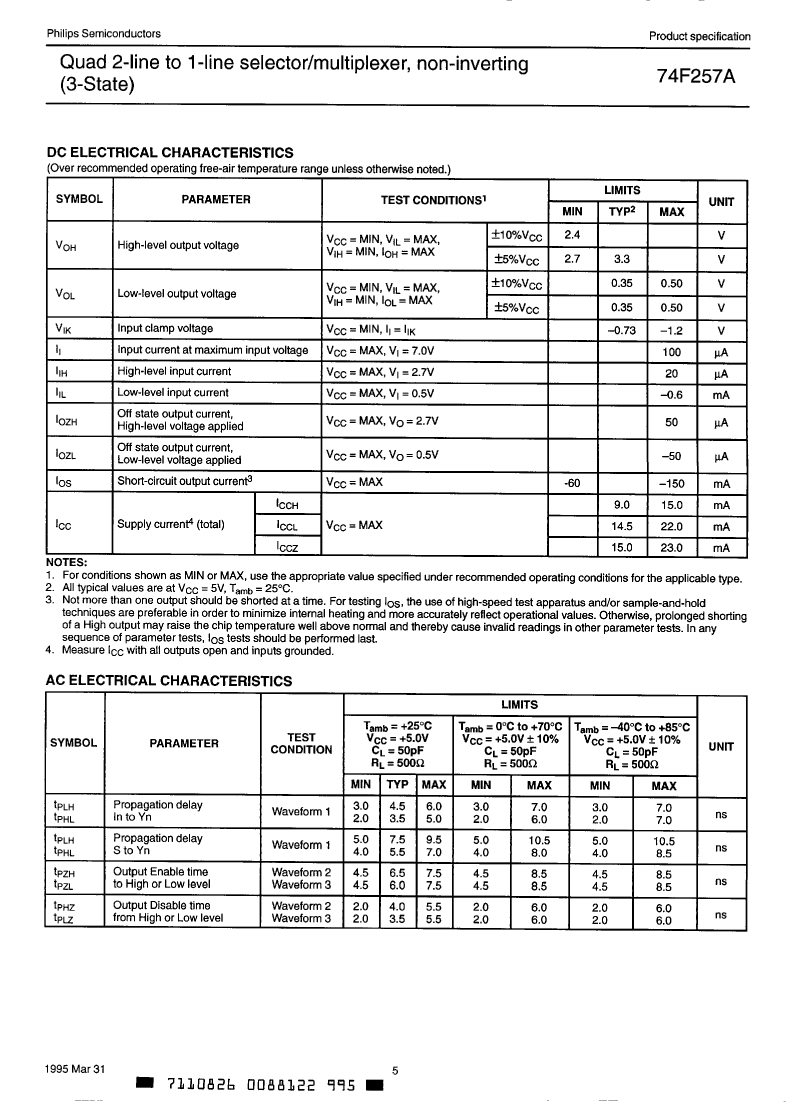

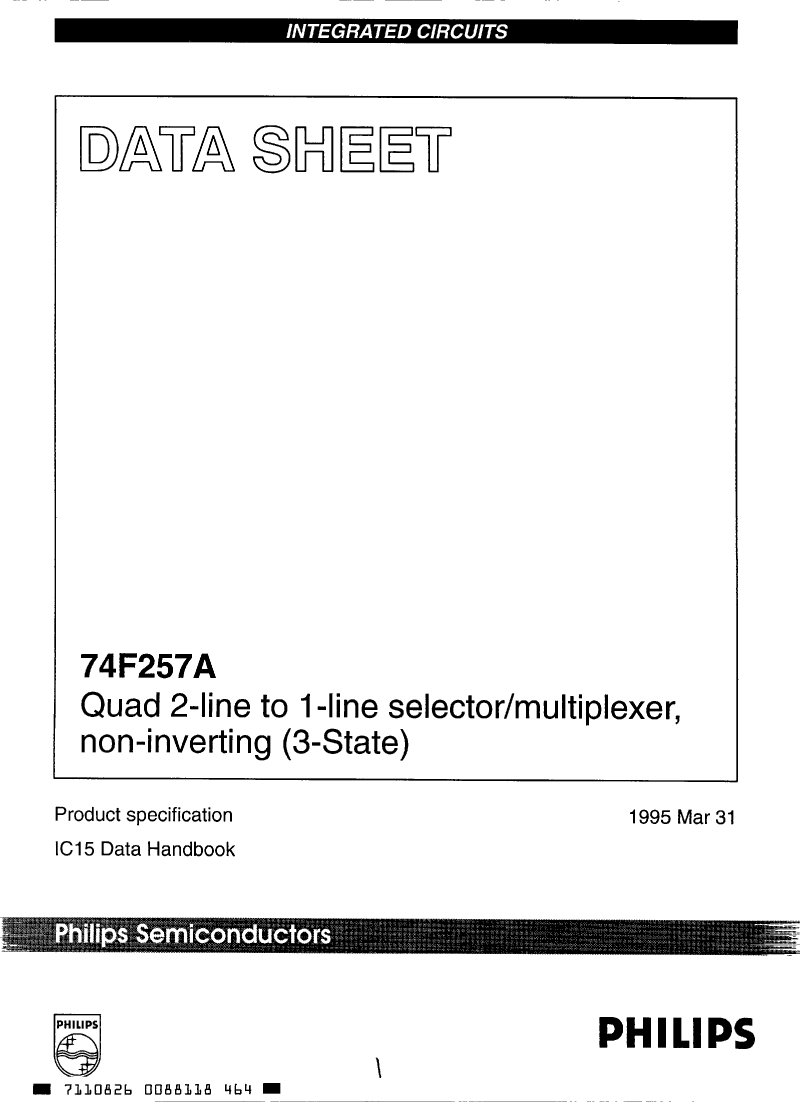

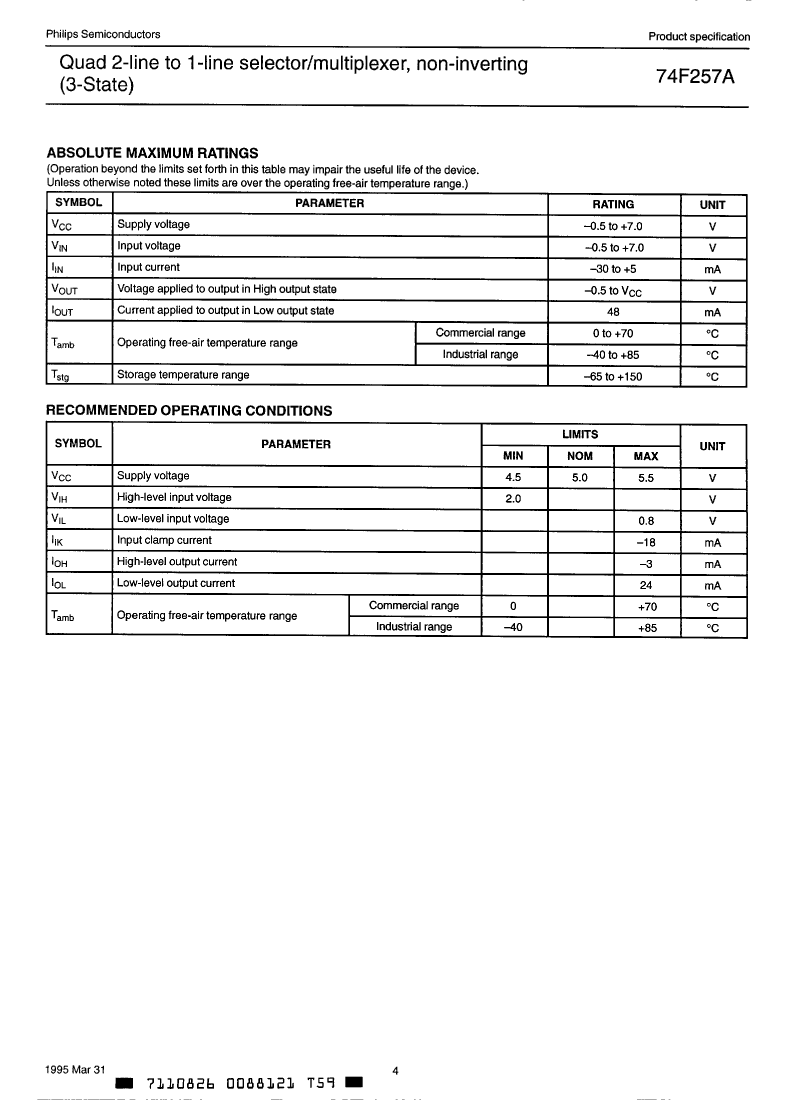

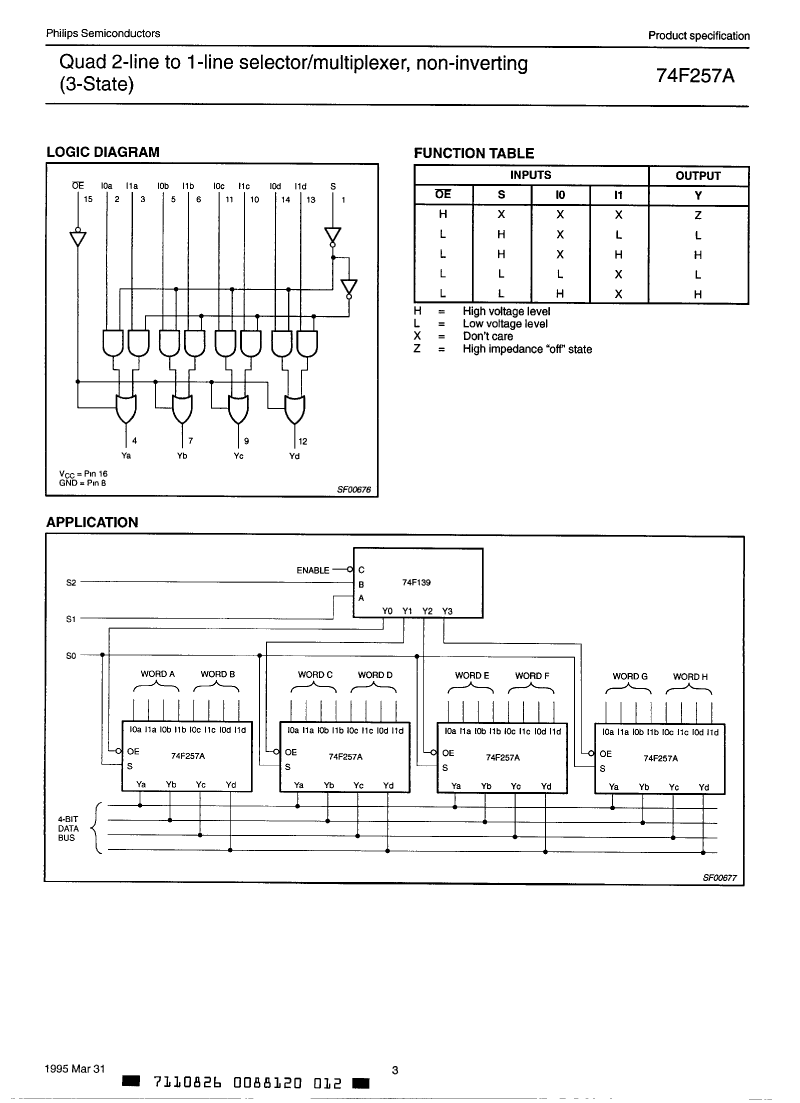

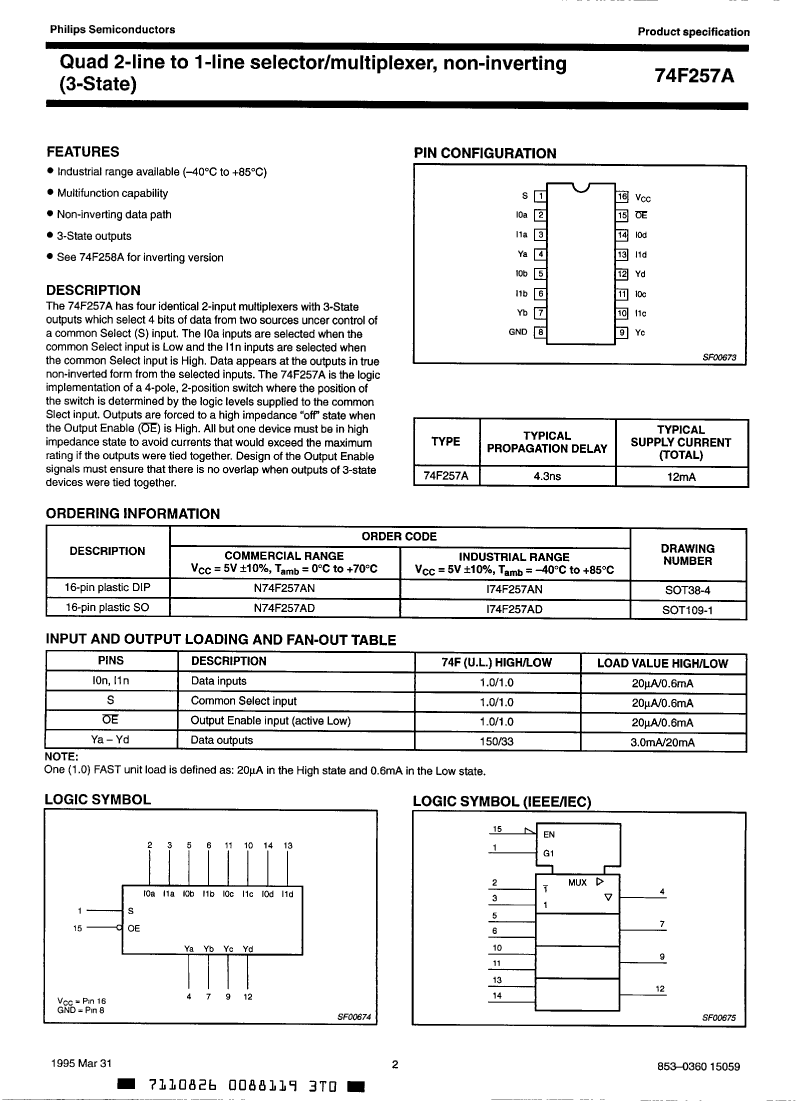

54F257A/BFA: DescriptionMultiplexer, 4-Func, 2 Line Input, TTL, CDFP16; Categorylogic logic; File Size437KB，8 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

54F257A/BFA Overview

Multiplexer, 4-Func, 2 Line Input, TTL, CDFP16

54F257A/BFA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DFP, FL16,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDFP-F16
JESD-609 code	e0
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.02 A
Number of functions	4
Number of entries	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Maximum supply current (ICC)	23 mA
Prop。Delay @ Nom-Sup	11.5 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

54F257A/BFA Related Products

	54F257A/BFA	54F257A/B2C	N74F257N-B	N74F257AD-T	54F257A/B2A	N74F257AN-B	N74F257D-T
Description	Multiplexer, 4-Func, 2 Line Input, TTL, CDFP16	Multiplexer, 4-Func, 2 Line Input, TTL, CQCC20	Multiplexer, 4-Func, 2 Line Input, TTL, PDIP16	Multiplexer, 4-Func, 2 Line Input, TTL, PDSO16,	Multiplexer, 4-Func, 2 Line Input, TTL, CDFP16	Multiplexer, 4-Func, 2 Line Input, TTL, PDIP16	Multiplexer, 4-Func, 2 Line Input, TTL, PDSO16,
Is it Rohs certified?	incompatible	incompatible	incompatible	conform to	incompatible	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-XDFP-F16	S-XQCC-N20	R-PDIP-T16	R-PDSO-G16	R-XDFP-F16	R-PDIP-T16	R-PDSO-G16
JESD-609 code	e0	e0	e0	e4	e0	e0	e0
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
MaximumI(ol)	0.02 A	0.02 A	0.024 A	0.024 A	0.02 A	0.024 A	0.024 A
Number of functions	4	4	4	4	4	4	4
Number of entries	2	2	2	2	2	2	2
Number of terminals	16	20	16	16	16	16	16
Maximum operating temperature	125 °C	125 °C	70 °C	70 °C	125 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DFP	QCCN	DIP	SOP	DFP	DIP	SOP
Encapsulate equivalent code	FL16,.3	LCC20,.35SQ	DIP16,.3	SOP16,.25	FL16,.3	DIP16,.3	SOP16,.25
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	CHIP CARRIER	IN-LINE	SMALL OUTLINE	FLATPACK	IN-LINE	SMALL OUTLINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Maximum supply current (ICC)	23 mA	23 mA	23 mA	23 mA	23 mA	23 mA	23 mA
Prop。Delay @ Nom-Sup	11.5 ns	11.5 ns	15 ns	10.5 ns	11.5 ns	10.5 ns	15 ns
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	YES	YES	NO	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	MILITARY	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Nickel/Palladium/Gold (Ni/Pd/Au)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	FLAT	NO LEAD	THROUGH-HOLE	GULL WING	FLAT	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL
package instruction	DFP, FL16,.3	-	DIP-16	SOP, SOP16,.25	DFP, FL16,.3	DIP, DIP16,.3	SOP, SOP16,.25
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	-	Not Qualified
Base Number Matches	1	1	1	1	-	-	-
