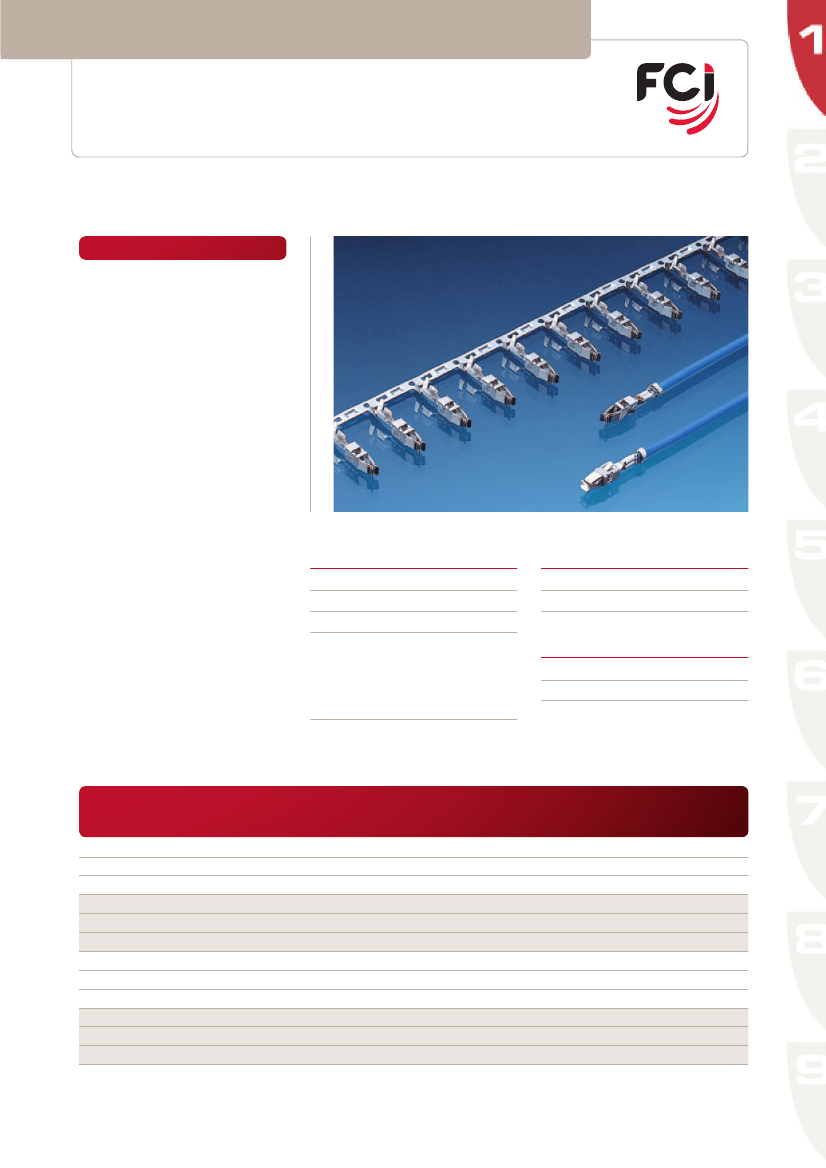

Terminal Systems
DCS-2
2.8 mm female and male terminals
Features
•
DCS-2 technology
•
Long auxiliary steel spring in CrNi
•
5 mm pitch for unsealed
applications
•
6 mm pitch for sealed applications
with single wire seal
•
Single wire seal versions available
•
Crimp code on terminal
•
Suitable for secondary lock
•
Selective gold-plated versions
available
Performance characteristics*
•
Contact resistance:
•
Contact mating force:
•
Contact unmating force:
< 2 mΩ
<9N
< 5N
Packing
•
No. of terminals per reel: Consult us
•
No. of reels per packing: Consult us
•
Current carrying capacity with
2.5 mm
2
wire:
at 23°C up to approx.:
33 A
at 85°C up to approx.:
22 A
at 100°C up to approx.:
17 A
* Mated with 2.8 x 0.8 mm DCS-2 male
terminal (Sn)
Tooling
•
Manual crimping tool:
•
Mini applicator:
Consult us
Consult us
Part Numbers
Type
Wire size range
(in mm2)
Min.
Max.
Insulation Ø
(in mm)
Max.
Material
Plating
6 001 28 11
6 001 28 31
6 001 28 41
6 001 29 11 (SWS)
6 001 29 31 (SWS)
6 001 29 41 (SWS)
6 001 40 11
6 001 40 31
6 001 40 41
6 011 06 11
6 011 06 31
6 011 06 41
Female
Female
Female
Female
Female
Female
Female
Female
Female
0.20
0.50
> 1.00
0.20
0.50
> 1.00
0.20
0.50
> 1.00
0.35
1.00
2.50
0.35
1.00
2.50
0.35
1.00
2.50
1.30
2.00
3.00
1.30
2.00
3.00
1.30
2.00
3.00
CuSn/CrNi
CuSn/CrNi
CuSn/CrNi
CuSn/CrNi
CuSn/CrNi
CuSn/CrNi
CuFe/CrNi
CuFe/CrNi
CuFe/CrNi
CuFe/CrNi
CuFe/CrNi
CuFe/CrNi
Sn
Sn
Sn
Sn
Sn
Sn
Sn
Sn
Sn
Sn
Sn
Rev 06/04
Male
Male
Male
0.20
0.50
> 1.00
0.35
1.00
2.50
1.30
2.00
3.00
Sn
SWS: Single Wire Seal
1.57
Terminal Systems
DCS-2
2.8 mm female and male terminals
Part Numbers
Type
Wire size range
(in mm2)
Min.
Max.
Insulation Ø
(in mm)
Max.
Material
Plating
6 011 06 14
6 011 06 34
6 011 06 44
6 011 07 11 (SWS)
6 011 07 31 (SWS)
6 011 07 41 (SWS)
6 011 07 14 (SWS)
6 011 07 34 (SWS)
6 011 07 44 (SWS)
Male
Male
Male
Male
Male
Male
Male
Male
Male
0.20
0.50
> 1.00
0.20
0.50
> 1.00
0.20
0.50
> 1.00
0.35
1.00
2.50
0.35
1.00
2.50
0.35
1.00
2.50
1.30
2.00
3.00
1.30
2.00
3.00
1.30
2.00
3.00
CuSn/CrNi
CuSn/CrNi
CuSn/CrNi
CuFe/CrNi
CuFe/CrNi
CuFe/CrNi
CuSn/CrNi
CuSn/CrNi
CuSn/CrNi
Au
Au
Au
Sn
Sn
Sn
Au
Au
Au
SWS: Single Wire Seal

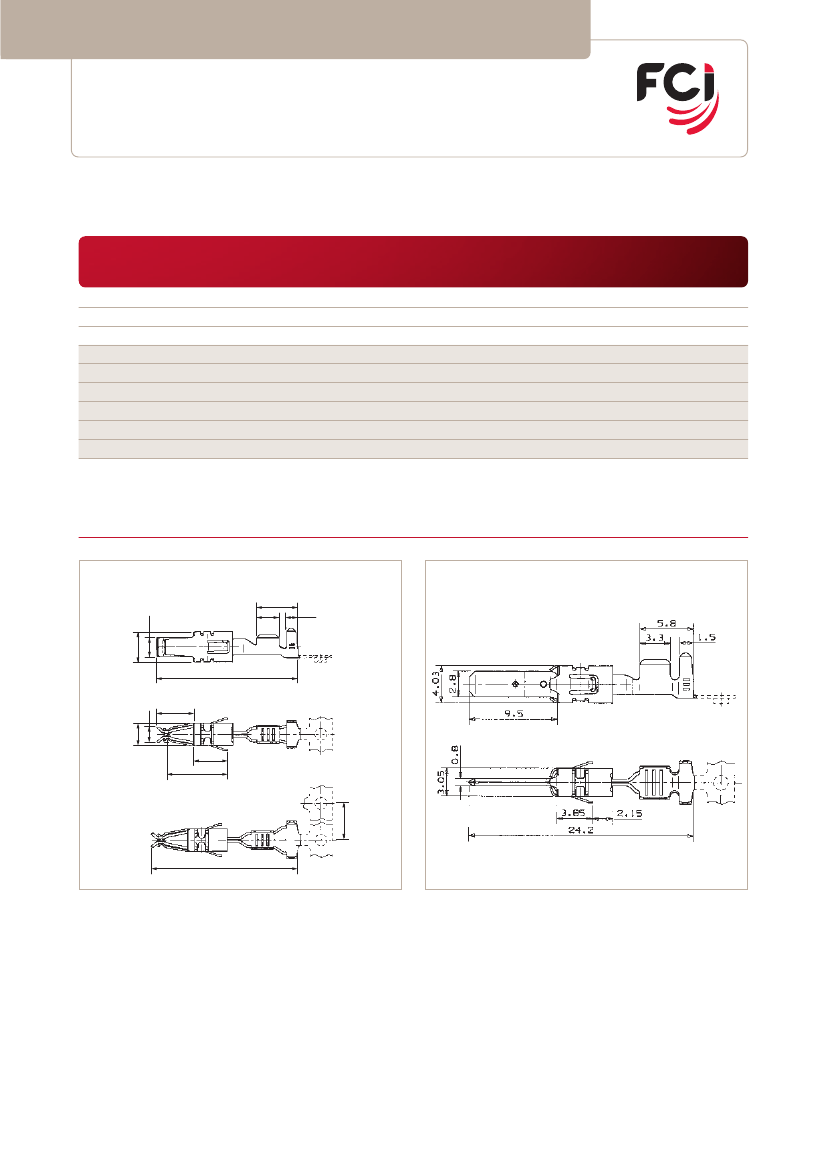

Dimensional characteristics
Female terminals
5.5
2.8
3
1.5
Male terminals
4.15
18.8
3.1
2
4.9
4.5
8.10
19.6
13
1.58
Rev 06/04
Product Detail Page
Page 1 of 2
Direct Links
Cross Reference
RoHS/LF P/N search
...
Start > Search=60011741*
>
60011741
60011741
Assistant
Add to Favorites
Document & Drawing search
Application tooling
Services
Contact us
Distributor list
Pricing request
Order samples
Literature
Brochures & catalogs
Product documentation
Technical library
60011741
DCS-2 female 2.8 mm terminal
Email Datasheet
Print Datasheet
...
FCI Brings You More
Customer
Drawing
Contact our sales/technical support
Sample request
Price request
...
Mating Half
60110341
Specifications
Other
Features
General Dimensional Electrical Mechanical Physical Environmental
General
Product Type
Terminal size (in mm)
Family
Features
Terminal System
2.8
DCS-2
Long Auxiliary Steel Spring in CrNi
http://portal.fciconnect.com/Comergent/en/US/adirect/fci?cmd=catProductDetail&showAddButton=true&productID=6001174... 11/22/2007
Product Detail Page
Page 2 of 2
Suitable for Secondary Lock
Dimensional
Contact Pitch
Electrical
5 mm
33A
22A
17A
3
<2
> 1 - 2.5 mm2
< 9N
No
< 5N
Sn
CuSn/CrNi
No
Female
65200402
DCS
Displayed data is for information purposes only.
For more information, please contact your local sales office.
The supply of some products might be limited to some
customers.
Current Carrying Capacity at 23°C
Current Carrying Capacity at 85°C
Current Carrying Capacity at 100°C
Maximum Insulation (in mm)
Resistance (Contact)
Mechanical
Range of Wire Gauge Min - Max
Contact mating force
Single Wire Seal Compatible
Contact unmating force
Physical
Plating
Material
Environmental
IMDS
Other Features
Type
Crimping Tool
Tradename
Disclaimer
http://portal.fciconnect.com/Comergent/en/US/adirect/fci?cmd=catProductDetail&showAddButton=true&productID=6001174... 11/22/2007
