74HCT08D-T datasheet, PDF - EEWORLD Datasheet

74HCT08D-T: DescriptionAND Gate, CMOS, PDSO14; Categorylogic logic; File Size114KB，3 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

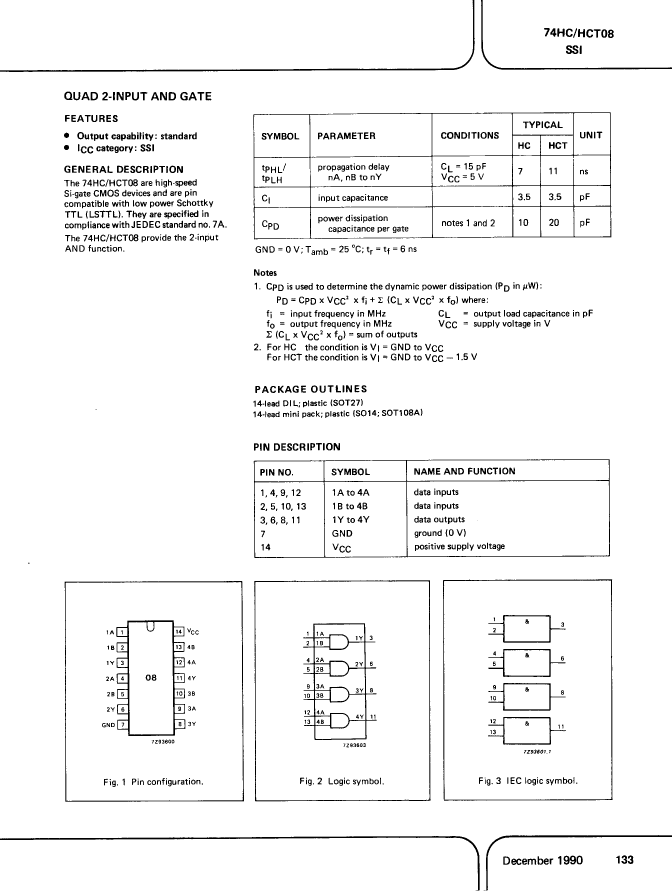

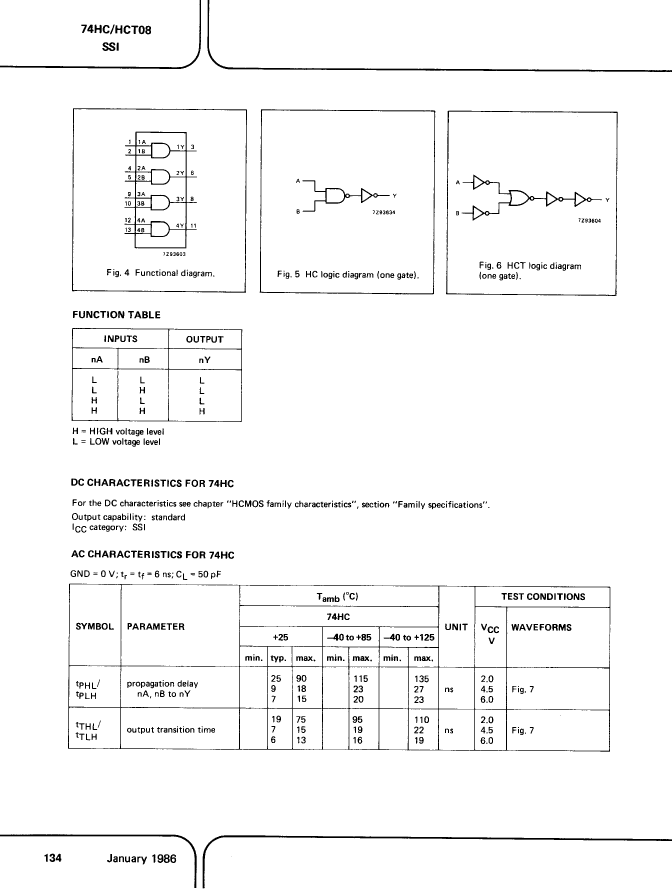

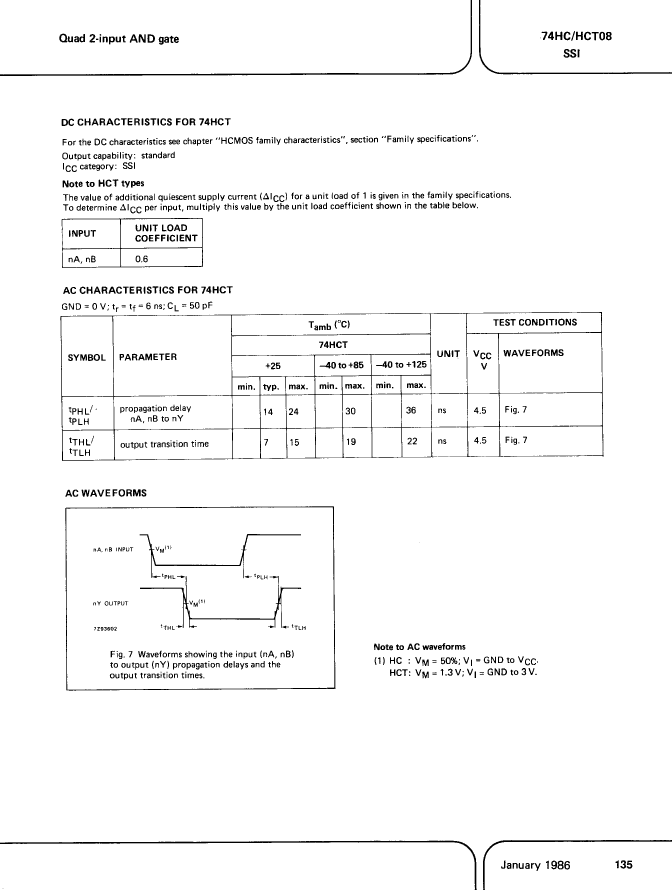

74HCT08D-T Overview

AND Gate, CMOS, PDSO14

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SOP, SOP14,.25
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G14
JESD-609 code	e4
Load capacitance (CL)	50 pF
Logic integrated circuit type	AND GATE
MaximumI(ol)	0.004 A
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
method of packing	TAPE AND REEL
power supply	5 V
Prop。Delay @ Nom-Sup	30 ns
Certification status	Not Qualified
Schmitt trigger	NO
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

	74HCT08D-T	74HC08D-T
Description	AND Gate, CMOS, PDSO14	AND Gate, CMOS, PDSO14,
Is it Rohs certified?	conform to	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SOP, SOP14,.25	SOP, SOP14,.25
Reach Compliance Code	unknown	unknown
JESD-30 code	R-PDSO-G14	R-PDSO-G14
JESD-609 code	e4	e4
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	AND GATE	AND GATE
MaximumI(ol)	0.004 A	0.004 A
Number of terminals	14	14
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Encapsulate equivalent code	SOP14,.25	SOP14,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
method of packing	TAPE AND REEL	TAPE AND REEL
power supply	5 V	2/6 V
Prop。Delay @ Nom-Sup	30 ns	23 ns
Certification status	Not Qualified	Not Qualified
Schmitt trigger	NO	NO
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
