5962-8944708HUX datasheet, PDF

5962-8944708HUX: DescriptionMIL-STD-1553 Data Bus Transceiver, PLUG IN-28; CategoryWireless rf/communication Telecom circuit; File Size312KB，7 Pages; ManufacturerCobham Semiconductor Solutions

Download Datasheet Parametric Compare View All

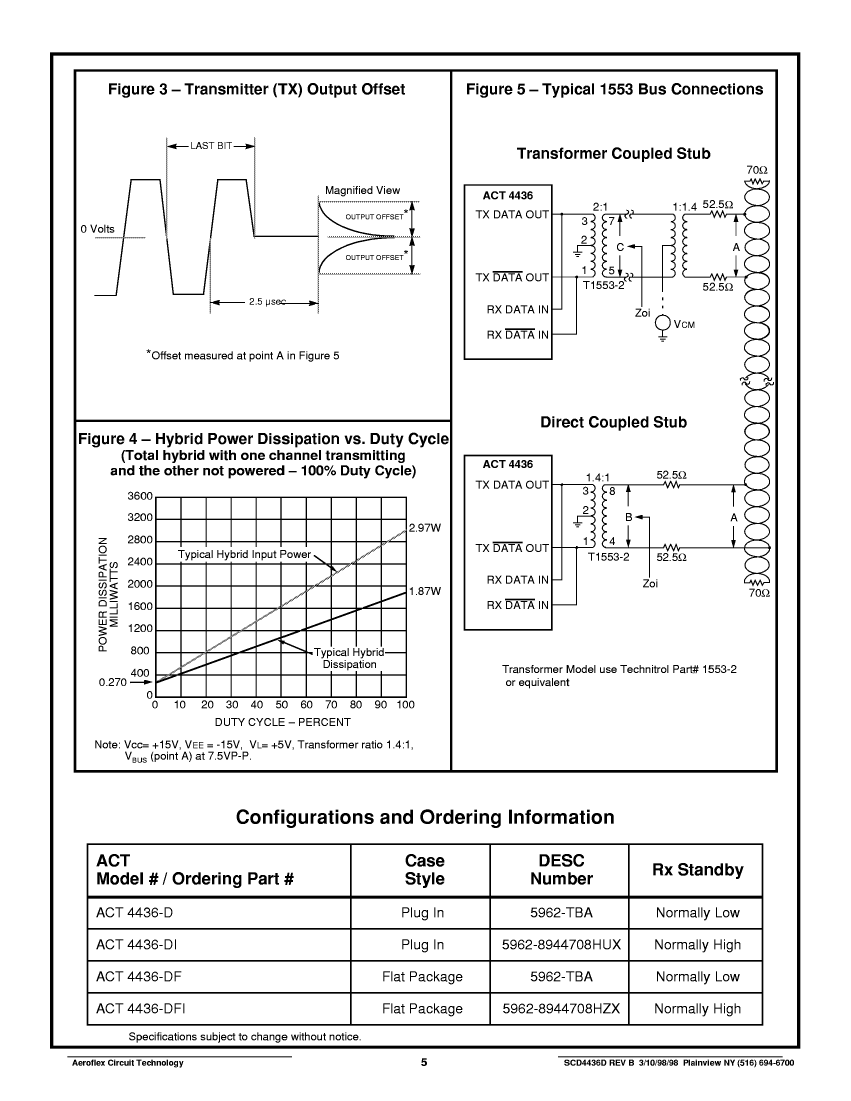

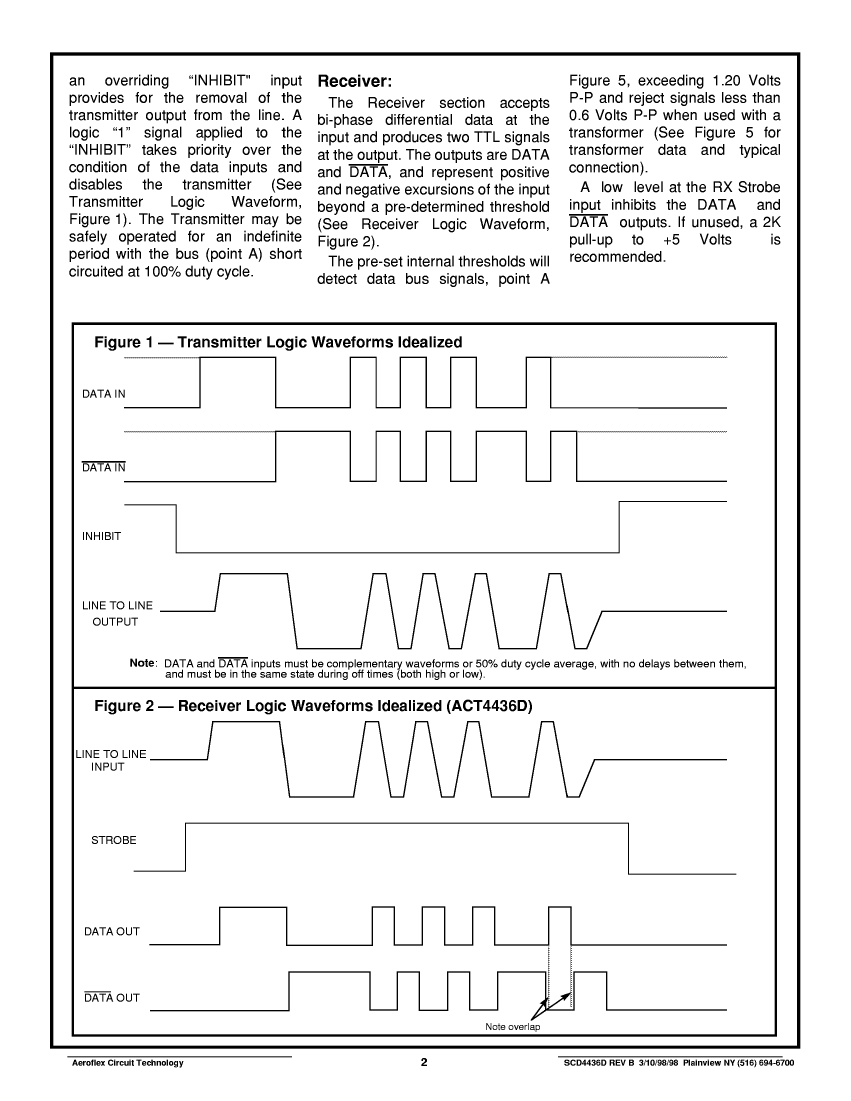

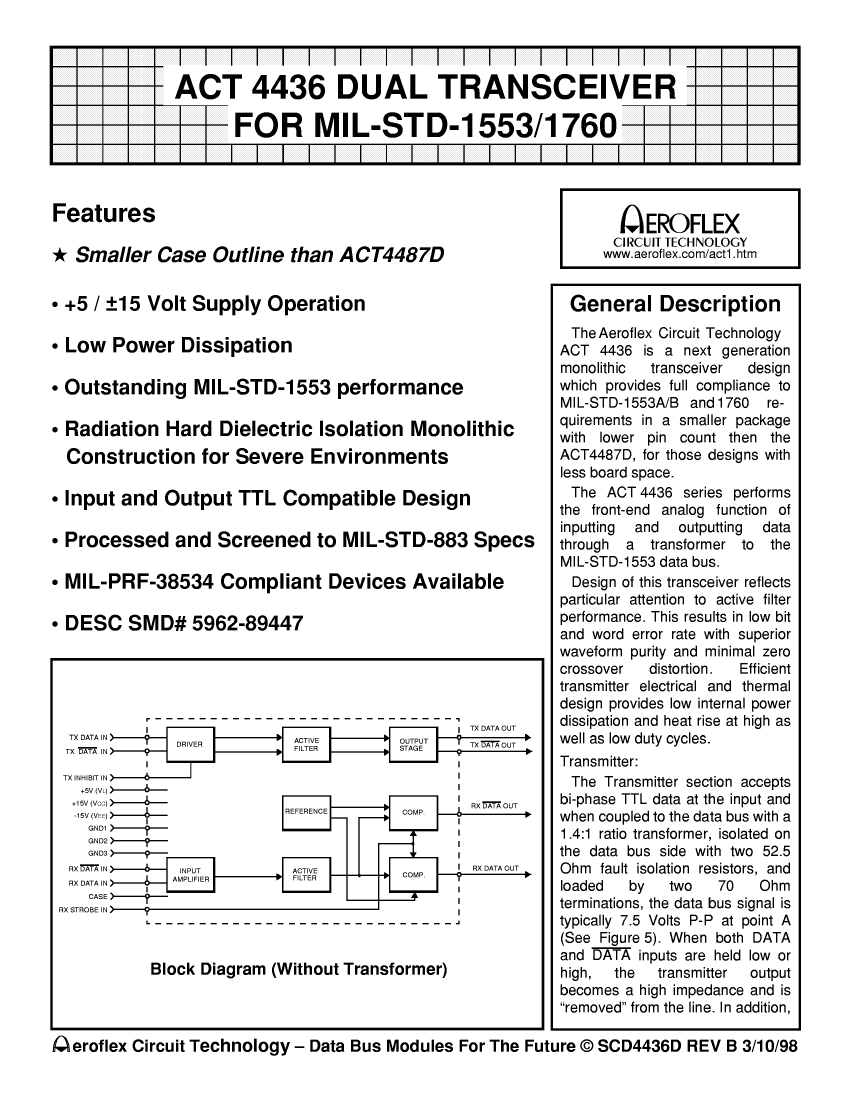

5962-8944708HUX Overview

MIL-STD-1553 Data Bus Transceiver, PLUG IN-28

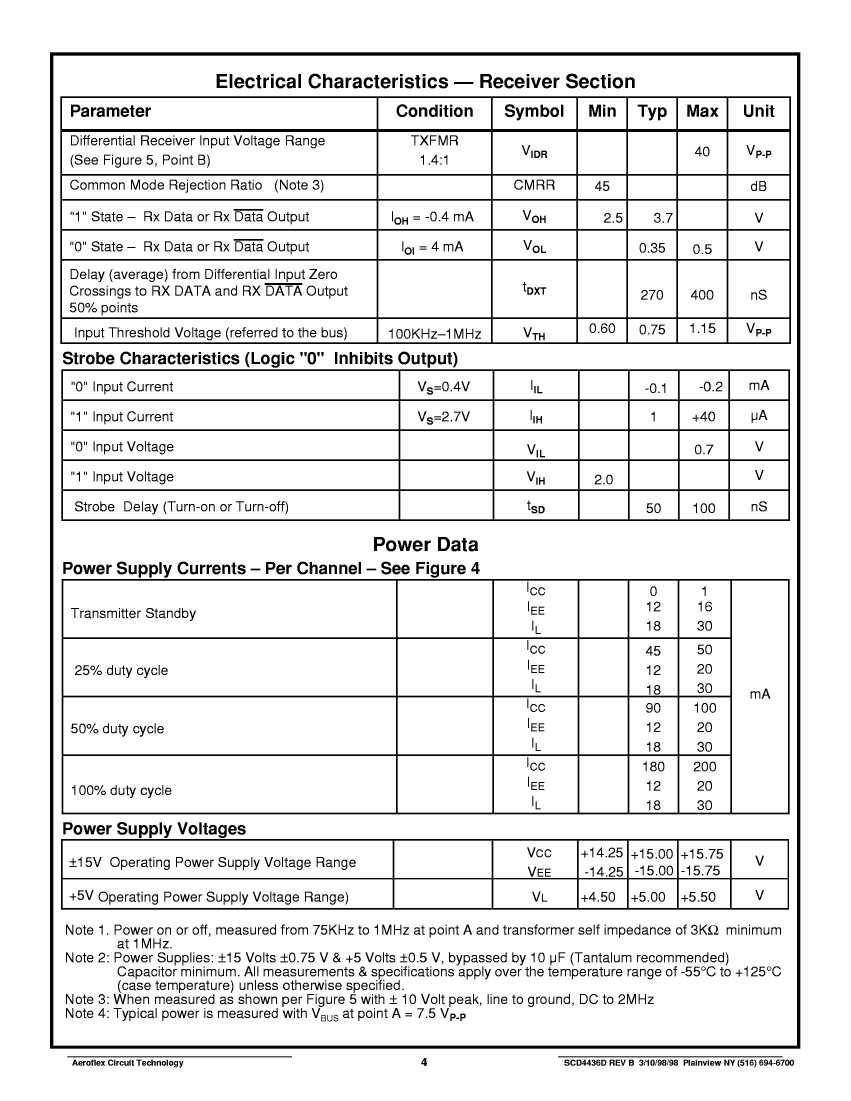

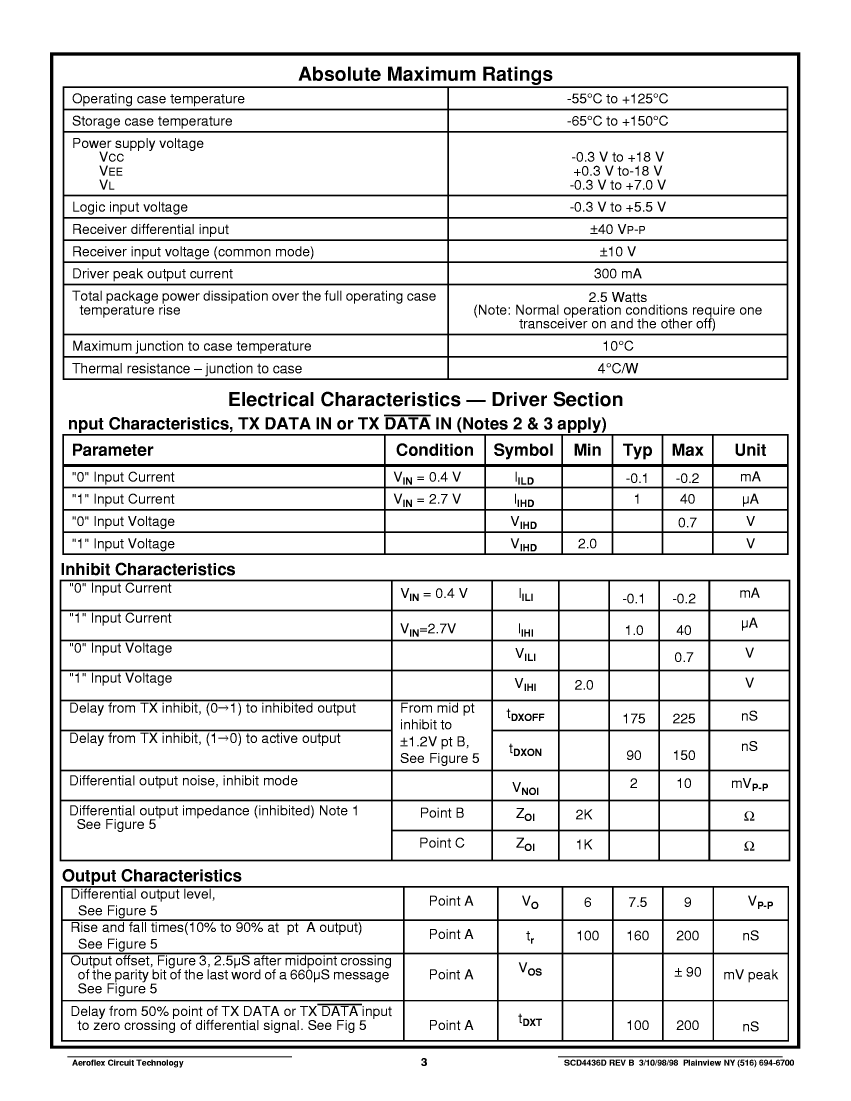

Parameter Name	Attribute value
Maker	Cobham Semiconductor Solutions
Parts packaging code	DIP
package instruction	DIP,
Contacts	28
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-P28
Negative supply voltage rating	-15 V
Number of functions	2
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.334 mm
Nominal supply voltage	15 V
surface mount	NO
Telecom integrated circuit types	MIL-STD-1553 DATA BUS TRANSCEIVER
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
Base Number Matches	1

	5962-8944708HUX	ST-REL2-KG220DC
Description	MIL-STD-1553 Data Bus Transceiver, PLUG IN-28	Relay connector, equipped with miniature switching relay, contacts (AgPd60): small loads, 1 N/O contact, input voltage 220 V DC, with light indicator, can be plugged on basic termination blocks
