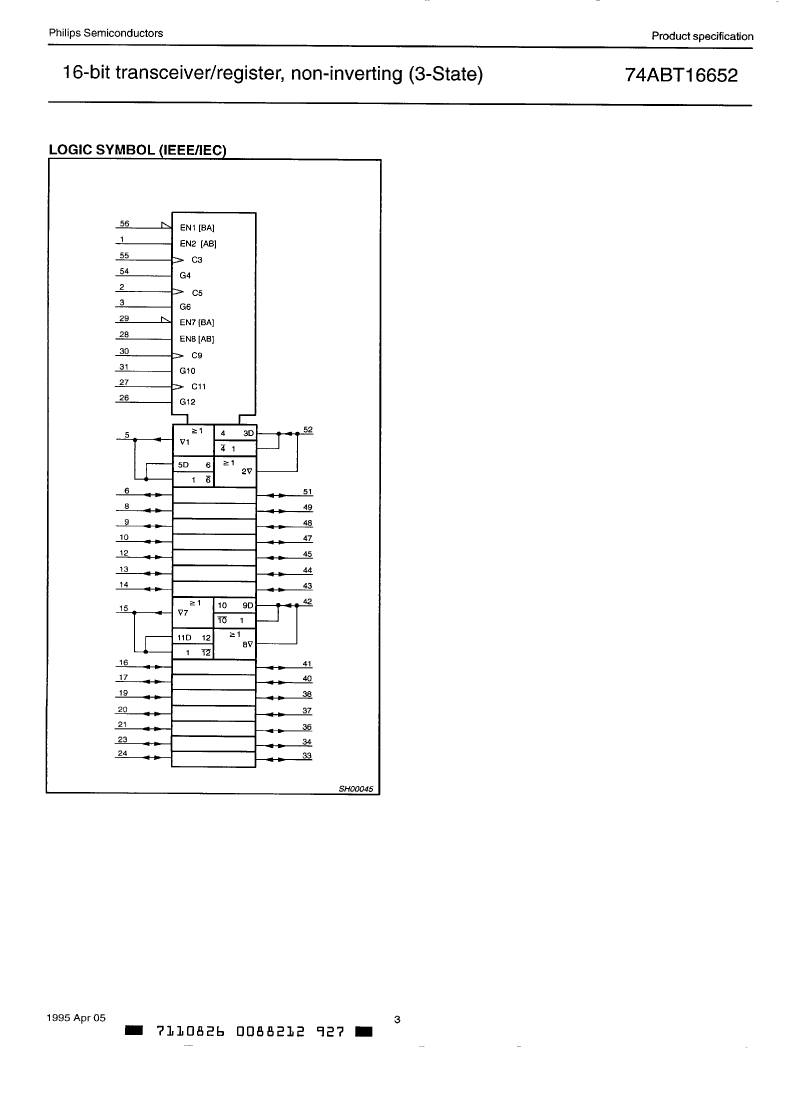

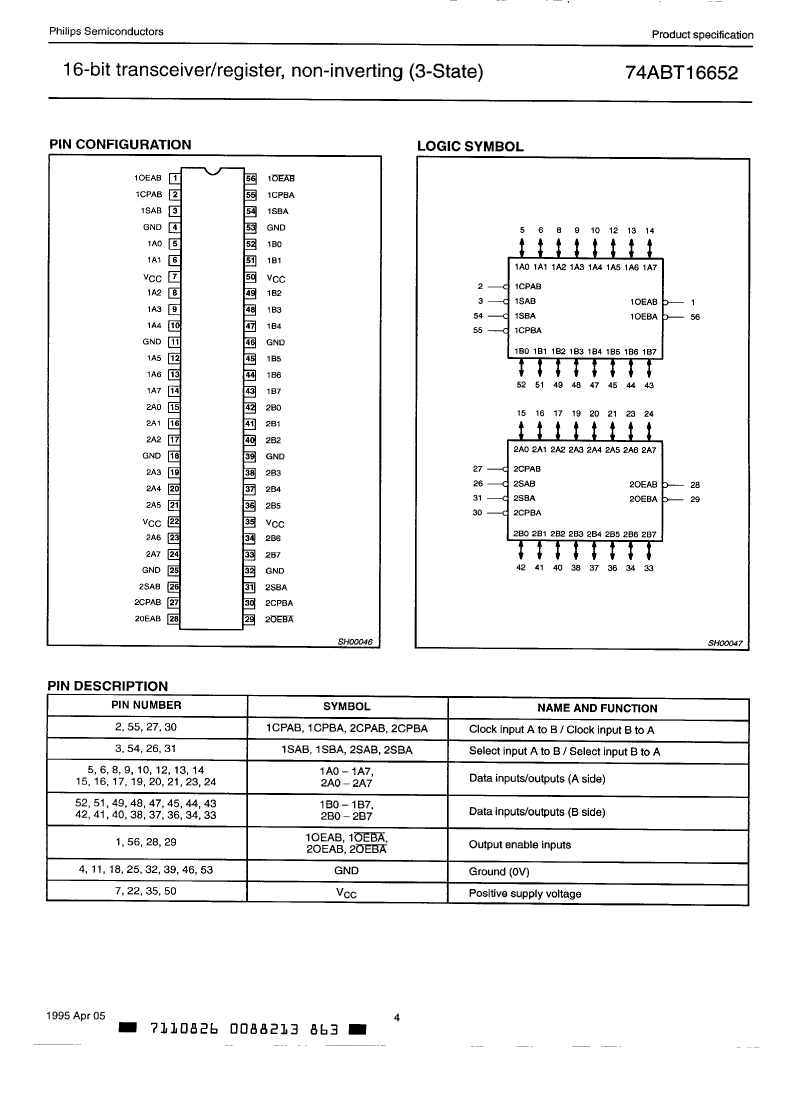

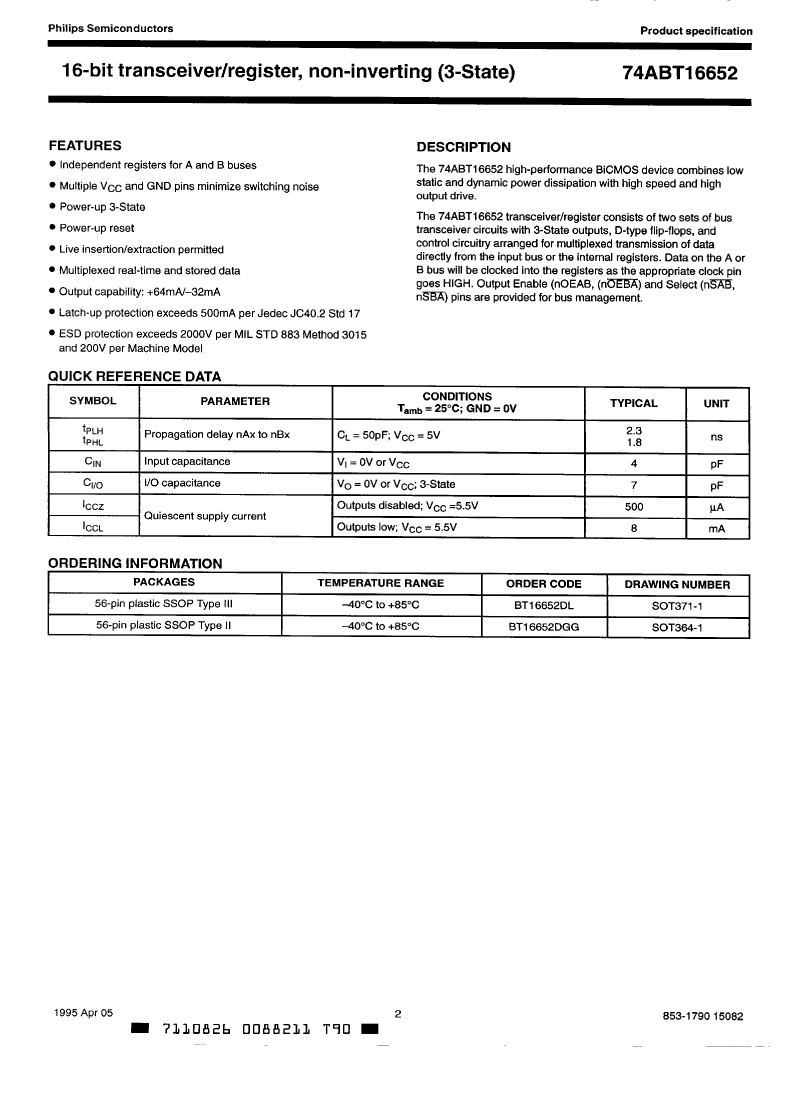

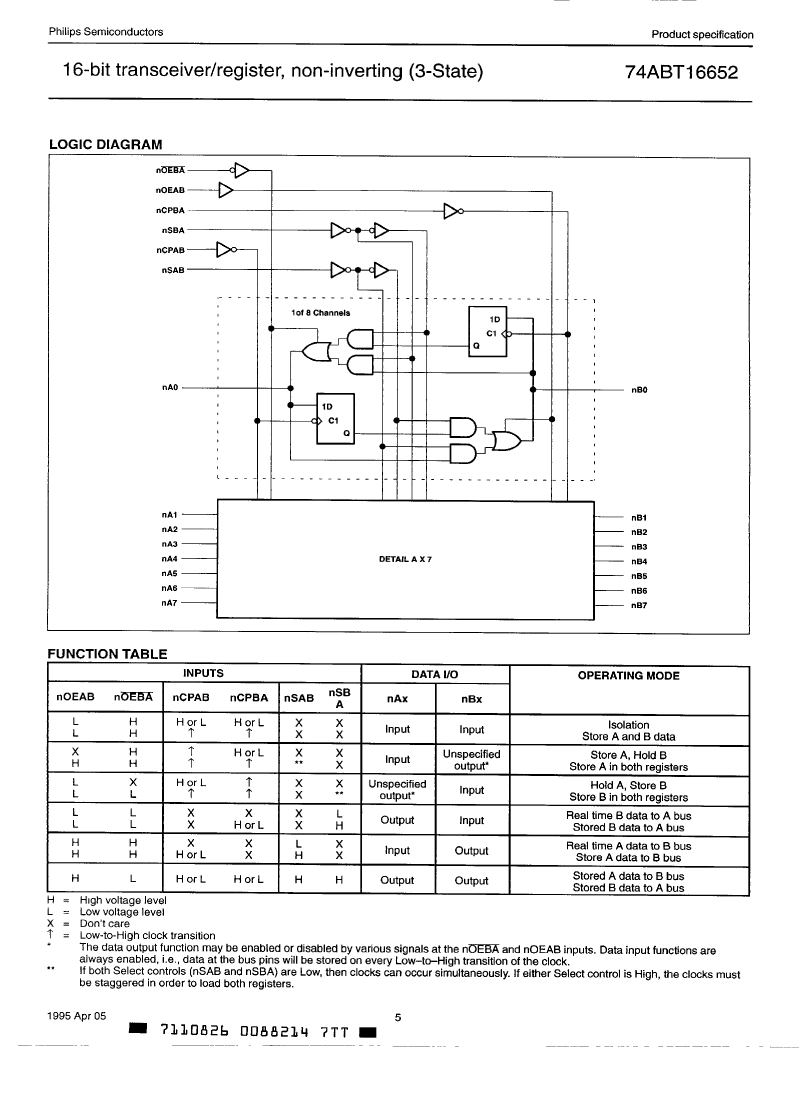

74ABT16652DL Overview

Registered Bus Transceiver, 2-Func, 8-Bit, True Output, PDSO56,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	SSOP, SSOP56,.4
Reach Compliance Code	unknown
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	R-PDSO-G56
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
MaximumI(ol)	0.064 A
Number of digits	8
Number of functions	2
Number of terminals	56
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP56,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
power supply	5 V
Prop。Delay @ Nom-Sup	4.6 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
Base Number Matches	1
