73725-1130BLF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 73725-1130BLF

73725-1130BLF: DescriptionTelecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Surface Mount Terminal, Locking, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size244KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

73725-1130BLF Overview

Telecom and Datacom Connector, 4 Contact(s), Female, Right Angle, Surface Mount Terminal, Locking, Receptacle, LEAD FREE

73725-1130BLF Parametric

Parameter Name	Attribute value
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
Other features	TUBE PACKAGING
body width	0.584 inch
subject depth	0.776 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN (100) OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	FLASH inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	COPPER ALLOY
Terminal length	0.09 inch
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	4
UL Flammability Code	94V-0
Base Number Matches	1

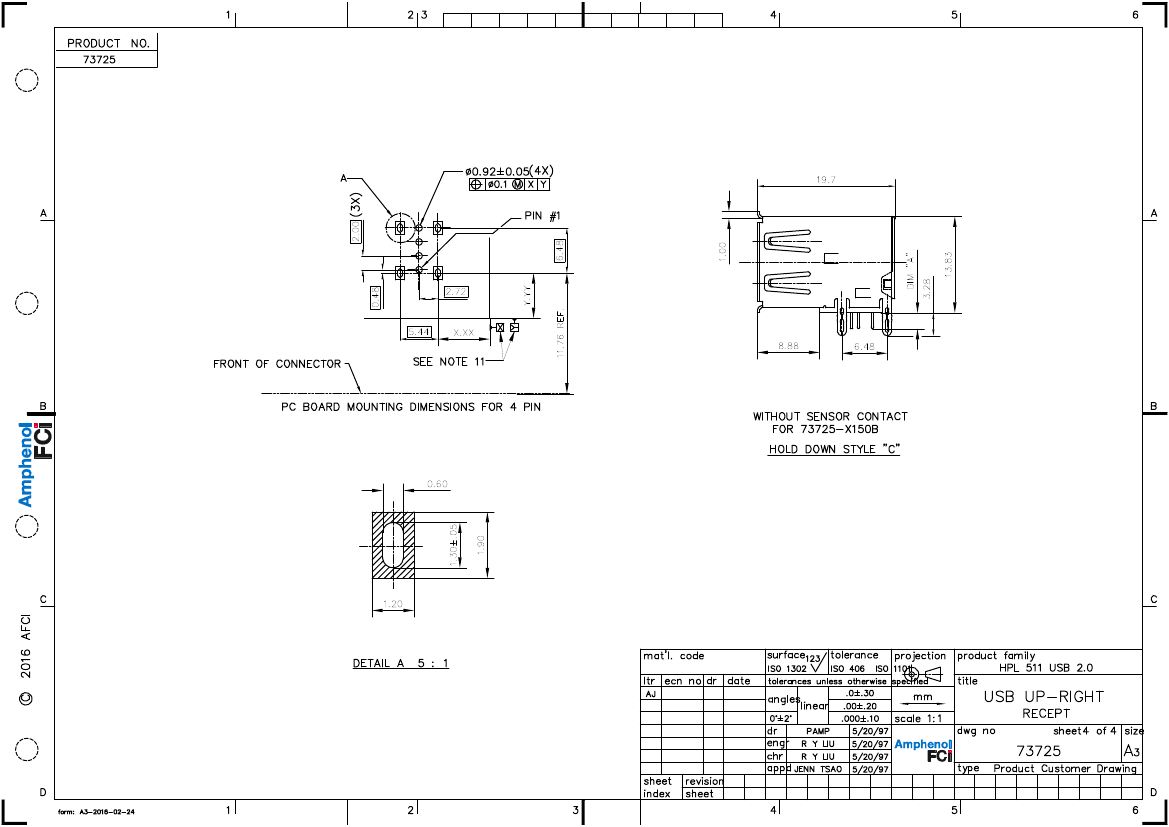

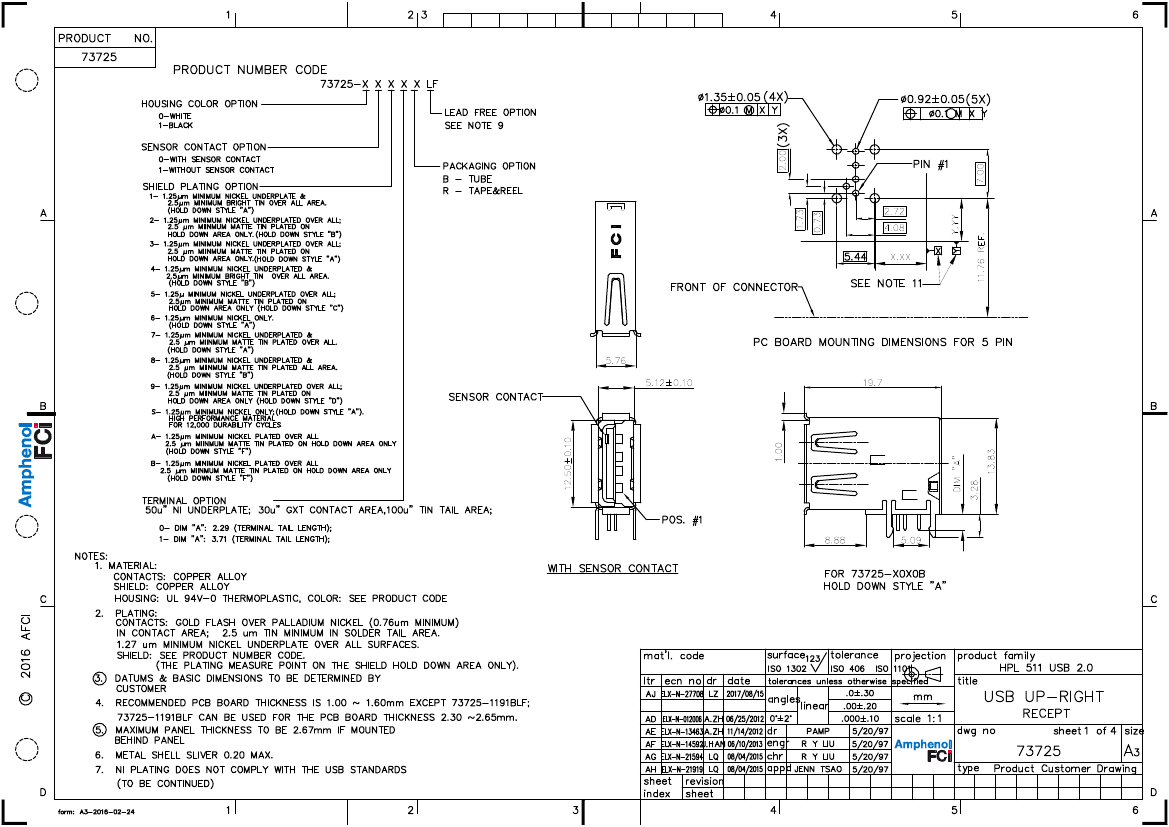

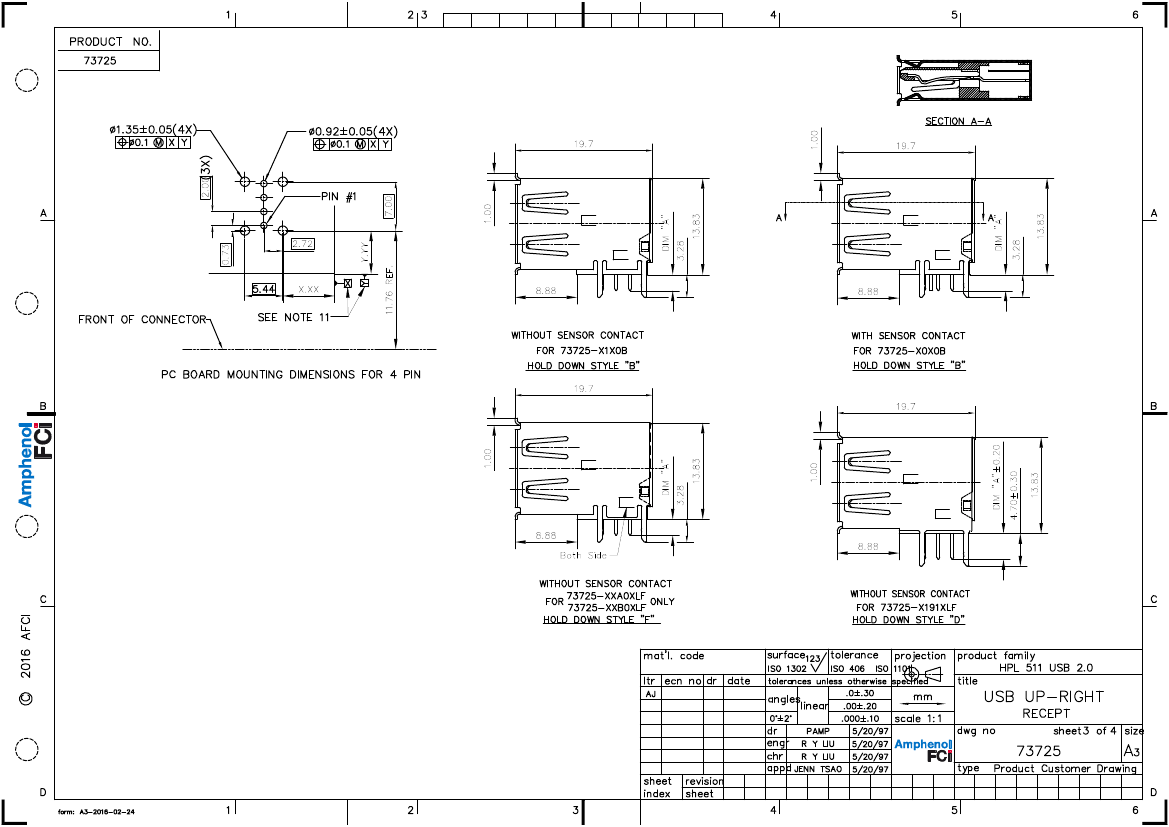

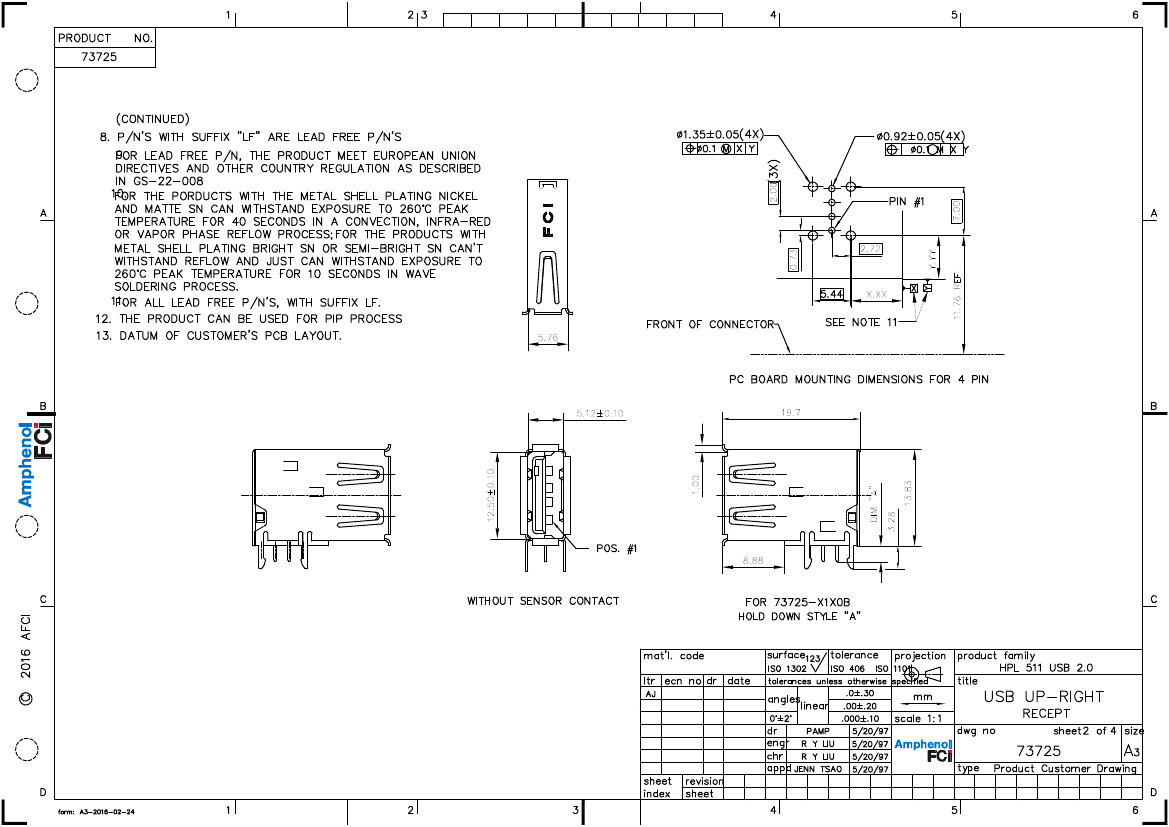

Preview

Download Datasheet

View All

PDS: Rev :AJ

STATUS:Released

Printed: Sep 30, 2017
