5962-8670405PX

Description
Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, CDIP8,
CategoryPower/power management    The power supply circuit
File Size224KB,6 Pages
ManufacturerUnitrode Corporation
Download Datasheet Parametric View All

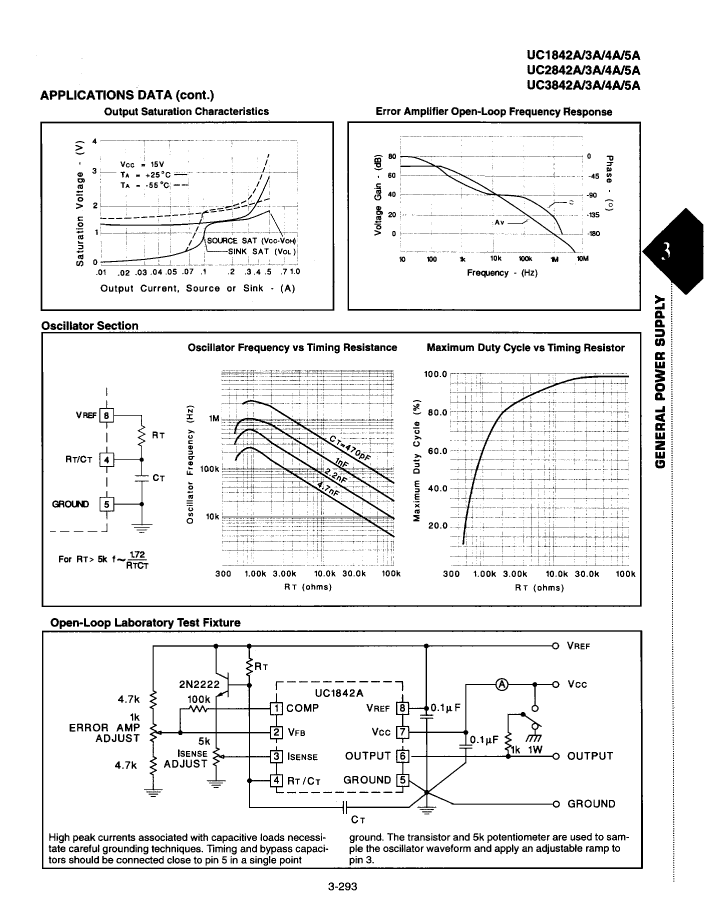

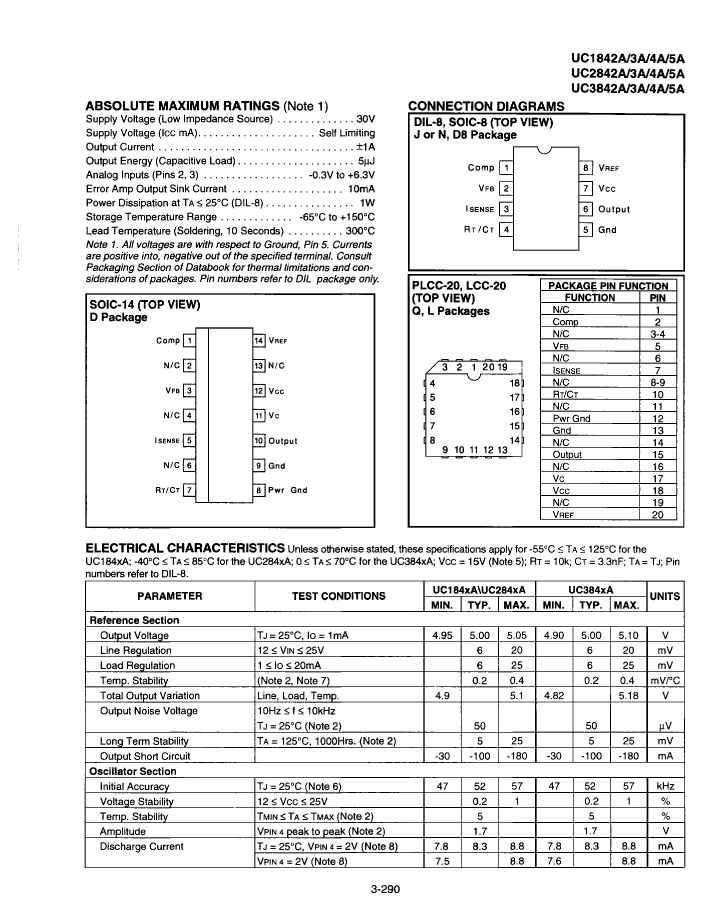

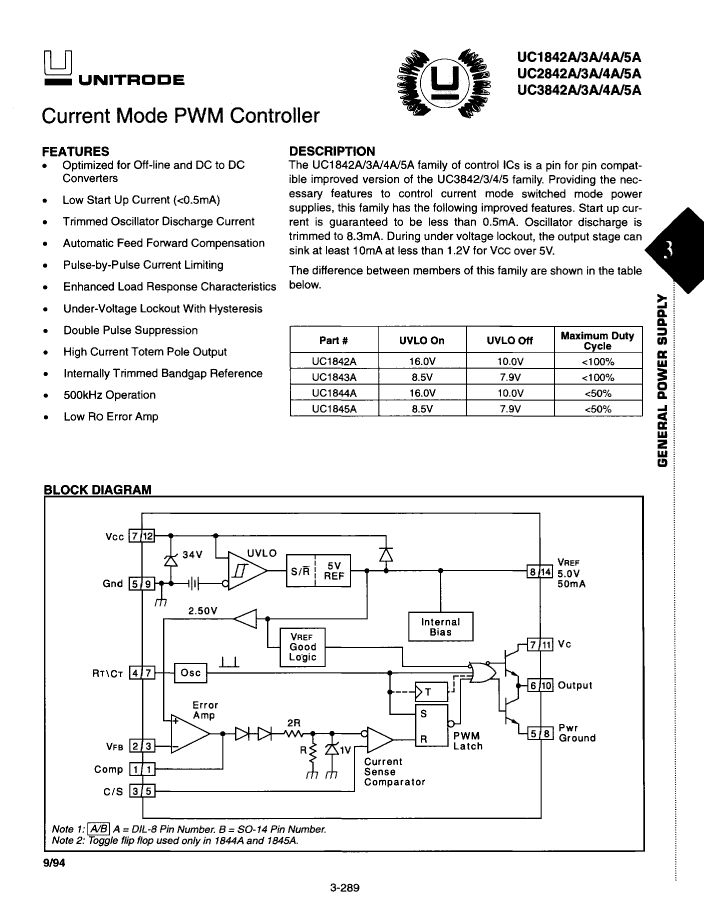

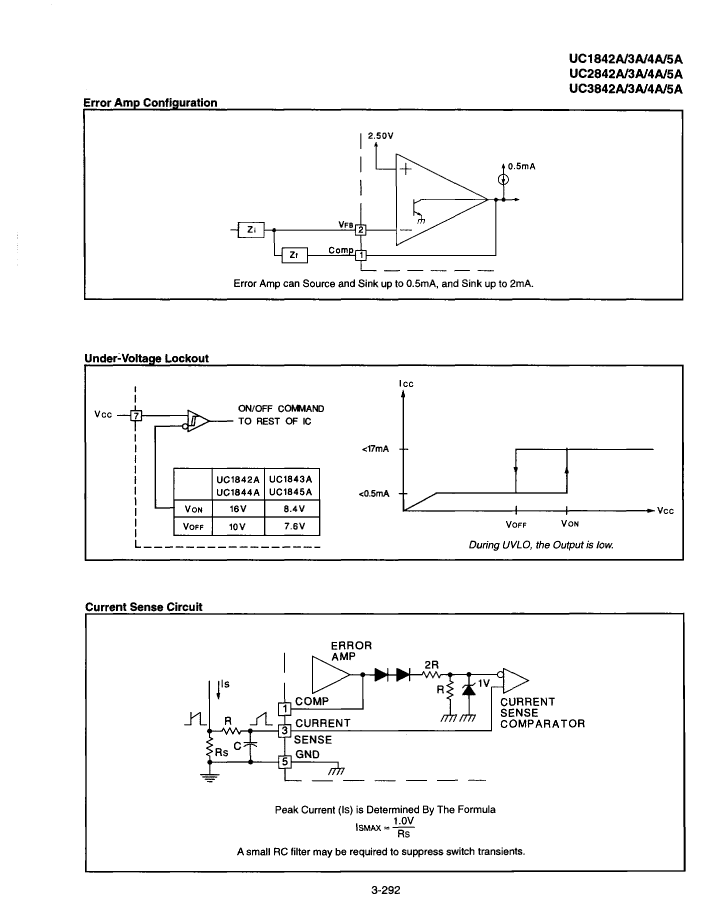

5962-8670405PX Overview

Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, CDIP8,

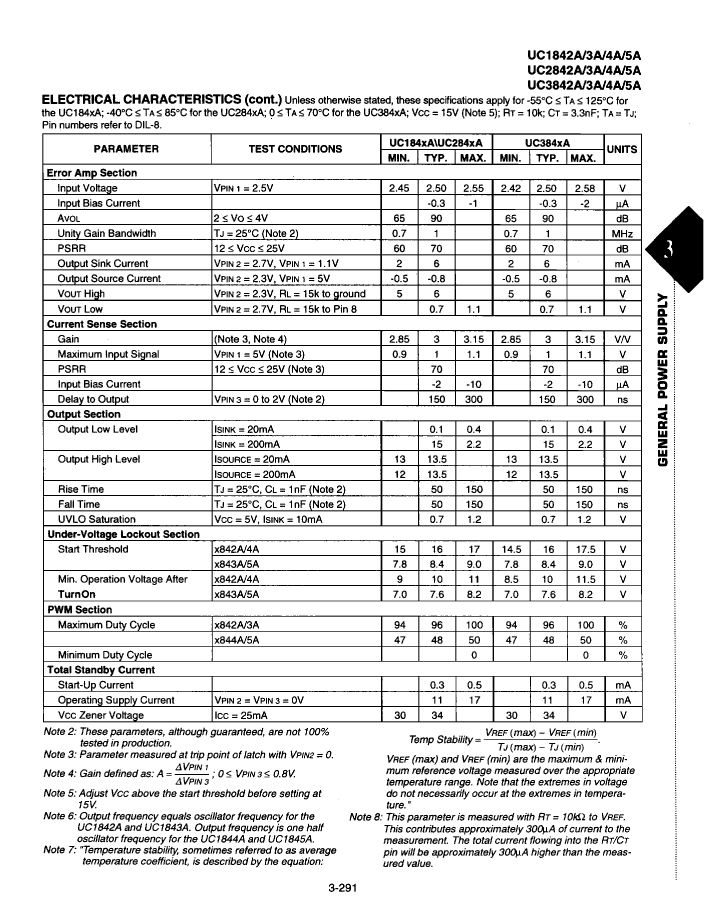

5962-8670405PX Parametric

Parameter NameAttribute value
MakerUnitrode Corporation
package instruction,
Reach Compliance Codeunknown
Analog Integrated Circuits - Other TypesSWITCHING CONTROLLER
control modeCURRENT-MODE
Control TechnologyPULSE WIDTH MODULATION
Maximum input voltage25 V
Minimum input voltage12 V
Nominal input voltage15 V
JESD-30 codeR-CDIP-T8
Number of functions1
Number of terminals8
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Maximum output current1 A
Package body materialCERAMIC, METAL-SEALED COFIRED
Package shapeRECTANGULAR
Package formIN-LINE
Certification statusNot Qualified
surface mountNO
Switch configurationSINGLE
Maximum switching frequency500 kHz
technologyBIPOLAR
Temperature levelMILITARY
Terminal formTHROUGH-HOLE
Terminal locationDUAL
Base Number Matches1
