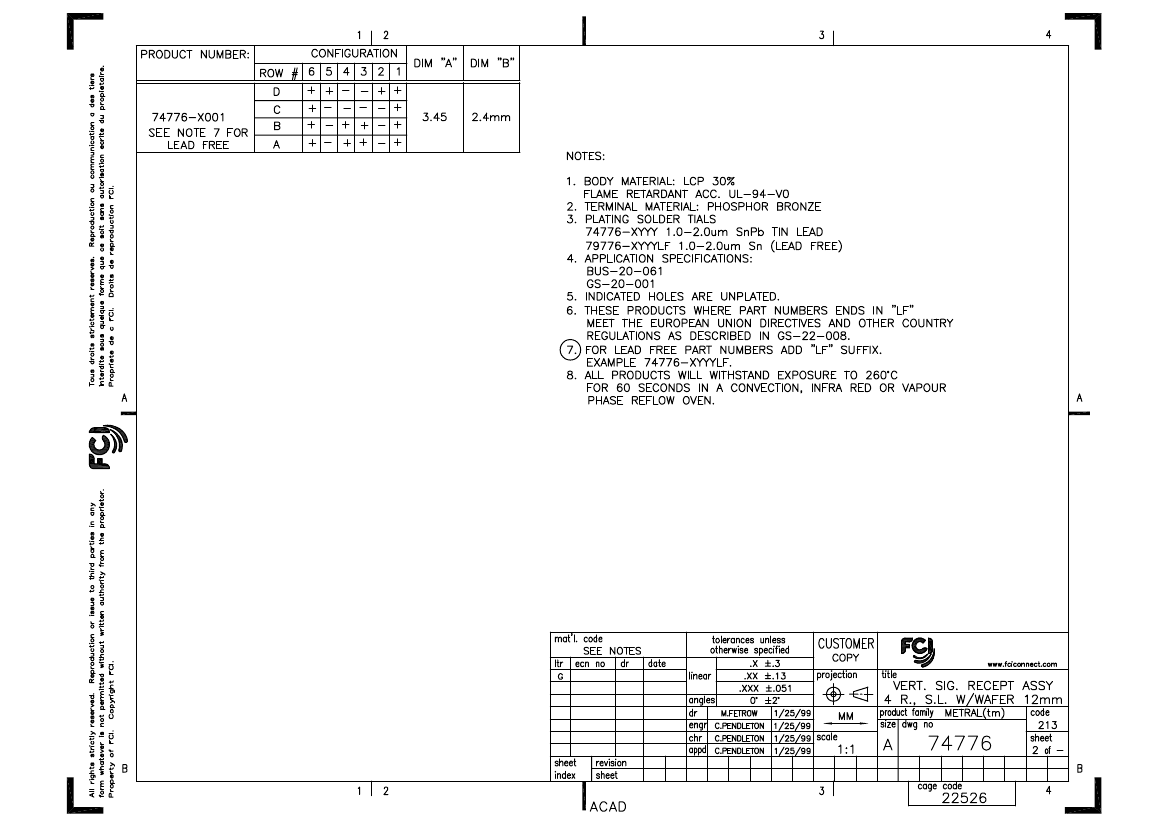

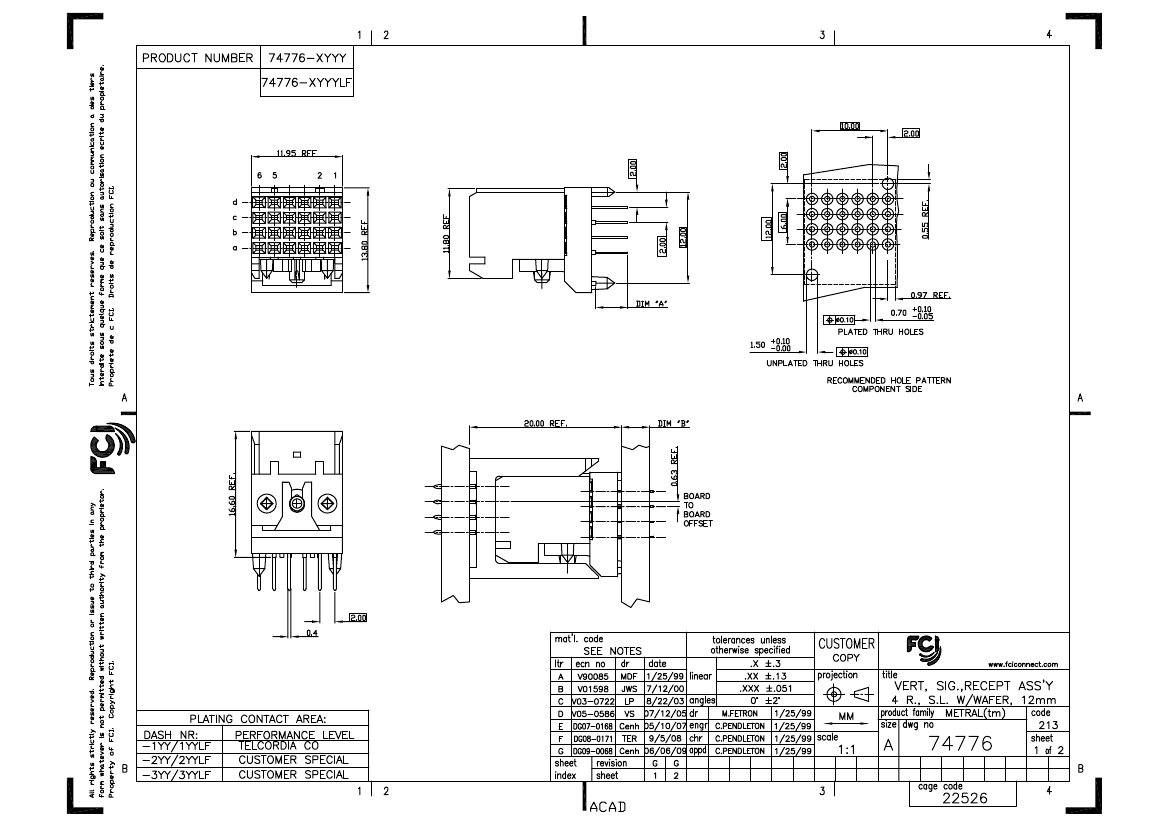

Board Connector, 14 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle, LEAD FREE
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | Amphenol |
| package instruction | LEAD FREE |
| Reach Compliance Code | compliant |
| Board mount options | PEG |
| body width | 0.465 inch |
| subject depth | 0.654 inch |
| body length | 0.47 inch |
| Body/casing type | RECEPTACLE |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact completed and terminated | TIN |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Manufacturer's serial number | 74776 |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 4 |
| Number of rows loaded | 4 |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm |
| polarization key | POLARIZED HOUSING |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.136 inch |
| Terminal pitch | 2 mm |
| Termination type | SOLDER |
| Total number of contacts | 14 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 74776-2001LF | 74776-1001LF | 74776-1001 | 74776-2001 | 74776-3001LF | 74776-3001 | |
|---|---|---|---|---|---|---|
| Description | Board Connector, 14 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle, LEAD FREE | Board Connector, 14 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle, LEAD FREE | Board Connector, 14 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle | Board Connector, 14 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle | Board Connector, 14 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle, LEAD FREE | Board Connector, 14 Contact(s), 4 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle |
| Maker | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol | Amphenol |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant |
| Board mount options | PEG | PEG | PEG | PEG | PEG | PEG |
| body width | 0.465 inch | 0.465 inch | 0.465 inch | 0.465 inch | 0.465 inch | 0.465 inch |
| subject depth | 0.654 inch | 0.654 inch | 0.654 inch | 0.654 inch | 0.654 inch | 0.654 inch |
| body length | 0.47 inch | 0.47 inch | 0.47 inch | 0.47 inch | 0.47 inch | 0.47 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED | NOT SPECIFIED | GOLD (31) OVER NICKEL | GOLD (79) OVER NICKEL | NOT SPECIFIED | NOT SPECIFIED |
| Contact completed and terminated | TIN | TIN | TIN LEAD (79) | TIN LEAD (79) | TIN | TIN LEAD (79) |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE | FEMALE |
| Contact material | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT |
| DIN compliance | NO | NO | NO | NO | NO | NO |
| Filter function | NO | NO | NO | NO | NO | NO |
| IEC compliance | NO | NO | NO | NO | NO | NO |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) |
| JESD-609 code | e3 | e3 | e0 | e0 | e3 | e0 |
| MIL compliance | NO | NO | NO | NO | NO | NO |
| Manufacturer's serial number | 74776 | 74776 | 74776 | 74776 | 74776 | 74776 |
| Plug contact pitch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Match contact row spacing | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch | 0.079 inch |
| Mixed contacts | NO | NO | NO | NO | NO | NO |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING | LOCKING |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD | BOARD | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE | ONE | ONE | ONE |
| PCB row number | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of rows loaded | 4 | 4 | 4 | 4 | 4 | 4 |
| Options | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm | 2.0066 mm |
| polarization key | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING | POLARIZED HOUSING |
| Guideline | UL | UL | UL | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal length | 0.136 inch | 0.136 inch | 0.136 inch | 0.136 inch | 0.136 inch | 0.136 inch |
| Terminal pitch | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm | 2 mm |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 14 | 14 | 14 | 14 | 14 | 14 |
| UL Flammability Code | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 | 94V-0 |
