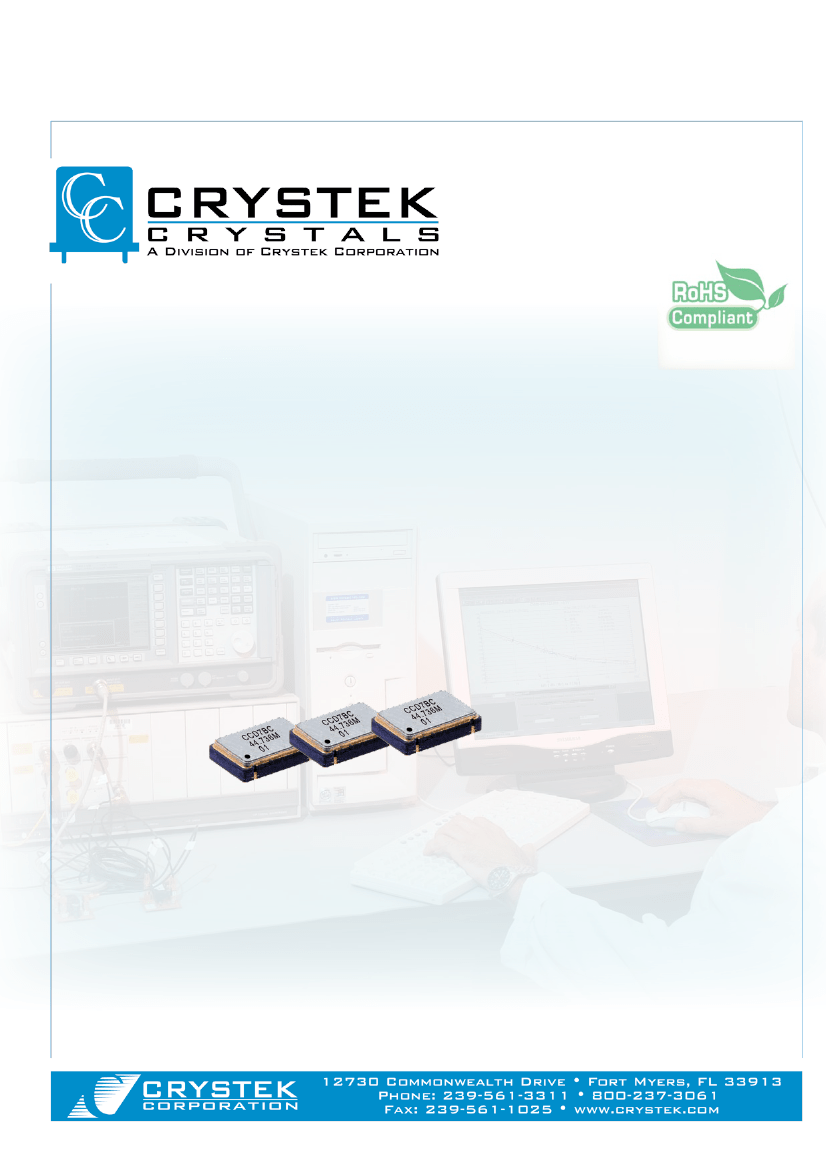

C33xx 5x7mm SMD
HCMOS Clock Oscillator
3.3 Volts
Model C33xx is a 1.544MHz to 156.250MHz HCMOS Clock
Oscillator operating at 3.3Volts. The oscillator utilizes
Fundamental or High Q Third Overtone crystal design
providing very low Jitter and Phase Noise. No Sub-Harmonics
are present in the Output Signal.
5x7mm SMD
Applications:
Digital Video
SONET/SDH/DWDM
Storage Area Networks
Broadband Access
Ethernet, Gigabit Ethernet
Rev.: G
Date: 03-06-08
C33xx 5x7mm SMD
HCMOS Clock Oscillator
3.3 Volts
Frequency Range:
Frequency Stability Options(ppm):
Temperature Range: (standard)
(Option M)
(Option E)
Storage:
Input Voltage:
Input Current: (1.544~34.00MHz)
(35.00~50.00MHz)
(51.00~69.00MHz)
(70.00~156.25MHz)
Standby Current:
Output:
Symmetry:
Rise/Fall Time:
(1.54~10.00MHz)
(10.10~30.00MHz)
(30.10~50.00MHz)
(50.10~80.00MHz)
(80.10~156.25MHz)
Logic:
Disable Time
Start-up Time
12KHz~80MHz
1.544 to 156.250Mhz
±20, ±25, ±50, ±100
0°C to +70°C
-20°C to +70°C
-40°C to +85°C
-55°C to 120°C
3.3V ± 0.3V
18mA Max
25mA Max
30mA Max
45mA Max
3uA Typ., 10uA Max
HCMOS
45/55% Max @ 50%Vdd
5nsec Max @ 20% to 80% Vdd
4nsec Max @ 20% to 80% Vdd
3nsec Max @ 20% to 80% Vdd
2.5nsec Max @ 20% to 80% Vdd
2nsec Max @ 20% to 80% Vdd
“0”= 10% Vdd Max
“1”= 90% Vdd Min.
200nSec Max
1mSec Typ., 2mSec Max
30pF Max, >125MHz 15pF Max
0.5psec Typ., 1psec Max
None
Load:
Jitter RMS:
Sub-harmonics:
Aging:
<3ppm 1st/yr, <1ppm every year thereafter
Part Number
C3390
C3392
C3391
C3398
Stability
±100ppm
±50ppm
±25ppm
±20ppm
Example: C3392-44.736MHz
Intermediate Temp: CM3392-44.736MHz
Extended Temp: CE3392-44.736MHz
C = 0°C to 70°C
CM = -20°C to 70°C
CE = -40°C to 85°C
PART NUMBER GUIDE
Rev.: G
Date: 03-06-08
C33xx 5x7mm SMD
HCMOS Clock Oscillator
3.3 Volts
mA
M
pin 4
Vdd
OUT
OUT
pin 3
O/P Load
incl Probe Cl
PWR
Supply
VM
Bypass
Cap.
pin 1
OSC.
GND
pin 2
High Impedance
GND or "LOW"
Oscillation
OPEN or "HIGH"
Thermal Shock:
MIL-STD-883, Method 1011, Condition A
Moisture Resistance:
MIL-STD-883, Method 1004
Environmental:
TEMPERATURE
Shock:
Solderability:
Vibration:
Solvent Resistance:
Resistance to Soldering Heat:
Mechanical:
MIL-STD-883, Method 2002, Condition B
MIL-STD-883, Method 2003
MIL-STD-883, Method 2007, Condition A
MIL-STD-202, Method 215
MIL-STD-202, Method 210, Condition I or J
RECOMMENDED REFLOW SOLDERING PROFILE
260°C
217°C
200°C
150°C
Ramp-Up
3°C/Sec Max.
Critical
Temperature Zone
Ramp-Down
6°C/Sec.
Preheat
180 Secs. Max.
8 Minutes Max.
90 Secs. Max.
260°C for
10 Secs. Max.
NOTE: Reflow Profile with 240°C peak also acceptable.
0.283
(7.20)
P/N XXX
Frequency
XX
0.204
(5.02)
0.075
(1.80)
Tri-State Function
Open or N/C
Pin #1
State
Output
State
Active
Active
High Z
Denotes pad 1
XXX=Date Code XX=Lot Code
0.055 Typ.
(1.40 Typ.)
#1
#4
#2
#3
0.045 ±0.008
(1.14 ±0.20)
“1” level 0.7*Vcc Min
SUGGESTED PAD LAYOUT
0.071 SQ
(1.80)
0.165
(4.19)
0.200
(5.08)
0.01uF Bypass Capacitor Recommended
“0” level 0.3*Vcc Max
Pad
1
2
3
4
Enable/Disable
GND
Out
Vcc
Connection
0.200 ±0.005
(5.08 ±0.13)
Rev.: G
Date: 03-06-08
