5962-8992002VA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> 5962-8992002VA

5962-8992002VA: DescriptionSwitching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, CDIP18, CERAMIC, DIP-18; CategoryPower/power management The power supply circuit; File Size642KB，12 Pages; ManufacturerUnitrode Corporation

Download Datasheet Parametric Compare View All

5962-8992002VA Overview

Switching Controller, Current-mode, 1A, 500kHz Switching Freq-Max, BIPolar, CDIP18, CERAMIC, DIP-18

5962-8992002VA Parametric

Parameter Name	Attribute value
Maker	Unitrode Corporation
package instruction	,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	30 V
Minimum input voltage	8 V
Nominal input voltage	20 V
JESD-30 code	R-GDIP-T18
JESD-609 code	e0
Number of functions	1
Number of terminals	18
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	1 A
Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
Maximum supply current (Isup)	14 mA
surface mount	NO
Switch configuration	SINGLE
Maximum switching frequency	500 kHz
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

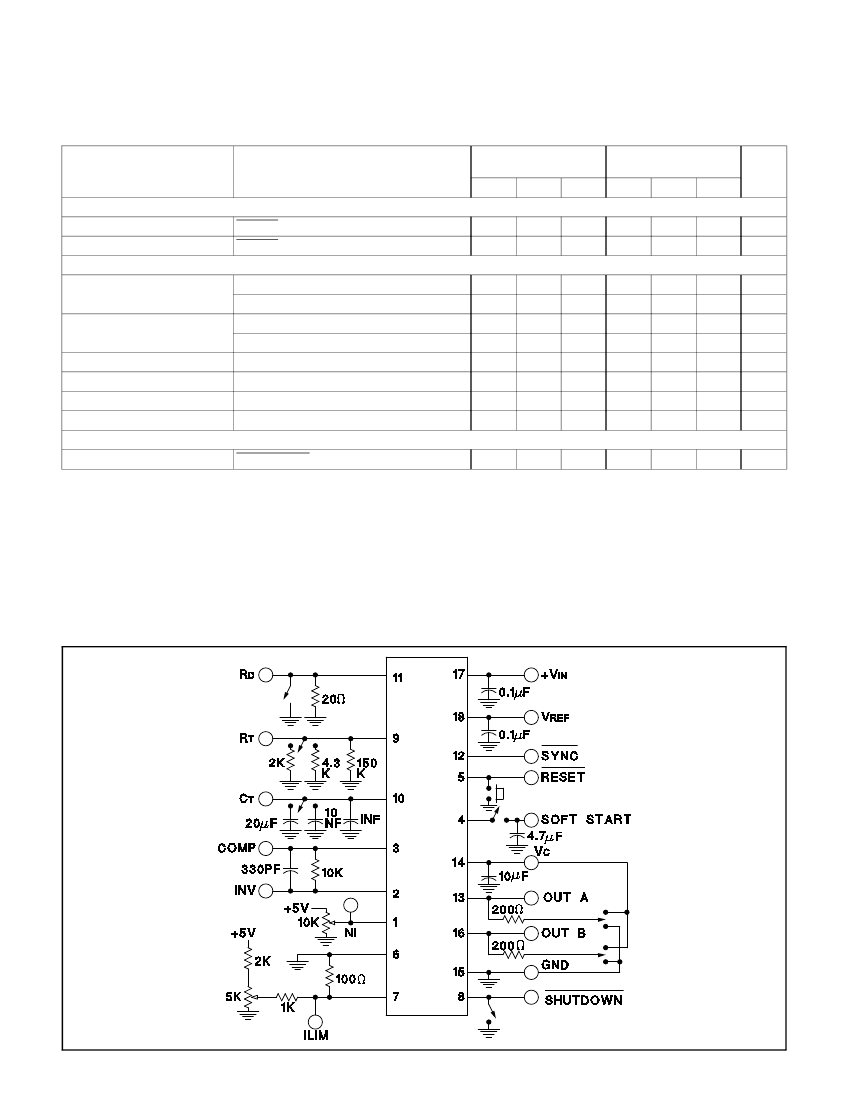

Preview

Download Datasheet

View All

UC1526A

UC2526A

UC3526A

Regulating Pulse Width Modulator

FEATURES

•

Reduced Supply Current

Oscillator Frequency to 600kHz

Precision Band-Gap Reference

7 to 35V Operation

Dual 200mA Source/Sink Outputs

Minimum Output Cross-Conduction

Double-Pulse Suppression Logic

Under-Voltage Lockout

Programmable Soft-Start

Thermal Shutdown

TTL/CMOS Compatible Logic Ports

5 Volt Operation (V

= V

REF

= 5.0V)

DESCRIPTION

The UC1526A Series are improved-performance pulse-width modu-

lator circuits intended for direct replacement of equivalent non- “A”

versions in all applications. Higher frequency operation has been

enhanced by several significant improvements including: a more ac-

curate oscillator with less minimum dead time, reduced circuit de-

lays (particularly in current limiting), and an improved output stage

with negligible cross-conduction current. Additional improvements

include the incorporation of a precision, band-gap reference gener-

ator, reduced overall supply current, and the addition of thermal

shutdown protection.

Along with these improvements, the UC1526A Series retains the

protective features of under-voltage lockout, soft-start, digital cur-

rent limiting, double pulse suppression logic, and adjustable

deadtime. For ease of interfacing, all digital control ports are TTL

compatible with active low logic.

Five volt (5V) operation is possible for “logic level” applications by

connecting V

IN,

and V

REF

to a precision 5V input supply. Consult

factory for additional information.

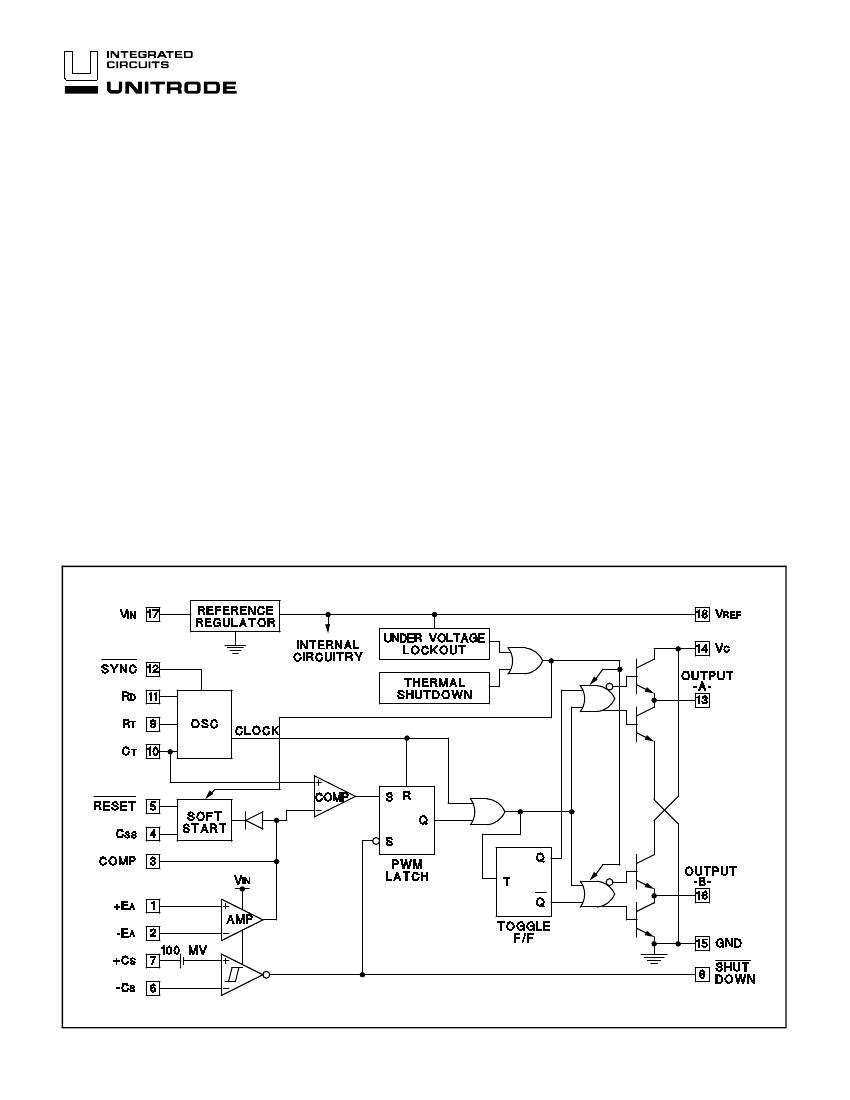

BLOCK DIAGRAM

6/93
