51939-966 datasheet, PDF - EEWORLD Datasheet

51939-966: DescriptionBoard Connector, 10 Contact(s), Male, Right Angle, Solder Terminal, Locking; CategoryThe connector The connector; File Size269KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

51939-966 Overview

Board Connector, 10 Contact(s), Male, Right Angle, Solder Terminal, Locking

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Board mount options	HOLE .086-.098
body width	0.574 inch
subject depth	0.93 inch
body length	1.475 inch
Connector type	BOARD CONNECTOR
Contact arrangement	S8P2
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	51939
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Termination type	SOLDER
Total number of contacts	10
Evacuation force-minimum value	.1668 N
Base Number Matches	1

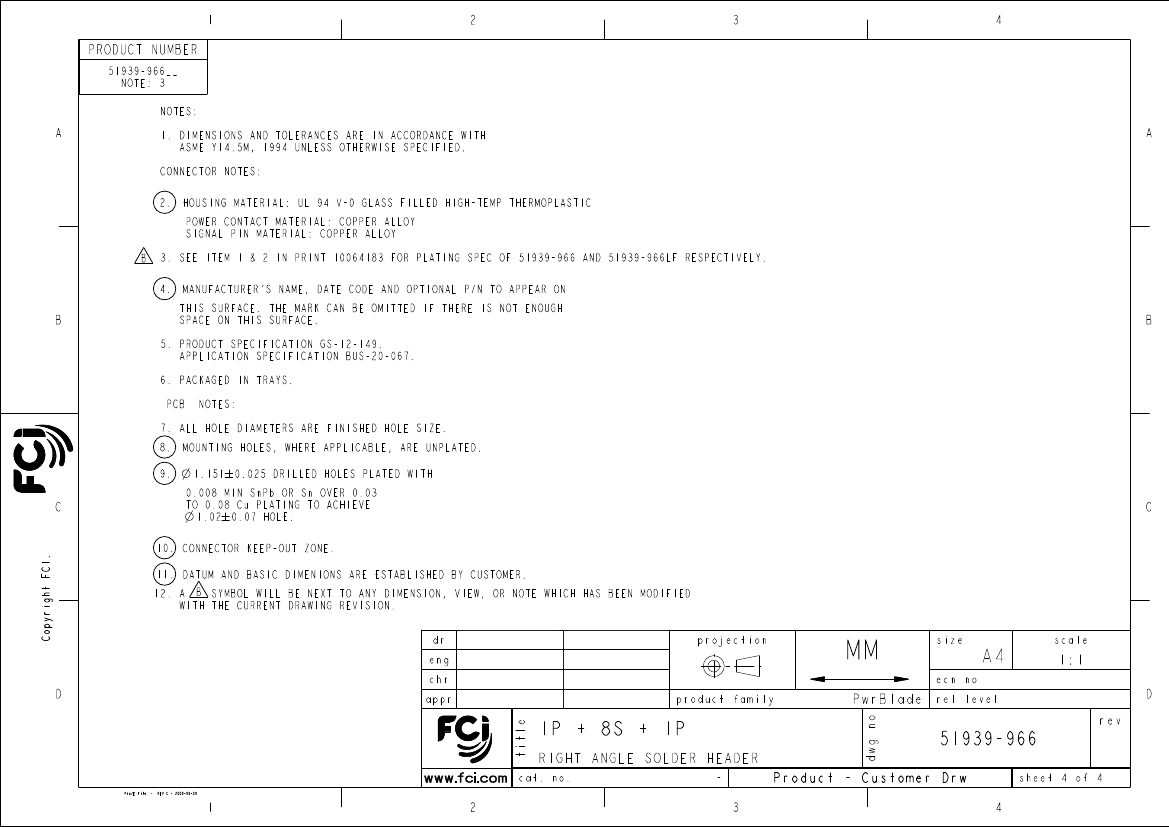

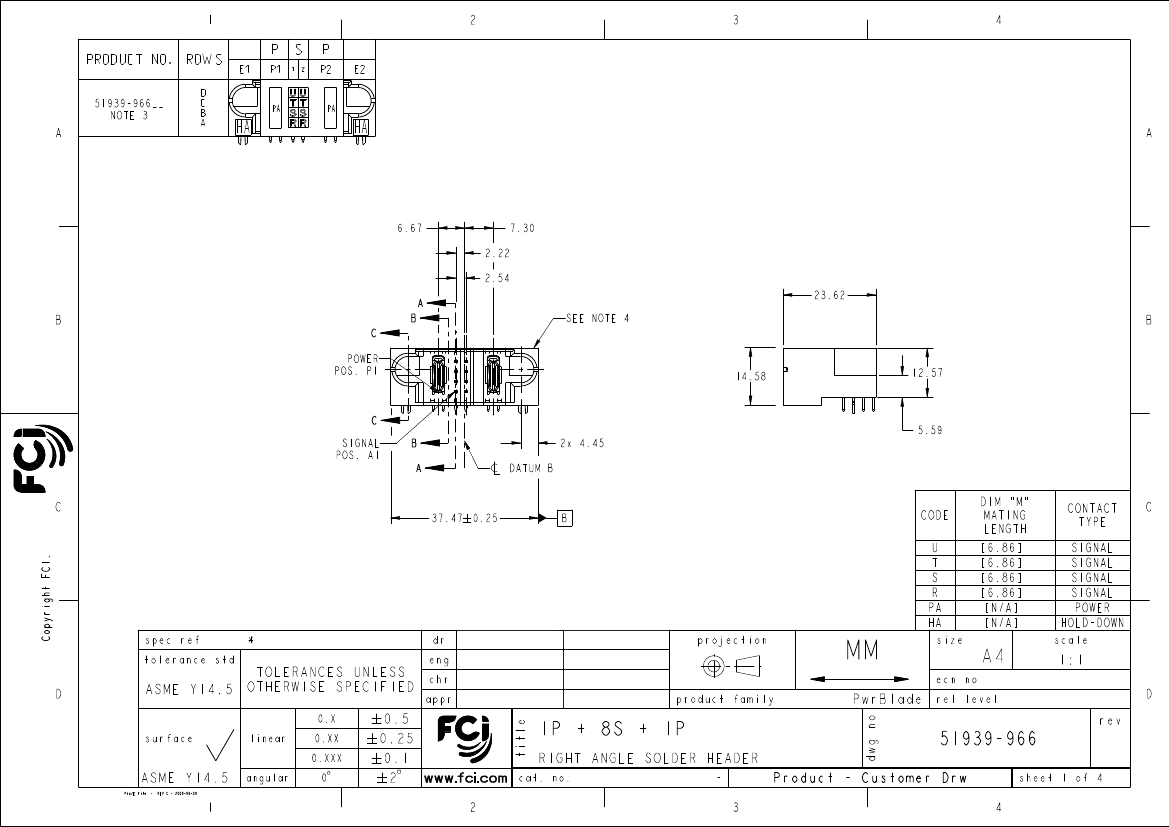

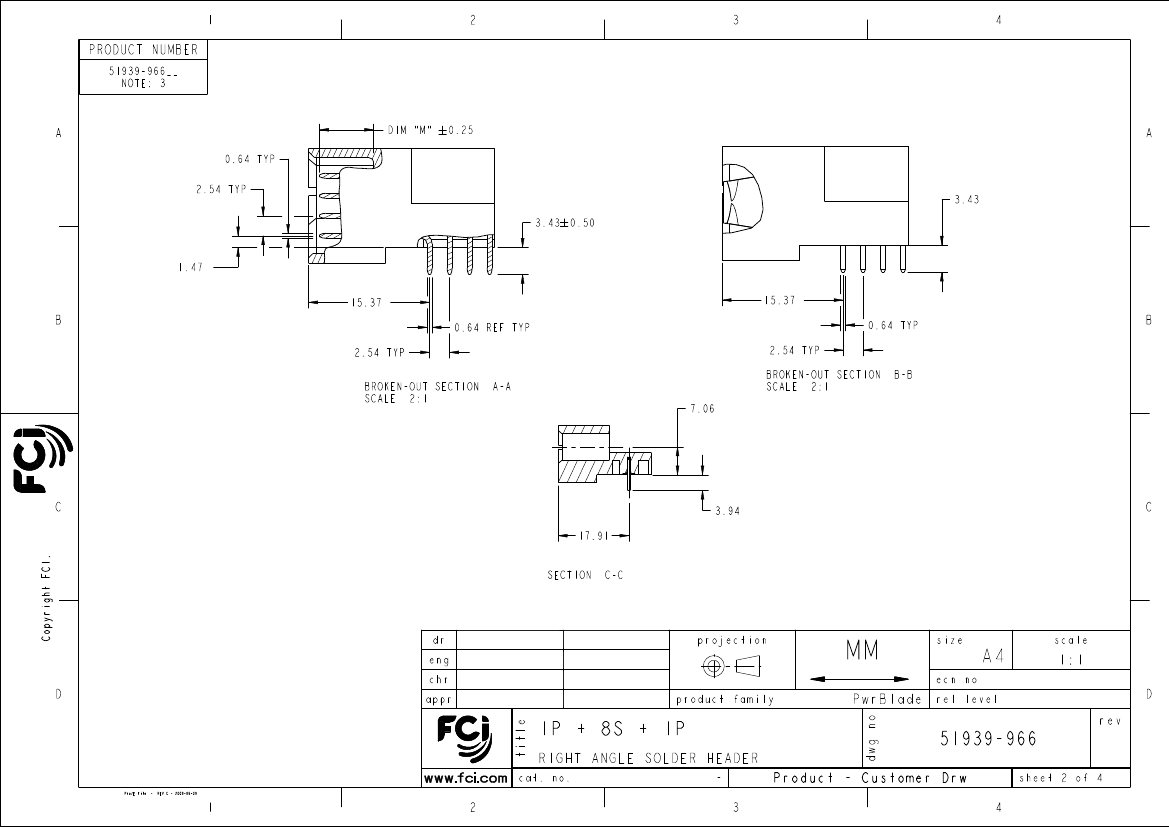

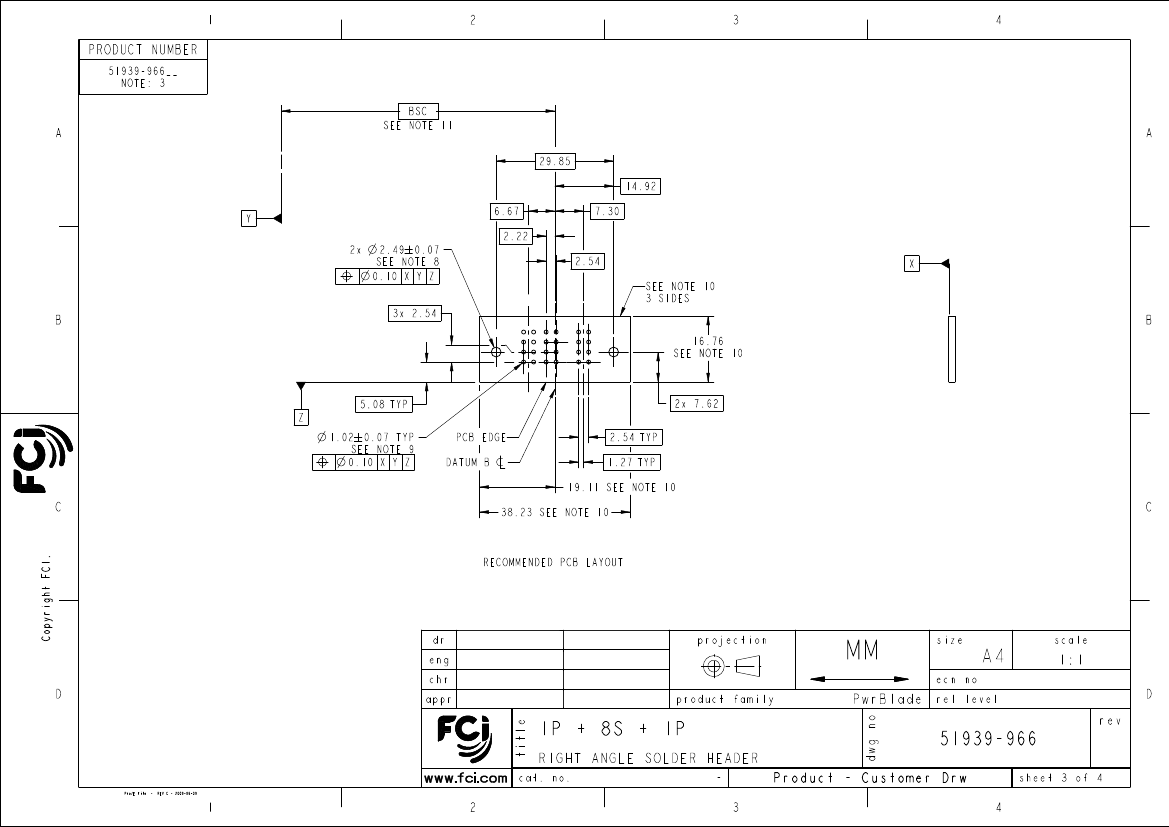

De-Ming Lu

Fancy Zhang

Pei-Ming Zheng

2015/04/14

2015/05/07

2015/05/08

ELX-DG-20839-1

Released

B

PDS: Rev :B

STATUS:Released

Printed: May 08, 2015

	51939-966	51939-966LF
Description	Board Connector, 10 Contact(s), Male, Right Angle, Solder Terminal, Locking	PwrBlade®, Power Connectors, 1P 8S 1P Right Angle Header, Solder To Board
Reach Compliance Code	compliant	compliant
Board mount options	HOLE .086-.098	HOLE .086-.098
body width	0.574 inch	0.574 inch
subject depth	0.93 inch	0.93 inch
body length	1.475 inch	1.475 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S8P2	S8P2
Contact completed and terminated	TIN/LEAD OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY
Contact resistance	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID
Dielectric withstand voltage	2500VDC V	2500VDC V
Durability	200 Cycles	200 Cycles
maximum insertion force	.973 N	.973 N
Insulation resistance	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED POLYETHYLENE
Mixed contacts	YES	YES
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Guideline	UL	UL
Terminal length	0.135 inch	0.135 inch
Termination type	SOLDER	SOLDER
Total number of contacts	10	10
Evacuation force-minimum value	.1668 N	.1668 N
