51952-110LF: DescriptionBoard Connector, 17 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, Guide Pin, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size224KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

51952-110LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51952-110LF	-	-	View	Buy Now

51952-110LF Overview

Board Connector, 17 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, Guide Pin, Receptacle, LEAD FREE

51952-110LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
Other features	TERMINAL PITCH FOR POWER CONTACTS: 7.62 MM
body width	0.574 inch
subject depth	0.5 inch
body length	3.55 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	YES
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	17
UL Flammability Code	94V-0
Evacuation force-minimum value	.1668 N
Base Number Matches	1

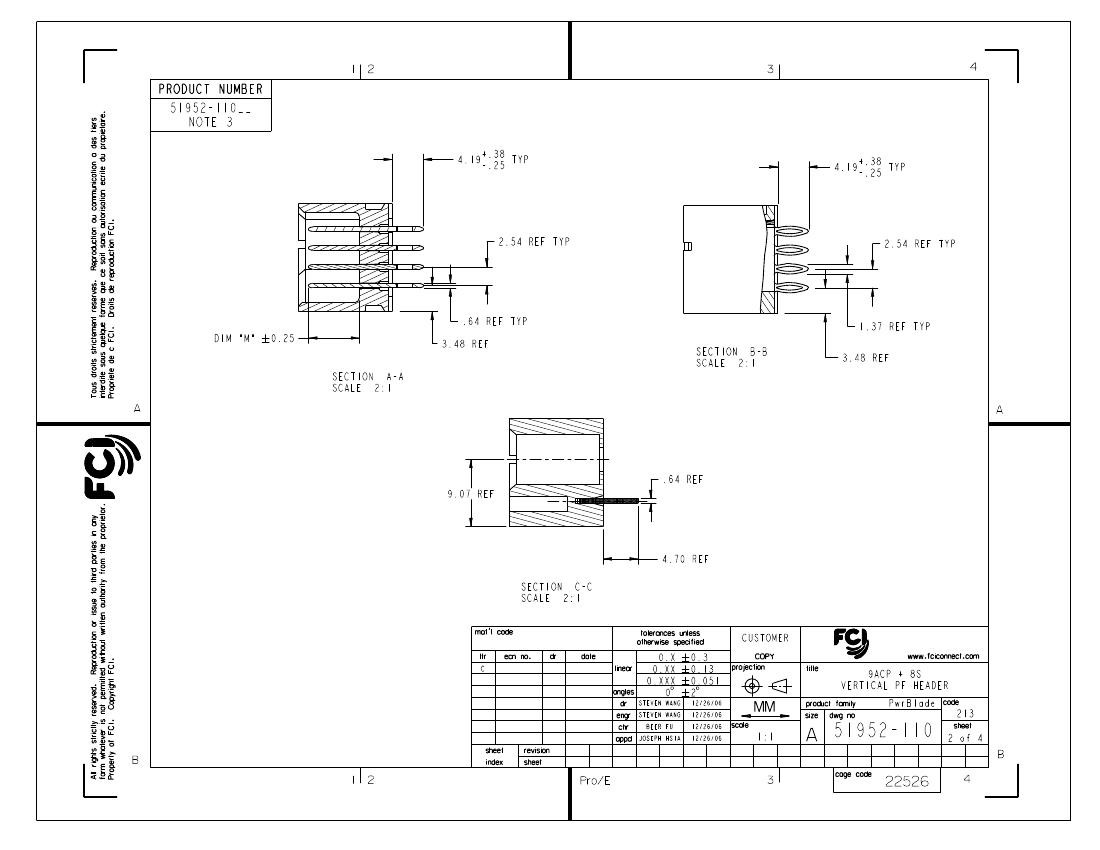

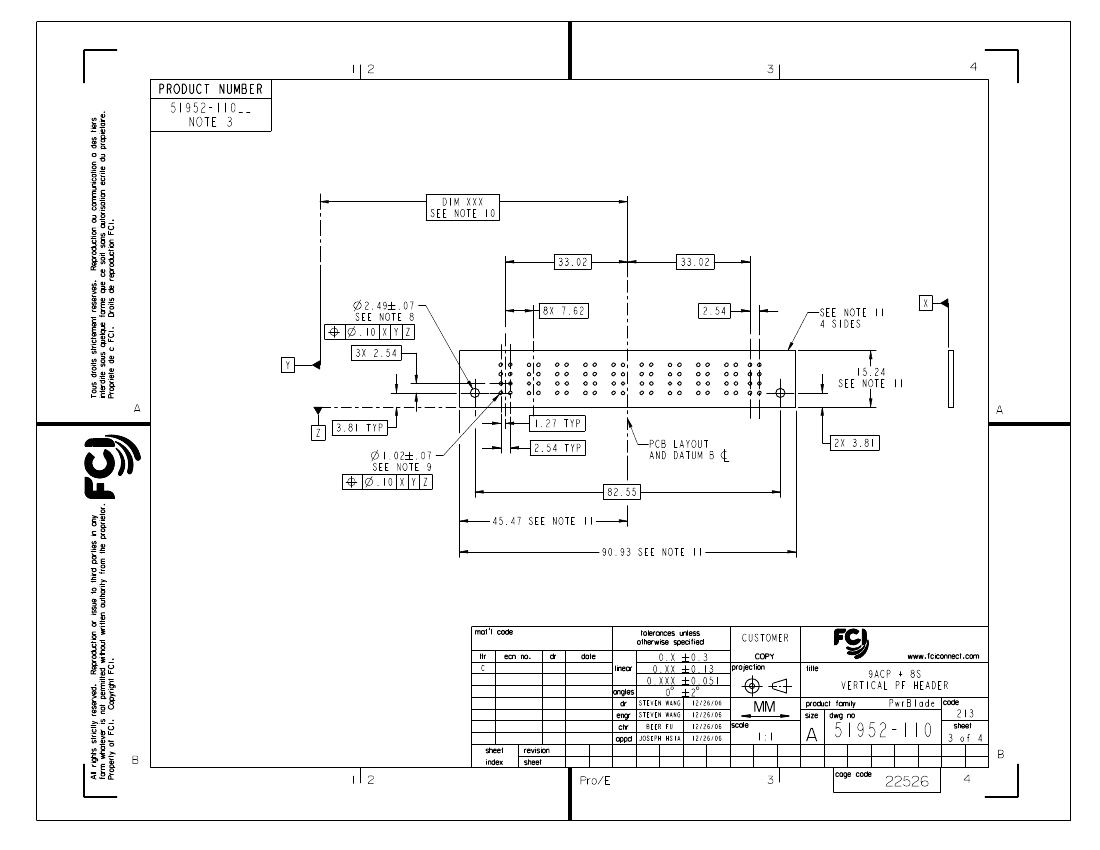

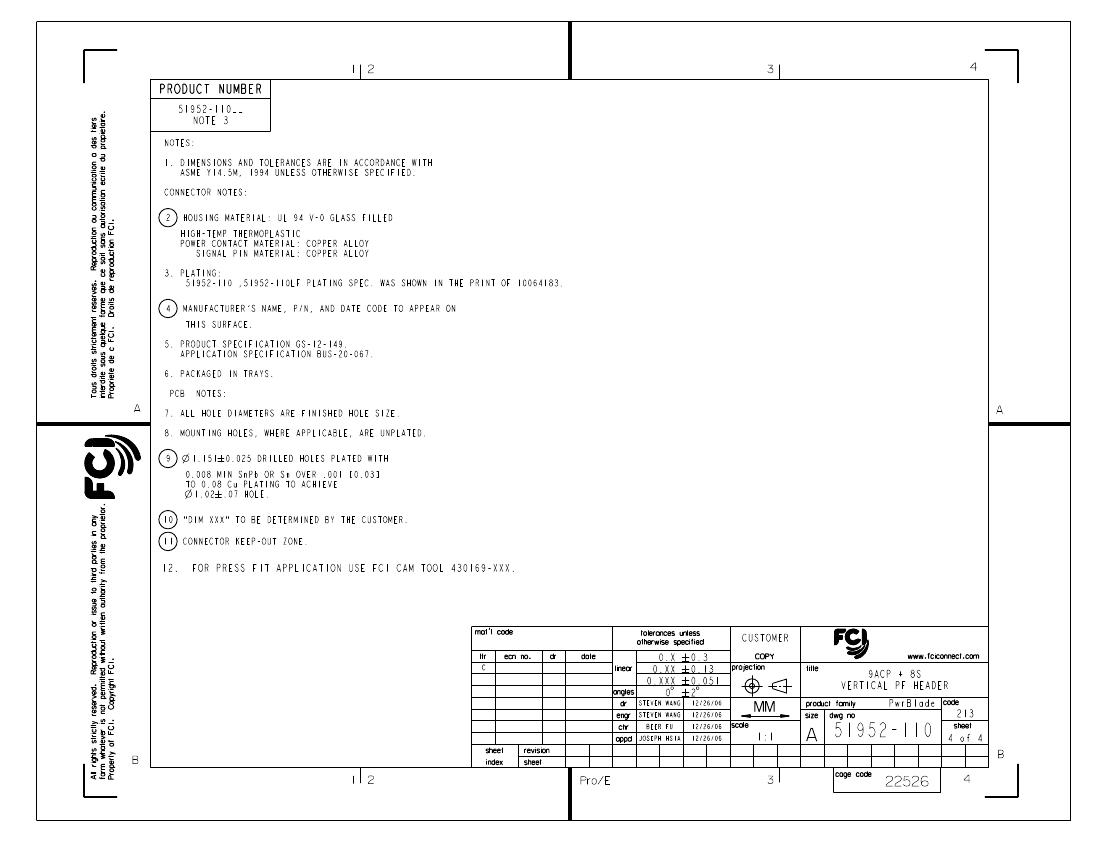

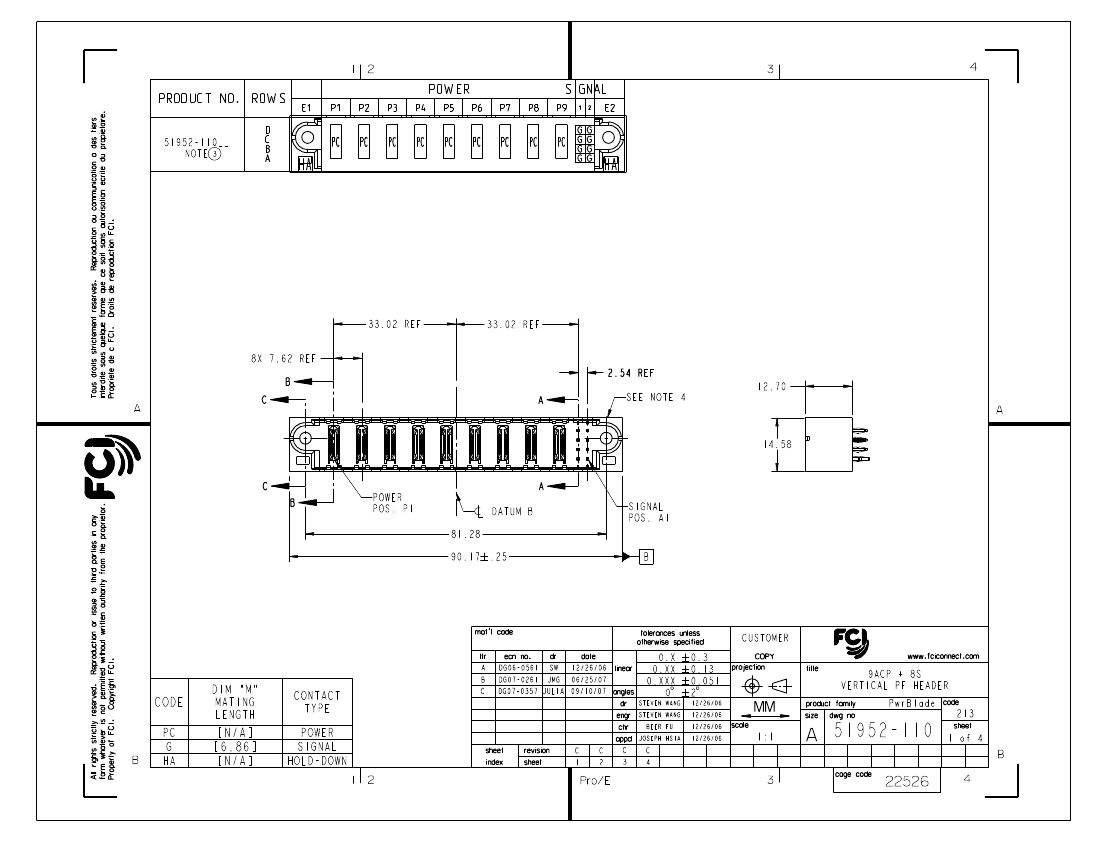

Preview

Download Datasheet

View All

PDM: Rev:C

STATUS:

Released

Printed: Dec 20, 2010

.
