Instrument panel and cockpit connectors
Component-to-wire connectors
DuoTwin / 2.8 mm terminals
78 way female housing for 0.64 + 1.5 mm terminals

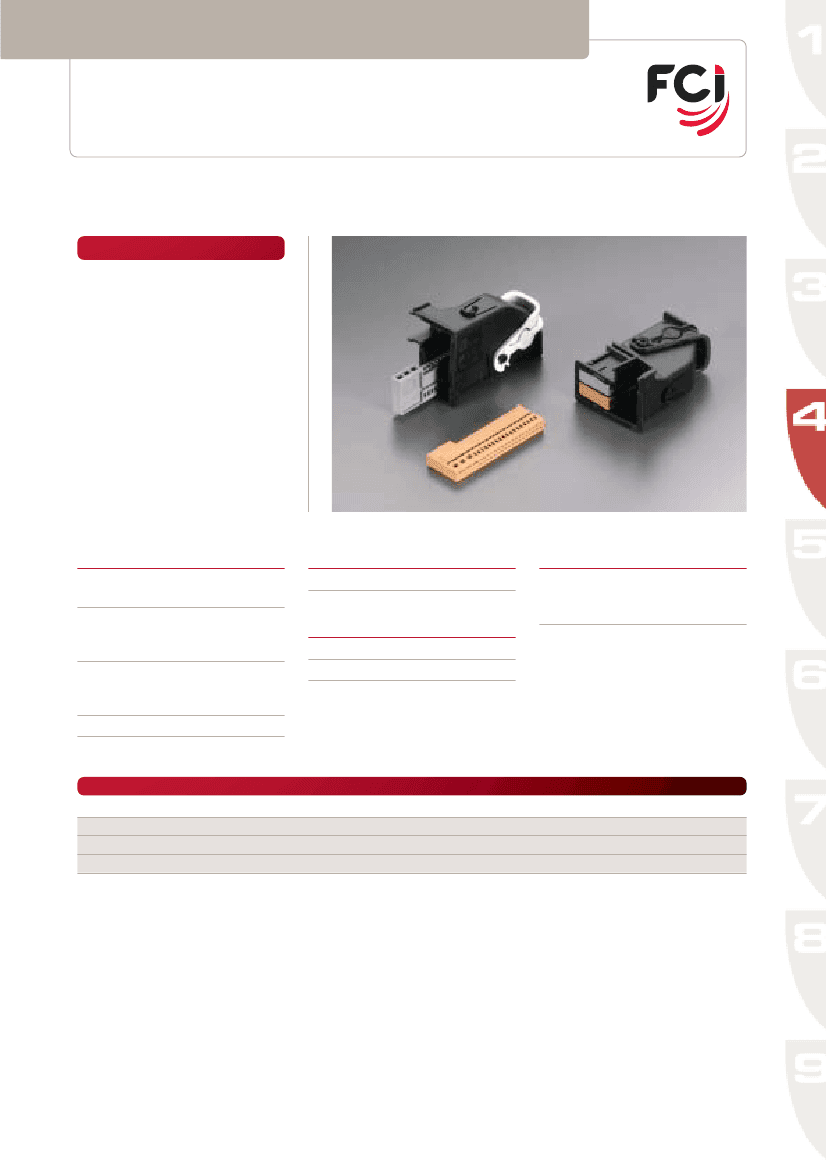

Features
•
High density modular connector
•
•
•
•
•
•
system
36 x 0.64 + 3 x 1.5 mm position
modules
Terminal position assurance (T.P.A.)
Connector system assurance (C.P.A.)
Prefixed locking level
Mechanical polarization
Cable protection cover
Performance characteristics
•
Temperature range:
from -40°C to +120°C
Construction
•
Housing material:
PA/PBT
Connector compatibility
•
Usable terminals:
- DuoTwin 0.64 mm female terminals
- 2.8 mm female terminals
•
Contact retention force:
> 50 N for 0.64 mm DuoTwin
> 55 N for 1.5 mm DCS-2
Tooling
•
Terminal removal tool:
•
Mini applicator:
Consult us
Consult us
•
Contact insertion force:
< 2 N for 0.64 mm DuoTwin
< 10 N for 1.5 mm DCS-2
•
Connector mating force:
< 80 N
Part Numbers
3 023 30 01
3 023 31 12
3 023 31 08
3 023 31 12
No. of position
78
39
39
Terminal size
72 x [0.64 mm] + 6 x [1.5 mm]
36 x [0.64 mm] + 3 x [1.5 mm]
36 x [0.64 mm] + 3 x [1.5 mm]
Type
Module holder + modules
Module
Module
Module holder
Colour
Brown
Grey
Black
4.17
Instrument panel and cockpit connectors
Component-to-wire connectors
DuoTwin / 2.8 mm terminals
78 way female housing for 0.64 + 1.5 mm terminals

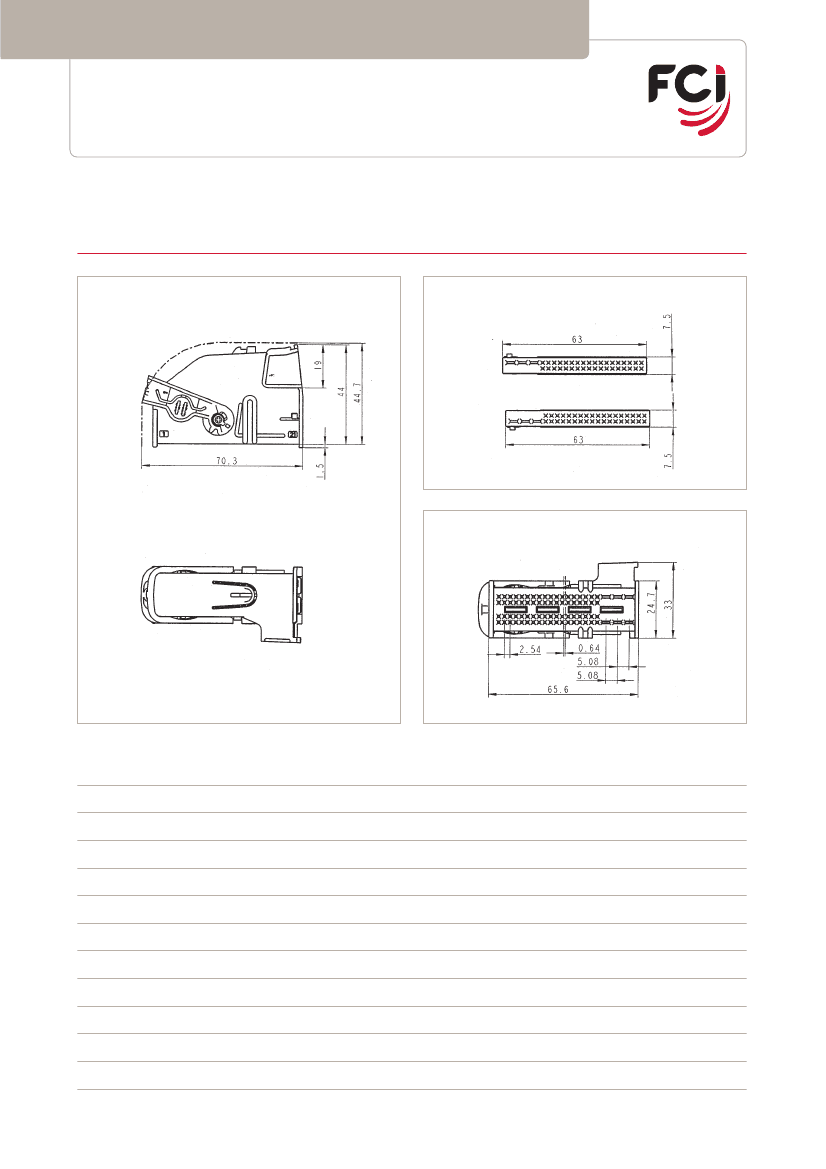

Dimensional characteristics
Module holder
Female module
Module holder
Notes:
4.18
